Model # 917386071 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917386071 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Lawn Mower Blade Adapter 851514
#57

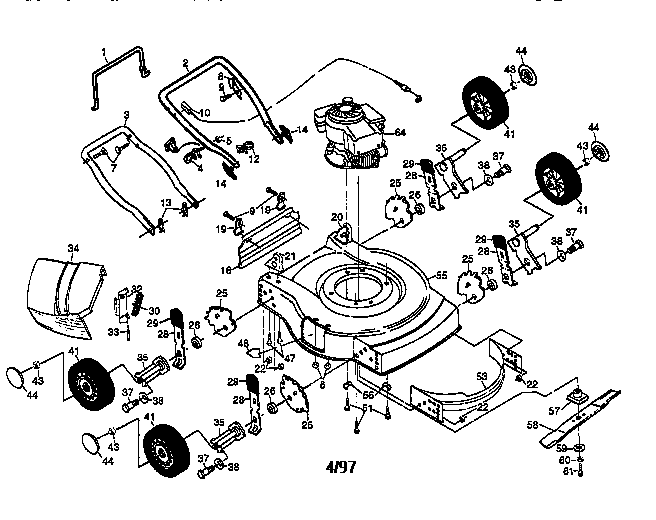

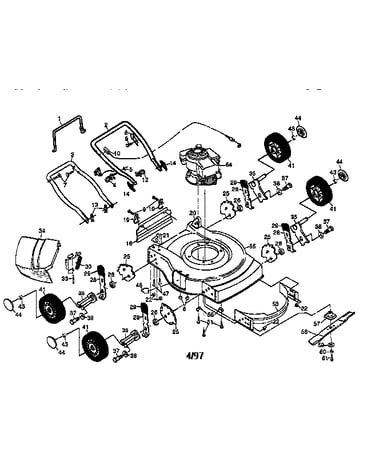

Rotary mower 917.386071 diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Rope Guide 153638
#4

Rotary mower 917.386071 diagram

Rope guide

Part #153638

Replaced by #586122501

?
Manufacturer substitution
This part replaces 153638. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#29

Rotary mower 917.386071 diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Tapping Screw 750097
#9

Rotary mower 917.386071 diagram

Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Spring 700331X004
#28

Rotary mower 917.386071 diagram

Spring

Part #700331X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 700331X004. Substitute parts can look different from the original.
$8.54
In Stock
Screw, 5/16-in 149741
#47

Rotary mower 917.386071 diagram

Screw, 5/16-in

Part #149741

Replaced by #532171877

?
Manufacturer substitution
This part replaces 149741. Substitute parts can look different from the original.
$8.54
In Stock
Hairpin 51793
#13

Rotary mower 917.386071 diagram

Hairpin

Part #51793

Replaced by #532051793

?
Manufacturer substitution
This part replaces 51793. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Rod.hinge.co 147286
#33

Rotary mower 917.386071 diagram

Rod.hinge.co

Part #147286

Replaced by #532147286

?
Manufacturer substitution
This part replaces 147286. Substitute parts can look different from the original.
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#59

Rotary mower 917.386071 diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Handle Bracket Assembly 151667X479
#20

Rotary mower 917.386071 diagram

Handle bracket assembly

Part #151667X479

Replaced by #532192983

?
Manufacturer substitution
This part replaces 151667X479. Substitute parts can look different from the original.
$37.31
In Stock
