Model # 72163659301 Official Kenmore microwave
Here are the diagrams and repair parts for Official Kenmore 72163659301 microwave, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

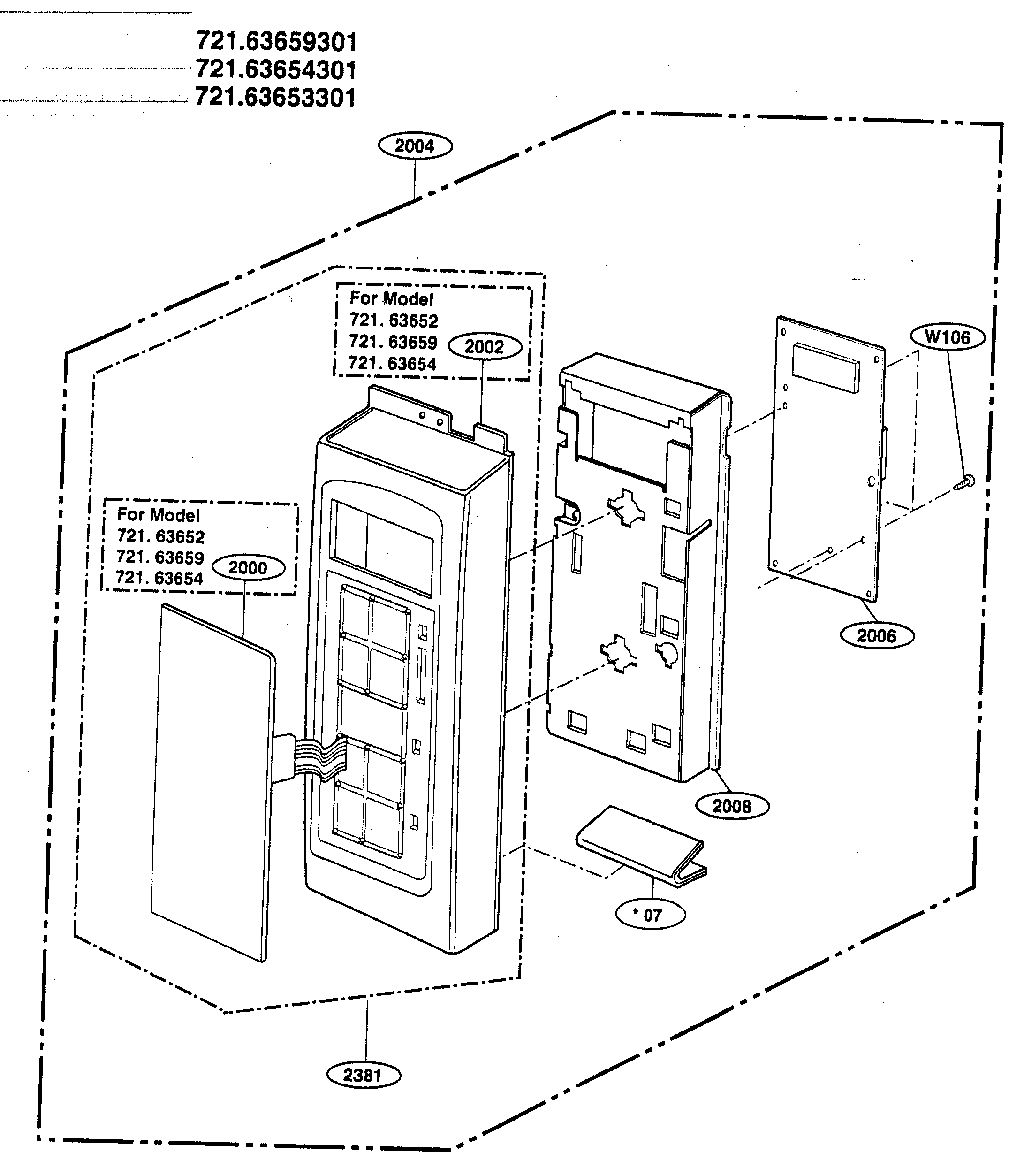

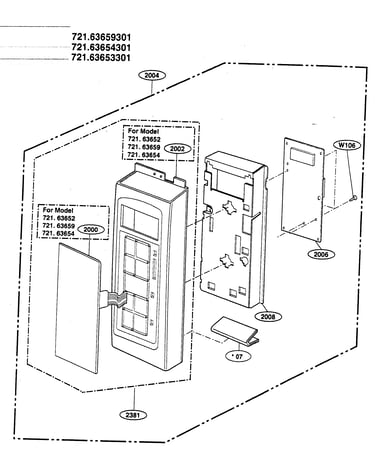

SELECT DIAGRAM
Browse Parts for
72163659301 Microwave
#5009

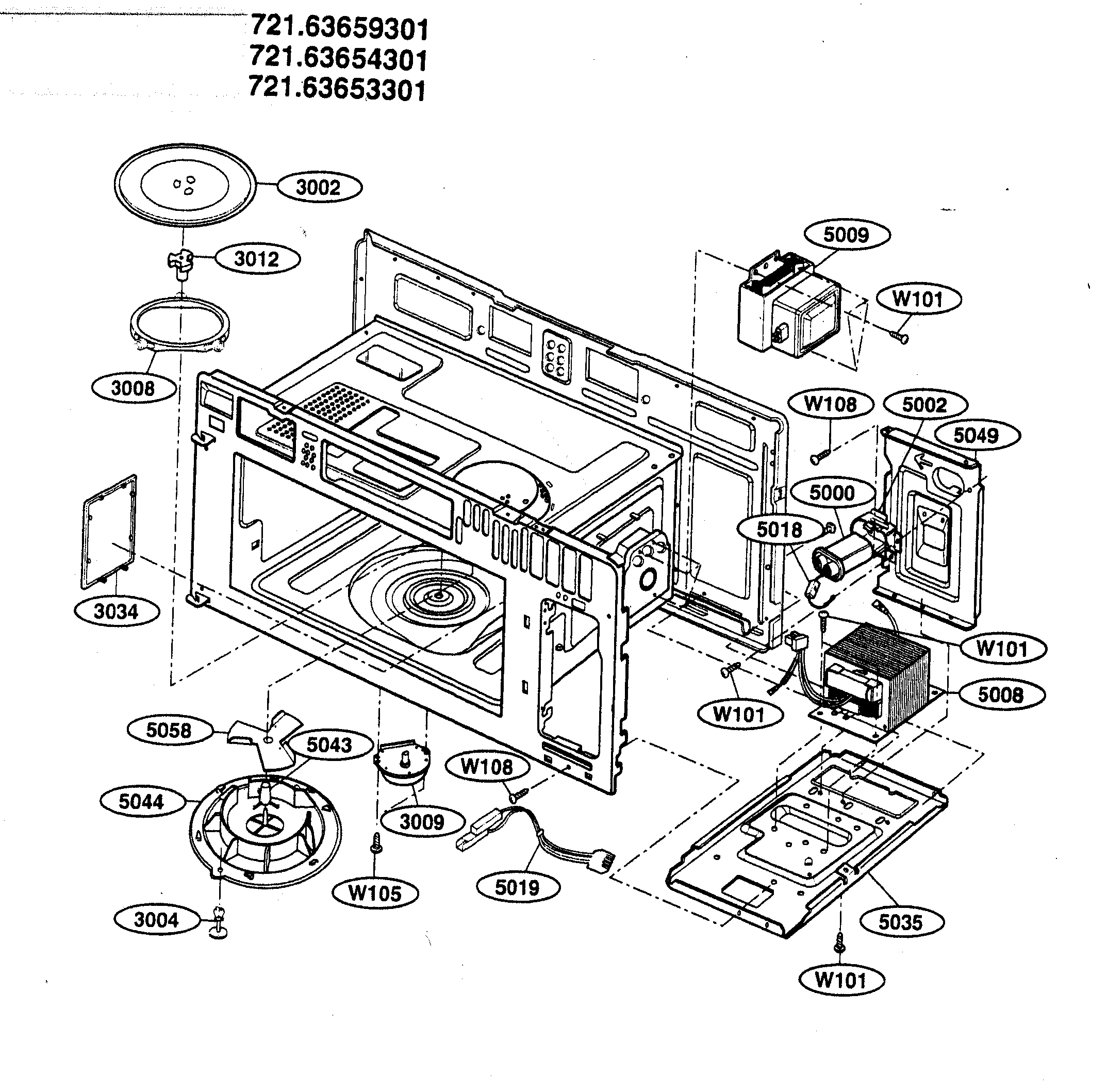

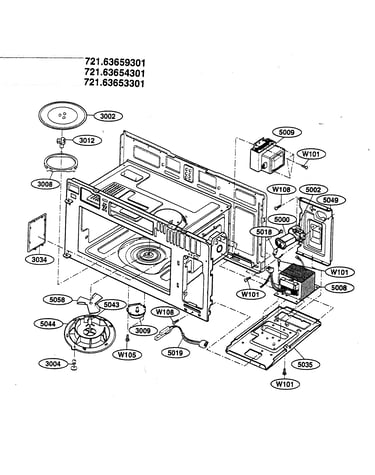

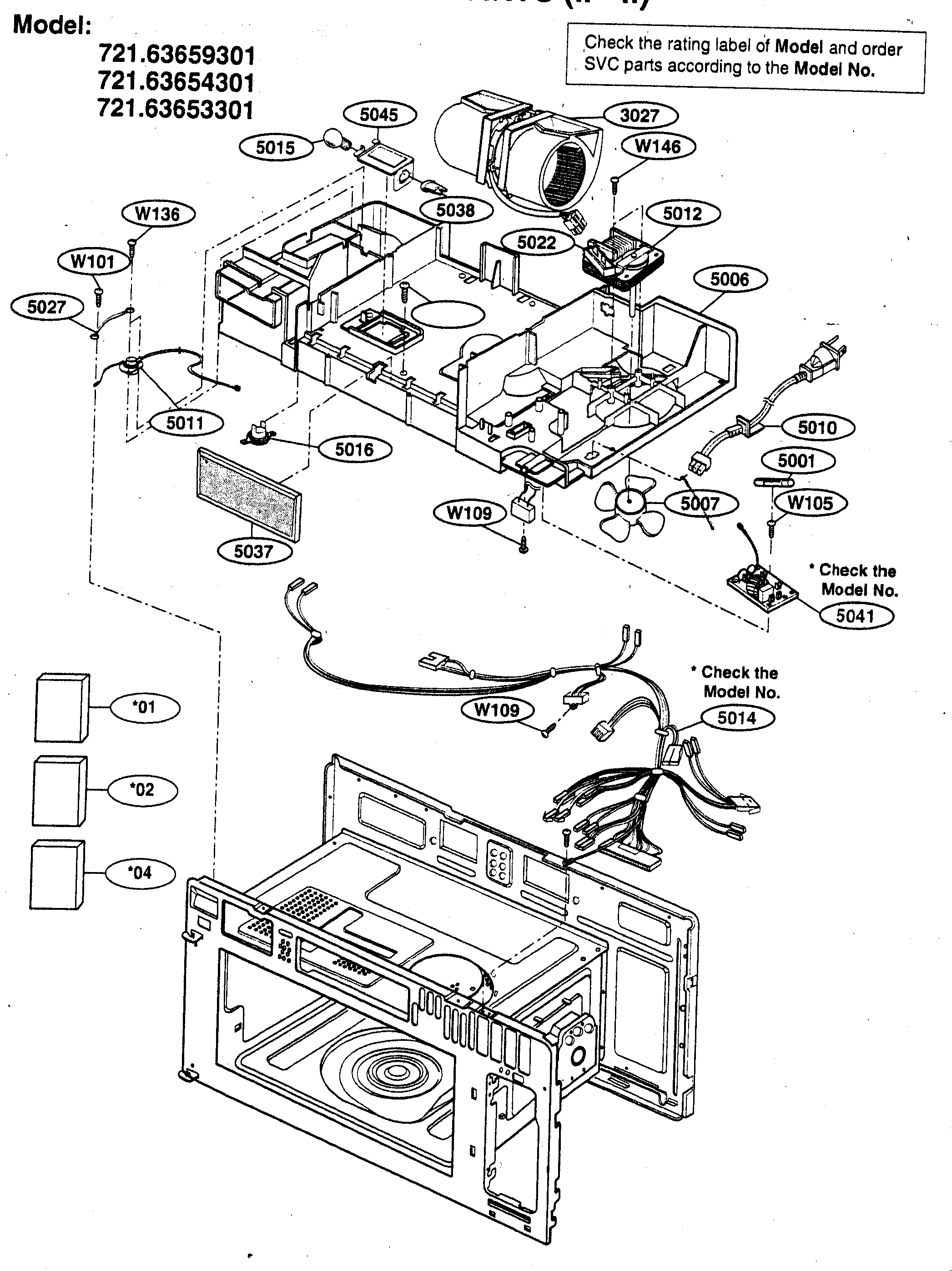

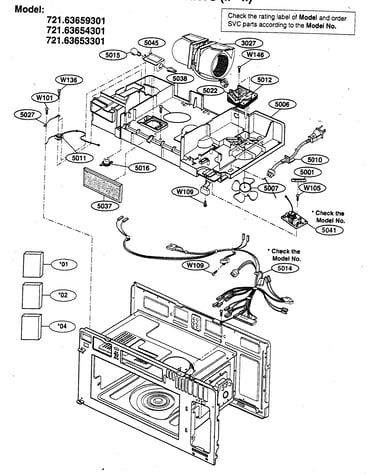

Interior parts 1 diagram
Microwave magnetron
Part #6324W1A001A
Replaced by #6324W1A001L
?
Manufacturer substitution
This part replaces 6324W1A001A. Substitute parts can look different from the original.
$128.12 |
9% OFF Phone Price : $140.12
In Stock
#4003

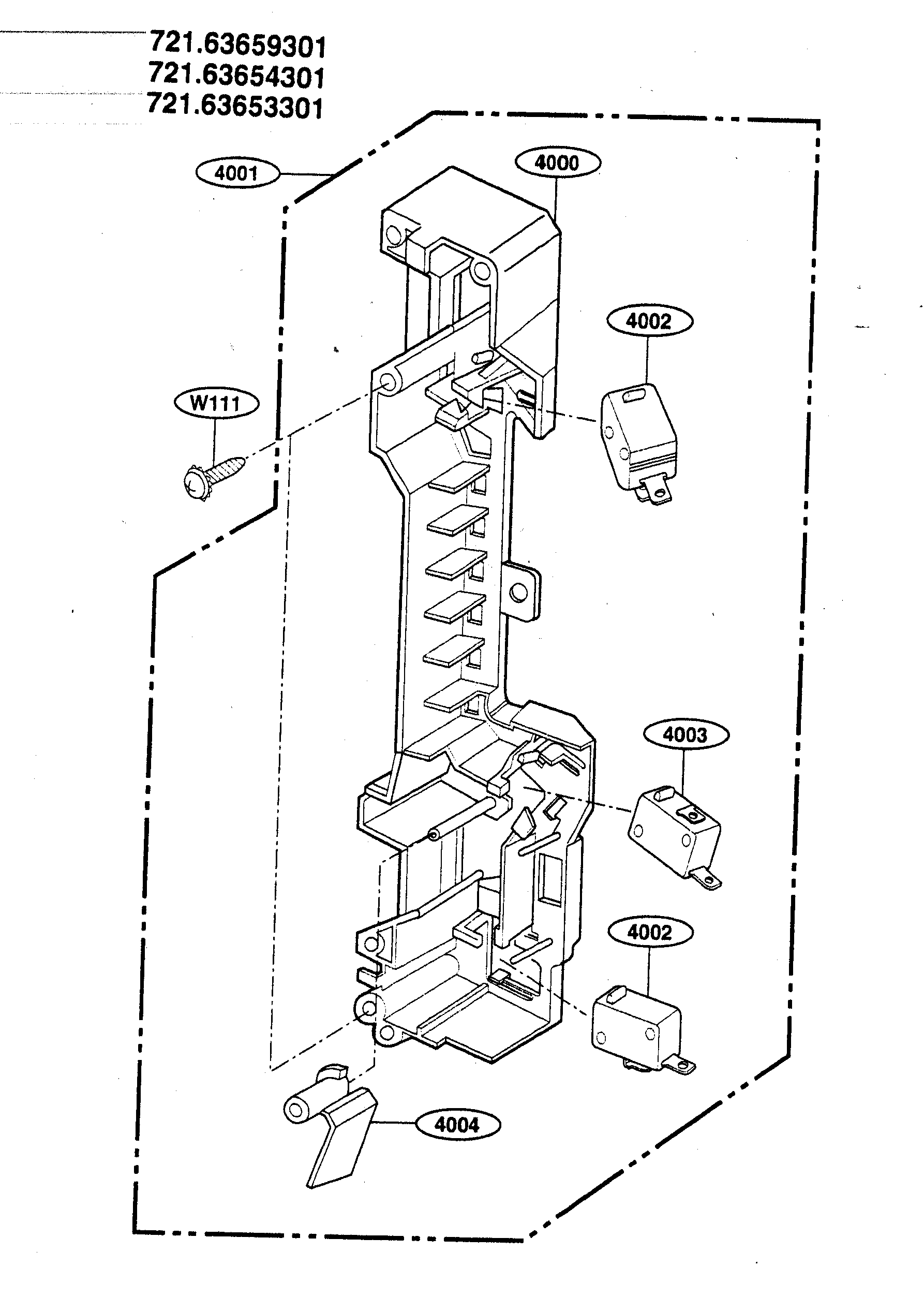

Latch board diagram
Microwave door interlock switch
Part #3B73361E
Replaced by #6600W1K001C
?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
$13.47 |
13% OFF Phone Price : $15.47
In Stock
#3028

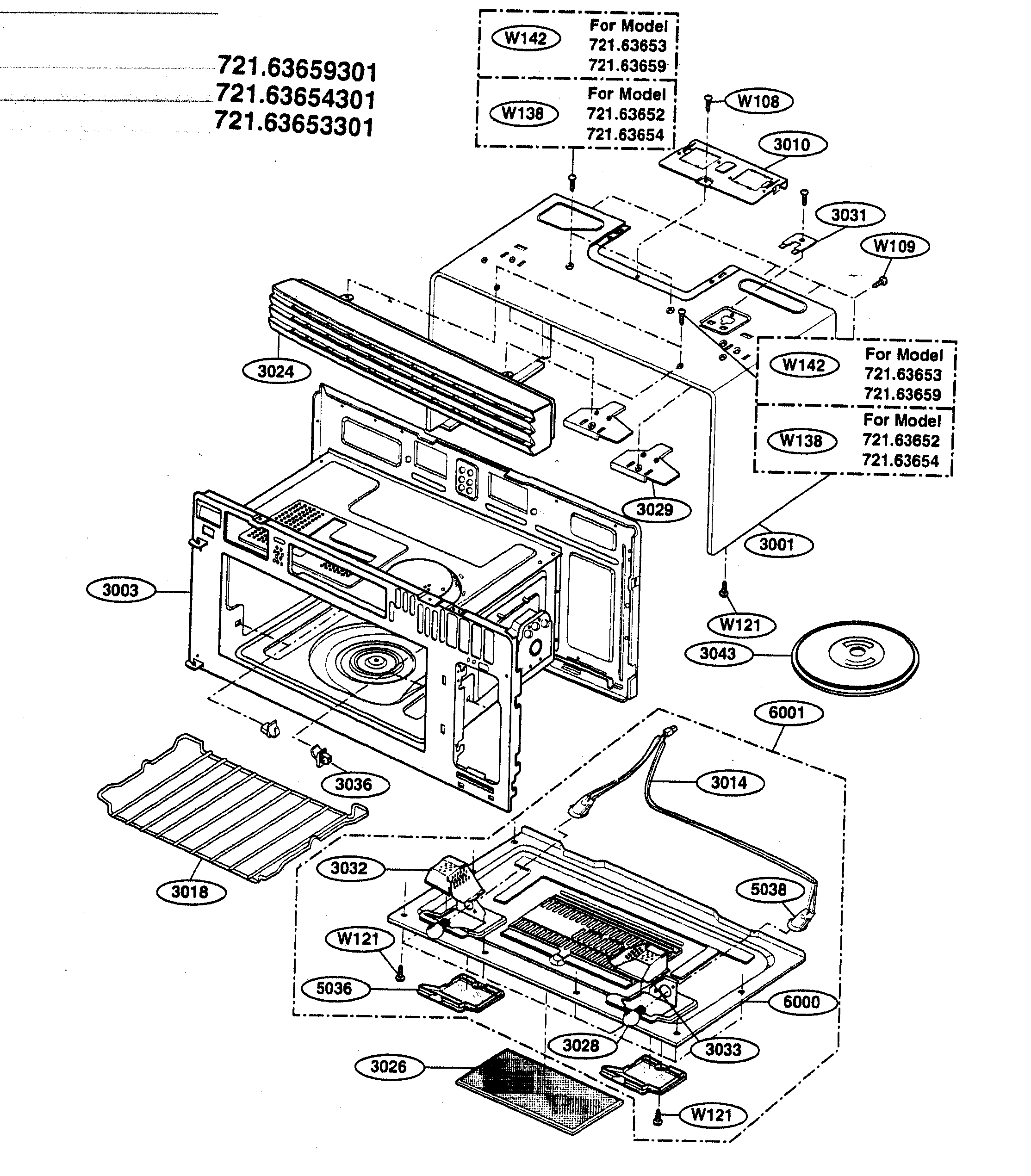

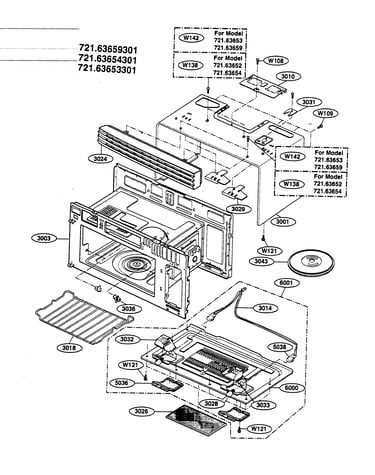

Oven cavity diagram
Oven lamp
Part #6912W3Q001A
Replaced by #6912W1Z004B
?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Microwave thermostat (replaces 6930w1a002k, 6930wrt003c)
Part #6930W1A003J
$12.76 |
14% OFF Phone Price : $14.76
In Stock
#4001

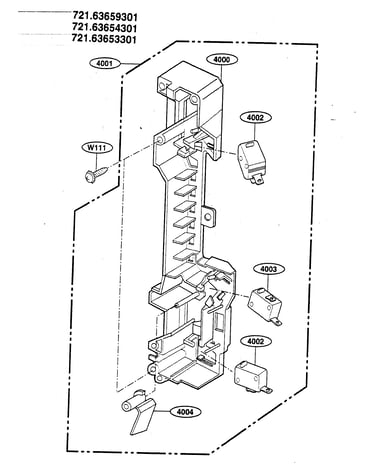

Latch board diagram
Microwave latch body assembly (replaces 3501w1a019p)
Part #3501W1A019C
Replaced by #AEJ75540901
?
Manufacturer substitution
This part replaces 3501W1A019C. Substitute parts can look different from the original.
$8.00 |
11% OFF Phone Price : $9.00
In Stock
#1006

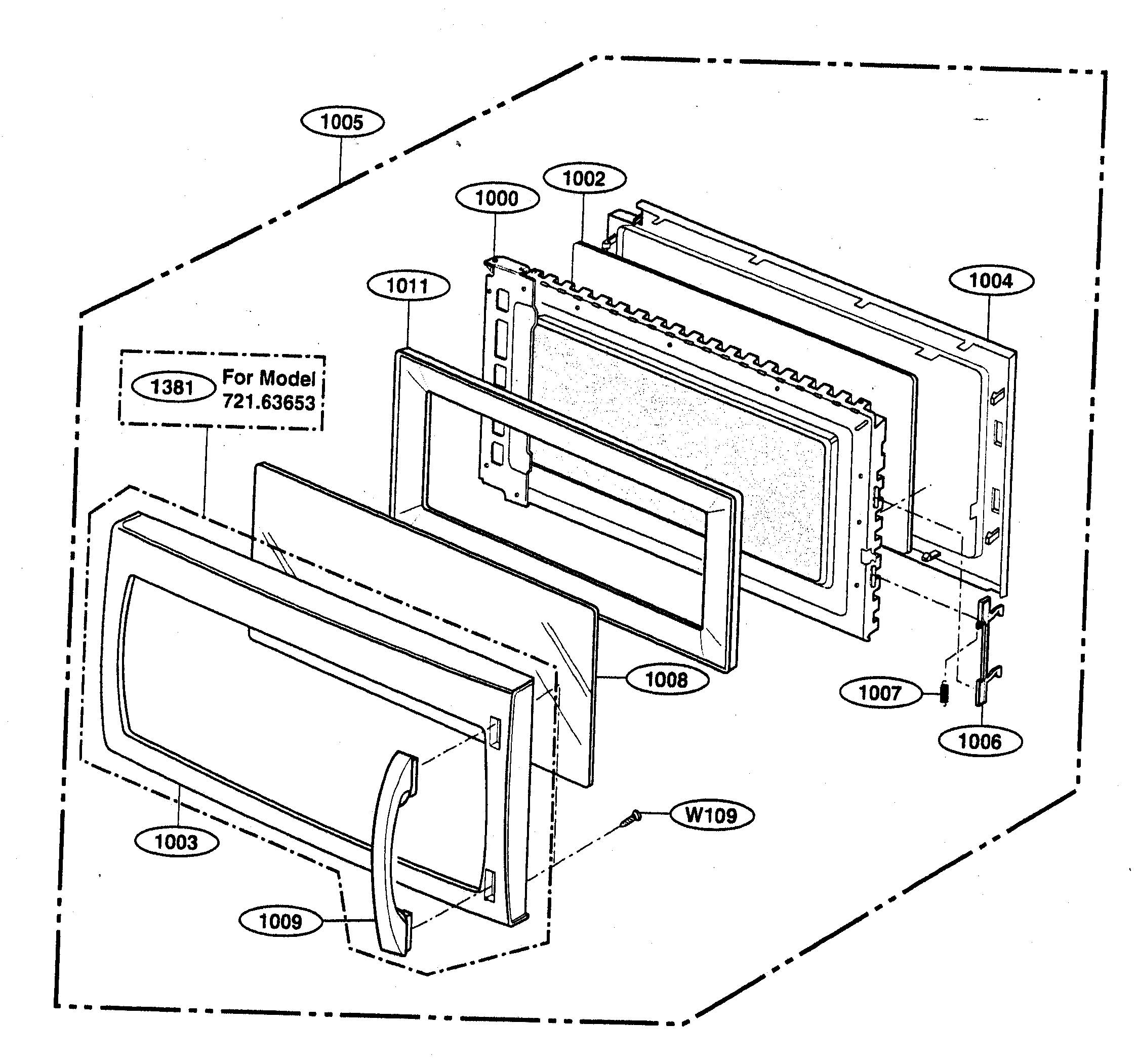

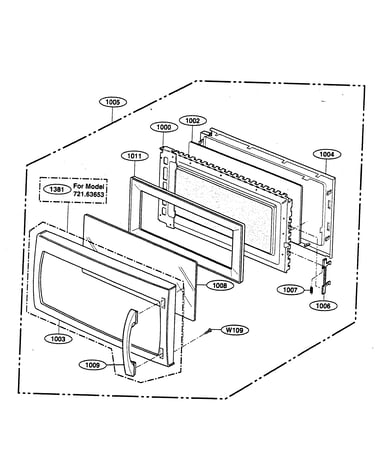

Door parts diagram
Microwave door latch hook
Part #4026W2A015A
Replaced by #4026W2A019C
?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
This item is not returnable
$8.00 |
11% OFF Phone Price : $9.00
In Stock
#4002
Latch board diagram
Ge microwave micro-switch (replaces 46-692286-3)
Part #3B73362F
$12.76 |
14% OFF Phone Price : $14.76
In Stock
#6010

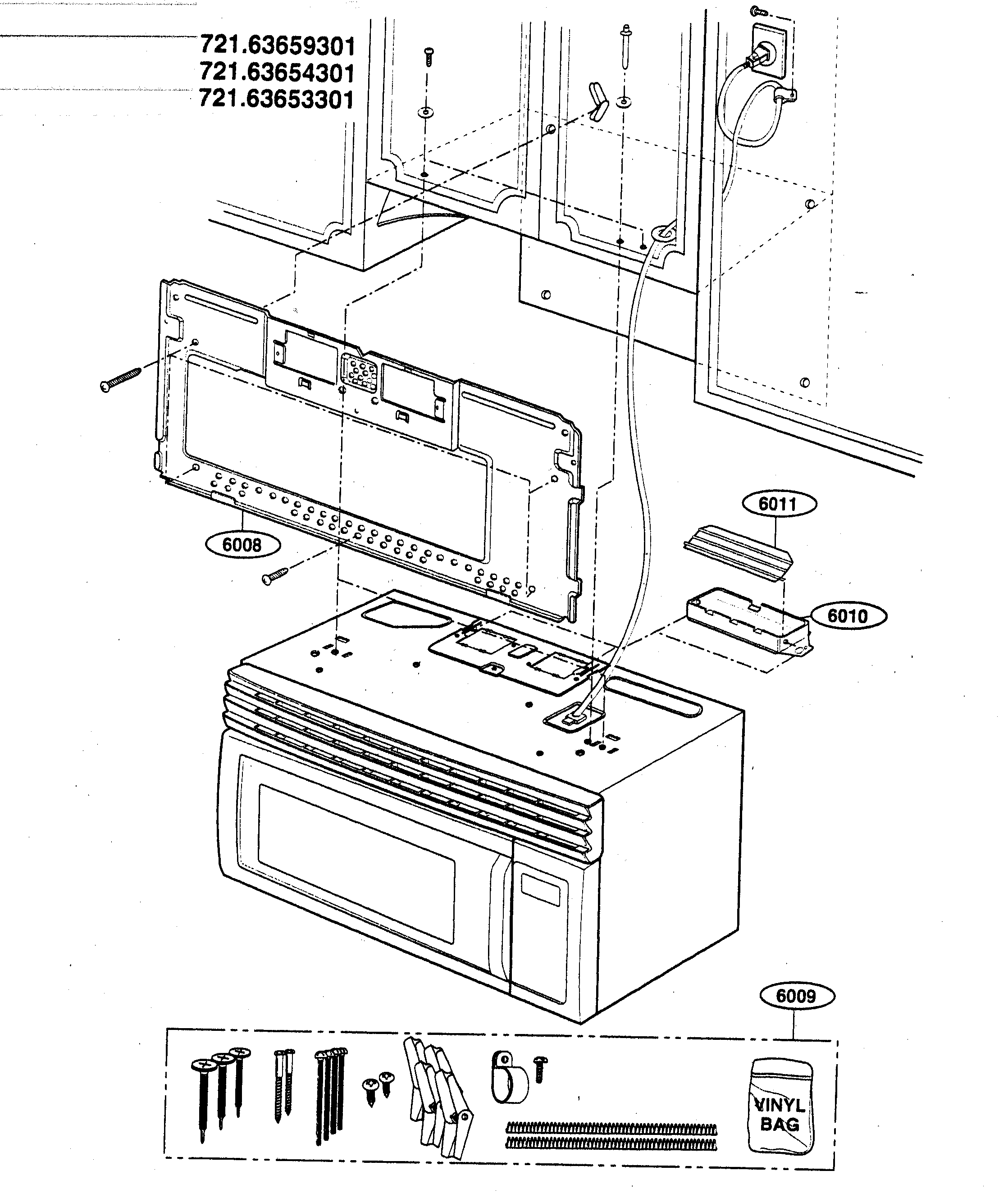

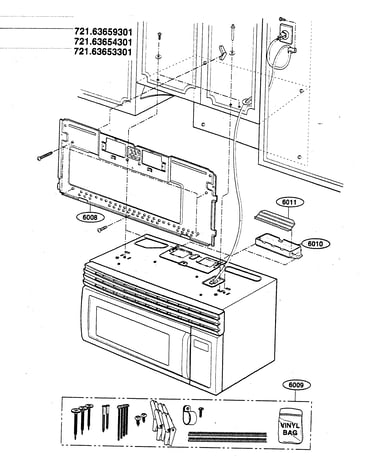

Installation diagram
Microwave exhaust damper bracket
Part #3B72144A
Replaced by #4810W1A151A
?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
This item is not returnable
$13.38 |
13% OFF Phone Price : $15.38
In Stock
#6011
Installation diagram
Damper
Part #3B71432A
Replaced by #4900W1A001B
?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
This item is not returnable
$9.22 |
10% OFF Phone Price : $10.22
In Stock
#1007
Door parts diagram
Microwave door latch spring
Part #4970WRA001G
This item is not returnable
$8.00 |
11% OFF Phone Price : $9.00
In Stock
