Model # 20047004 Official Sears battery charger
Here are the diagrams and repair parts for Official Sears 20047004 battery charger, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
20047004 Battery Charger
#7

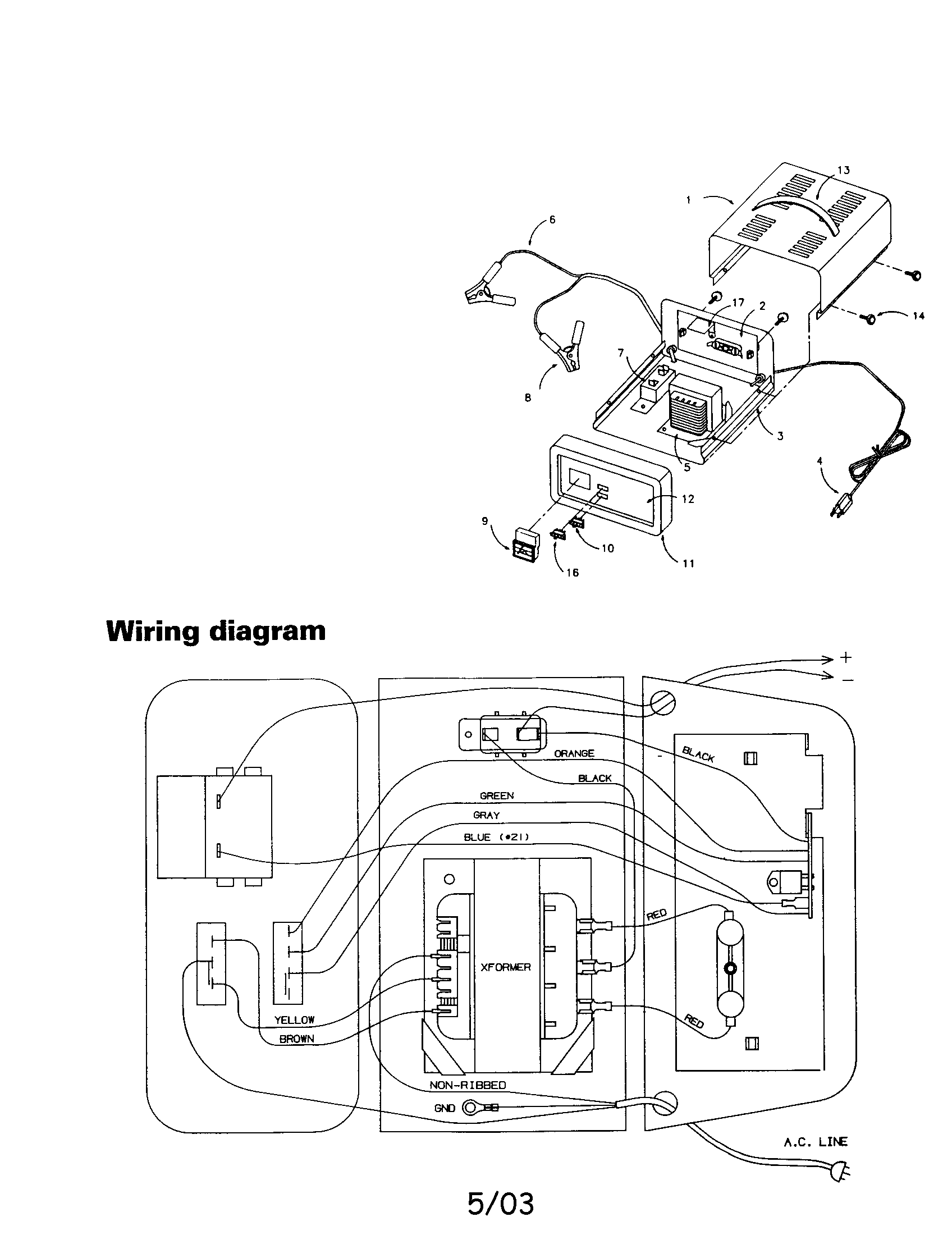

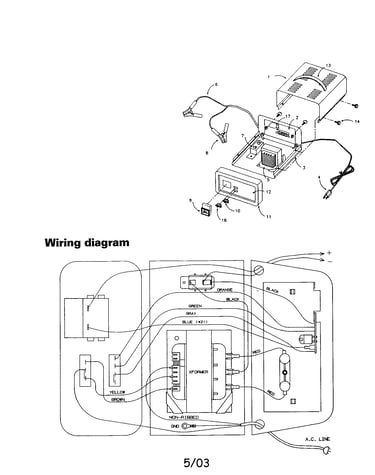

Cover/base/wiring diagram
Battery charger circuit breaker, 12-amp
Part #3999000045
The manufacturer no longer makes this part, and there's no substitute part
#16
Cover/base/wiring diagram
Switch sp3
Part #0499000030
The manufacturer no longer makes this part, and there's no substitute part
#10
Cover/base/wiring diagram
Battery charger power switch
Part #0499000032
The manufacturer no longer makes this part, and there's no substitute part
#13
Cover/base/wiring diagram
Handle
Part #3599000240
The manufacturer no longer makes this part, and there's no substitute part
#2
Cover/base/wiring diagram
Heatsink/d
Part #2299000844
The manufacturer no longer makes this part, and there's no substitute part
#3
Cover/base/wiring diagram
Base
Part #3799001382
The manufacturer no longer makes this part, and there's no substitute part
#6
Cover/base/wiring diagram
Cable
Part #3899000016
The manufacturer no longer makes this part, and there's no substitute part
#5
Cover/base/wiring diagram
Transformer
Part #93026334
The manufacturer no longer makes this part, and there's no substitute part
#4
Cover/base/wiring diagram
Ac cord
Part #90026058
The manufacturer no longer makes this part, and there's no substitute part
#17
Cover/base/wiring diagram
Control bo
Part #2299000715
The manufacturer no longer makes this part, and there's no substitute part
