GE
Gas Range

Model # PGB935YP1FS Official GE gas range

Here are the diagrams and repair parts for Official GE PGB935YP1FS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

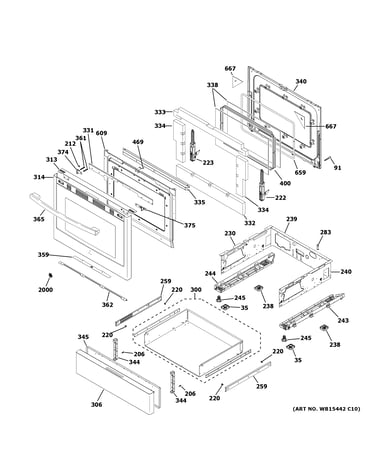

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Range Oven Burner Igniter WB13X25500
#218

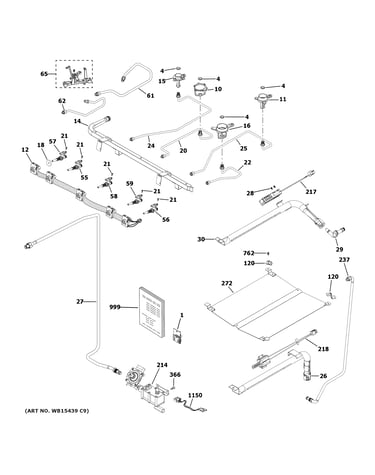

Gas & burner parts diagram

Range oven burner igniter

Part #WB13X25500

BEST SELLER
$79.59 |
7% OFF Phone Price : $85.59
In Stock
Range Extra Large Surface Burner, 18,000-btu WB16X24722
#159

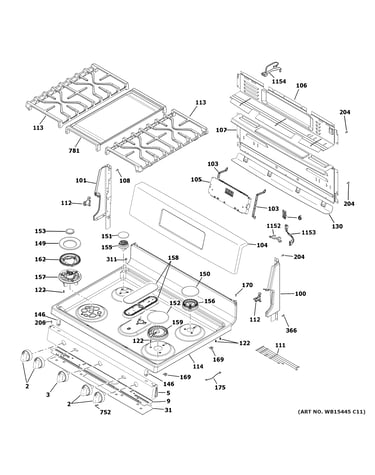

Control panel & cooktop diagram

Range extra large surface burner, 18,000-btu

Part #WB16X24722

BEST SELLER
This item is not returnable
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Range Oven Temperature Sensor WB24X25557
#43

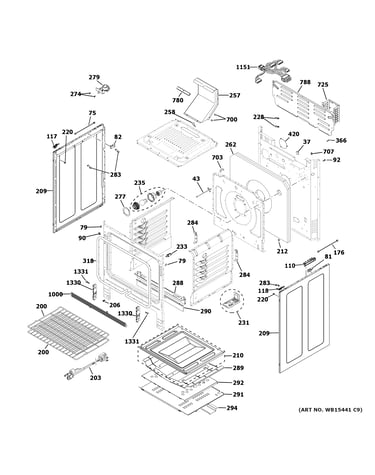

Body parts diagram
