Universal/Multiflex (Frigidaire)
Washer

Model # MWX233MBD2 Official Universal/Multiflex (Frigidaire) washer - 5995269031

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MWX233MBD2 washer - 5995269031, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

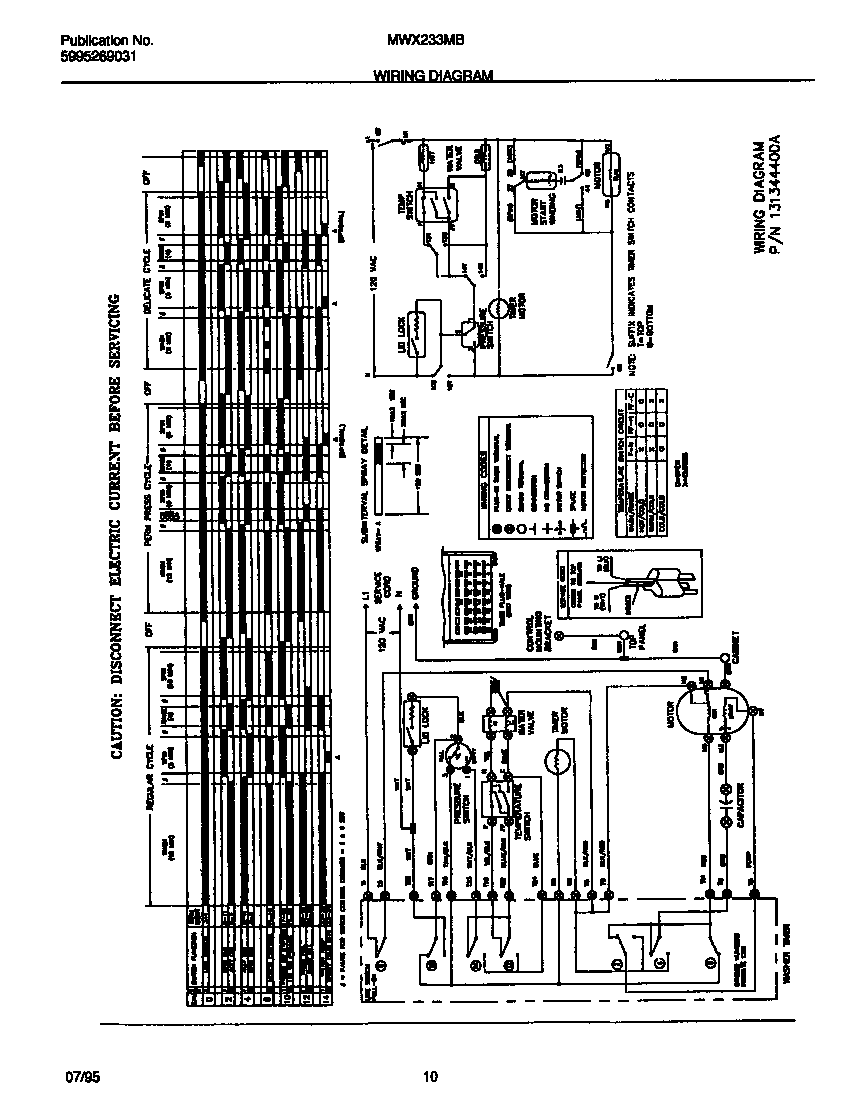

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Belt 131234000
#28

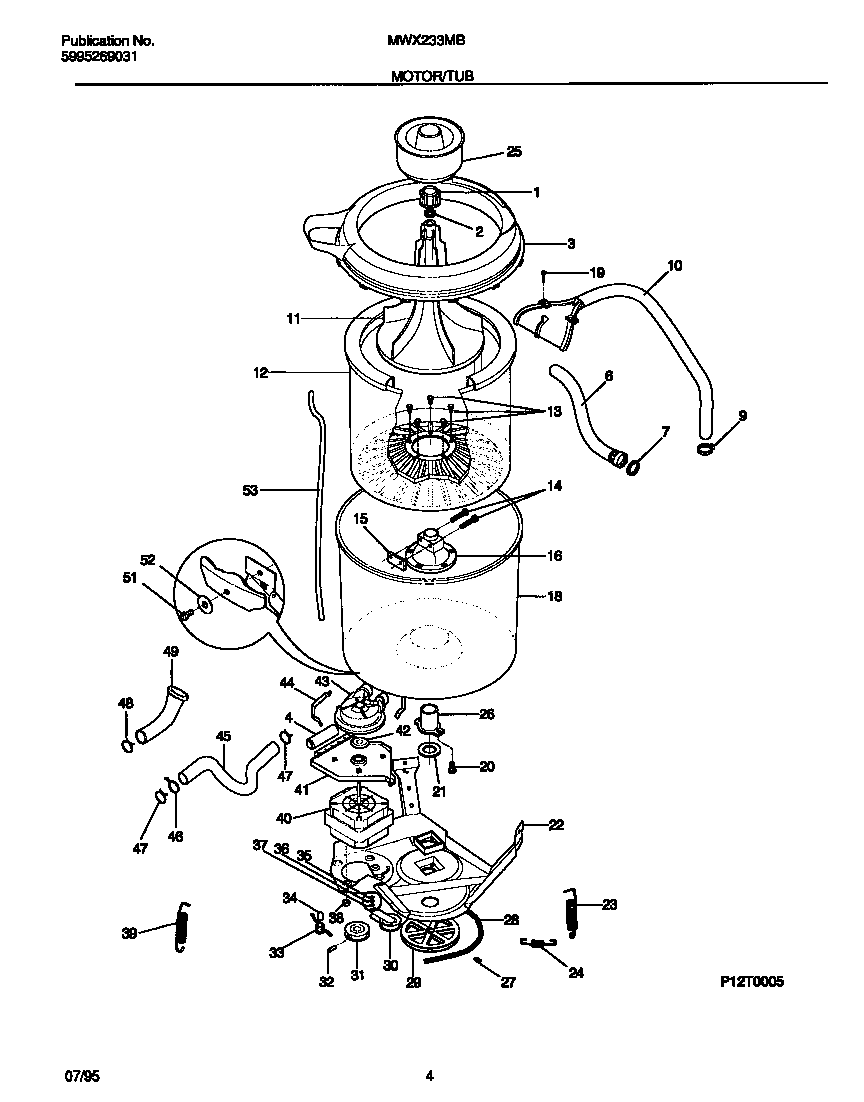

Motor/tub diagram

Belt

Part #131234000

Replaced by #134511600

?
Manufacturer substitution
This part replaces 131234000. Substitute parts can look different from the original.
BEST SELLER
$20.17 |
23% OFF Phone Price : $26.17
In Stock
Electrolux Washer Tub Seal Assembly 5303279394
#26

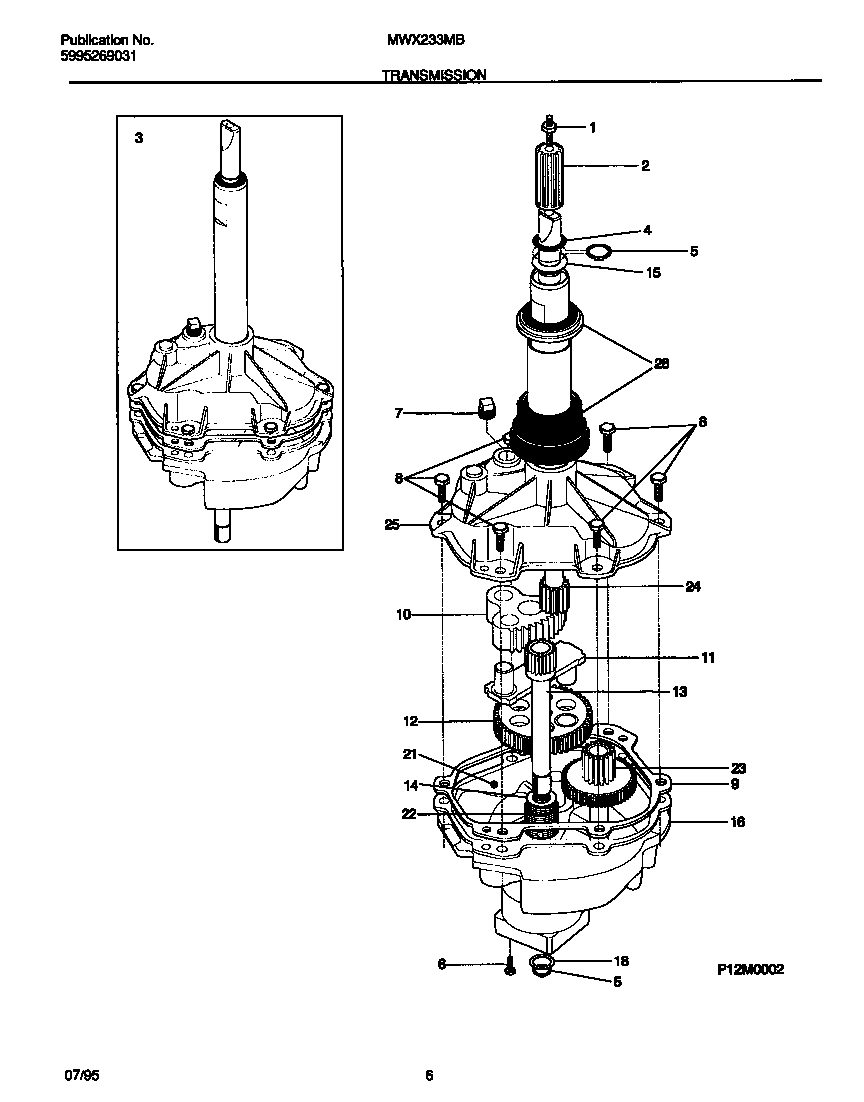

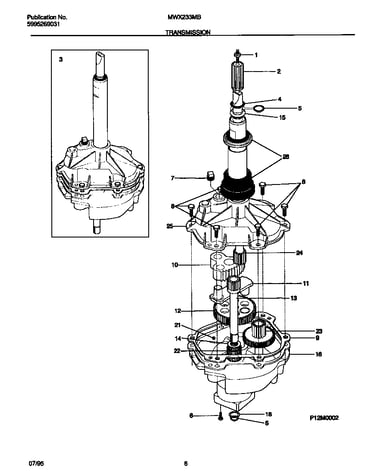

Transmission diagram

Electrolux washer tub seal assembly

Part #5303279394

The manufacturer no longer makes this part, and there's no substitute part

Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Screw Inc. 131192800
#14

Motor/tub diagram

Screw inc.

Part #131192800

Replaced by #137539500

?
Manufacturer substitution
This part replaces 131192800. Substitute parts can look different from the original.
BEST SELLER
$15.24 |
12% OFF Phone Price : $17.24
In Stock
Trunnion 131154501
#16

Motor/tub diagram

Trunnion

Part #131154501

Replaced by #131545101

?
Manufacturer substitution
This part replaces 131154501. Substitute parts can look different from the original.
BEST SELLER
$102.42 |
10% OFF Phone Price : $114.42
In Stock
Laundry Center Clamp 5303304824
#9

Motor/tub diagram

Laundry center clamp

Part #5303304824

Replaced by #5304488479

?
Manufacturer substitution
This part replaces 5303304824. Substitute parts can look different from the original.
BEST SELLER
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Hub 5303306139
#2

Transmission diagram

Hub

Part #5303306139

Replaced by #134418700

?
Manufacturer substitution
This part replaces 5303306139. Substitute parts can look different from the original.
$64.24 |
9% OFF Phone Price : $70.24
In Stock
Water Valve 131389300
#33

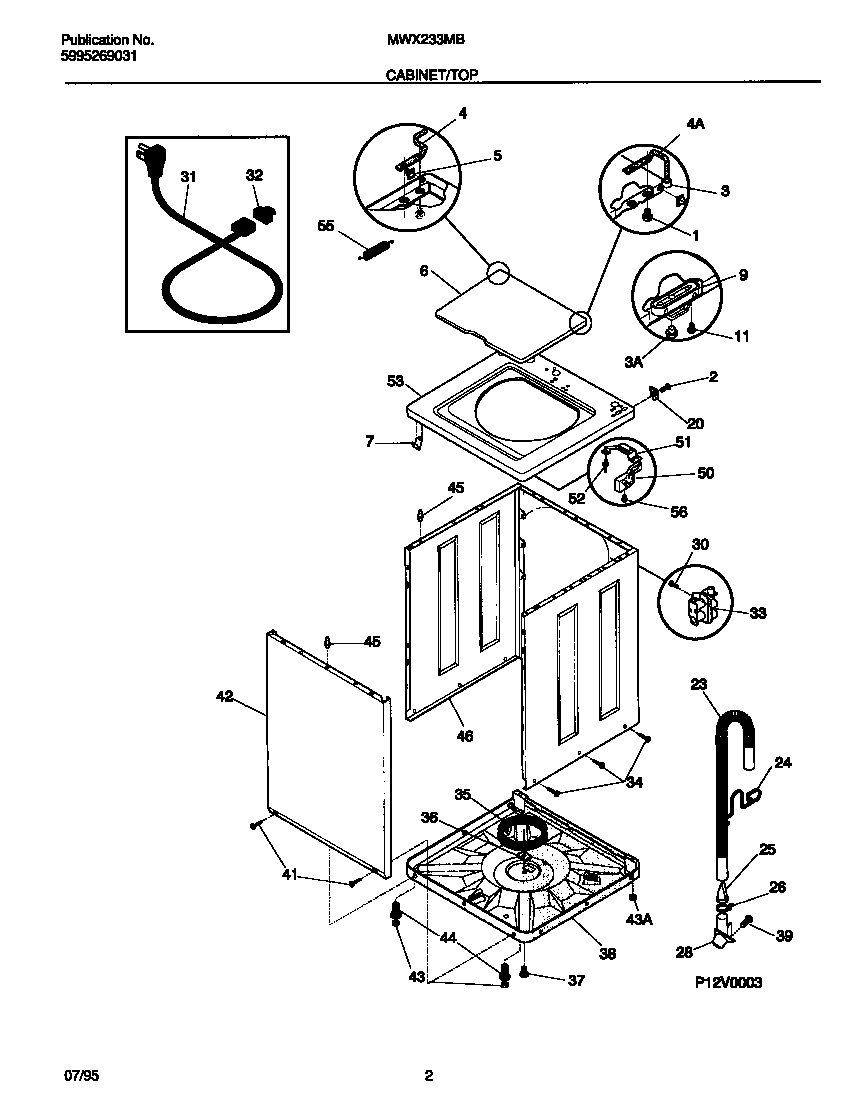

Cabinet/top diagram

Water valve

Part #131389300

Replaced by #134190200

?
Manufacturer substitution
This part replaces 131389300. Substitute parts can look different from the original.
$125.33 |
9% OFF Phone Price : $137.33
In Stock
Electrolux Washing Machine Washer (replaces 000132835, 08002401, 132835000, 132835-000, 3161289, 5303161410, F000132835, F132835, F132835000, F132835-000, Q000440115, Q440115) 5308002401
#21

Motor/tub diagram

Electrolux washing machine washer (replaces 000132835, 08002401, 132835000, 132835-000, 3161289, 5303161410, f000132835, f132835, f132835000, f132835-000, q000440115, q440115)

Part #5308002401

$20.89 |
22% OFF Phone Price : $26.89
In Stock
Kelvinator Washer Start Capacitor 131212301
#4

Motor/tub diagram

Kelvinator washer start capacitor

Part #131212301

This item is not returnable
$11.19 |
15% OFF Phone Price : $13.19
In Stock
