Toro
Gas Walk-Behind Mower

Model # 20330 (290000001-290999999) Official Toro lawn mower - 2009

Here are the diagrams and repair parts for Official Toro 20330-290000001-290999999 lawn mower - 2009, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

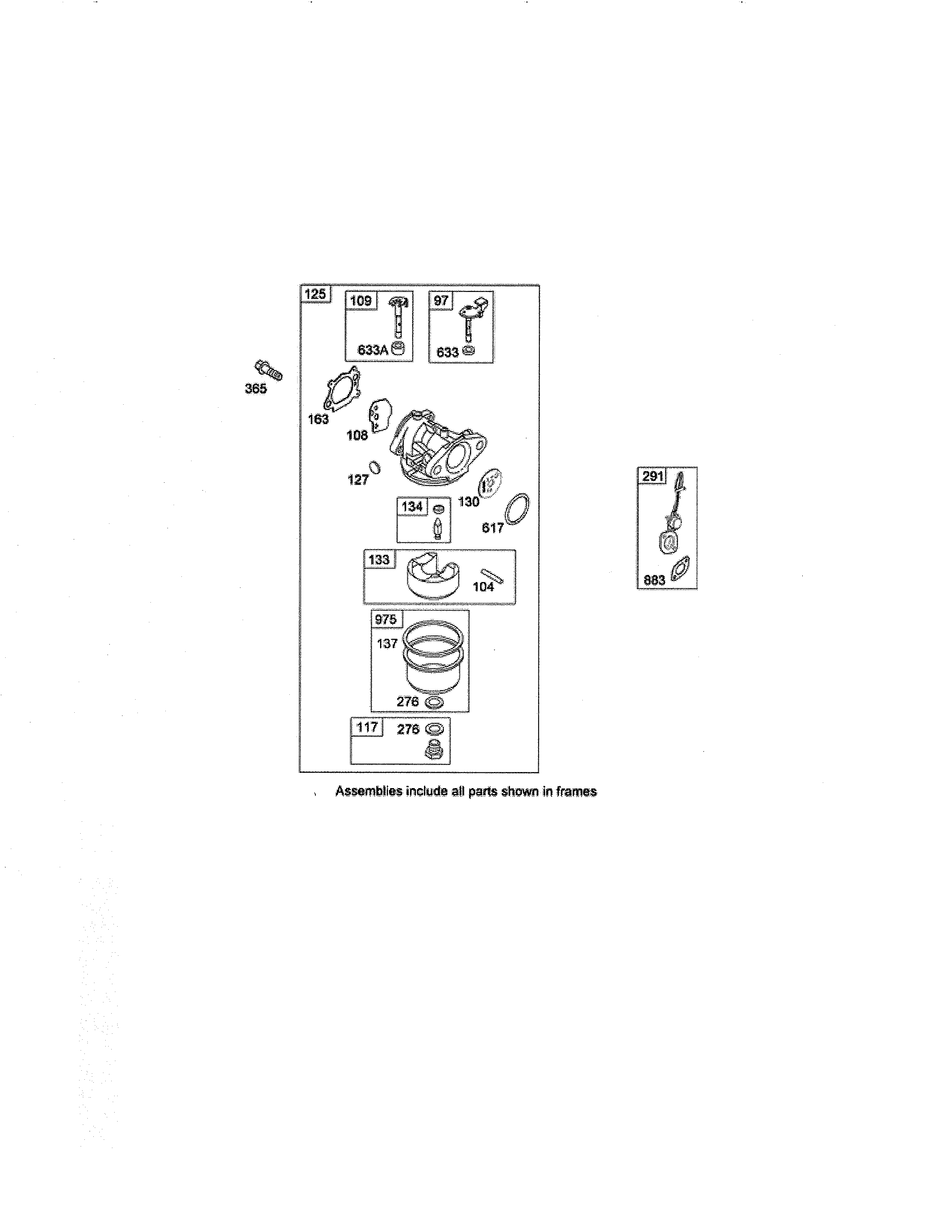

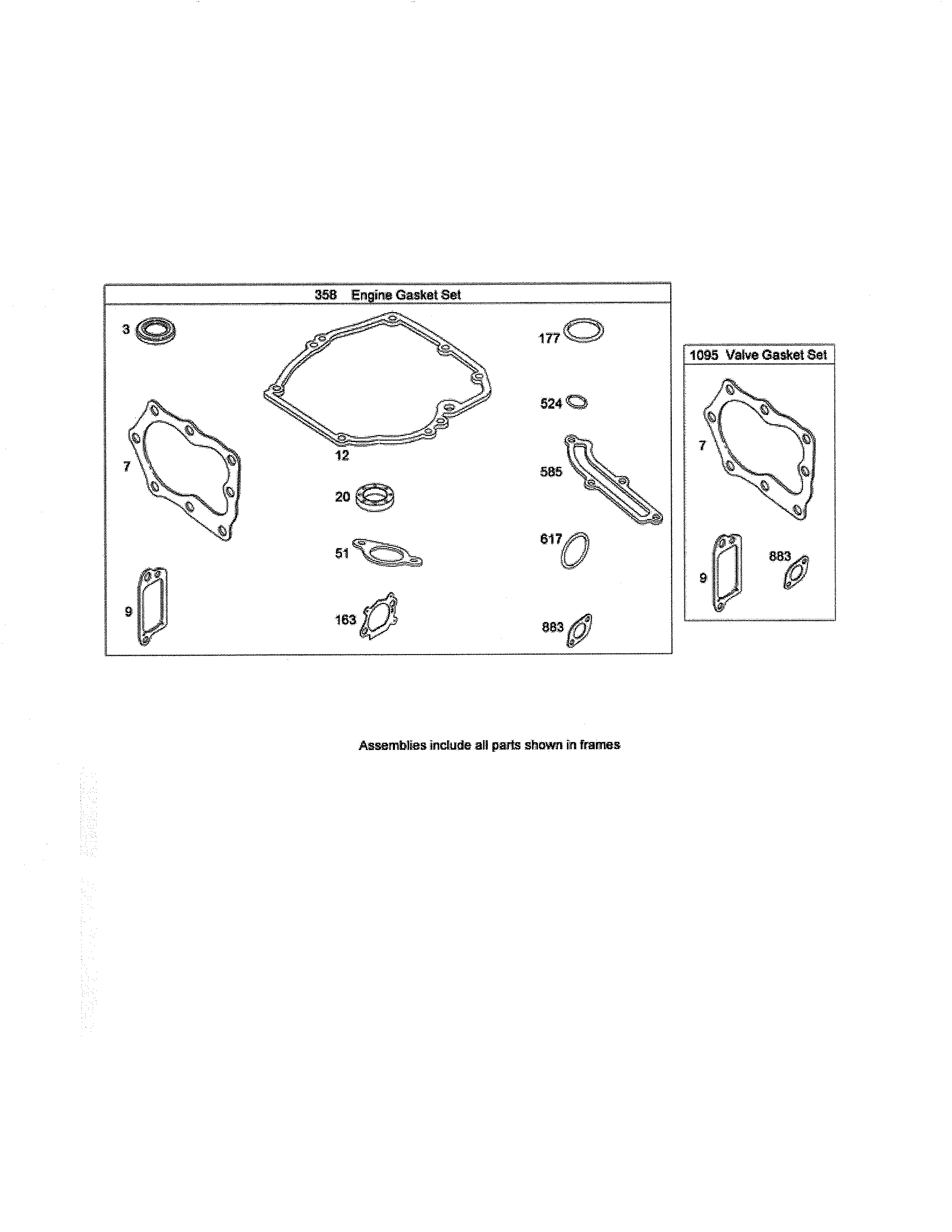

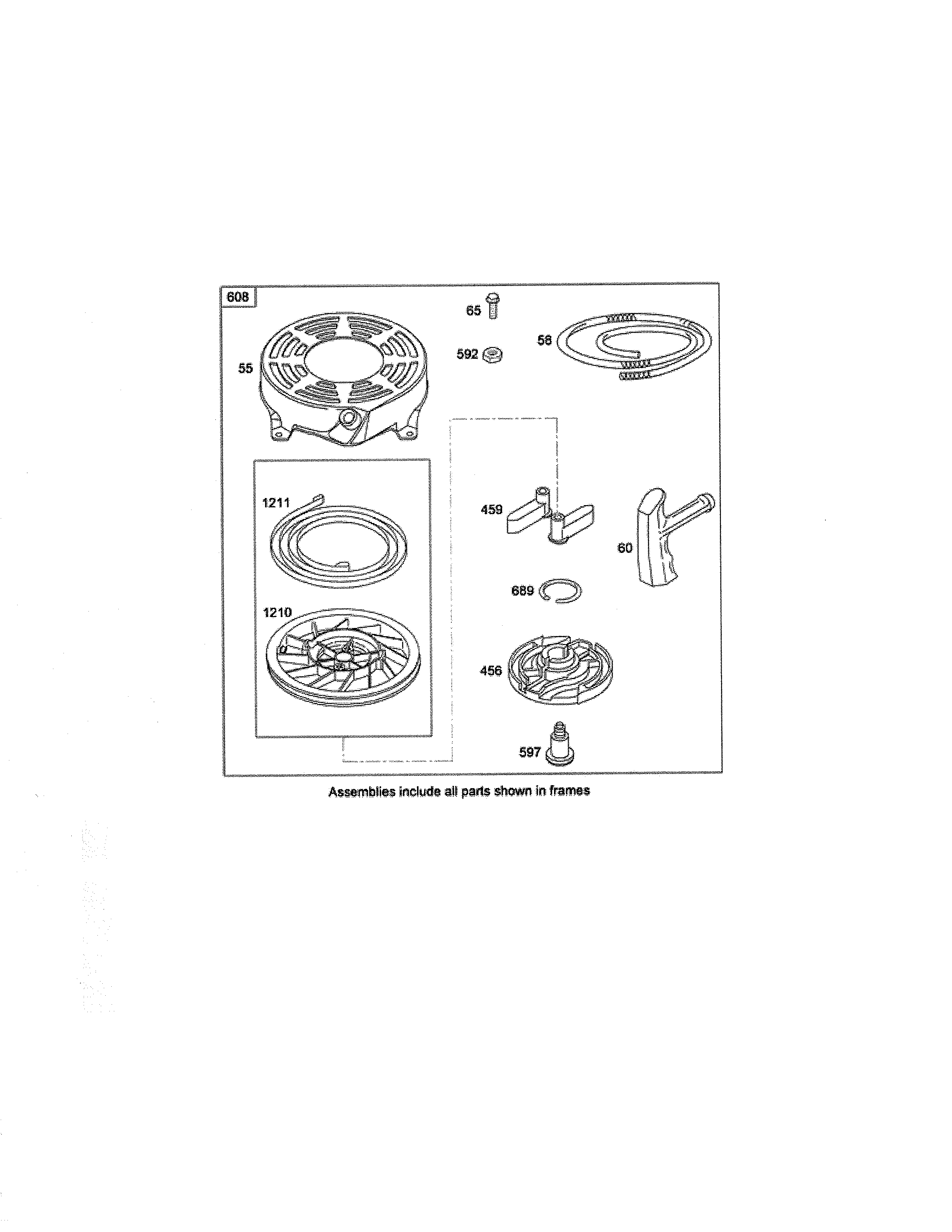

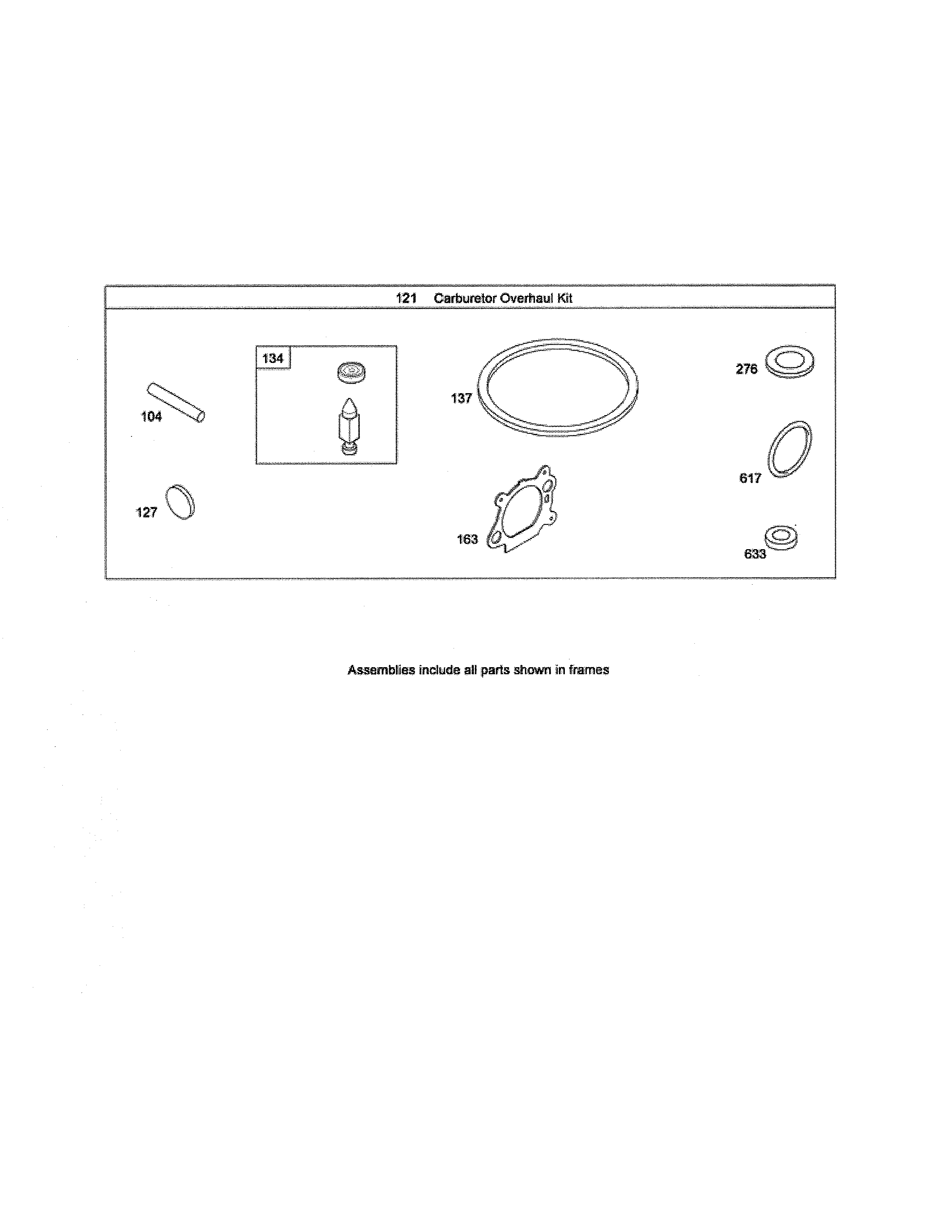

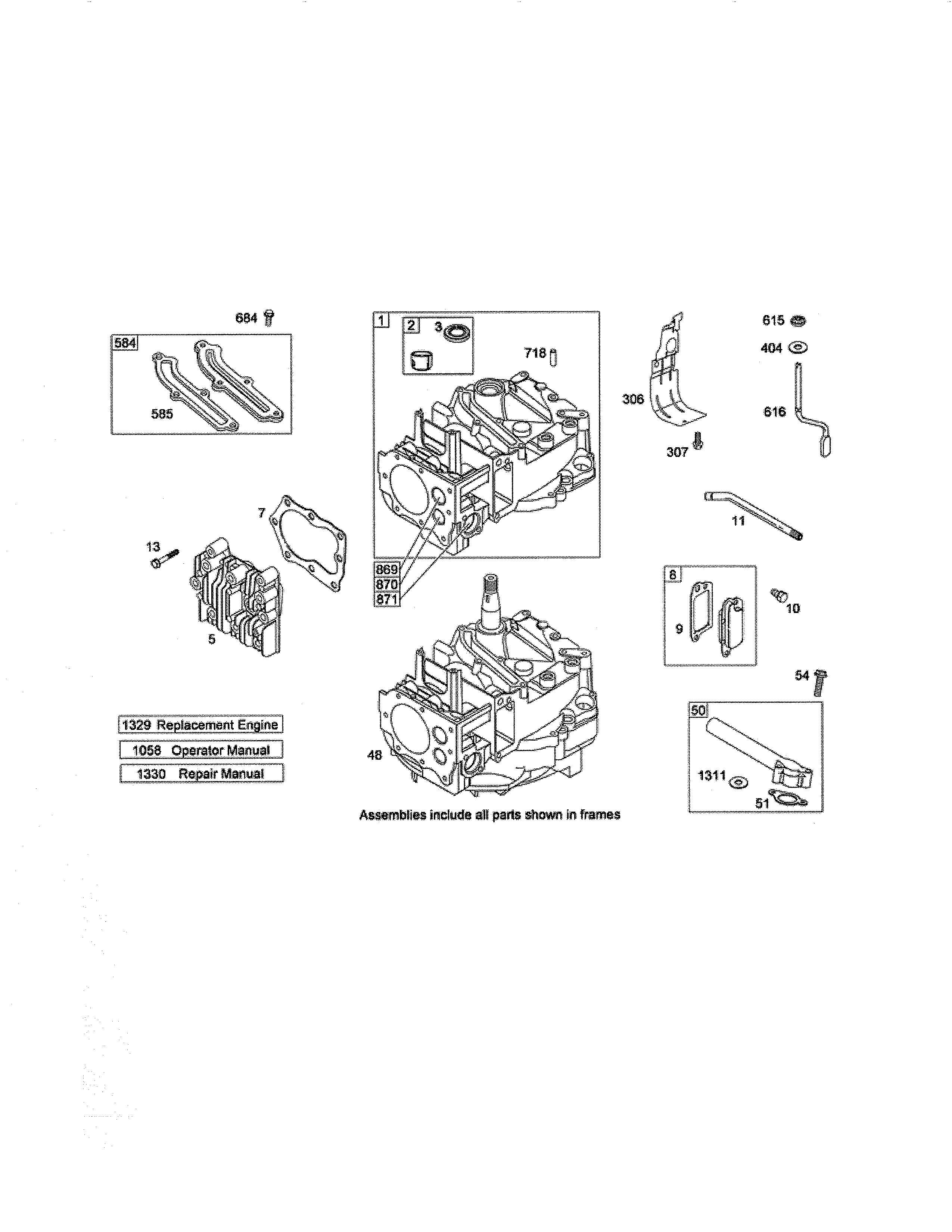

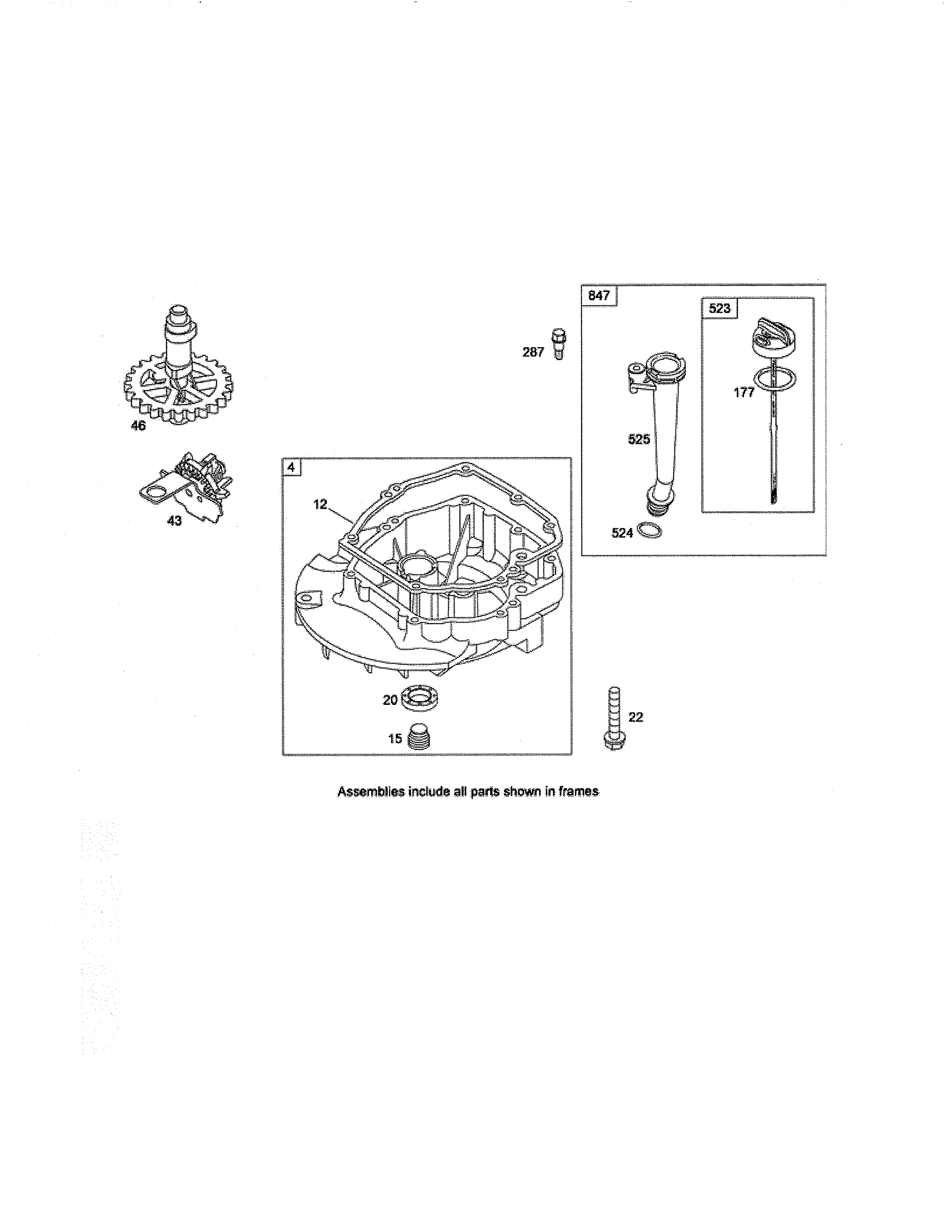

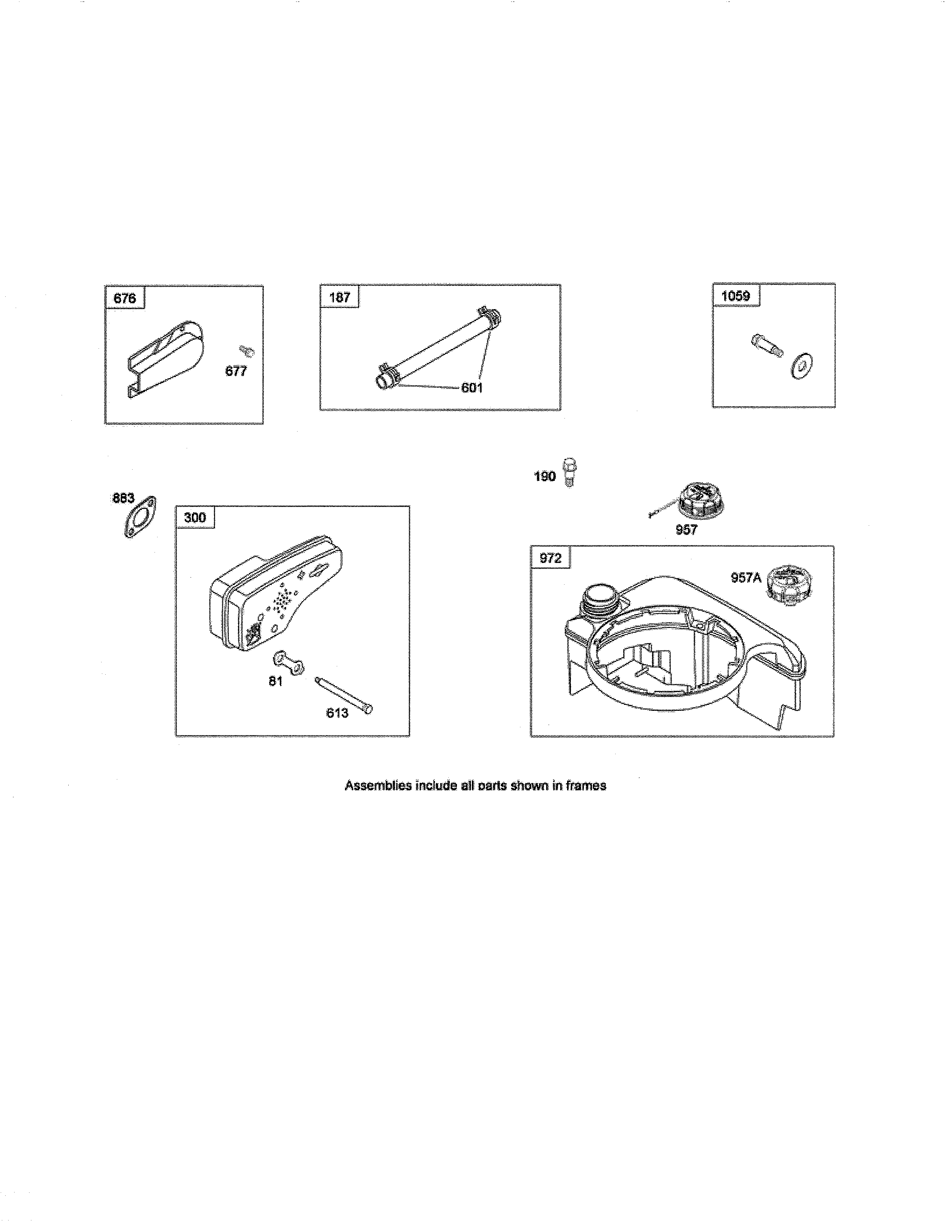

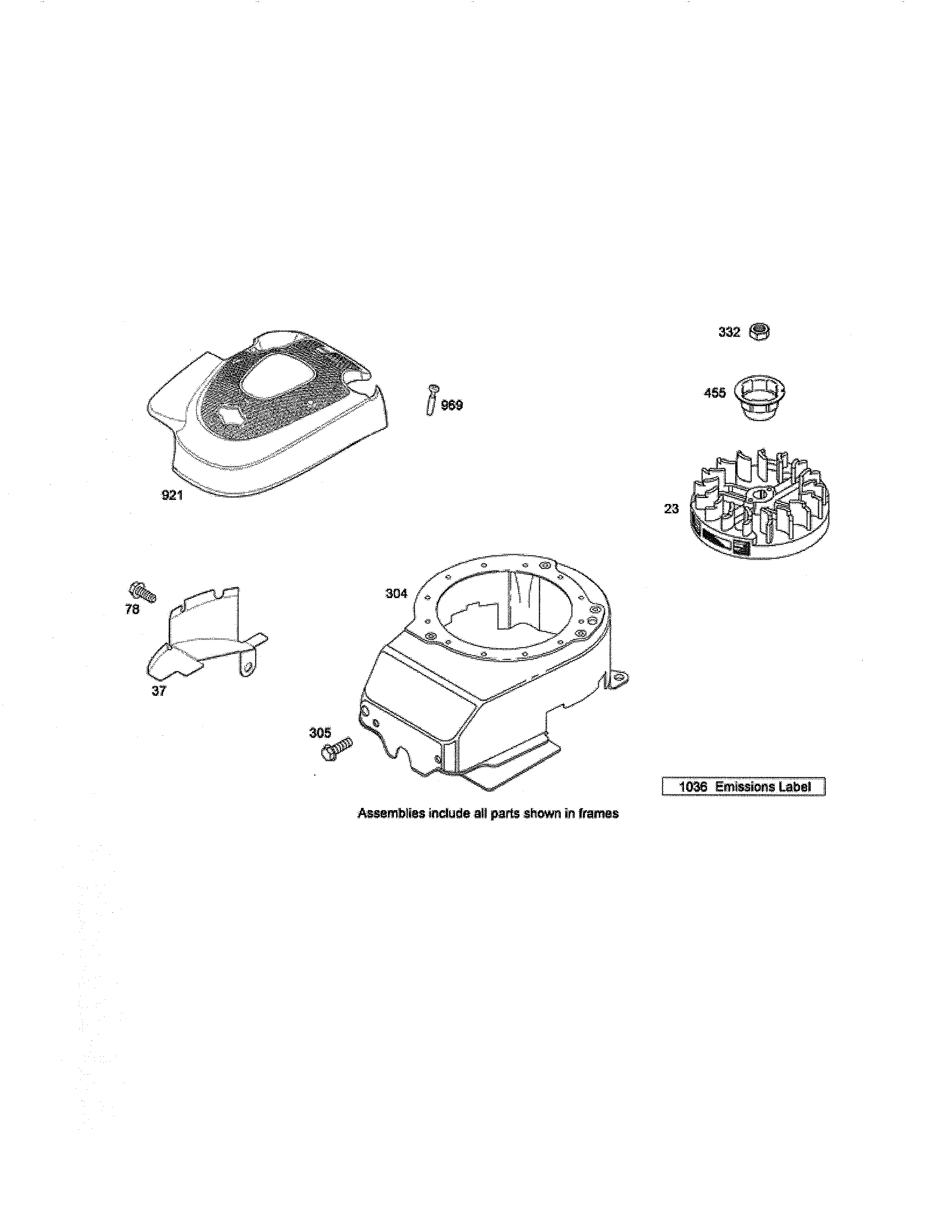

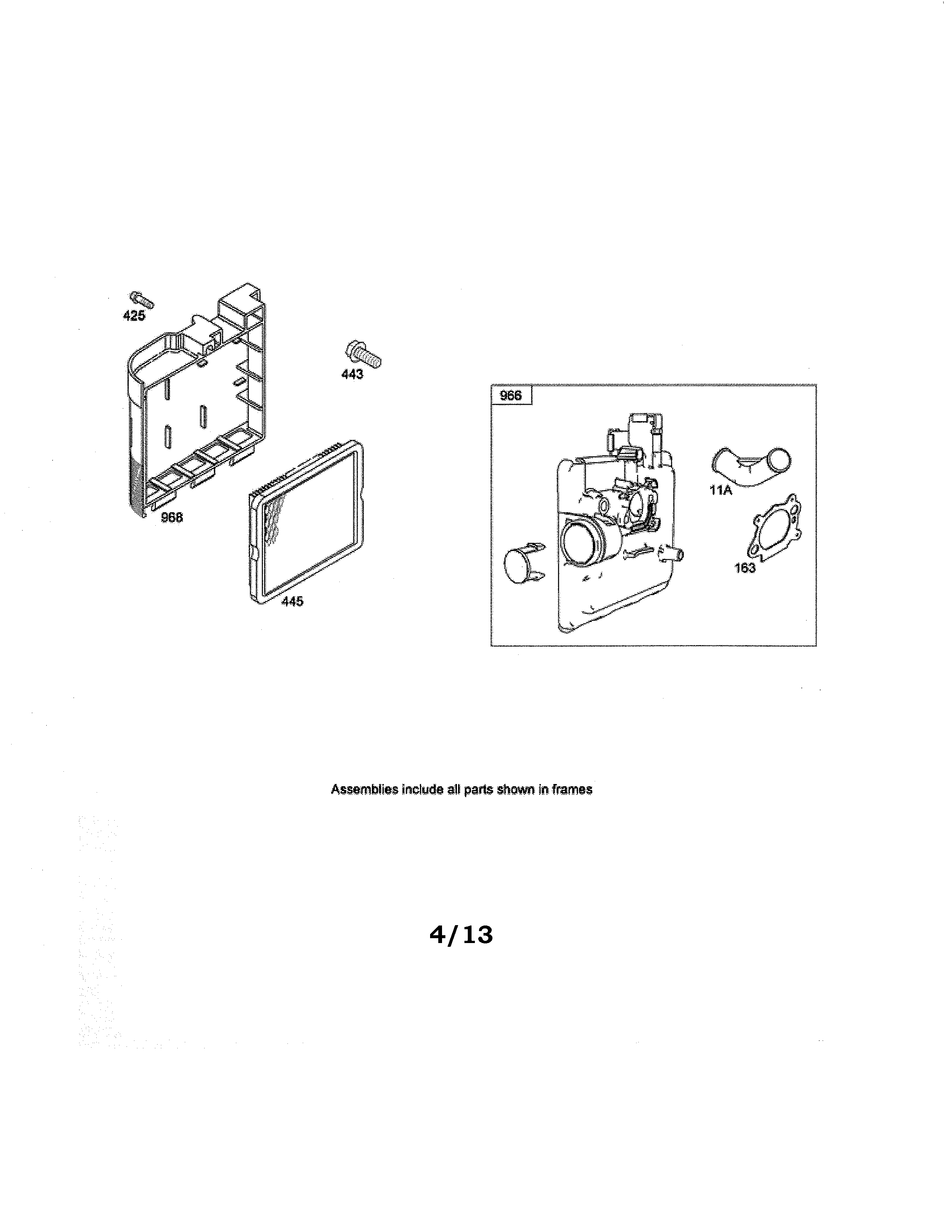

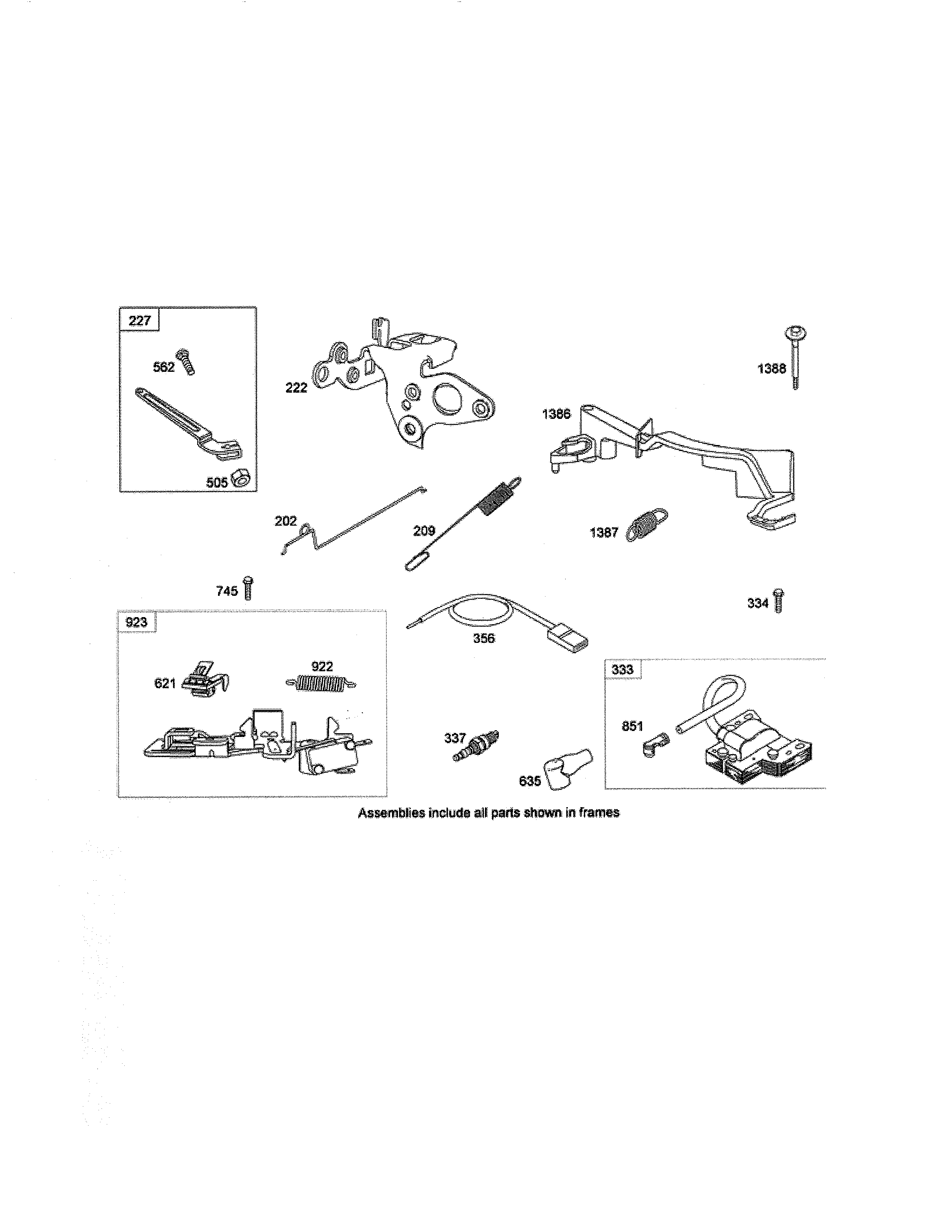

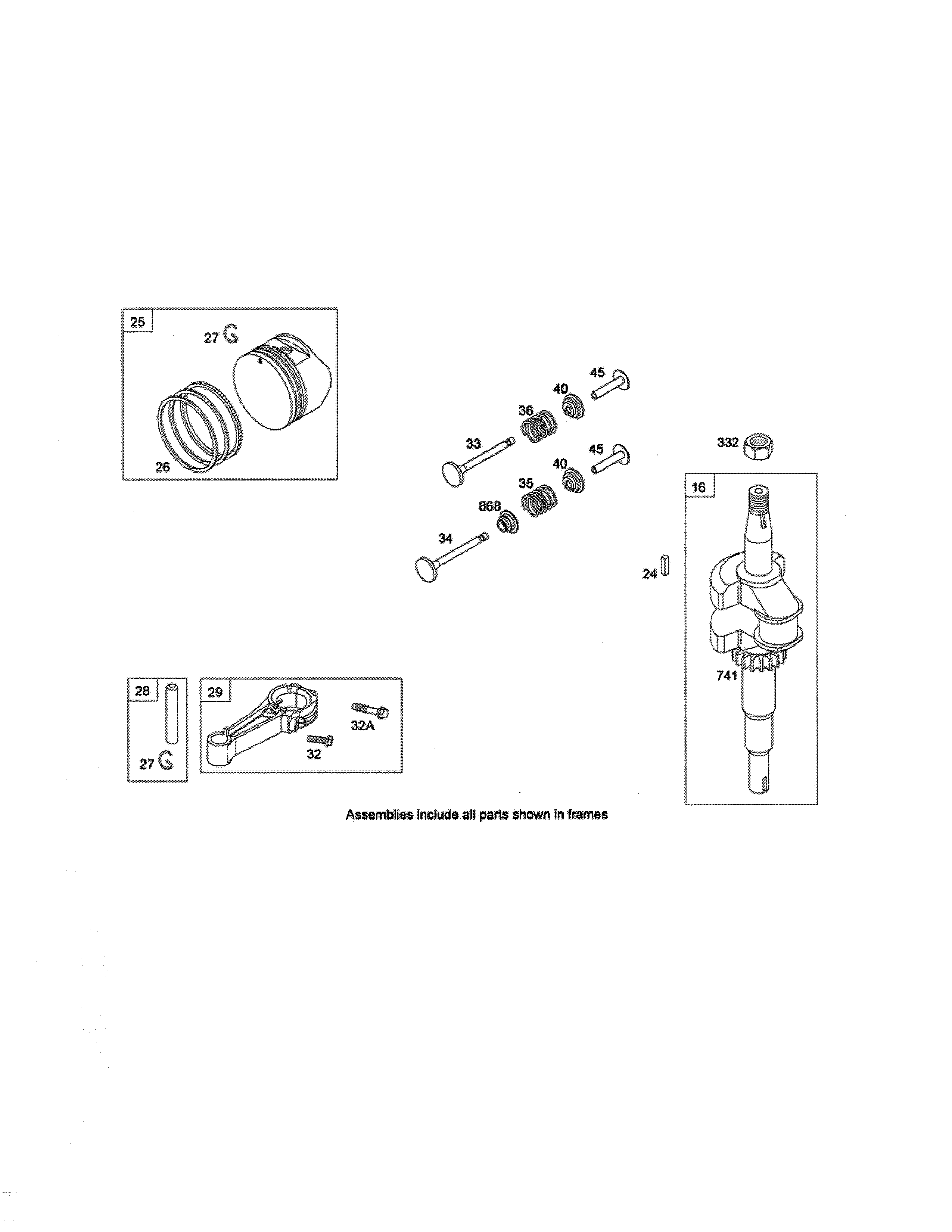

  View engine

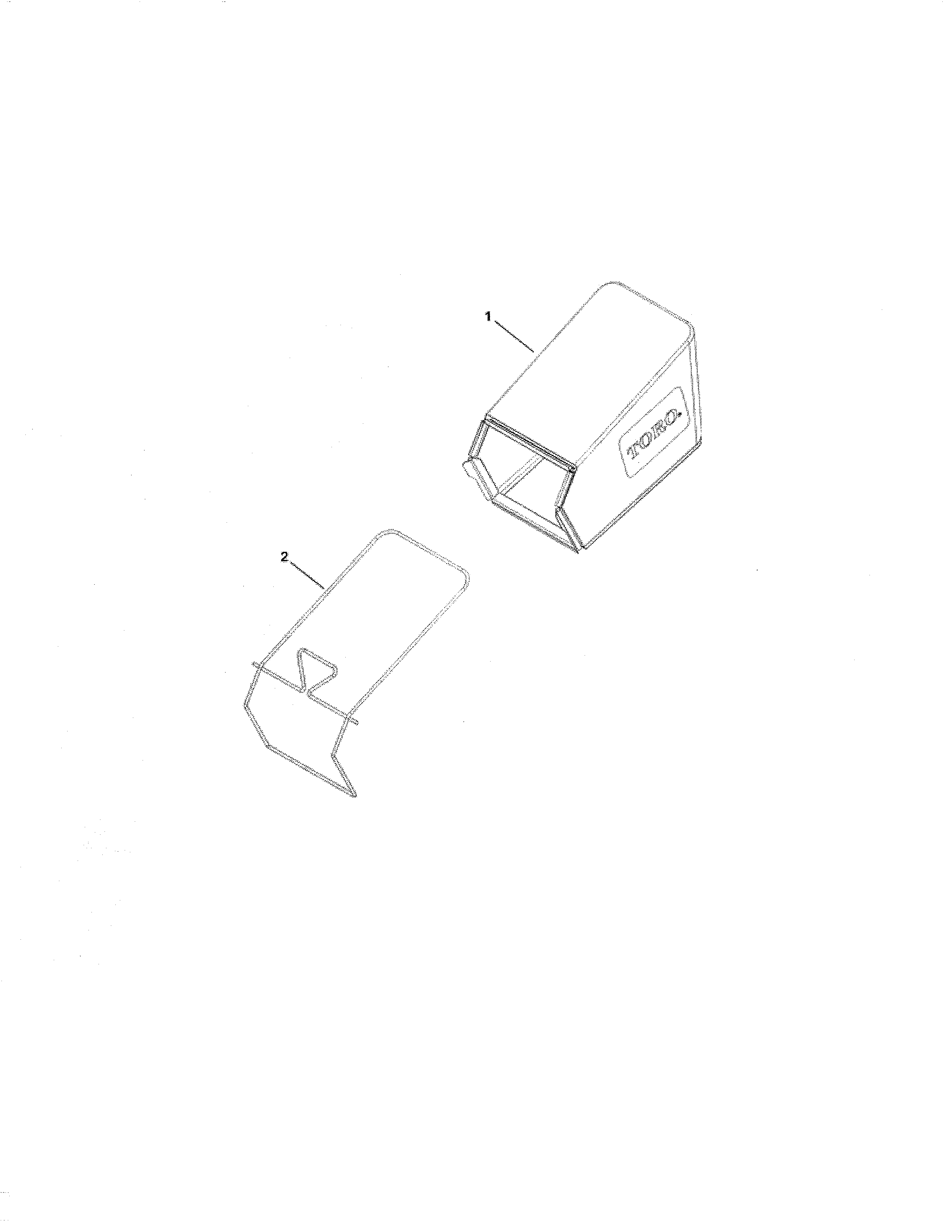

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Lawn Mower Recoil Starter Rope Guide (replaces 46-8080, 93-7383, 95-4457, 98-2684) 86-9671
#6

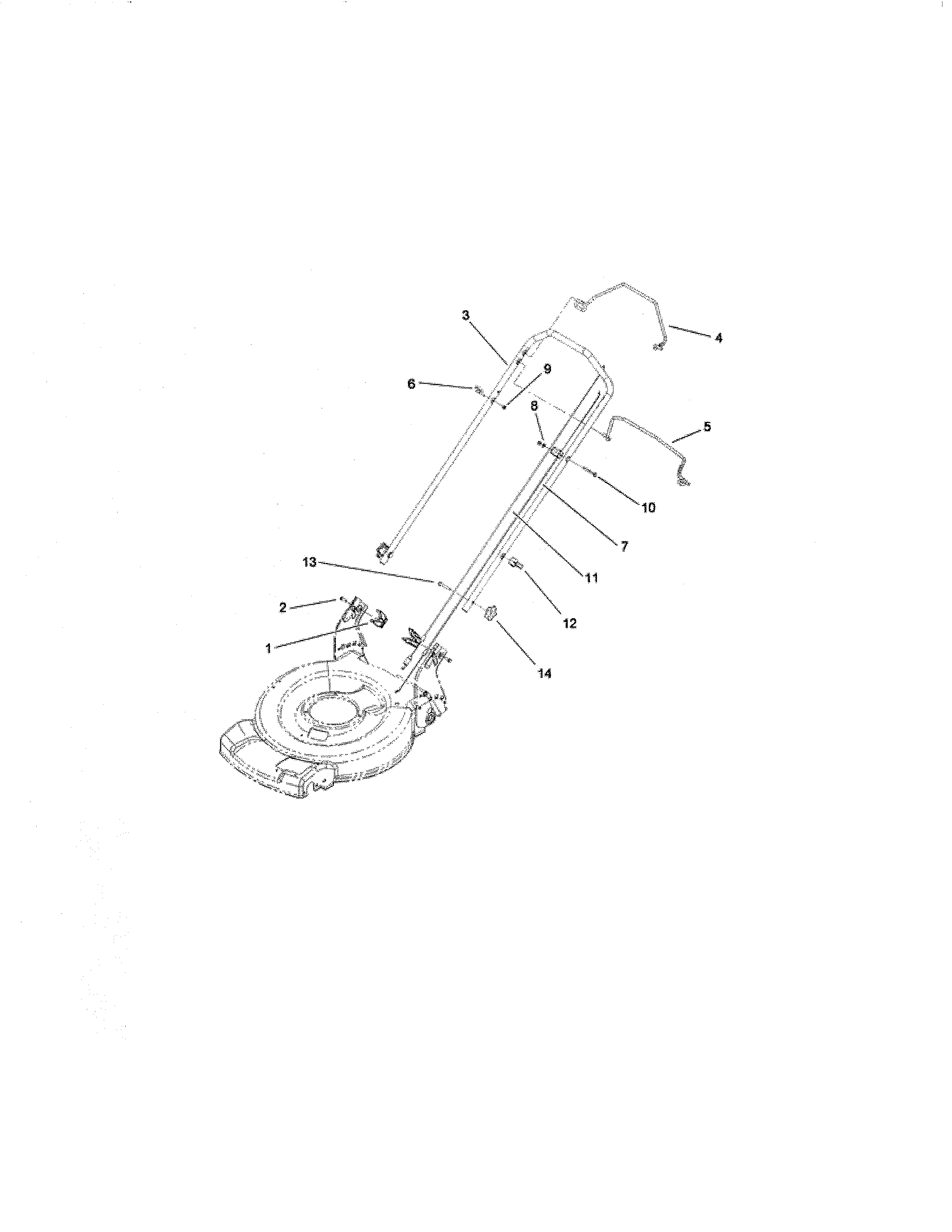

Handle diagram

Lawn mower recoil starter rope guide (replaces 46-8080, 93-7383, 95-4457, 98-2684)

Part #86-9671

This item is not returnable
$5.74 |
15% OFF Phone Price : $6.74
In Stock
Lawn-boy Lawn Mower Screw 95-1726
#8

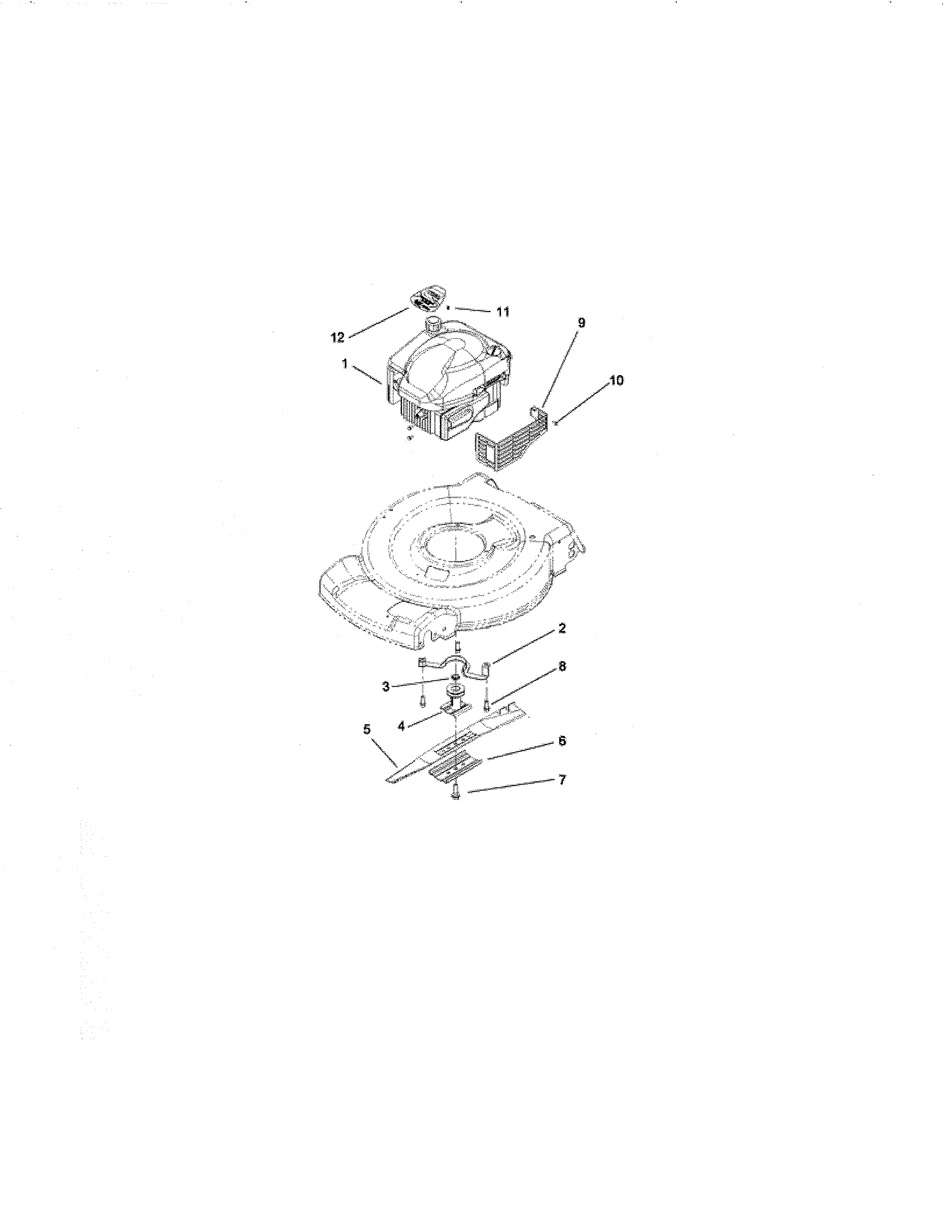

Engine & blade diagram

Lawn-boy lawn mower screw

Part #95-1726

This item is not returnable
$3.74
In Stock
Lawn Mower Belt Keeper 105-3031-03
#2

Engine & blade diagram

Lawn mower belt keeper

Part #105-3031-03

$26.17
In Stock
Washer Seal 112-6438
#13

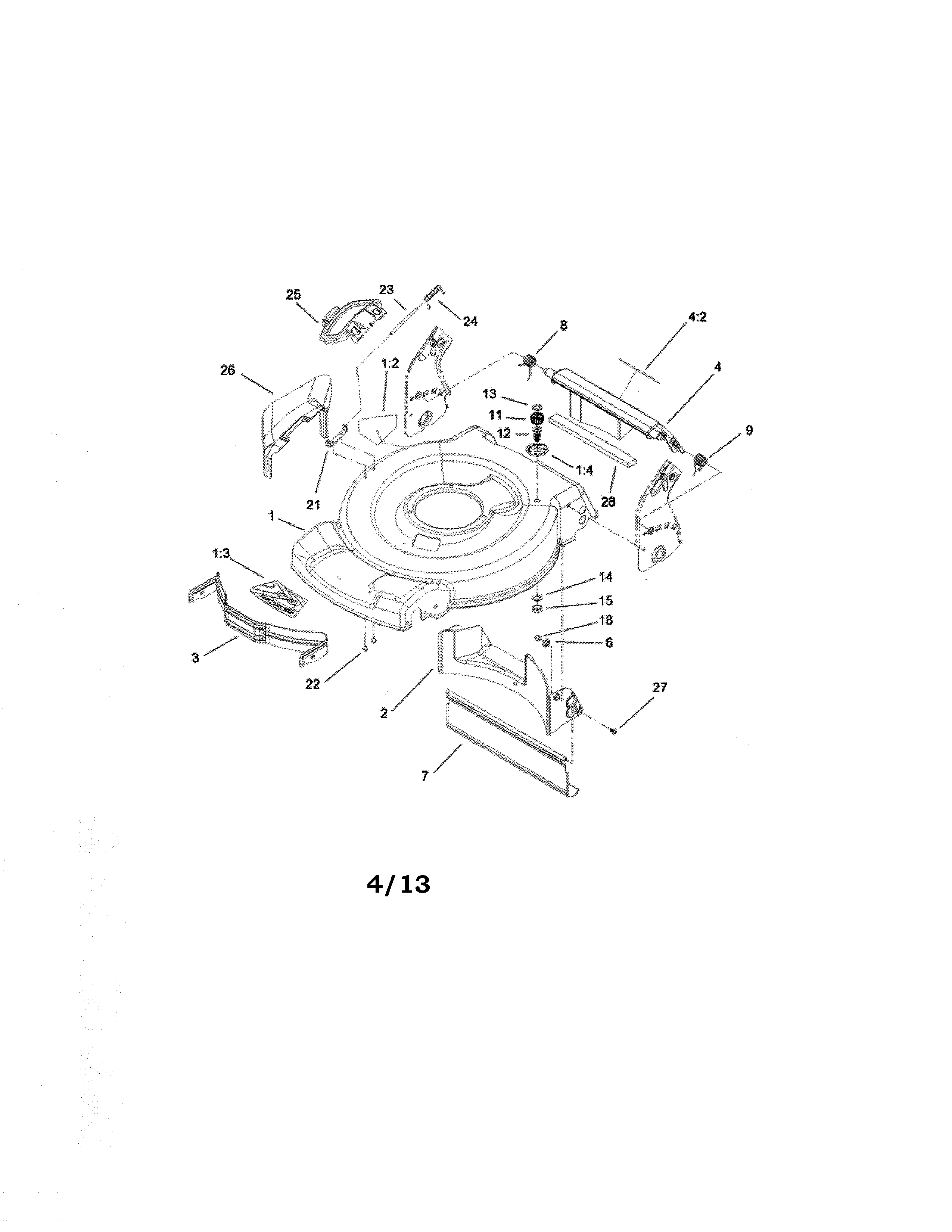

Deck/side chute/rear door diagram

Washer seal

Part #112-6438

This item is not returnable
$2.97
In Stock
Bail-bake 115-4561-03
#5

Handle diagram

Bail-bake

Part #115-4561-03

$55.58
In Stock
Arm-spring, Rear (2) 115-2899
#5

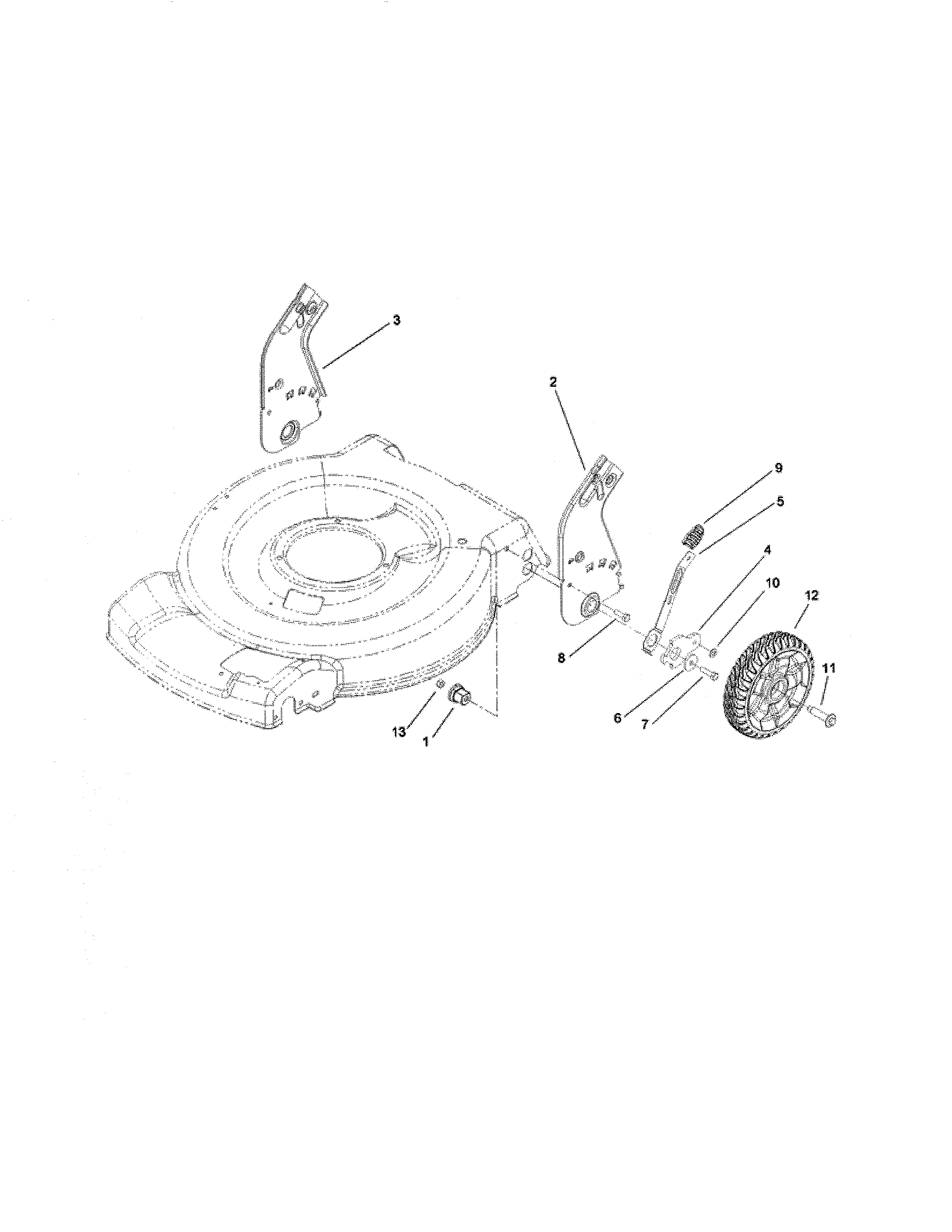

Rear axle & wheel diagram

Arm-spring, rear (2)

Part #115-2899

$23.63
In Stock
Plate-hoc, Rear (lh) 114-7998-03
#2

Rear axle & wheel diagram

Plate-hoc, rear (lh)

Part #114-7998-03

$40.60
In Stock
Bearing 104-8698
#4

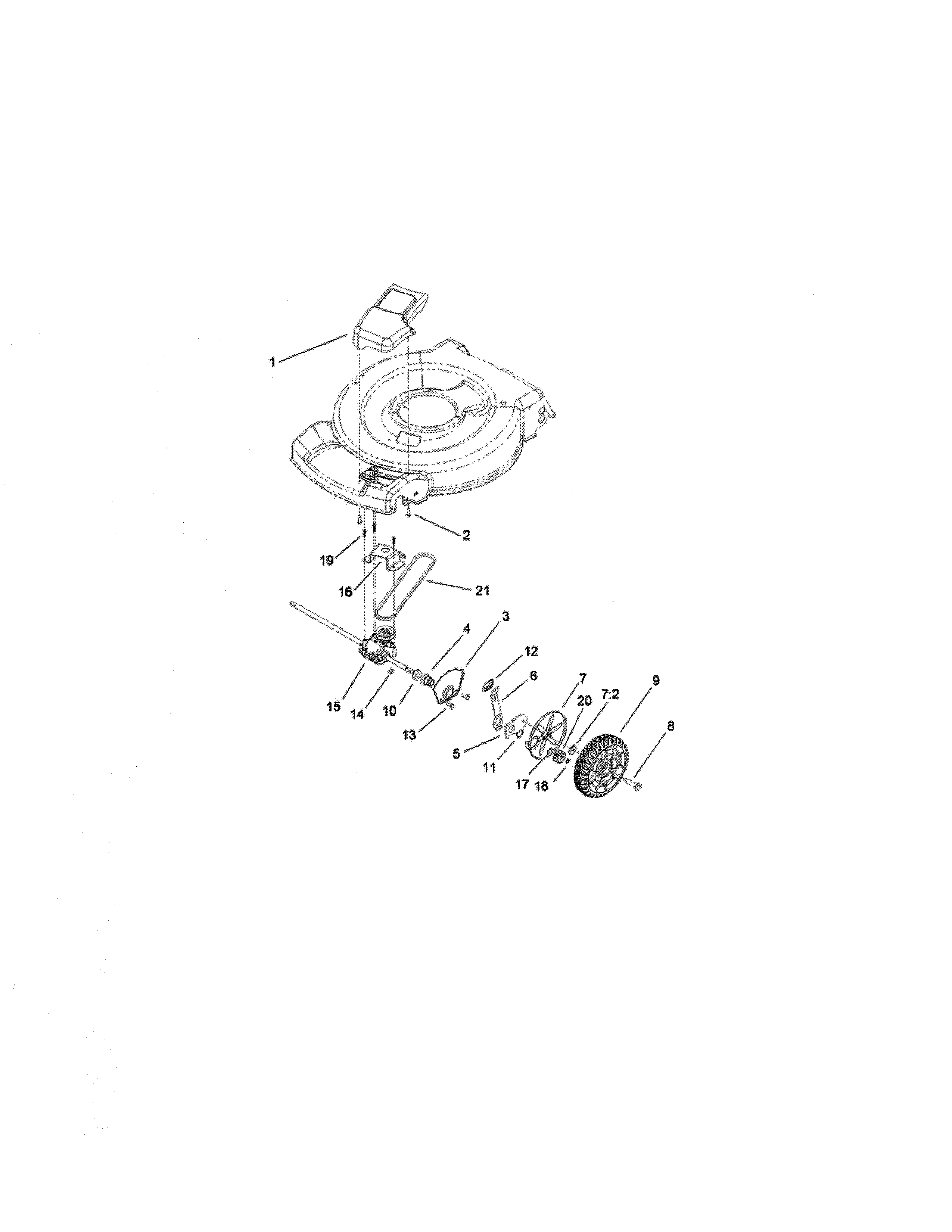

Front axle diagram

Bearing

Part #104-8698

$14.69
In Stock
Bushing-mont, Hoc (2) 115-4651
#1

Rear axle & wheel diagram

Bushing-mont, hoc (2)

Part #115-4651

$12.69
In Stock
Brake Assembly 115-4579
#7

Handle diagram

Brake assembly

Part #115-4579

$52.64
In Stock
