Model # SHE68E05UC/25 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE68E05UC-25 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

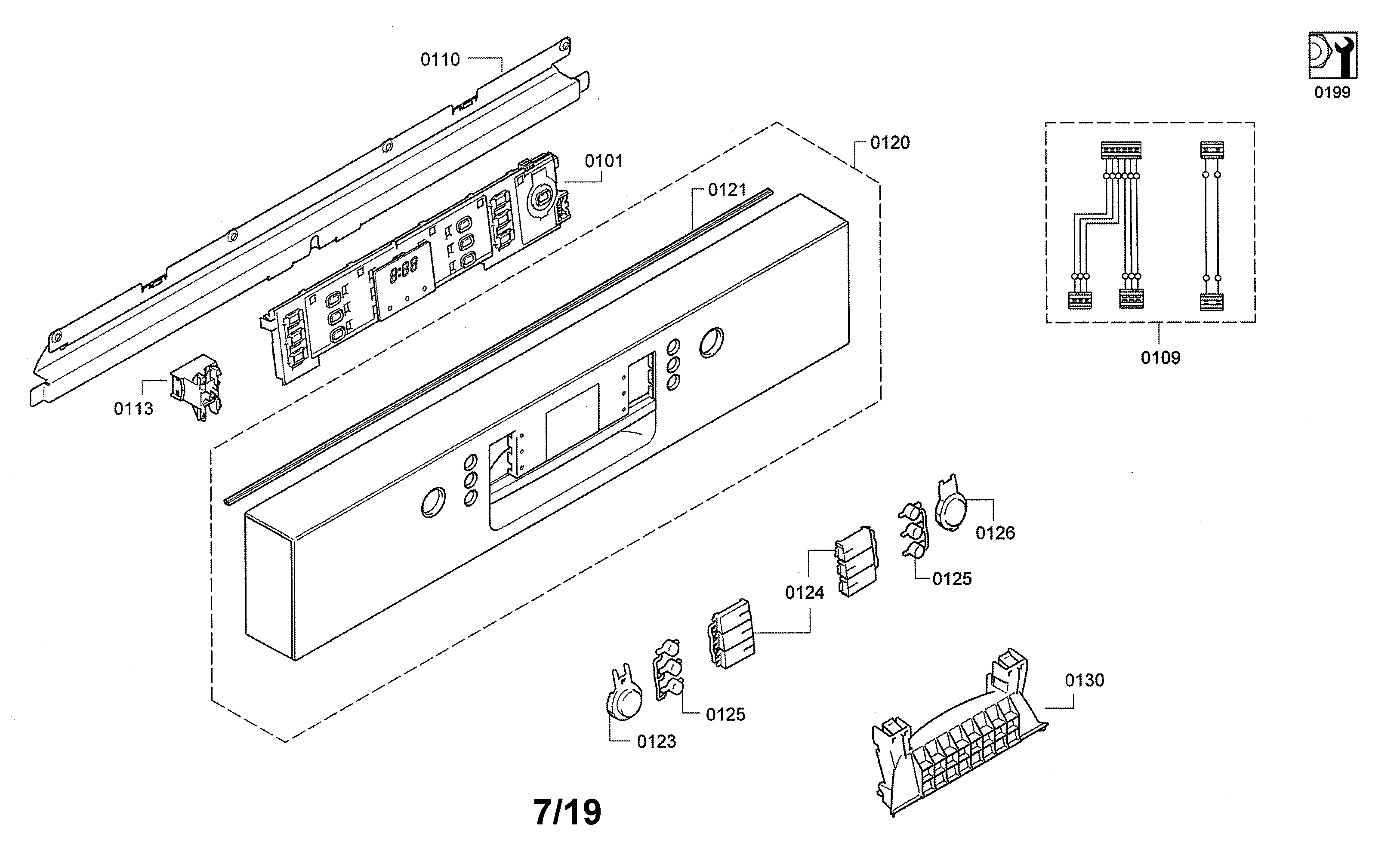

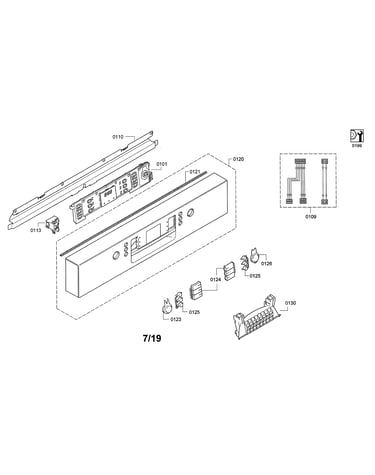

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Dishwasher Drain Pump (replaces 611332) 00611332
#455

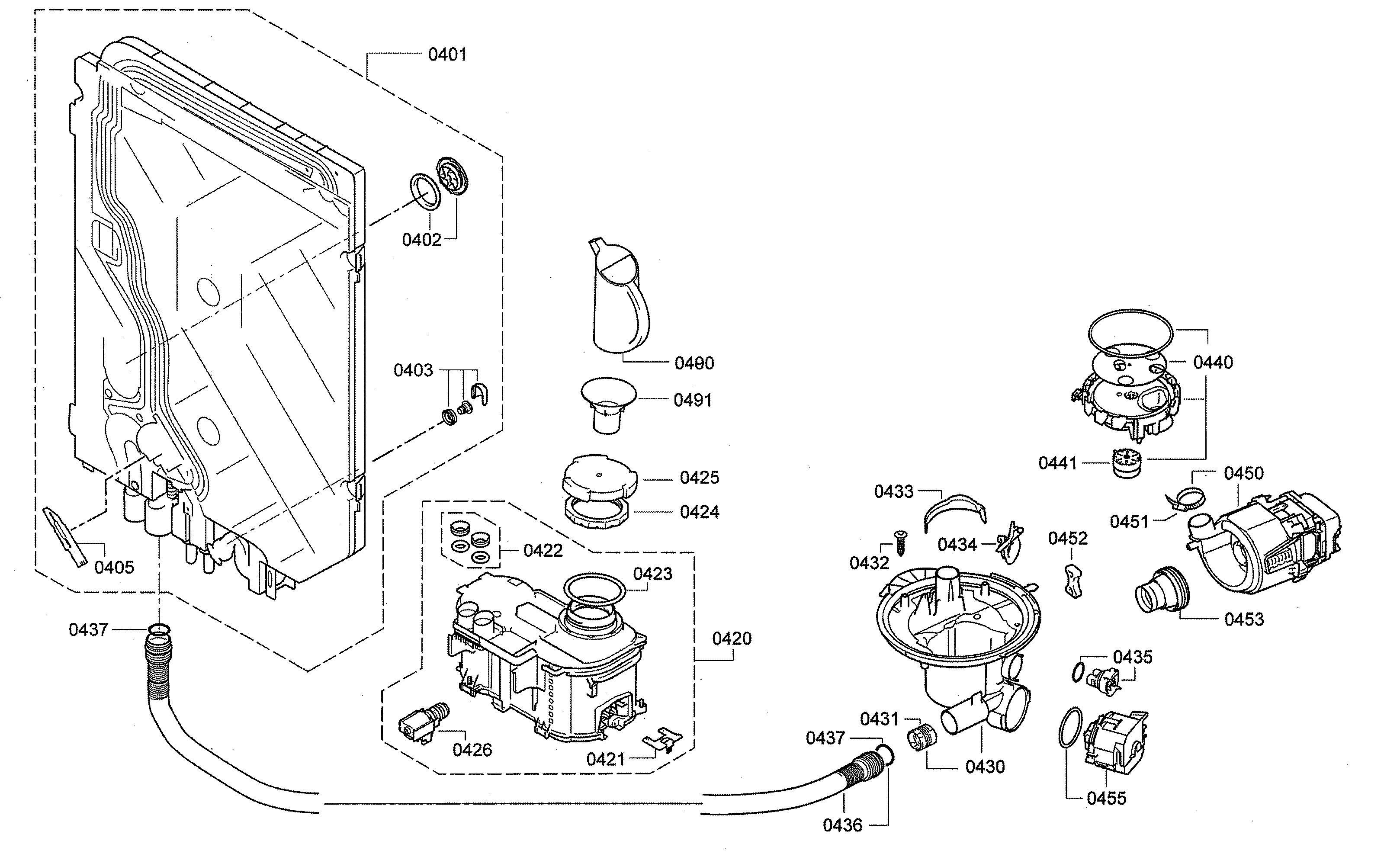

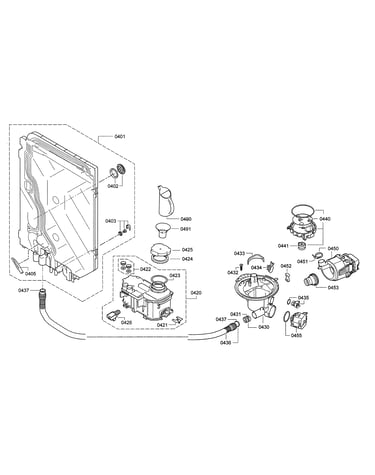

Water inlet & softener/sump diagram

Dishwasher drain pump (replaces 611332)

Part #00611332

BEST SELLER
$52.59 |
10% OFF Phone Price : $58.59
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#451

Water inlet & softener/sump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#621

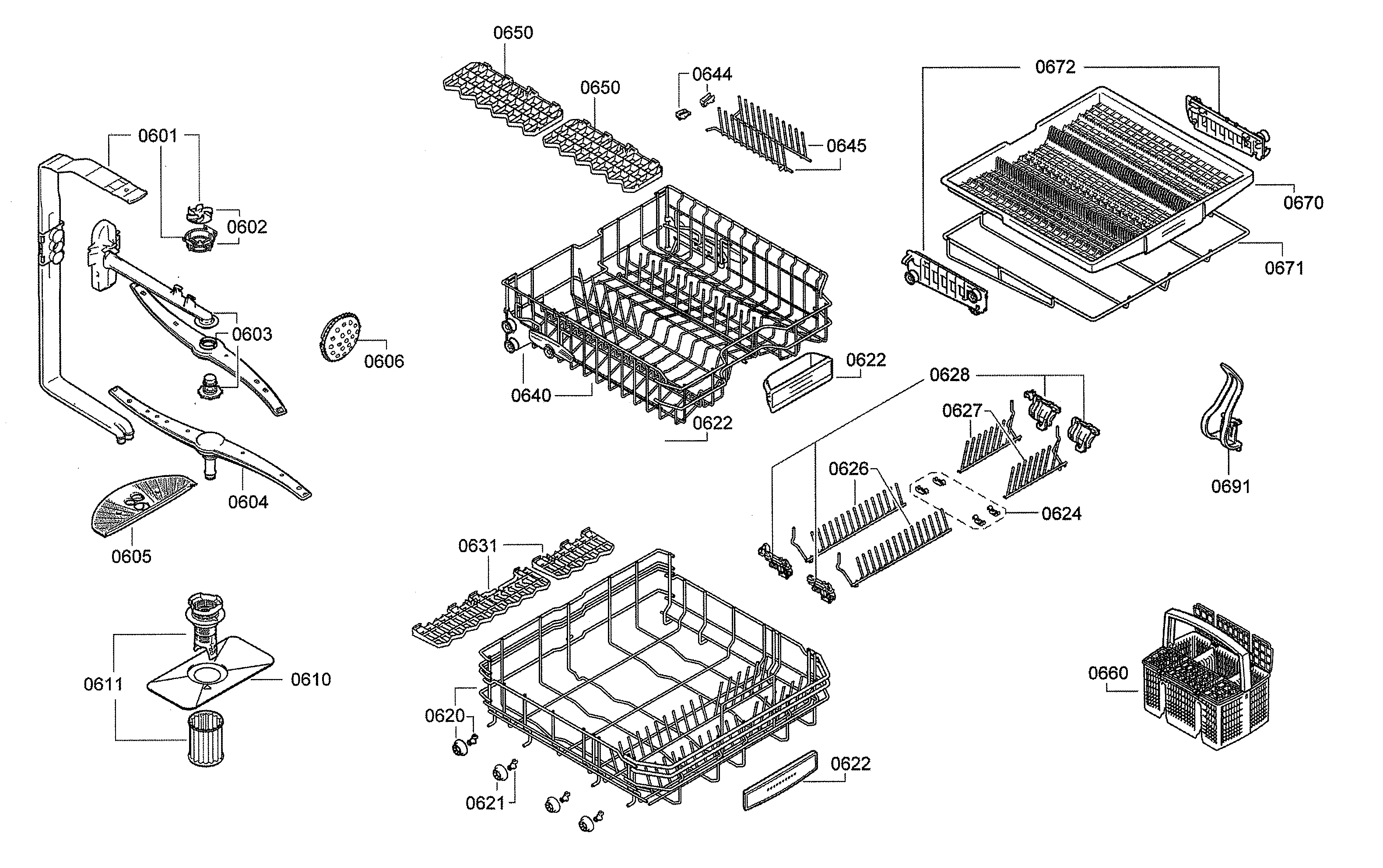

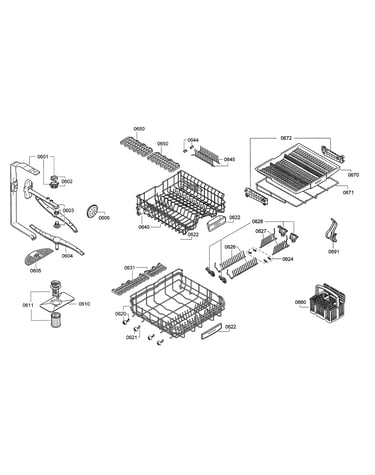

Spray arms/dishracks diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
Guide 00611372
#555

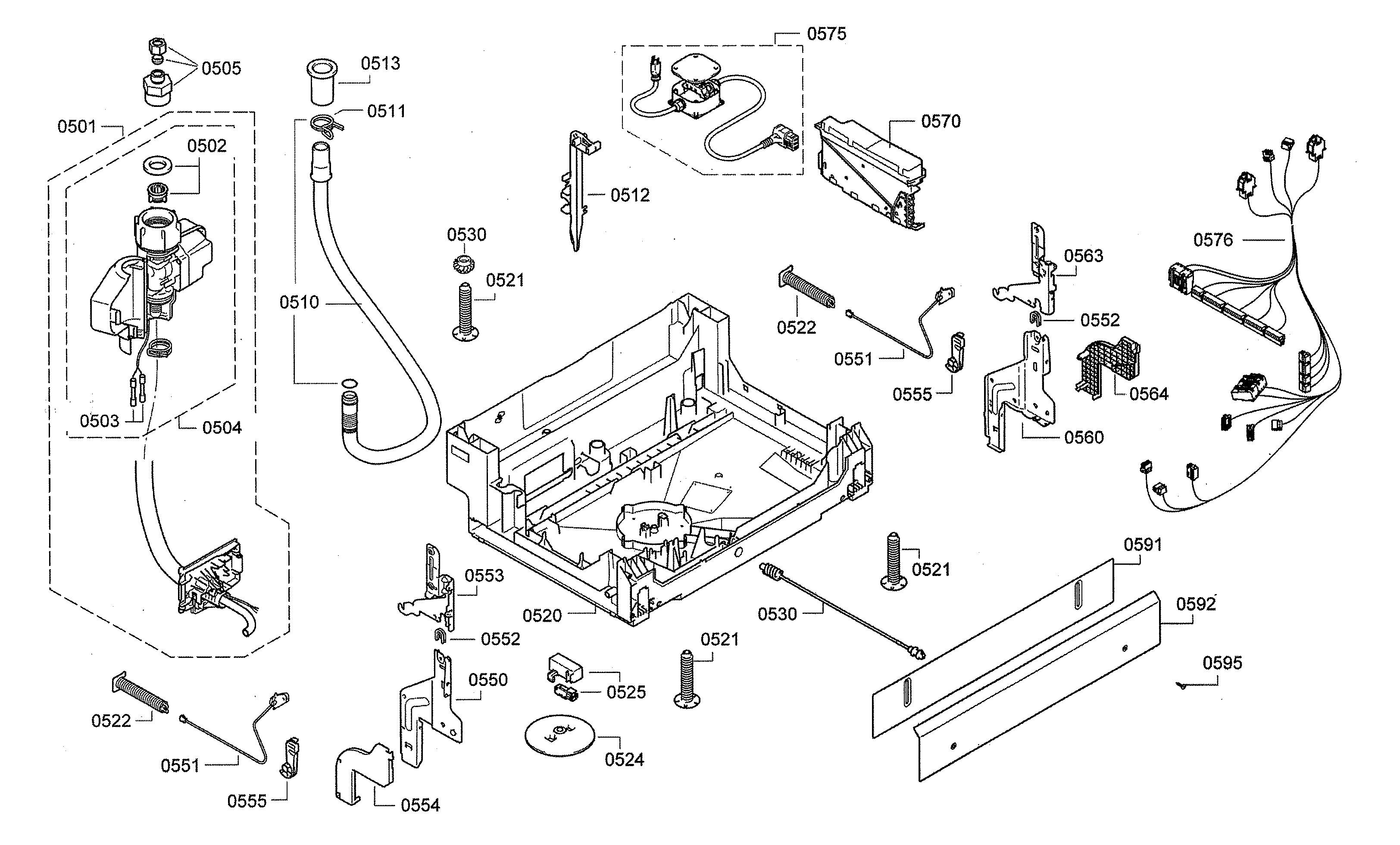

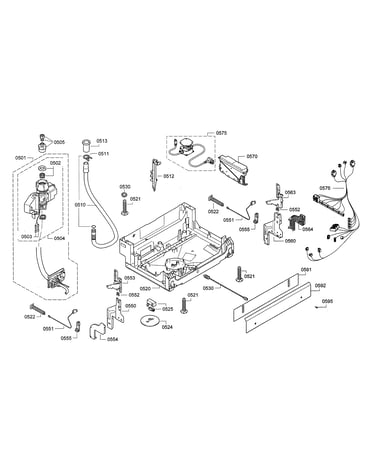

Base/aquastop diagram

Guide

Part #00611372

Replaced by #00623536

?
Manufacturer substitution
This part replaces 00611372. Substitute parts can look different from the original.
BEST SELLER
$20.16 |
23% OFF Phone Price : $26.16
In Stock
Appliance Screw 00151703
#242

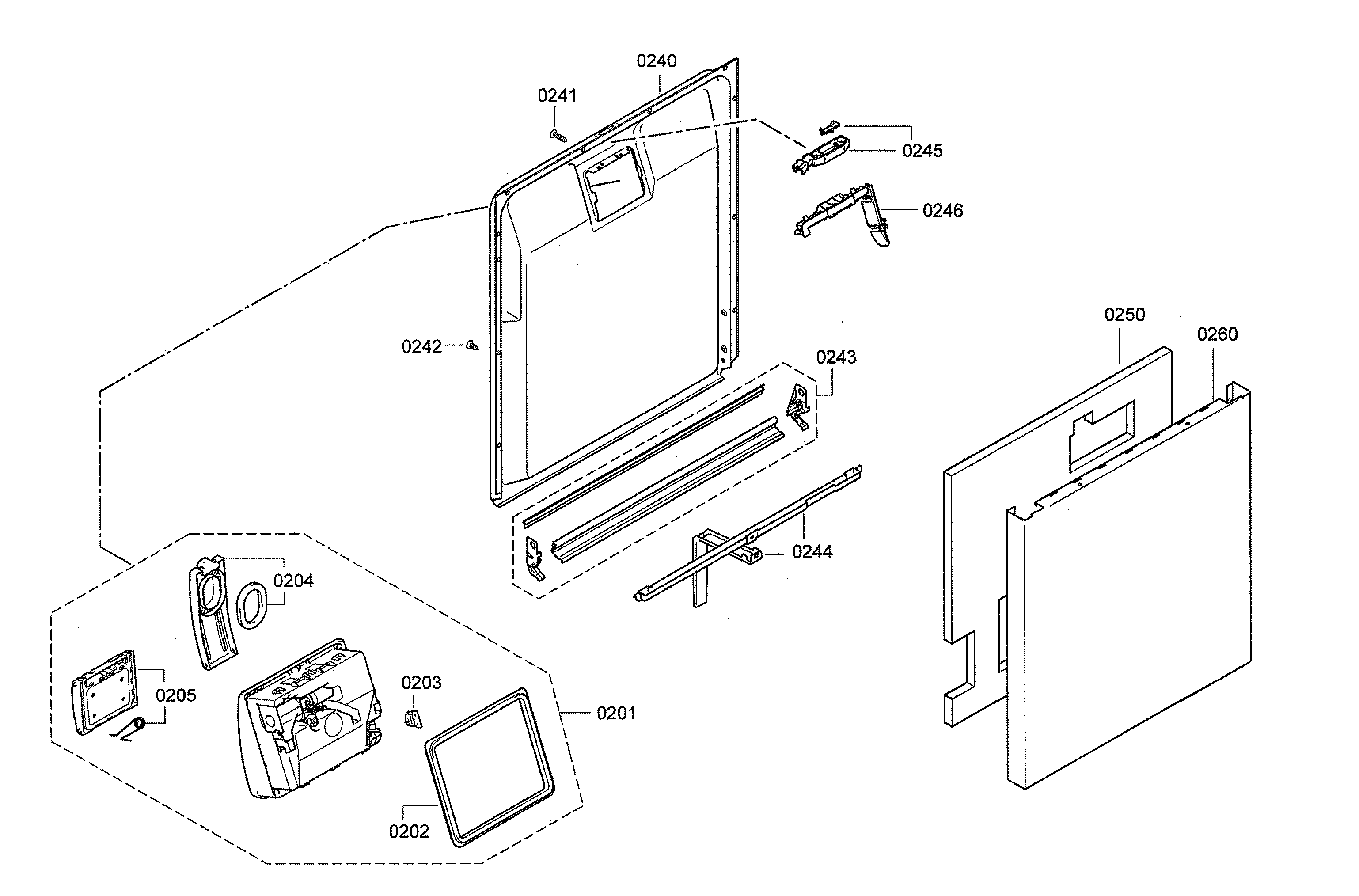

Door/dispenser diagram

Appliance screw

Part #00151703

This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Dishwasher Door Spring (replaces 611336) 00611336
#522

Base/aquastop diagram

Dishwasher door spring (replaces 611336)

Part #00611336

$28.89 |
17% OFF Phone Price : $34.89
In Stock
Dishwasher Door Seal (replaces 263096) 00263096
#331

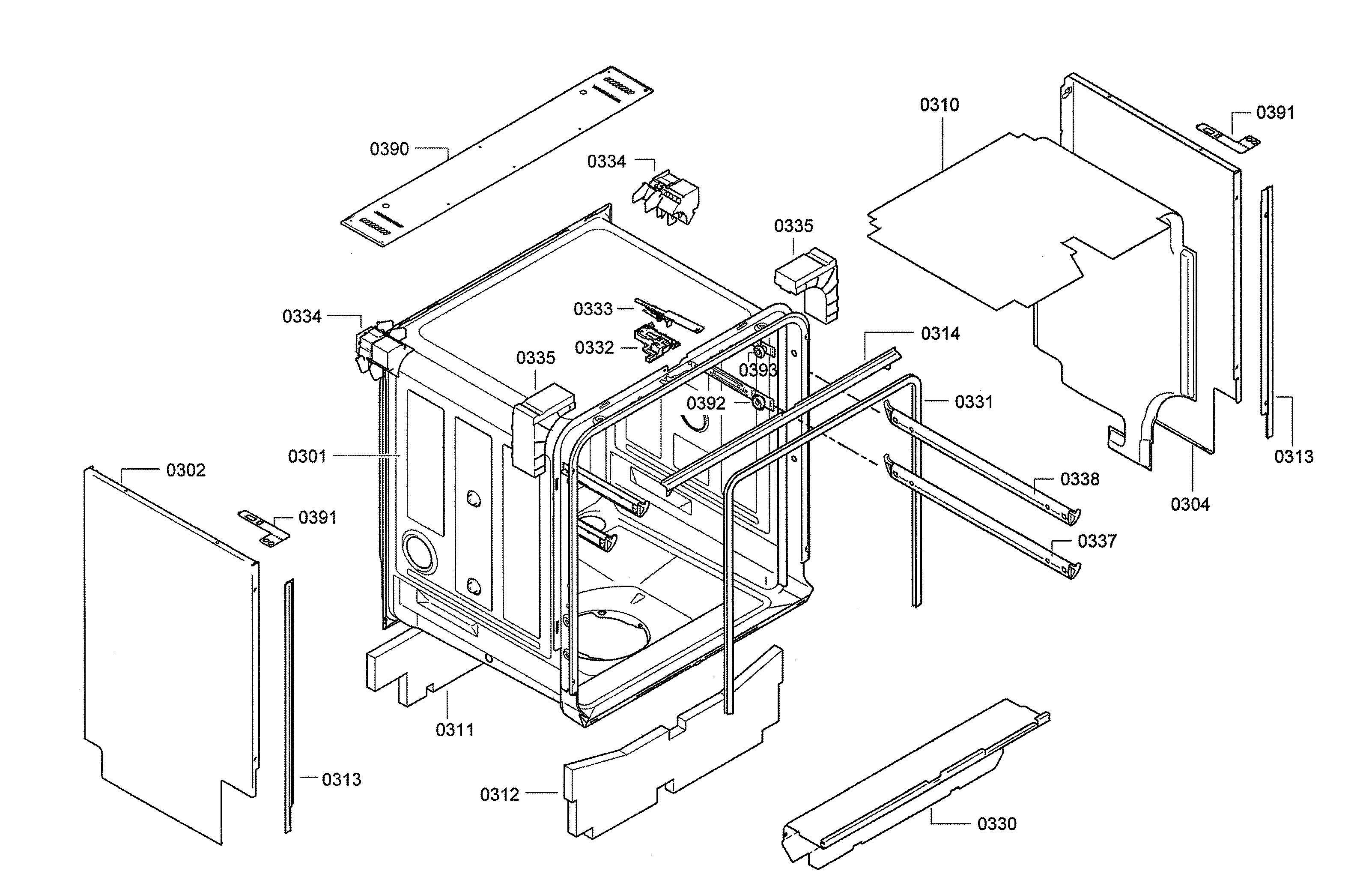

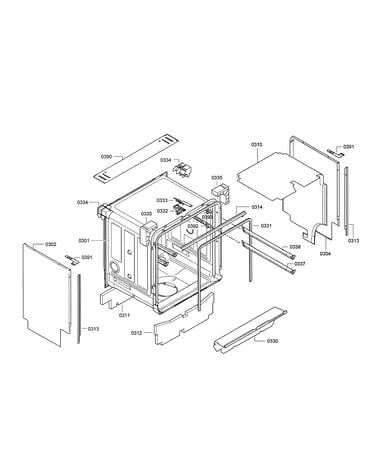

Tub/trim diagram

Dishwasher door seal (replaces 263096)

Part #00263096

$77.20 |
7% OFF Phone Price : $83.20
In Stock
Dishwasher Door Hinge Lever Bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296) 00165296
#552

Base/aquastop diagram

Dishwasher door hinge lever bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296)

Part #00165296

This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Dishwasher Aquastop Assembly (replaces 674387) 00674387
#501

Base/aquastop diagram

Dishwasher aquastop assembly (replaces 674387)

Part #00674387

$189.51 |
6% OFF Phone Price : $201.51
In Stock
Dishwasher Screw 00167241
#432

Water inlet & softener/sump diagram

Dishwasher screw

Part #00167241

This item is not returnable
$3.49
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your dishwashers

Choose a symptom to see related dishwasher repairs.

View all

Why does my dishwasher door drop open too fast?

Main causes: broken door spring, damaged or broken door hinge…

Read more

Why don't my dishes get dry?

Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…

Read more

Why won't my dishwasher fill?

Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…

Read more

Why won't my dishwasher start?

Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…

Read more

Why isn't my dishwasher getting dishes clean?

Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …

Read more

Why is my dishwasher noisy?

Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…

Read more

Why won't my dishwasher drain?

Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…

Read more

Why can't I adjust the dishwasher rack height?

Main cause: damaged rack height adjuster…

Read more

Why is my dishwasher leaking?

Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…

Read more

Most common repair guides to help fix your dishwashers

These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.

View all
How to replace a dishwasher water inlet valve

How to replace a dishwasher water inlet valve

If your dishwasher fills constantly or won't fill at all, the water inlet valve has failed. You can replace it in about …

Read more
Repair difficulty
Time required
 30 minutes or less
How to replace a dishwasher detergent dispenser

How to replace a dishwasher detergent dispenser

Dishes need dish detergent to get clean. Learn how to replace a dishwasher detergent dispenser with easy step-by-step i…

Read more
