Whirlpool
Room Air Conditioner

Model # ACQ058PP0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACQ058PP0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Screw 8209688
#35

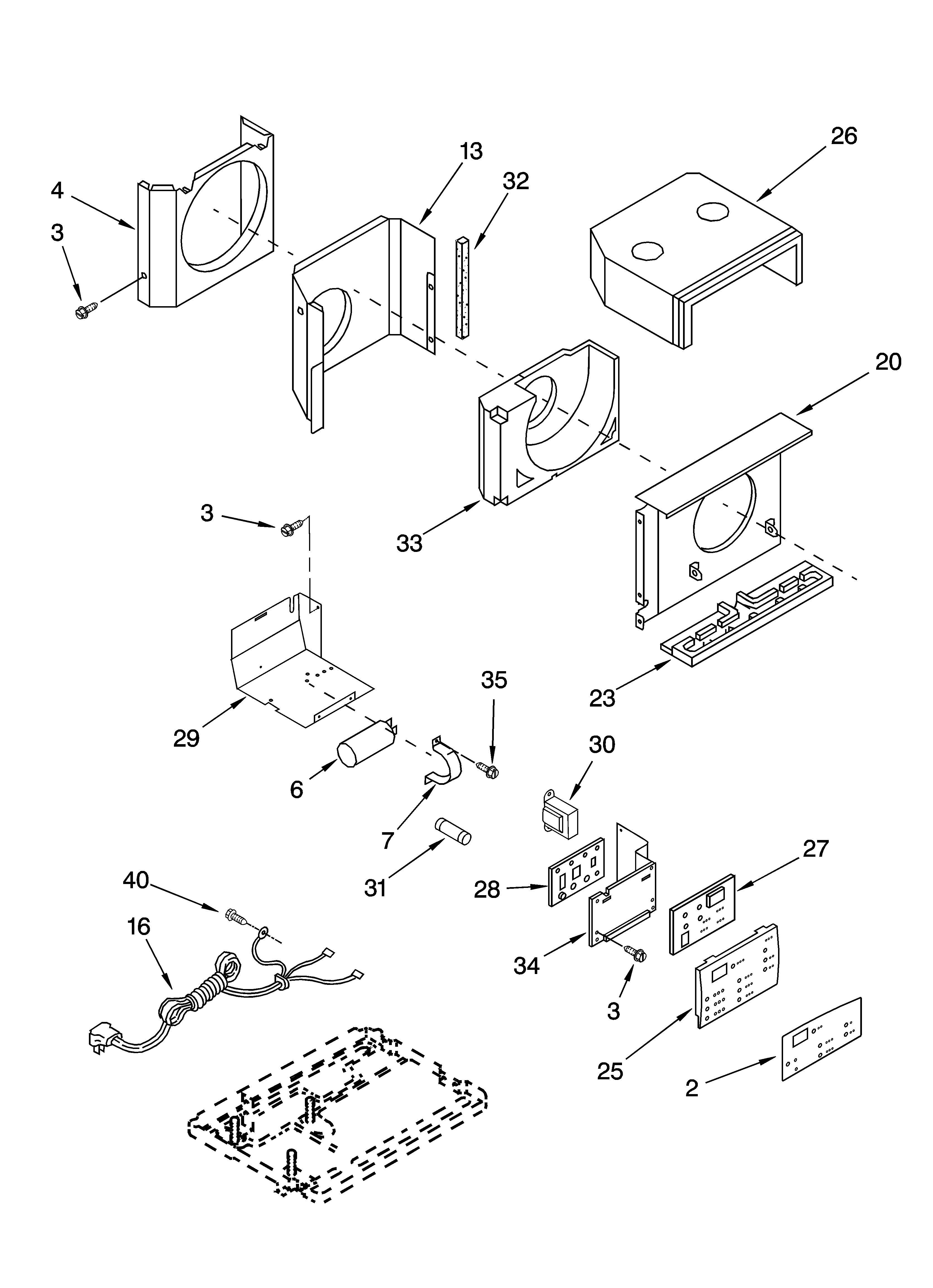

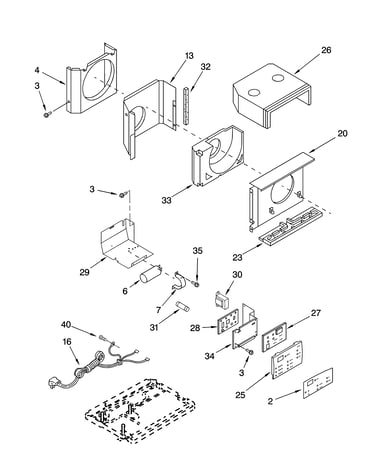

Air flow and control parts diagram

Screw

Part #8209688

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 8209688. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Grille 8209728
#12

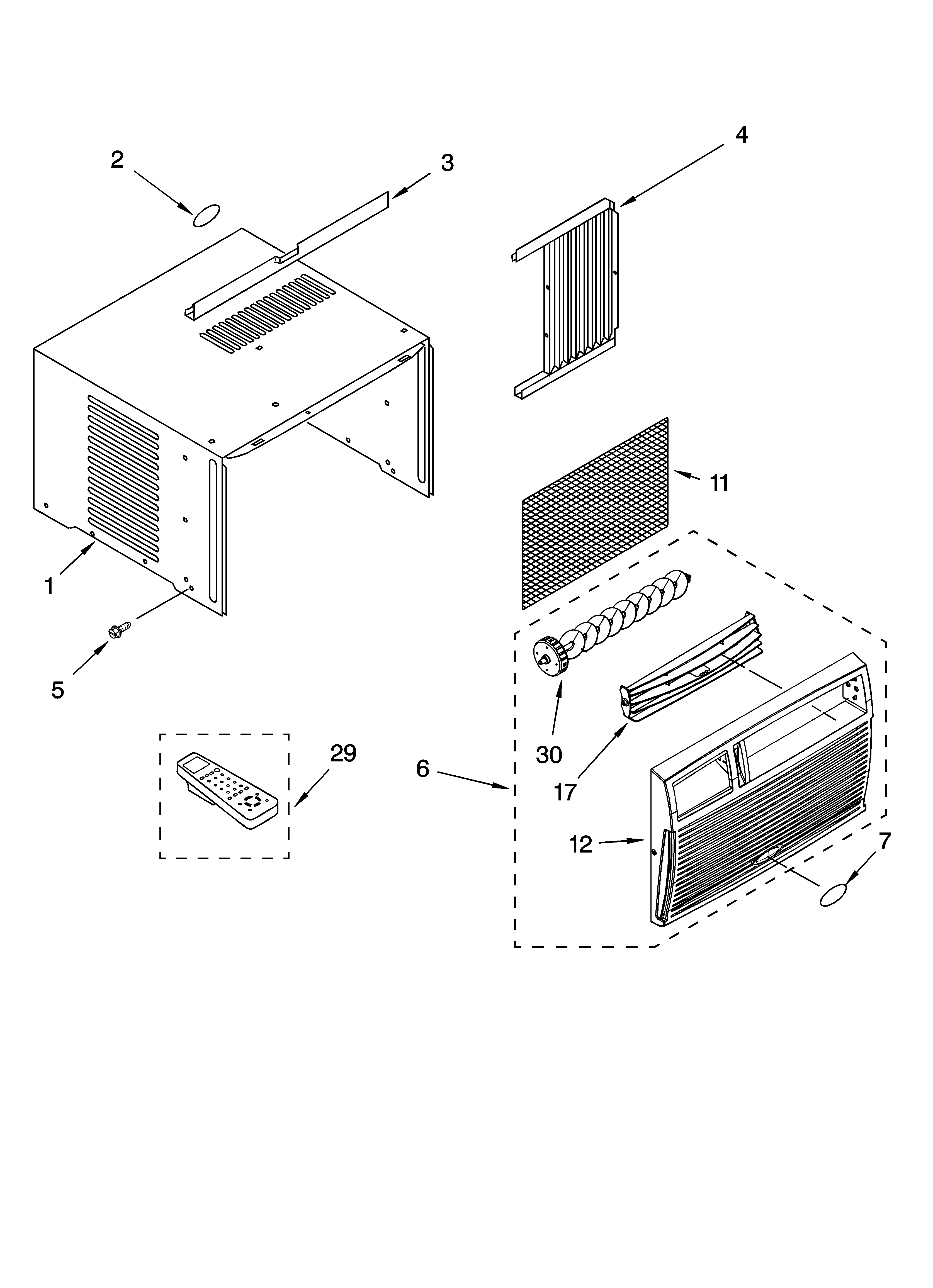

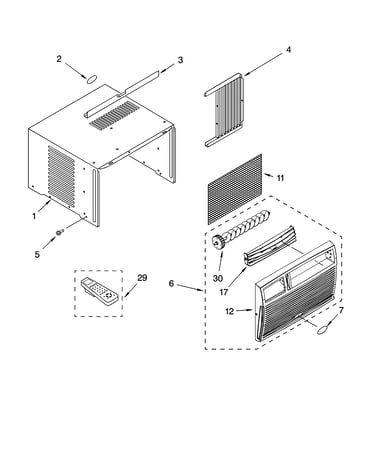

Cabinet parts diagram

Grille

Part #8209728

$89.69
In Stock
Nameplate 8209738
#2

Cabinet parts diagram

Nameplate

Part #8209738

$28.42
In Stock
Nameplate 8209737
#7

Cabinet parts diagram

Nameplate

Part #8209737

$31.04
In Stock
Electronic Control 8209757
#27

Air flow and control parts diagram

Electronic control

Part #8209757

Replaced by #8201665

?
Manufacturer substitution
This part replaces 8209757. Substitute parts can look different from the original.
$55.07
In Stock
Front 8209690
#6

Cabinet parts diagram

Front

Part #8209690

The manufacturer no longer makes this part, and there's no substitute part

Seal Strip 8209663
#14

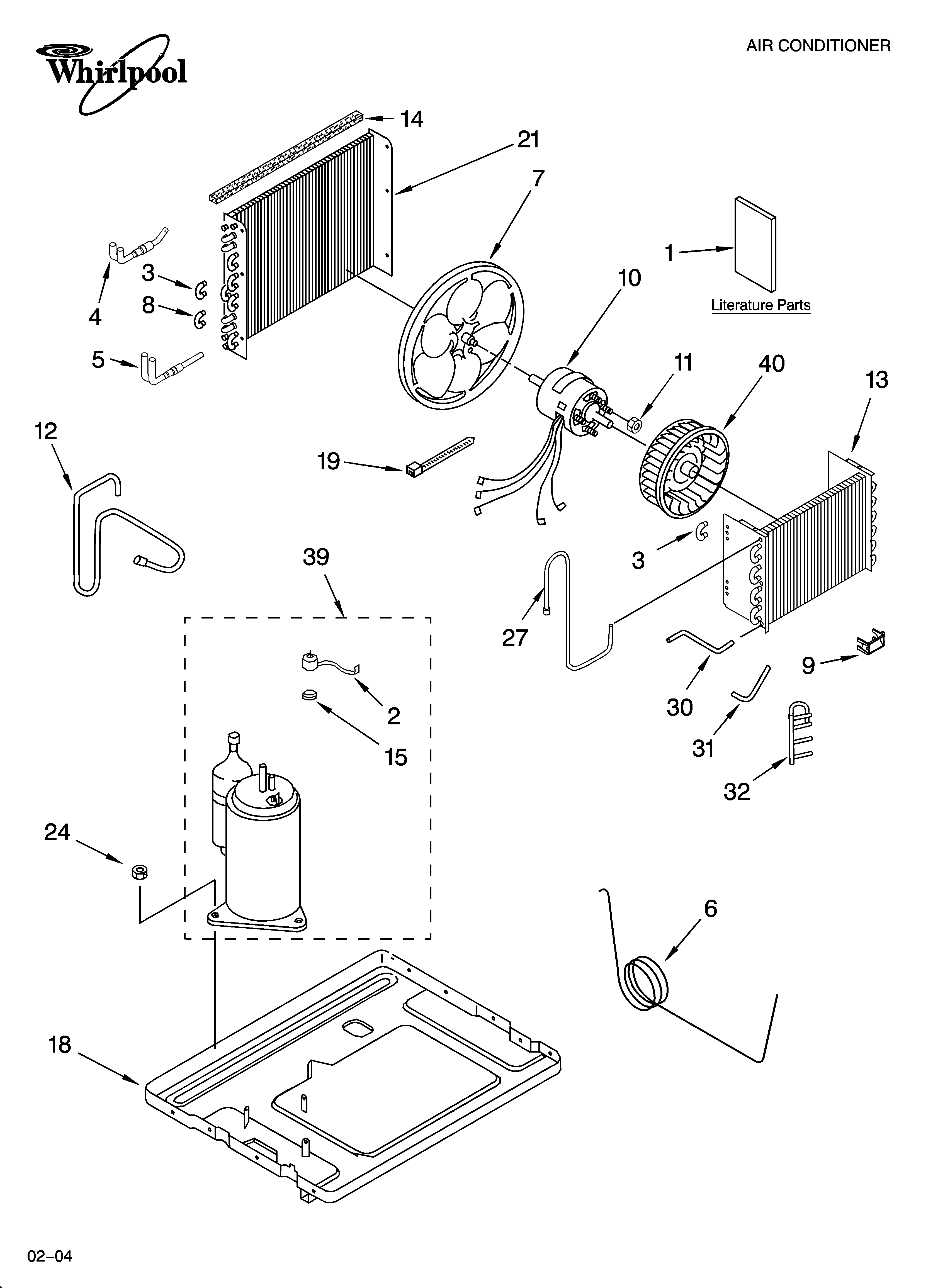

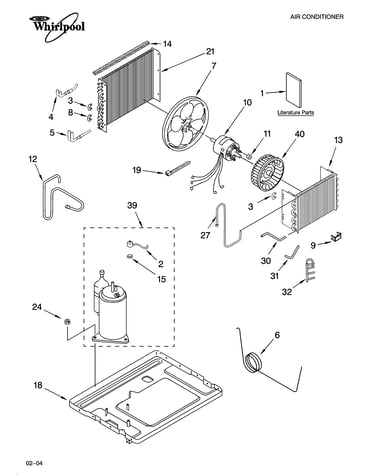

Unit parts diagram

Seal strip

Part #8209663

The manufacturer no longer makes this part, and there's no substitute part

Fuse 8209758
#31

Air flow and control parts diagram

Fuse

Part #8209758

The manufacturer no longer makes this part, and there's no substitute part

Spring Overlay 8209664
#15

Unit parts diagram

Spring overlay

Part #8209664

The manufacturer no longer makes this part, and there's no substitute part

Bend-retrn 8209658
#8

Unit parts diagram

Bend-retrn

Part #8209658

The manufacturer no longer makes this part, and there's no substitute part
