Electric Wall Oven

Model # 91141789991 Official Kenmore electric built-in oven

Here are the diagrams and repair parts for Official Kenmore 91141789991 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

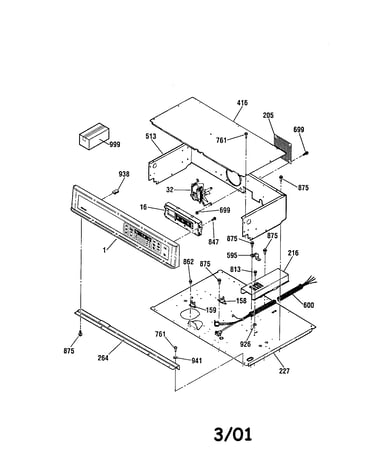

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Wall Oven Temperature Sensor (replaces Wb20k5035, Wb20k5040, Wb23t10002, Wb24x5340) WB23X5340
#253

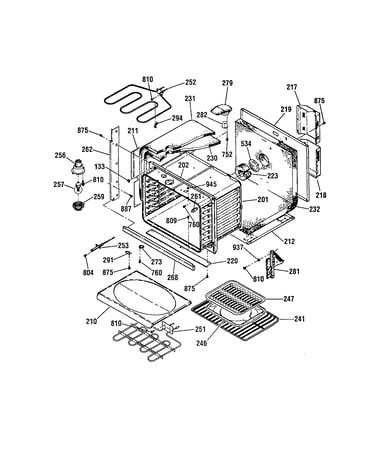

Body diagram

Wall oven temperature sensor (replaces wb20k5035, wb20k5040, wb23t10002, wb24x5340)

Part #WB23X5340

BEST SELLER
$129.99 |
8% OFF Phone Price : $141.99
In Stock
Broil Support WB02X9719
#294

Body diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Convex Element WB44T10001
#298

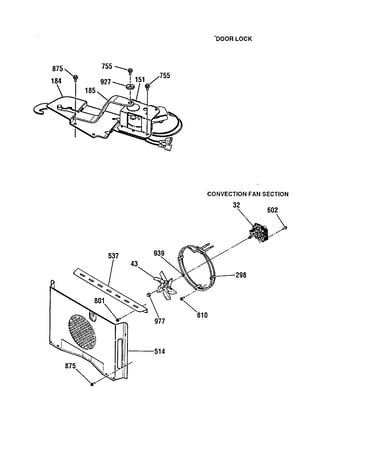

Door lock and convection fan diagram

Convex element

Part #WB44T10001

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44T10001. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Screw WB01X1293
#856

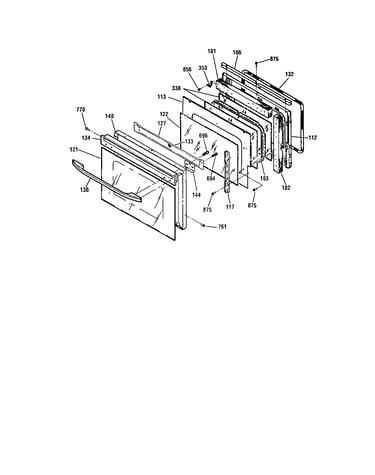

Door diagram

Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut WB02T10017
#977

Door lock and convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Fan Blade WB02T10018
#43

Door lock and convection fan diagram

Fan blade

Part #WB02T10018

Replaced by #WB02T10289

?
Manufacturer substitution
This part replaces WB02T10018. Substitute parts can look different from the original.
This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Range Oven Door Inner Glass WB57K5230
#122

Door diagram

Range oven door inner glass

Part #WB57K5230

$121.80 |
9% OFF Phone Price : $133.80
In Stock
Washer WB01X1254
#927

Door lock and convection fan diagram

Washer

Part #WB01X1254

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB01X1254. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Screw WB01K5028
#760

Body diagram

Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01X1137
#809

Body diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
