Model # JMV8208CB5 Official Jenn-Air microwave/hood combo
Here are the diagrams and repair parts for Official Jenn-Air JMV8208CB5 microwave/hood combo, as well as links to manuals and error code tables, if available.
By Schematic

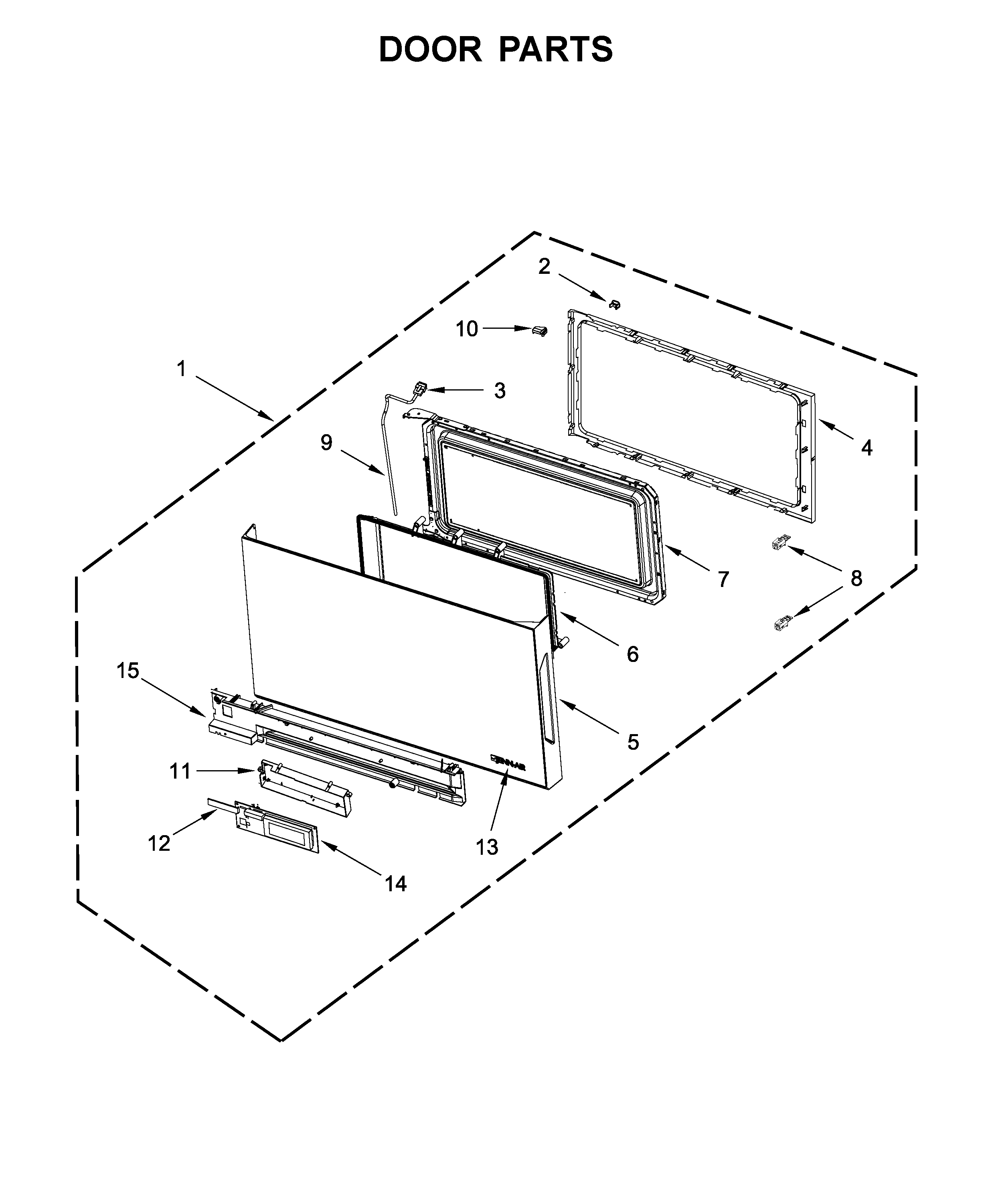

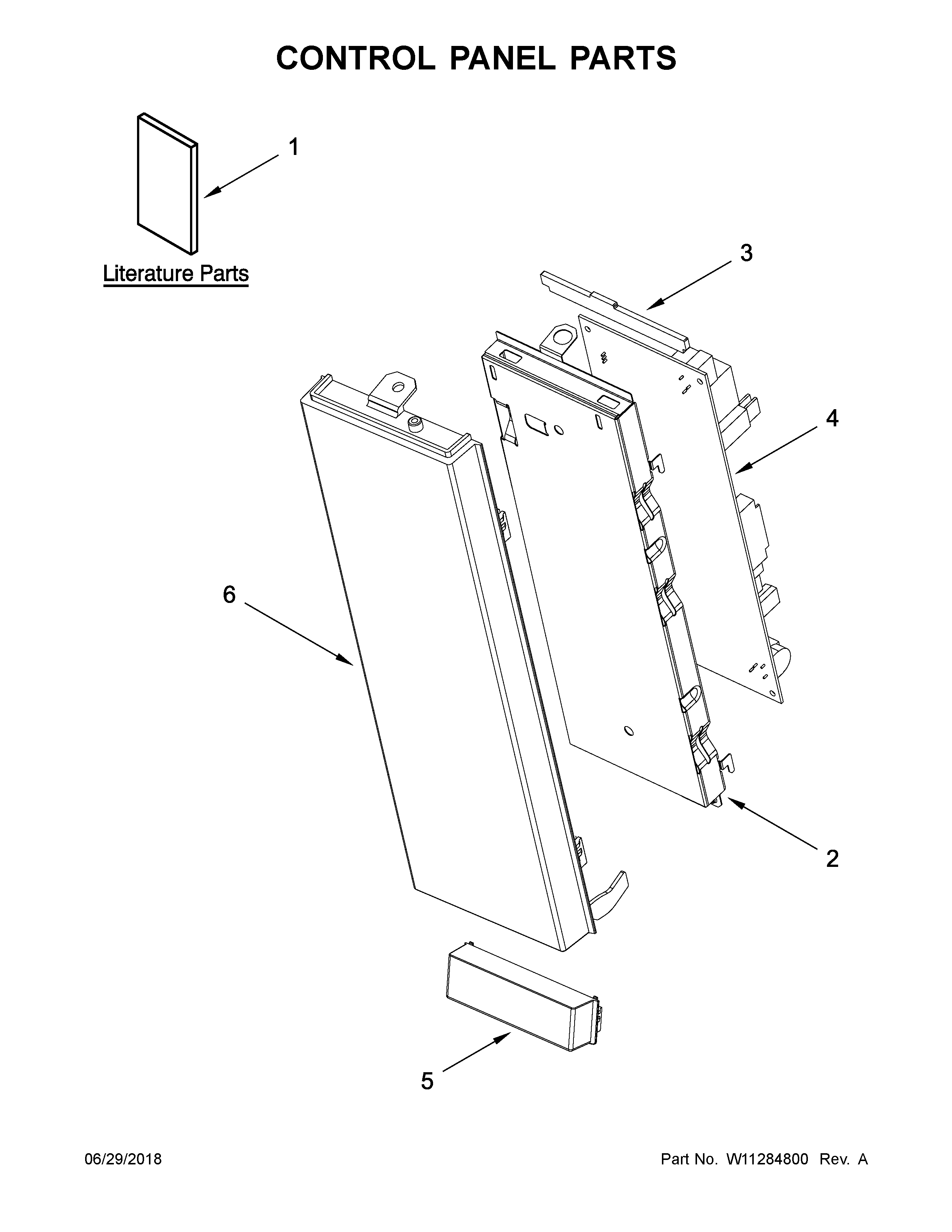

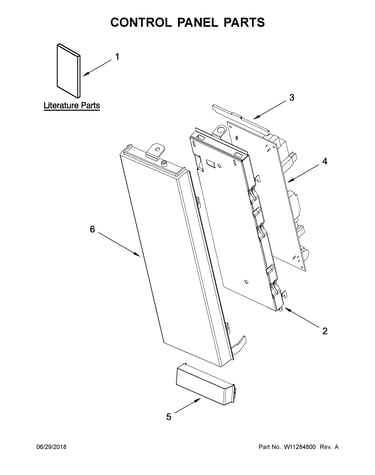

SELECT DIAGRAM
Browse Parts for
JMV8208CB5 Microwave/Hood Combo
#13

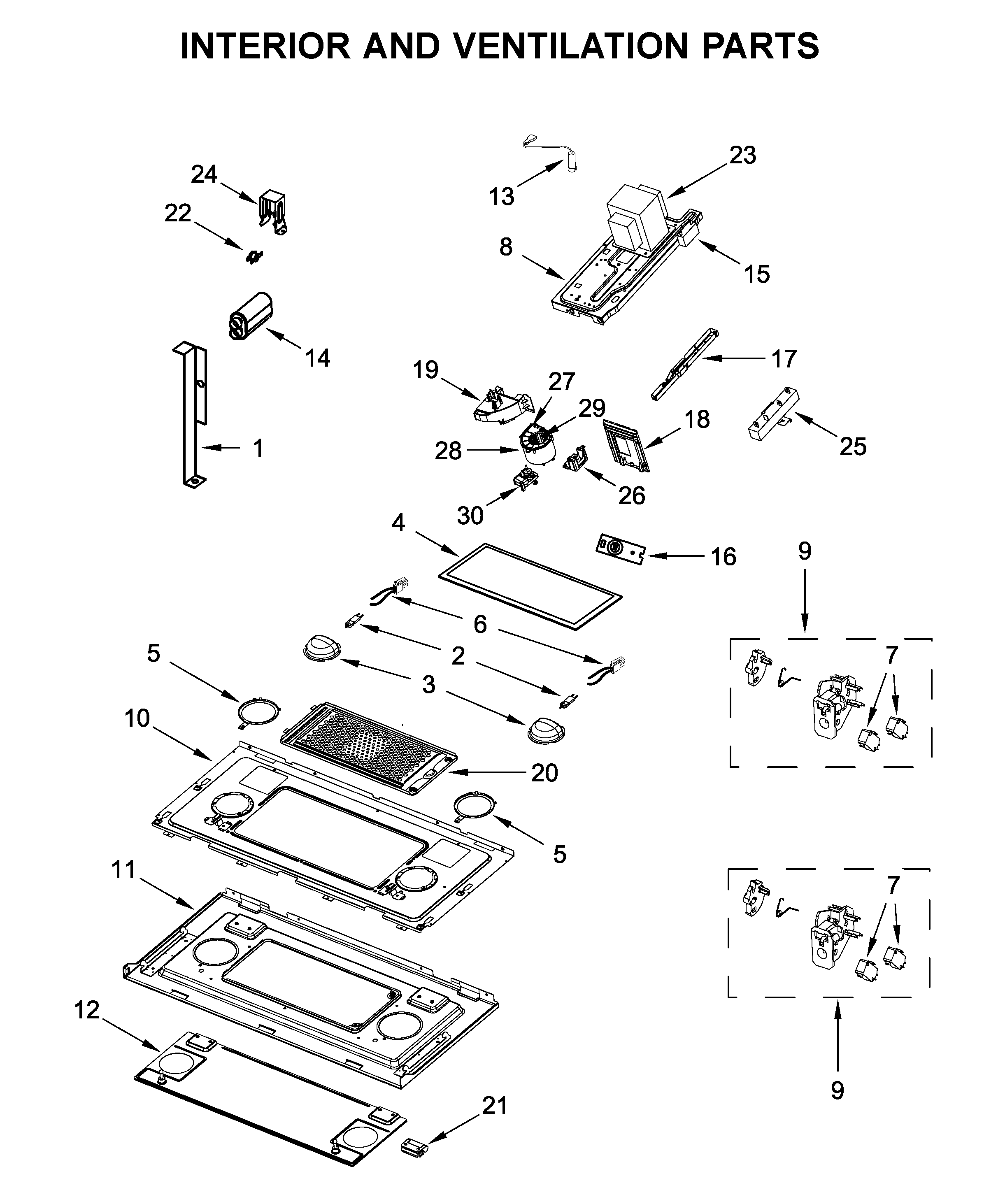

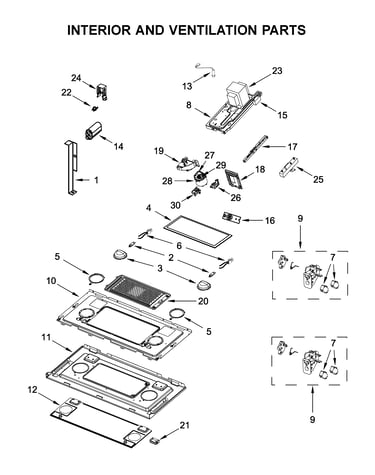

Interior and ventilation parts diagram
Diode
Part #W10575765
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10575765. Substitute parts can look different from the original.
$24.65 |
20% OFF Phone Price : $30.65
In Stock
#9
Interior and ventilation parts diagram
Assembly, interlock (includes switches)
Part #W11187757
Replaced by #W11197766
?
Manufacturer substitution
This part replaces W11187757. Substitute parts can look different from the original.
$19.97 |
9% OFF Phone Price : $21.97
In Stock
#7

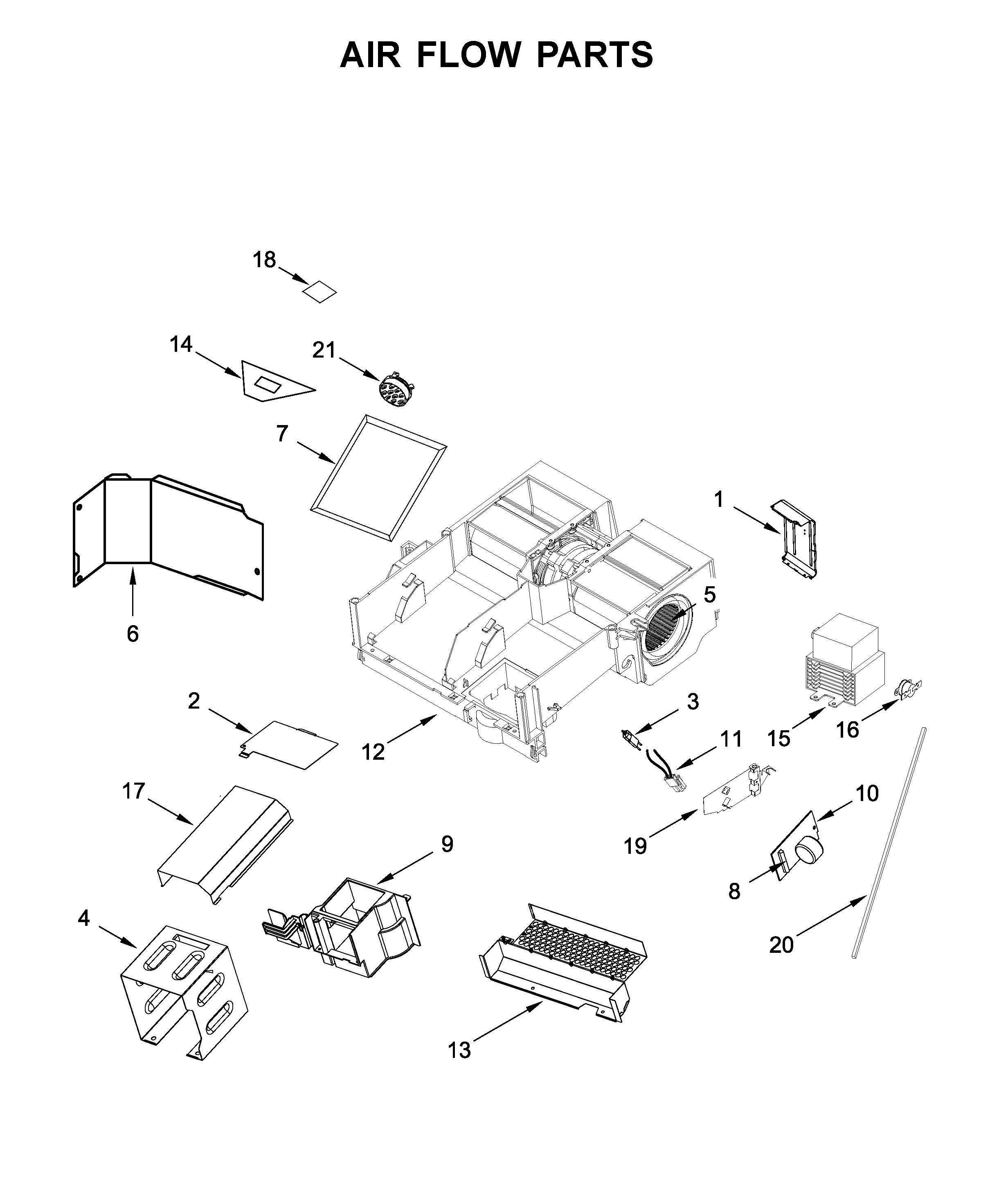

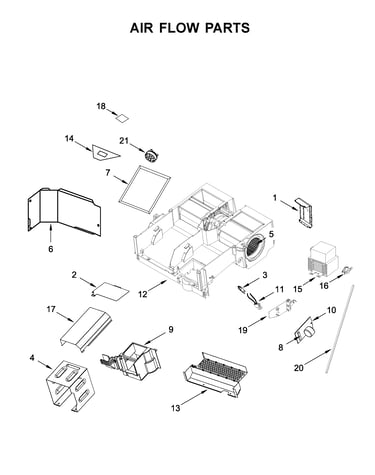

Air flow parts diagram
Filter
Part #8206230
Replaced by #8206230A
?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
$11.14 |
15% OFF Phone Price : $13.14
In Stock
#14
Interior and ventilation parts diagram
Microwave high-voltage capacitor
Part #W10561770
$29.89 |
17% OFF Phone Price : $35.89
In Stock
#15
Air flow parts diagram
Magnetron
Part #W10754514
The manufacturer no longer makes this part, and there's no substitute part
#5

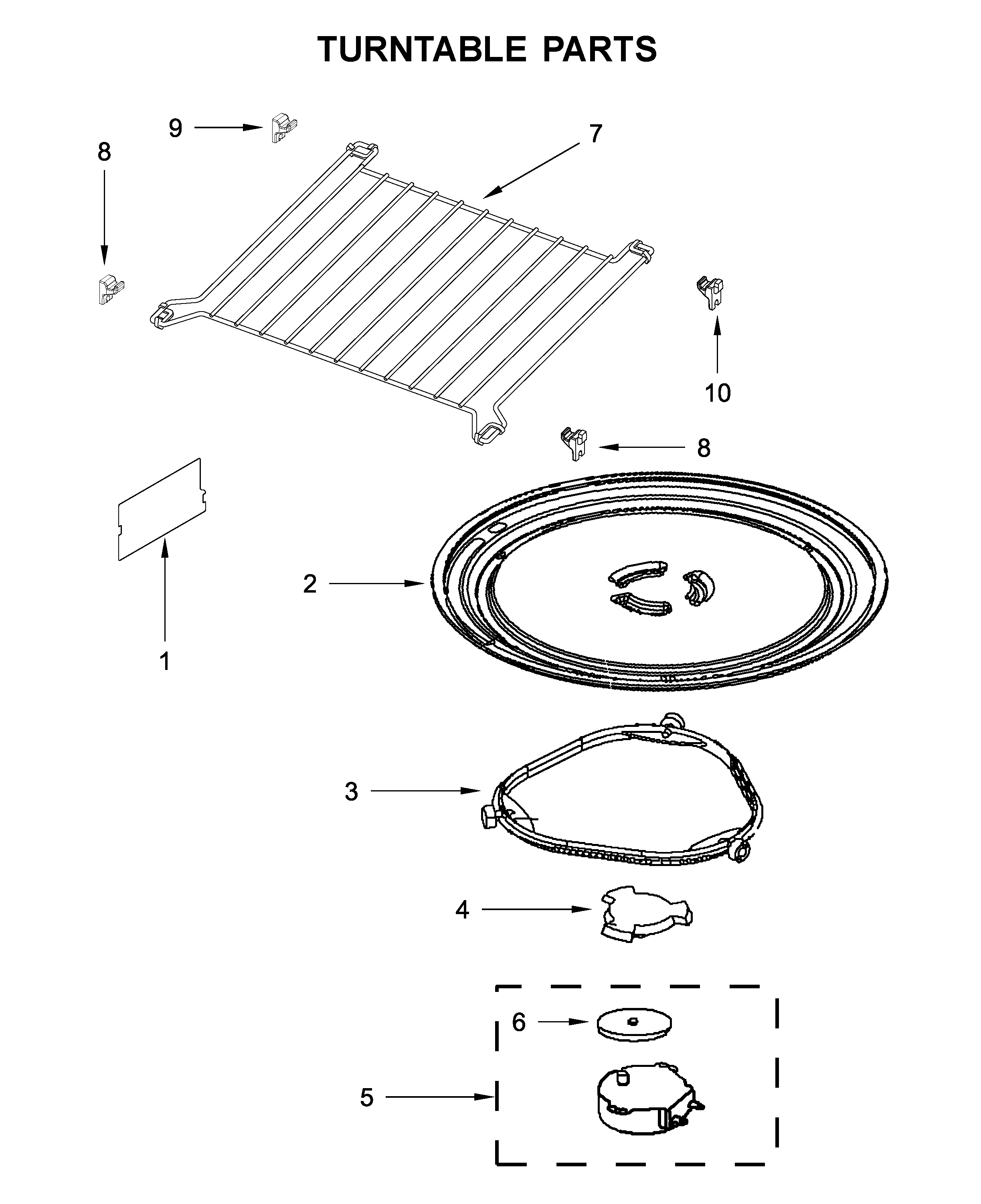

Turntable parts diagram
Microwave turntable motor (replaces 8183954)
Part #W10642989
$69.48 |
8% OFF Phone Price : $75.48
In Stock
#1

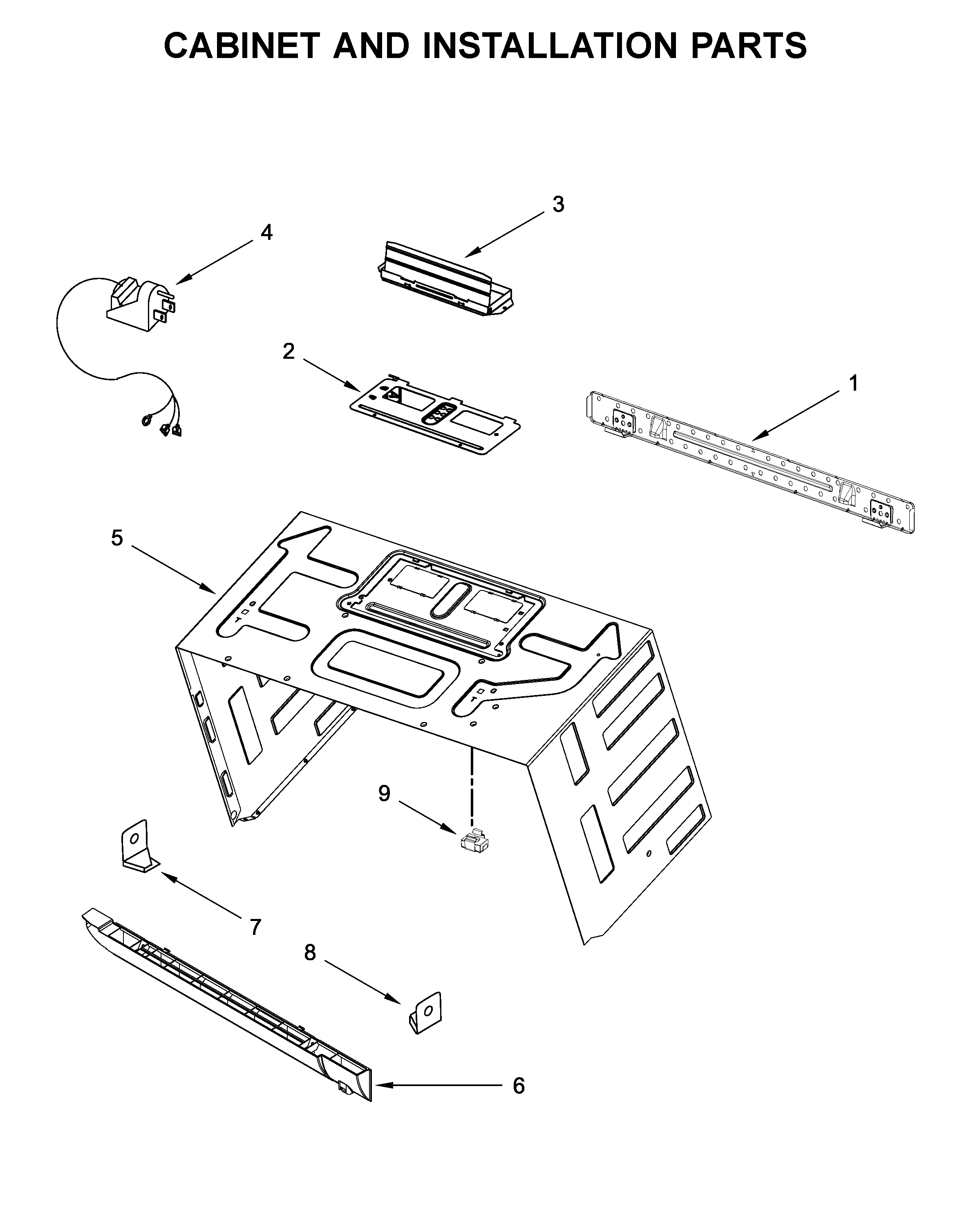

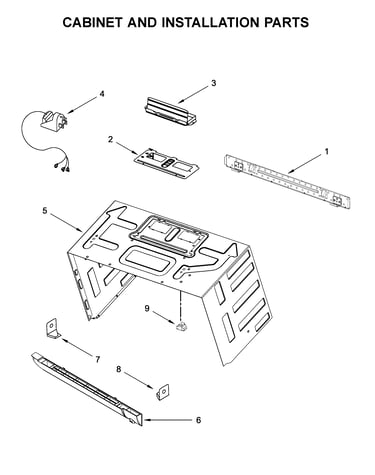

Cabinet and installation parts diagram
Microwave mounting plate (replaces w10440498)
Part #W11025649
$12.77 |
14% OFF Phone Price : $14.77
In Stock
#2

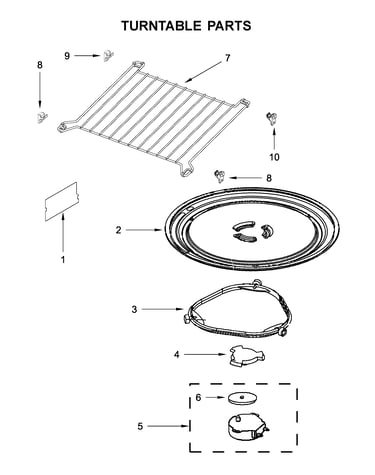

Turntable parts diagram
Microwave glass turntable tray
Part #W10531726
Replaced by #W11402532
?
Manufacturer substitution
This part replaces W10531726. Substitute parts can look different from the original.
$34.39 |
15% OFF Phone Price : $40.39
Back Order
Halogen lamp
Part #W10892536
Replaced by #W10709921
?
Manufacturer substitution
This part replaces W10892536. Substitute parts can look different from the original.
$15.38 |
12% OFF Phone Price : $17.38
In Stock
#10
Air flow parts diagram
Microwave/hood filter
Part #W10531156
Replaced by #WPW10531156
?
Manufacturer substitution
This part replaces W10531156. Substitute parts can look different from the original.
$63.31
In Stock
