Amana
Electric Cooktop

Model # AK2T30W1-P1131560N Official Amana radiant cooktop

Here are the diagrams and repair parts for Official Amana AK2T30W1-P1131560N radiant cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Element, Dua 0306218
#13

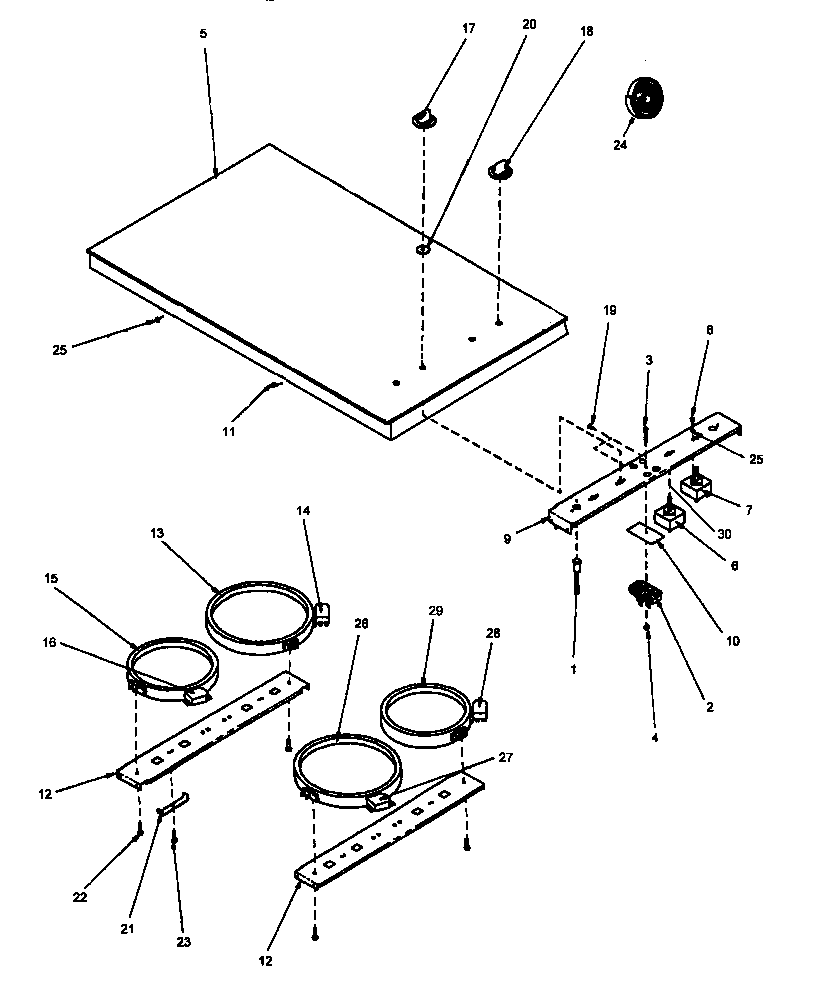

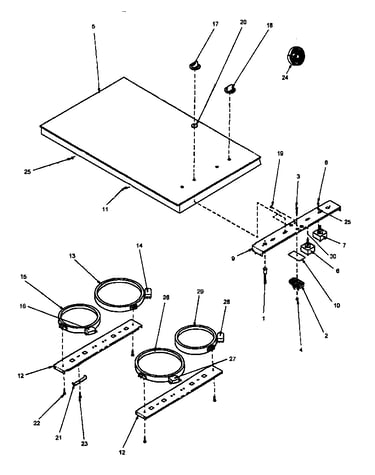

Cooktop assy diagram

Element, dua

Part #0306218

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 0306218. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Sensor 0306216
#26

Cooktop assy diagram

Sensor

Part #0306216

Replaced by #W10823710

?
Manufacturer substitution
This part replaces 0306216. Substitute parts can look different from the original.
$156.59 |
7% OFF Phone Price : $168.59
In Stock
Screw M0234422
#12

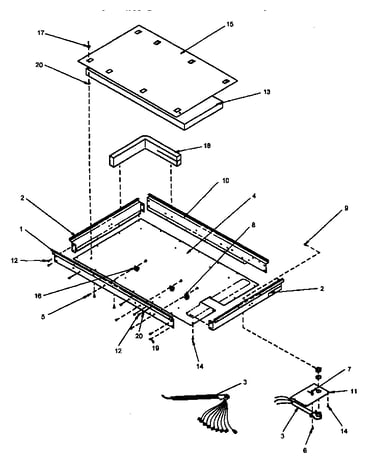

Heater box assy diagram

Screw

Part #M0234422

This item is not returnable
$4.22
In Stock
Screw M0216703
#14

Heater box assy diagram

Screw

Part #M0216703

This item is not returnable
$3.40
In Stock
Cleaner, Coo 0314274
#999F

Miscellaeous information diagram

Cleaner, coo

Part #0314274

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 0314274. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Heater 0306215
#29

Cooktop assy diagram

Heater

Part #0306215

Replaced by #W10823699

?
Manufacturer substitution
This part replaces 0306215. Substitute parts can look different from the original.
$74.52 |
7% OFF Phone Price : $80.52
In Stock
Infinite Switch 0309862
#7

Cooktop assy diagram

Infinite switch

Part #0309862

Replaced by #W11121639

?
Manufacturer substitution
This part replaces 0309862. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Machine Screw 0041768
#8

Cooktop assy diagram

Machine screw

Part #0041768

Replaced by #WP3400882

?
Manufacturer substitution
This part replaces 0041768. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 0041809
#11A

Cooktop assy diagram

Screw

Part #0041809

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw M0210816
#19

Heater box assy diagram

Screw

Part #M0210816

Replaced by #12991101

?
Manufacturer substitution
This part replaces M0210816. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
