Model # FCWM2727ABG Official Frigidaire electric oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FCWM2727ABG electric oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

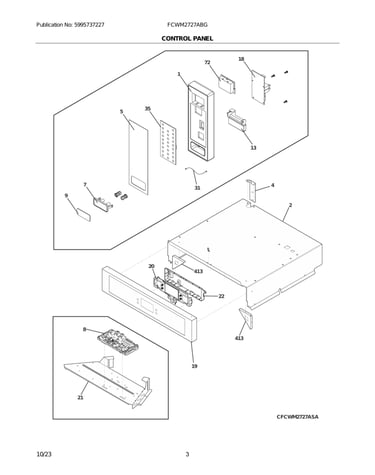

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Kenmore Elite Microwave Fuse (replaces 5304488359) 5304509451
#34

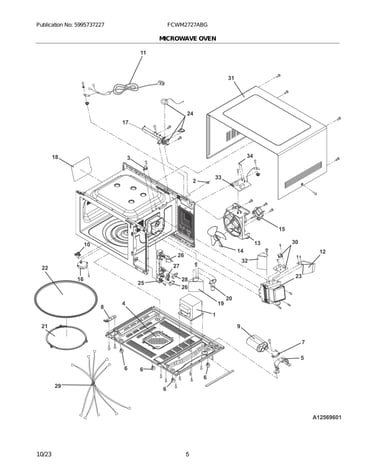

Microwave oven diagram

Kenmore elite microwave fuse (replaces 5304488359)

Part #5304509451

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Switch 5304520020
#26

Microwave oven diagram

Switch

Part #5304520020

Replaced by #5304509460

?
Manufacturer substitution
This part replaces 5304520020. Substitute parts can look different from the original.
BEST SELLER
$34.73 |
15% OFF Phone Price : $40.73
In Stock
Range Oven Temperature Sensor (replaces 5304504897) 5304525427
#37

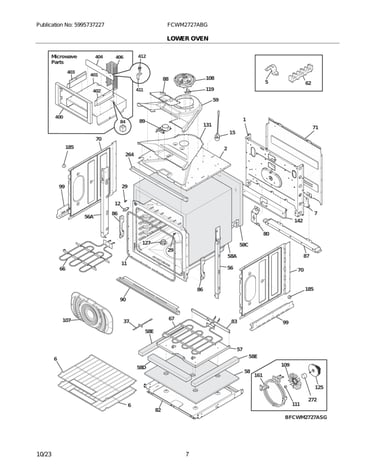

Lower oven diagram

Range oven temperature sensor (replaces 5304504897)

Part #5304525427

BEST SELLER
$31.56 |
16% OFF Phone Price : $37.56
In Stock
Wall Oven Microwave Fuse And Holder 318647300
#412

Lower oven diagram

Wall oven microwave fuse and holder

Part #318647300

BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Electrolux Microwave Turntable Tray (replaces 5304464116) 5304509621
#22

Microwave oven diagram

Electrolux microwave turntable tray (replaces 5304464116)

Part #5304509621

BEST SELLER
$107.75 |
10% OFF Phone Price : $119.75
In Stock
Kenmore Microwave Magnetron 5304513456
#23

Microwave oven diagram

Kenmore microwave magnetron

Part #5304513456

BEST SELLER
$137.93 |
8% OFF Phone Price : $149.93
In Stock
Electrolux Switch 5304520021
#28

Microwave oven diagram

Electrolux switch

Part #5304520021

$14.69
In Stock
Range Screw 316021110
#NI

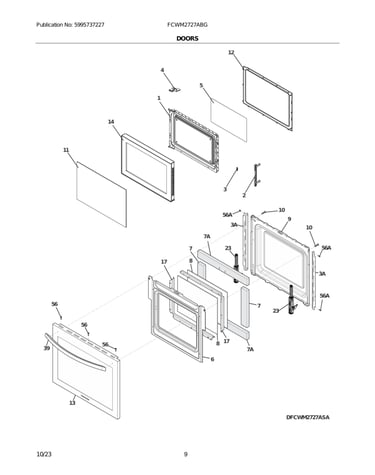

Door diagram

Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Door Light Switch 318394802
#12

Lower oven diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Electrolux Microwave Waveguide Cover 5304505675
#18

Microwave oven diagram

Electrolux microwave waveguide cover

Part #5304505675

This item is not returnable
$12.49 |
14% OFF Phone Price : $14.49
In Stock
