DeWalt
Power Drill

Model # DCF610S2 TYPE 1 Official DeWalt cordless drill

Here are the diagrams and repair parts for Official DeWalt DCF610S2-TYPE-1 cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Dewalt Clamshell N029500
#2

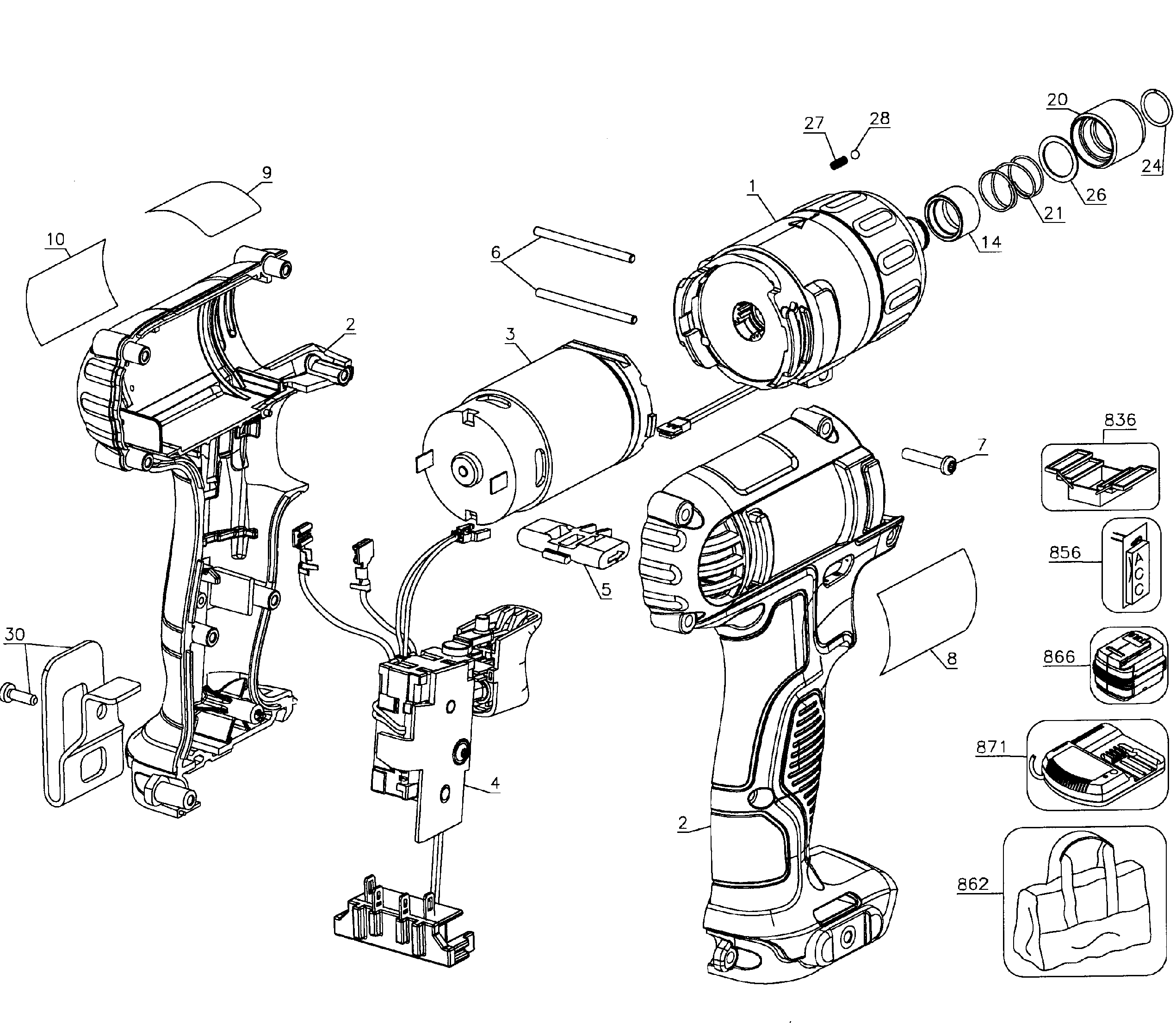

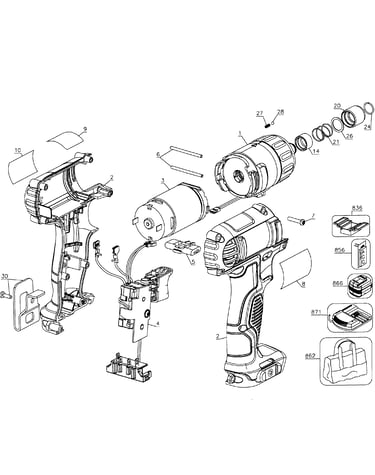

Drill cordless diagram

Dewalt clamshell

Part #N029500

The manufacturer no longer makes this part, and there's no substitute part

F/r Button N017247
#5

Drill cordless diagram

F/r button

Part #N017247

The manufacturer no longer makes this part, and there's no substitute part

Ball N022764
#28

Drill cordless diagram

Ball

Part #N022764

The manufacturer no longer makes this part, and there's no substitute part

#2 Bit DW2002
#856

Drill cordless diagram

#2 bit

Part #DW2002

The manufacturer no longer makes this part, and there's no substitute part

Sleeve N020153
#20

Drill cordless diagram

Sleeve

Part #N020153

The manufacturer no longer makes this part, and there's no substitute part

Spring N020154
#21

Drill cordless diagram

Spring

Part #N020154

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring N055051
#24

Drill cordless diagram

Retaining ring

Part #N055051

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Variable-speed Switch N058205
#4

Drill cordless diagram

Dewalt variable-speed switch

Part #N058205

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Nameplate N073152
#8

Drill cordless diagram

Dewalt nameplate

Part #N073152

The manufacturer no longer makes this part, and there's no substitute part

Washer N032311
#26

Drill cordless diagram

Washer

Part #N032311

The manufacturer no longer makes this part, and there's no substitute part
