Model # JGSP28SEK2SS Official GE gas range
Here are the diagrams and repair parts for Official GE JGSP28SEK2SS gas range, as well as links to manuals and error code tables, if available.
By Schematic
By Part

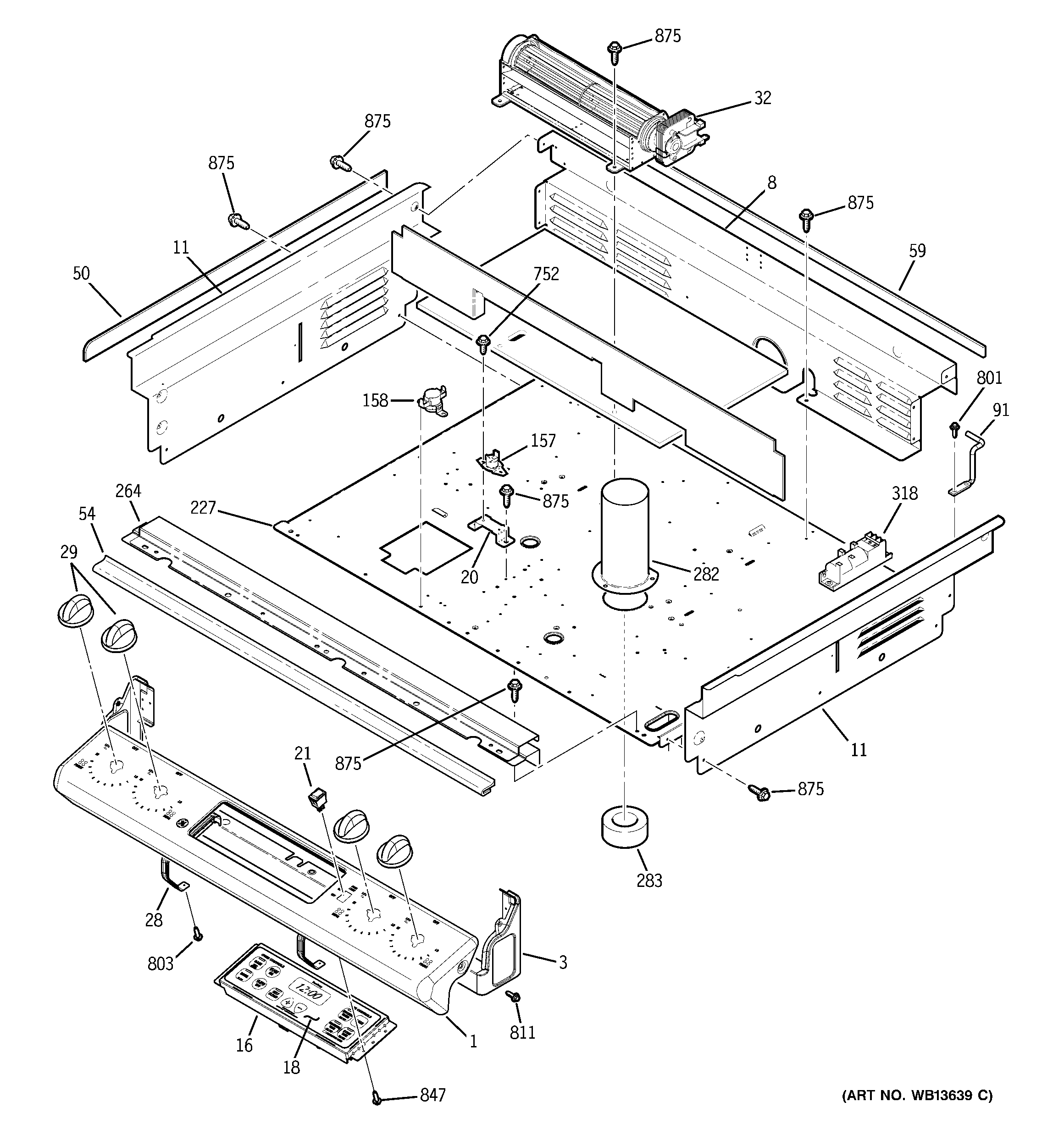

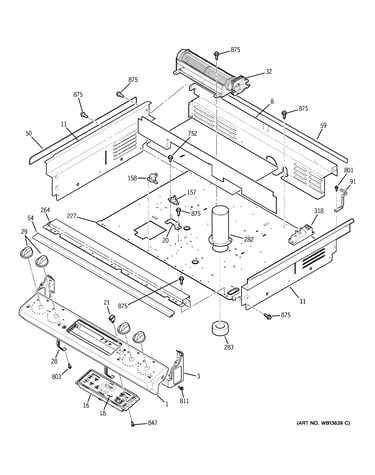

SELECT DIAGRAM
Browse Parts for
JGSP28SEK2SS Ranges
#253

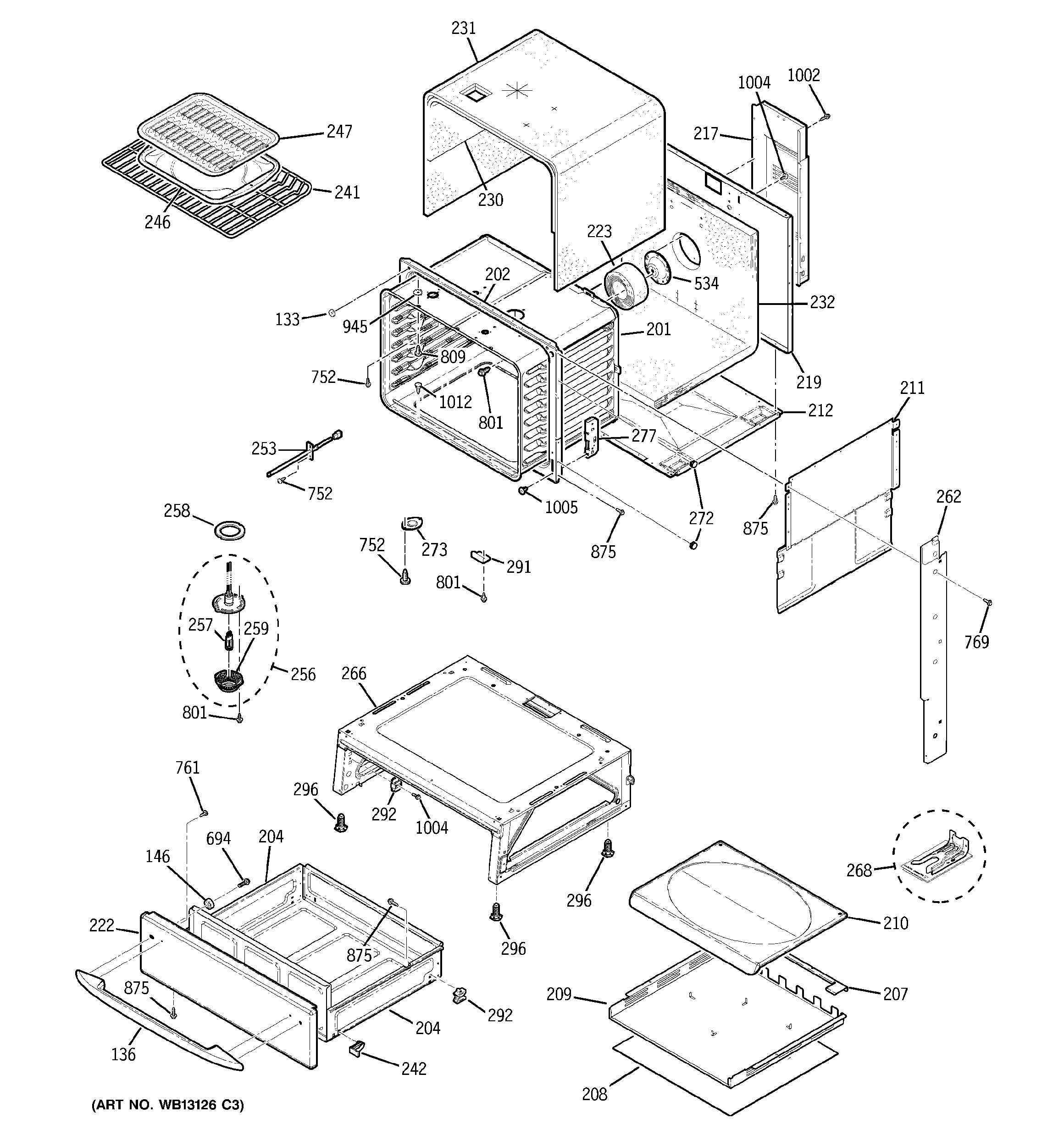

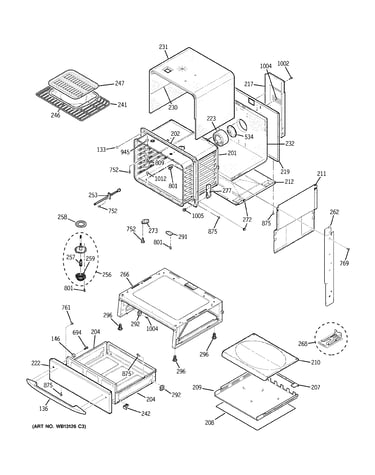

Body parts diagram
Sensor
Part #WB21T10017
Replaced by #WB21X22134
?
Manufacturer substitution
This part replaces WB21T10017. Substitute parts can look different from the original.
$22.96 |
21% OFF Phone Price : $28.96
In Stock
G.e. range oven burner igniter
Part #WB13T10045
$117.71 |
9% OFF Phone Price : $129.71
In Stock
#338

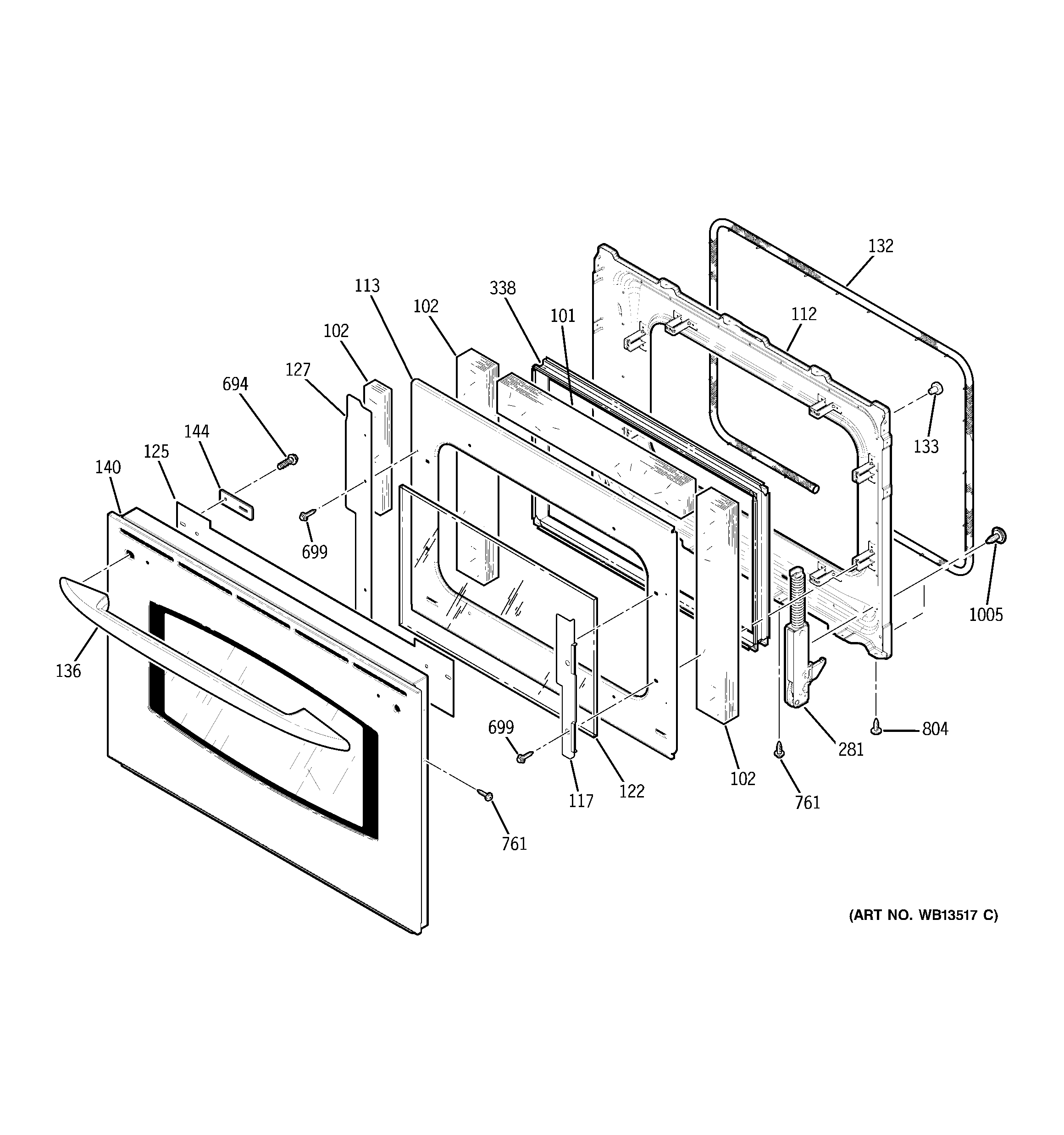

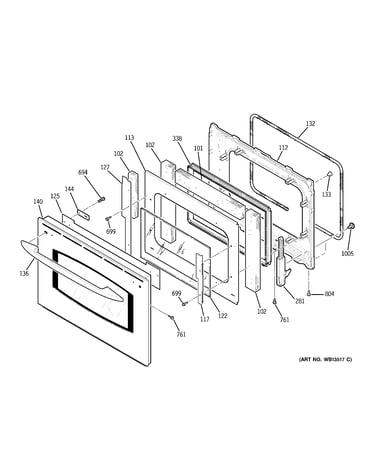

Door diagram
G.e. range oven door middle glass (replaces wb55t10191)
Part #WB56T10105
$106.43 |
10% OFF Phone Price : $118.43
In Stock
#57

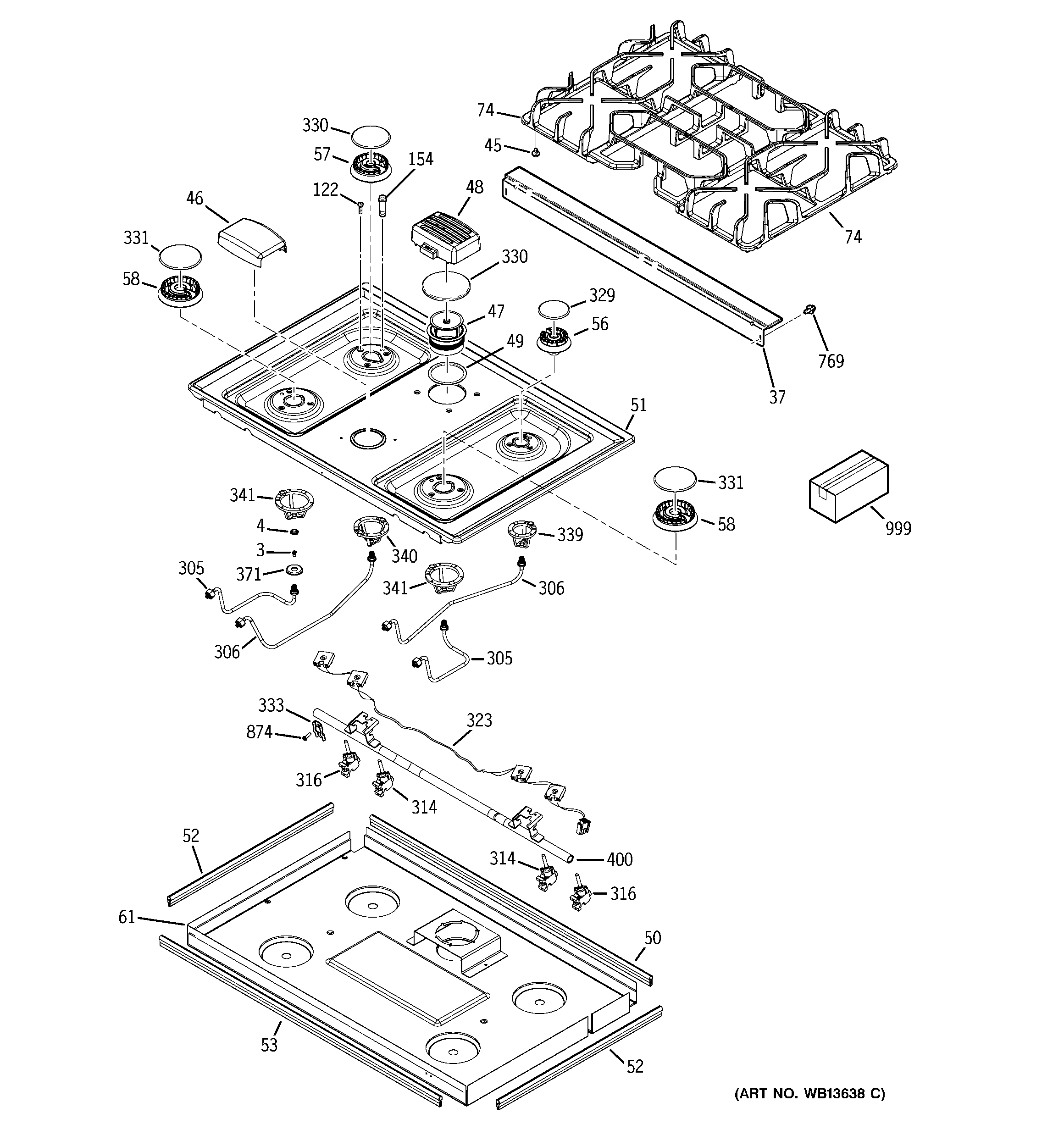

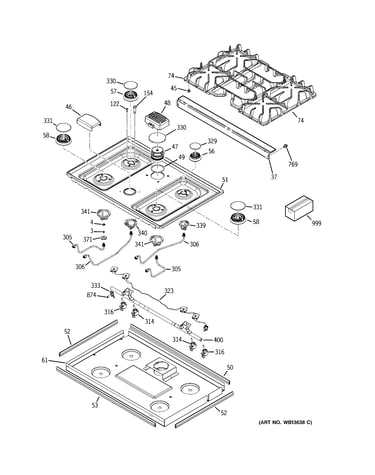

Cooktop diagram
Burner
Part #WB16K10023
Replaced by #WB16K10055
?
Manufacturer substitution
This part replaces WB16K10023. Substitute parts can look different from the original.
$41.17 |
13% OFF Phone Price : $47.17
In Stock
#56
Cooktop diagram
Burner
Part #WB16K10024
Replaced by #WB16K10070
?
Manufacturer substitution
This part replaces WB16K10024. Substitute parts can look different from the original.
$30.13 |
17% OFF Phone Price : $36.13
In Stock
#58
Cooktop diagram
Burner
Part #WB16K10025
Replaced by #WB16T10046
?
Manufacturer substitution
This part replaces WB16K10025. Substitute parts can look different from the original.
$31.57 |
16% OFF Phone Price : $37.57
In Stock
#856

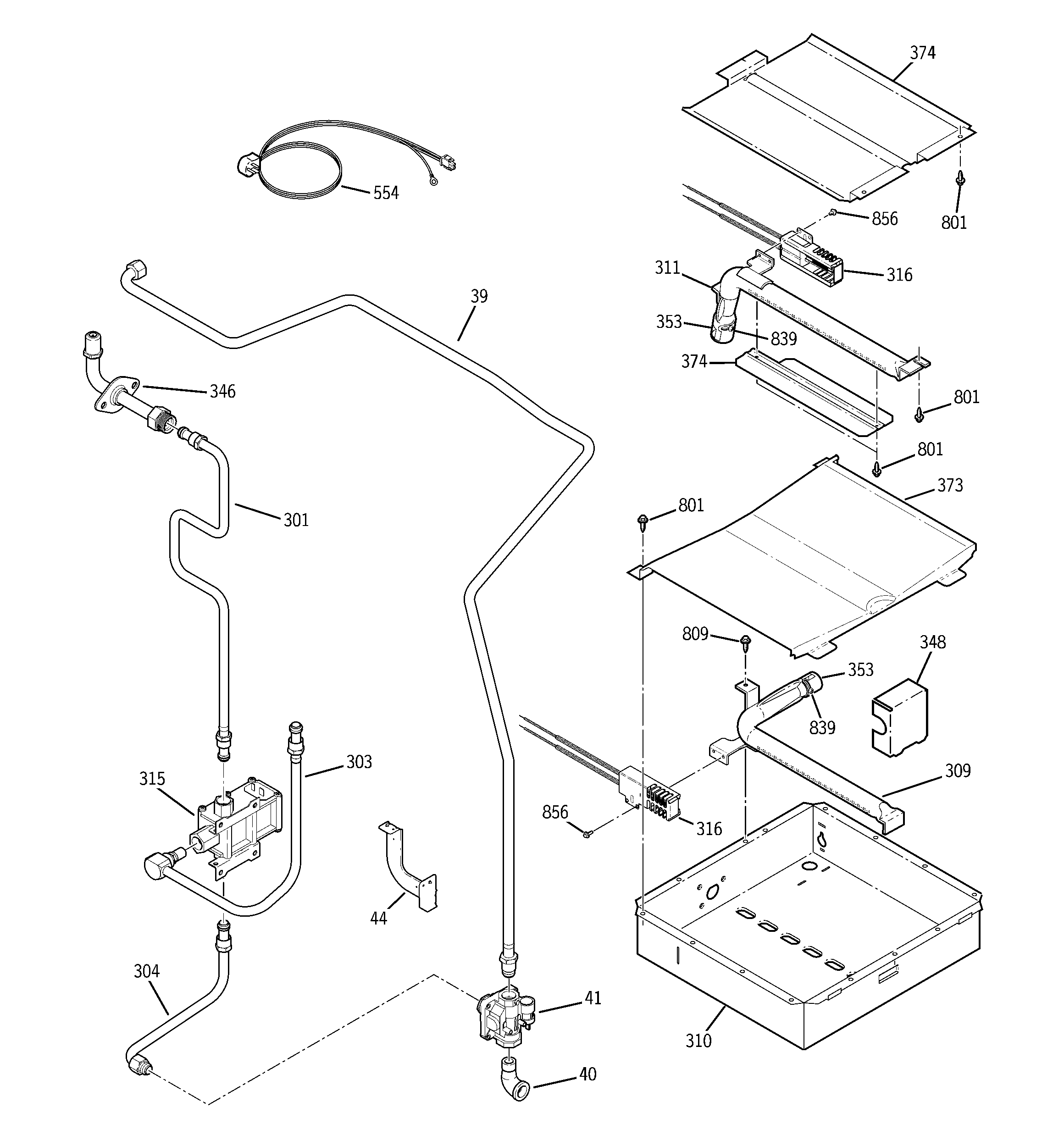

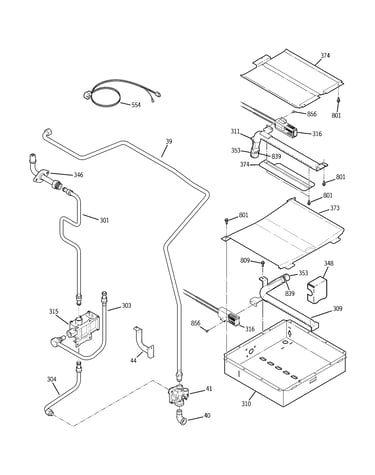

Gas & burner parts diagram
Screw
Part #WB01X1293
Replaced by #WB1X1293
?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Range surface burner orifice (replaces wb28k10607)
Part #WB28K10215
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
#339
Cooktop diagram
Ckt bracket
Part #WB02K10079
Replaced by #WB02K10360
?
Manufacturer substitution
This part replaces WB02K10079. Substitute parts can look different from the original.
This item is not returnable
$17.44 |
10% OFF Phone Price : $19.44
In Stock
#292
Body parts diagram
Range storage drawer support, rear
Part #WB48T10030
Replaced by #WB02X33180
?
Manufacturer substitution
This part replaces WB48T10030. Substitute parts can look different from the original.
This item is not returnable
$7.80 |
11% OFF Phone Price : $8.80
In Stock
