Model # 113213030 Official Craftsman 13" motorized bench drill press

Here are the diagrams and repair parts for Official Craftsman 113213030 13" motorized bench drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

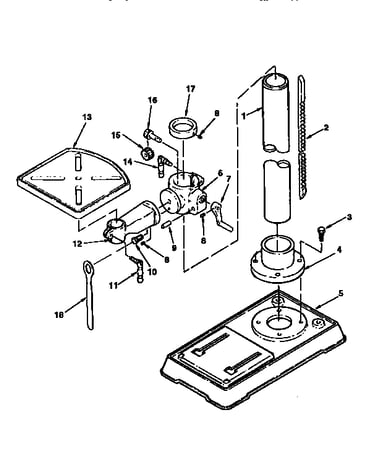

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Drill Press Chuck Key (replaces 71178, 71401) 817339
#15

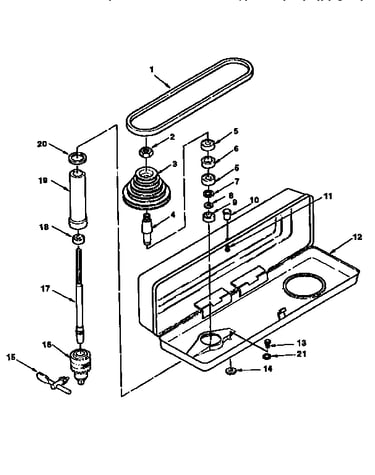

Figure 2 diagram

Drill press chuck key (replaces 71178, 71401)

Part #817339

The manufacturer no longer makes this part, and there's no substitute part

Pan Screw 820240-3
#30

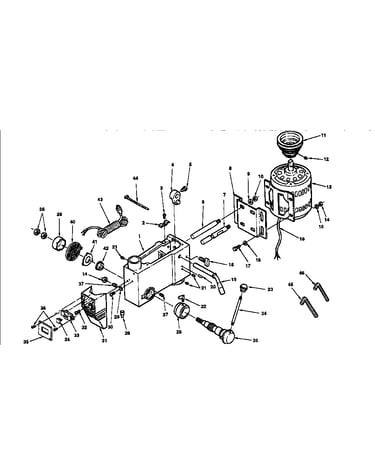

Figure 1 diagram

Pan screw

Part #820240-3

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Spindle Knob 817510
#23

Figure 1 diagram

Drill press spindle knob

Part #817510

The manufacturer no longer makes this part, and there's no substitute part

Self-tapping Screw, M4.2-1.4 X 9.5 820339
#36

Figure 1 diagram

Self-tapping screw, m4.2-1.4 x 9.5

Part #820339

The manufacturer no longer makes this part, and there's no substitute part

Screw 820382
#21

Figure 1 diagram

Screw

Part #820382

The manufacturer no longer makes this part, and there's no substitute part

Screw 816755-3
Screw

Part #816755-3

The manufacturer no longer makes this part, and there's no substitute part

Scrw Pan Hd 820240
#32

Figure 1 diagram

Scrw pan hd

Part #820240

The manufacturer no longer makes this part, and there's no substitute part

Scrw Soc St 820245
Scrw soc st

Part #820245

The manufacturer no longer makes this part, and there's no substitute part

Motor 817557
#13

Figure 1 diagram

Motor

Part #817557

The manufacturer no longer makes this part, and there's no substitute part

Connector STD375007
#28

Figure 1 diagram

Connector

Part #STD375007

The manufacturer no longer makes this part, and there's no substitute part
