Craftsman
Power Drill

Model # 31511441 Official Craftsman 3/8" electric drill

Here are the diagrams and repair parts for Official Craftsman 31511441 3/8" electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Armature 2-617498-01
#33

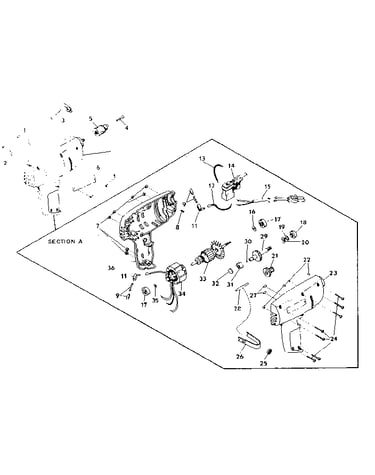

Unit parts diagram

Armature

Part #2-617498-01

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1-606854-01
#17

Unit parts diagram

Bearing

Part #1-606854-01

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 1-941401-802
#8

Unit parts diagram

Roll pin

Part #1-941401-802

The manufacturer no longer makes this part, and there's no substitute part

Nut 1-706404-07
#7

Unit parts diagram

Nut

Part #1-706404-07

The manufacturer no longer makes this part, and there's no substitute part

Key 1-614984-01
#3

Unit parts diagram

Key

Part #1-614984-01

The manufacturer no longer makes this part, and there's no substitute part

Lead W/term 1-617582-01
#12

Unit parts diagram

Lead w/term

Part #1-617582-01

The manufacturer no longer makes this part, and there's no substitute part

Instruction Sheet 2-620263-630R

#NI

All parts diagram

Instruction sheet

Part #2-620263-630R

The manufacturer no longer makes this part, and there's no substitute part

Cord 2-607133-01
#15

Unit parts diagram

Cord

Part #2-607133-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-614658-07
#24

Unit parts diagram

Screw

Part #1-614658-07

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1-607129-01
#18

Unit parts diagram

Bearing

Part #1-607129-01

The manufacturer no longer makes this part, and there's no substitute part
