Model # 030734-00 Official Briggs & Stratton generator

Here are the diagrams and repair parts for Official Briggs & Stratton 030734-00 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

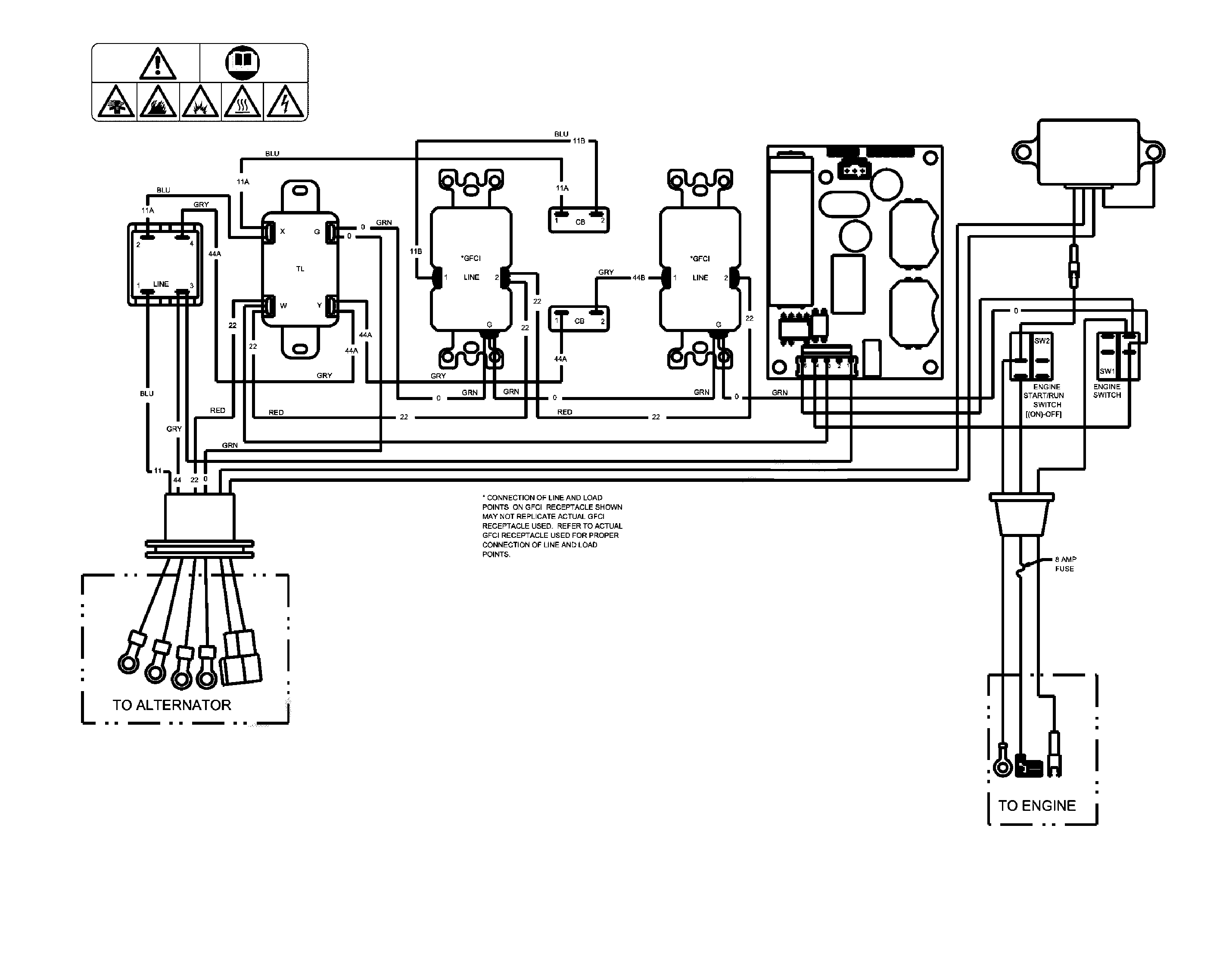

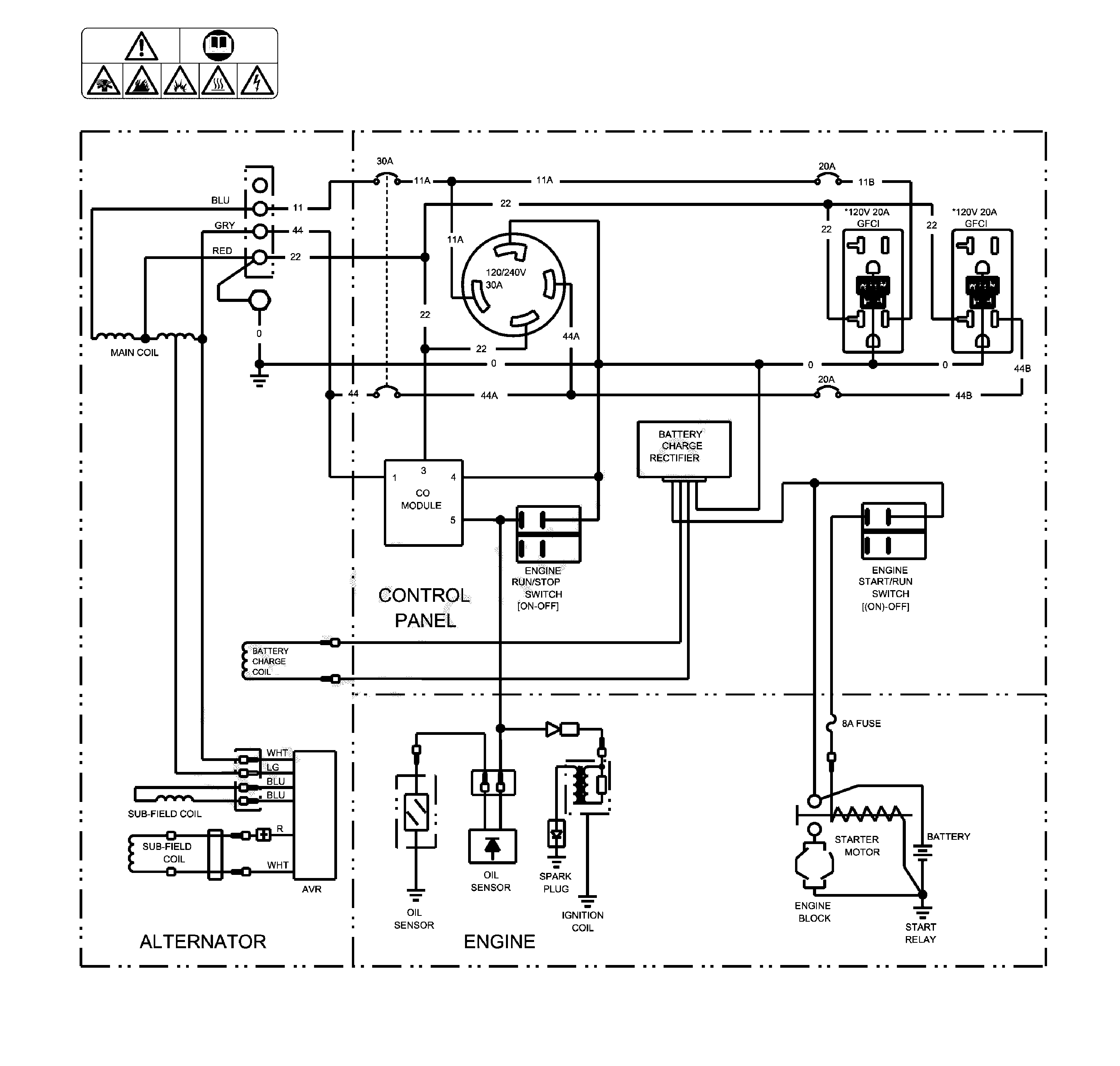

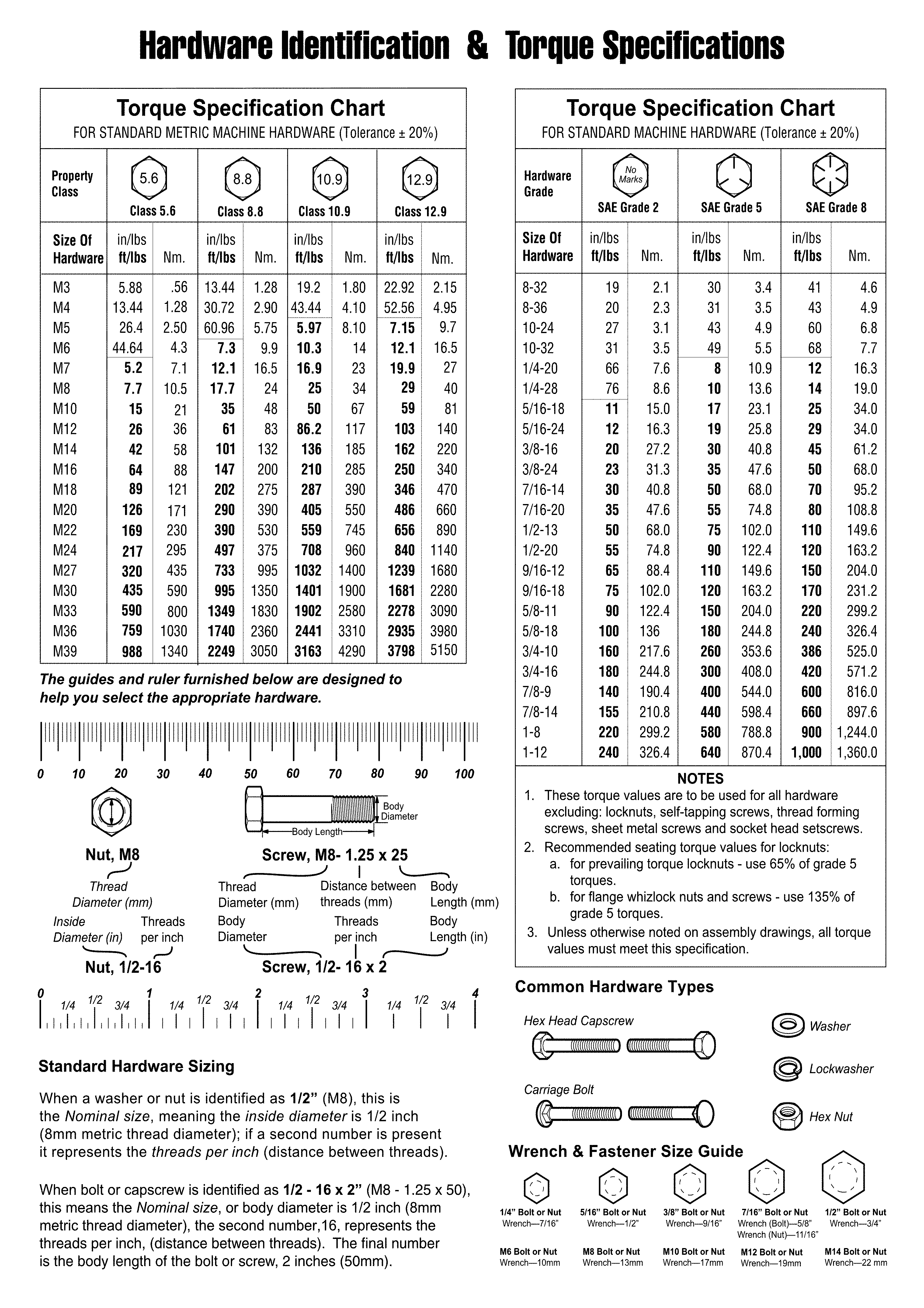

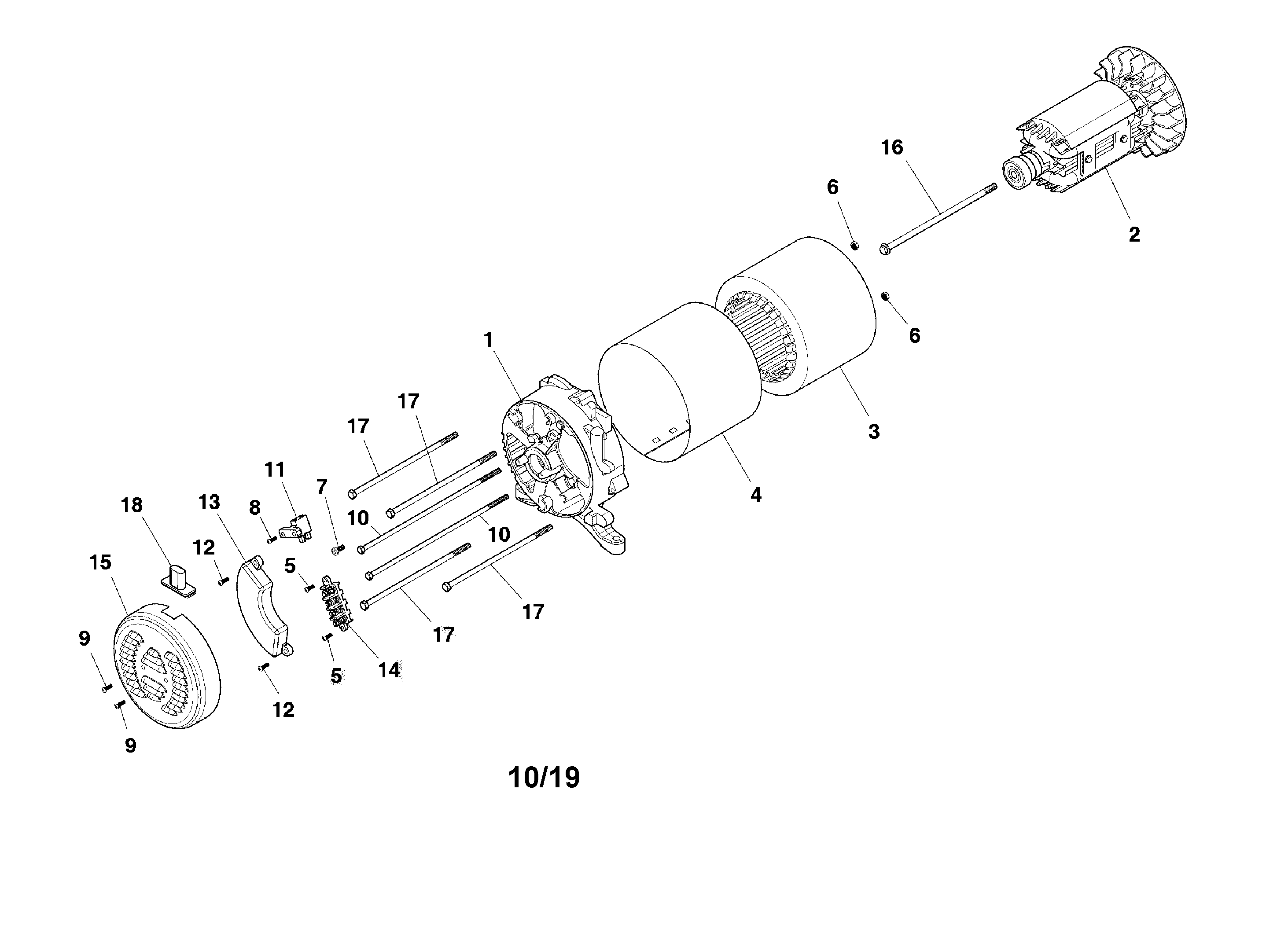

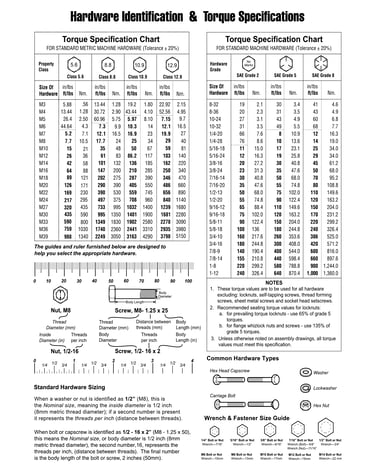

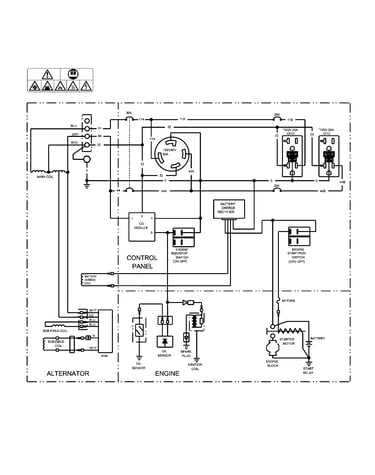

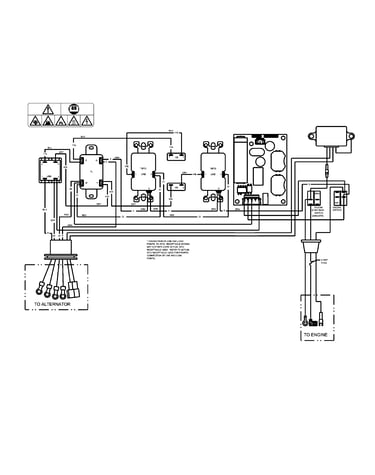

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Husqvarna Lawn & Garden Equipment Fuel Line Kit 791745
#46

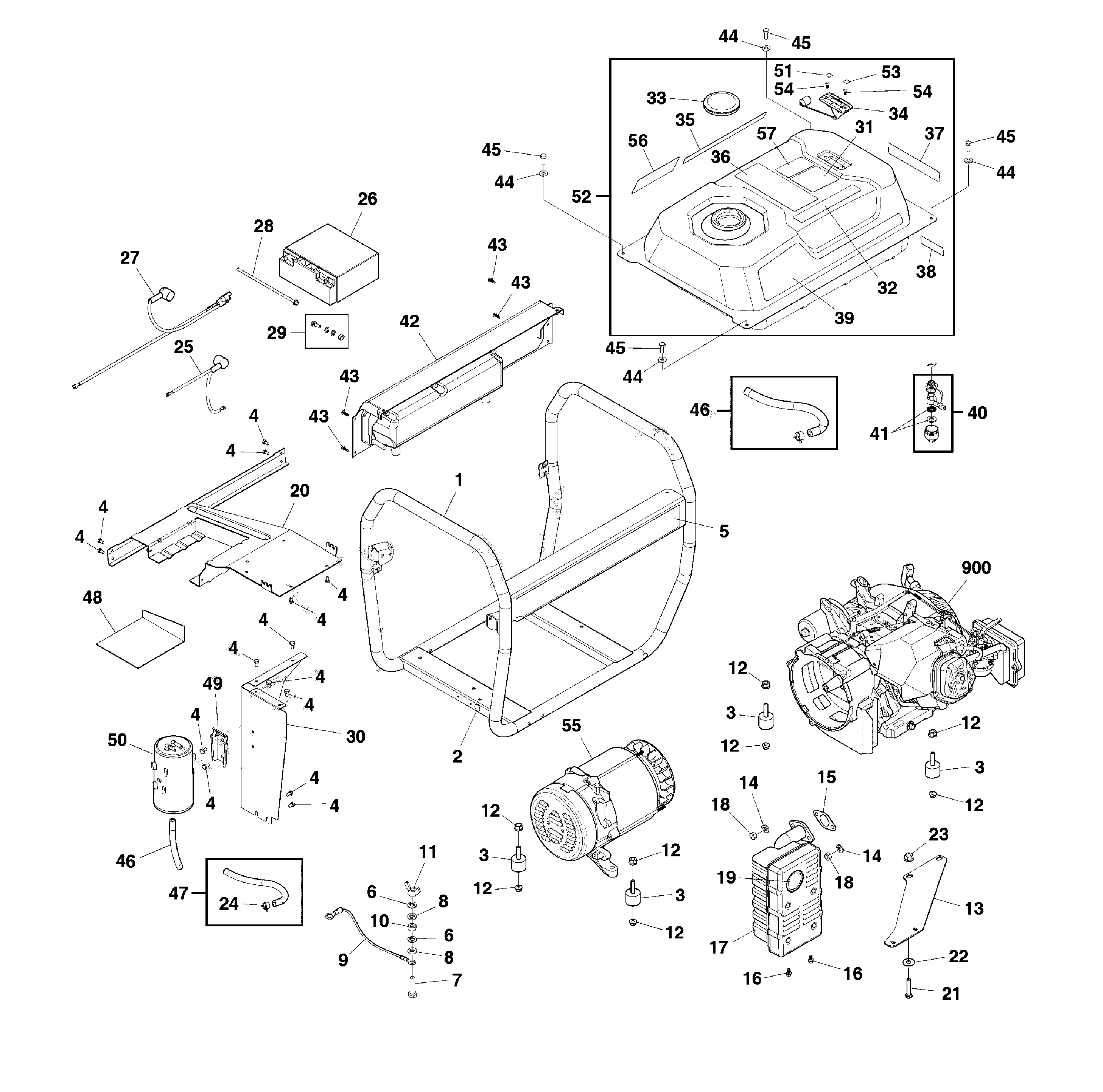

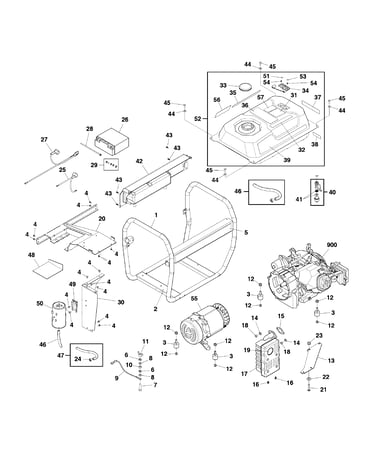

Main unit diagram

Husqvarna lawn & garden equipment fuel line kit

Part #791745

This item is not returnable
$19.69 |
9% OFF Phone Price : $21.69
In Stock
Generac Generator Spark Arrestor 83083GS
#19

Main unit diagram

Generac generator spark arrestor

Part #83083GS

This item is not returnable
$13.49 |
13% OFF Phone Price : $15.49
In Stock
Generator Circuit Breaker, 20-amp 209872GS
#3

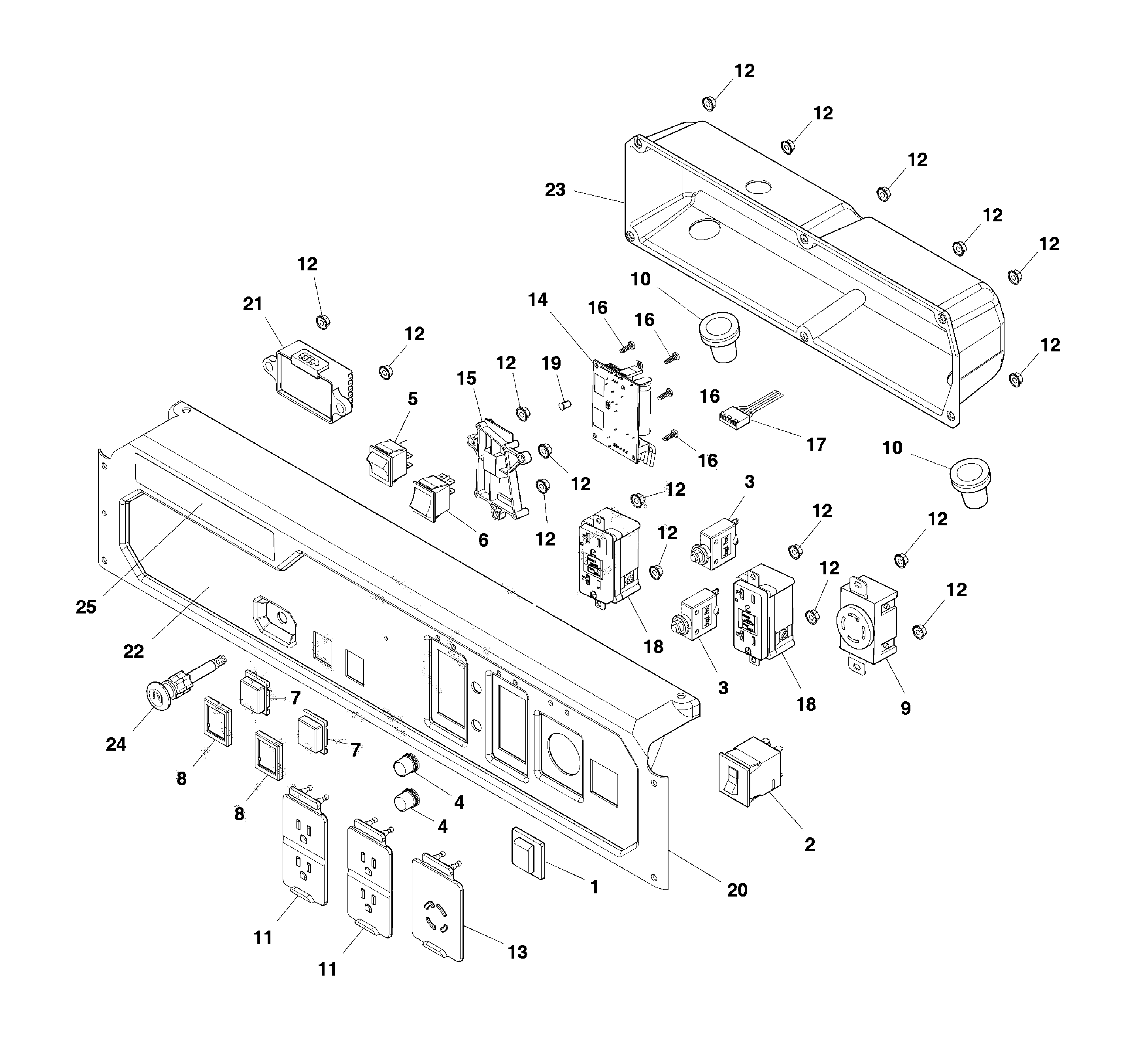

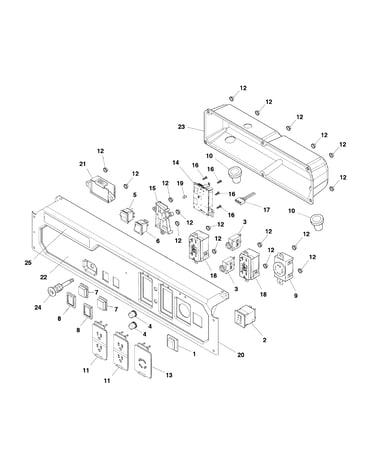

Control panel diagram

Generator circuit breaker, 20-amp

Part #209872GS

$17.09 |
10% OFF Phone Price : $19.09
In Stock
Kit-hardware 84001063
#16

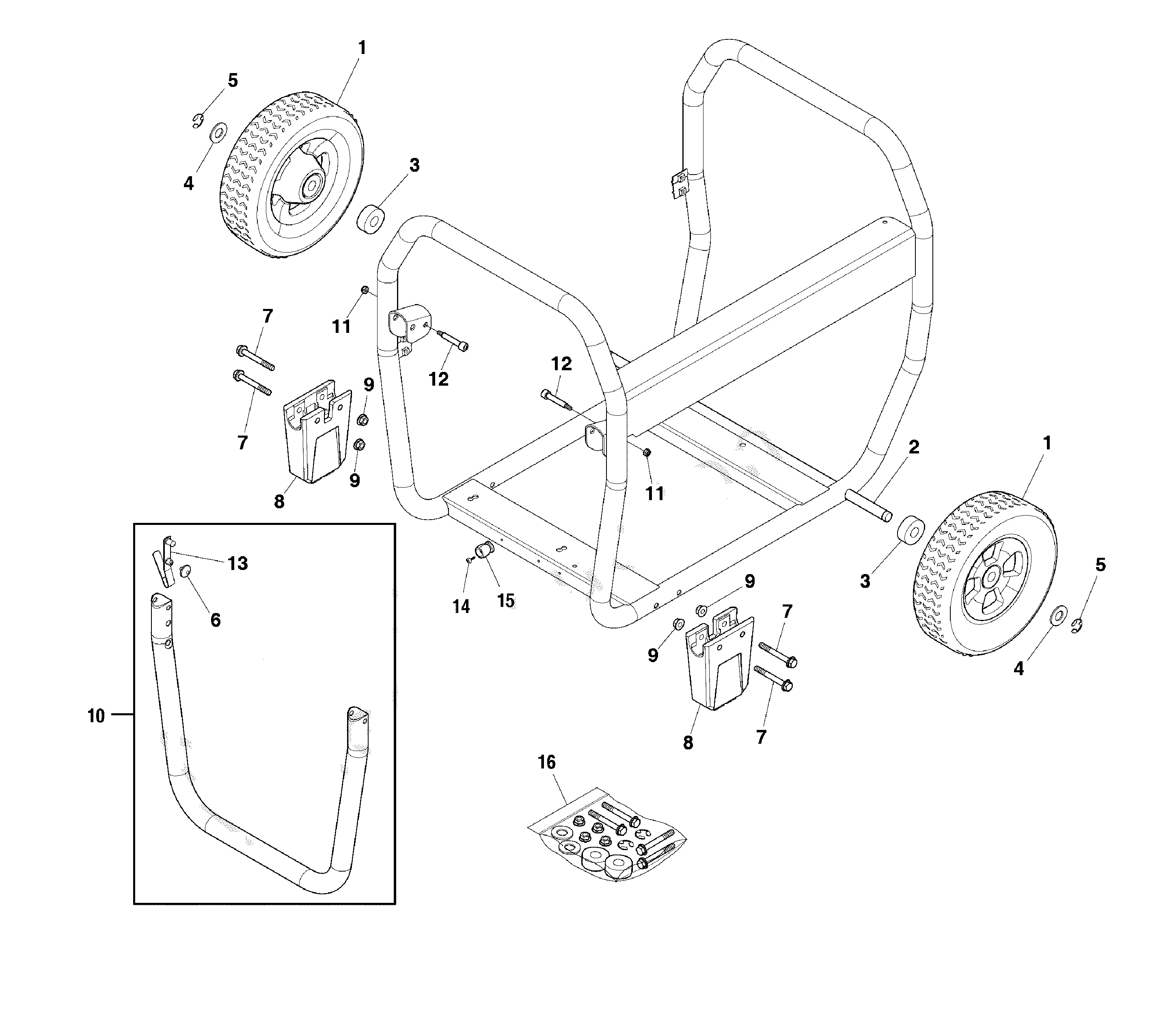

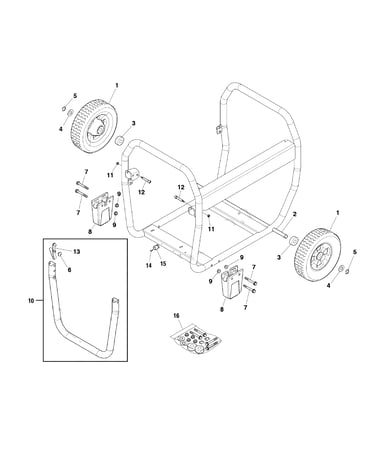

Wheel kit diagram

Kit-hardware

Part #84001063

$21.51
In Stock
Husqvarna Generator Muffler 192569GS
#17

Main unit diagram

Husqvarna generator muffler

Part #192569GS

$177.94 |
6% OFF Phone Price : $189.94
In Stock
Generator Fuel Tank Cap 319385GS
#33

Main unit diagram

Generator fuel tank cap

Part #319385GS

$33.96 |
15% OFF Phone Price : $39.96
In Stock
Generator Receptacle 709526
#18

Control panel diagram

Generator receptacle

Part #709526

$85.99 |
7% OFF Phone Price : $91.99
In Stock
Troybilt Generator Support Leg 312510GS
#8

Wheel kit diagram

Troybilt generator support leg

Part #312510GS

$40.16 |
13% OFF Phone Price : $46.16
In Stock
Switch 312684GS
#6

Control panel diagram

Switch

Part #312684GS

This item is not returnable
$26.49 |
18% OFF Phone Price : $32.49
In Stock
Boot 191481GS
#1

Control panel diagram

Boot

Part #191481GS

$20.51
In Stock
