Model # 39719380 Official Craftsman 1/3-hp grinder

Here are the diagrams and repair parts for Official Craftsman 39719380 1/3-hp grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Bolt 149535
#31

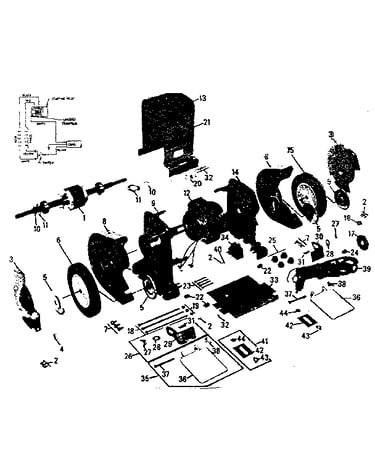

Replacement parts diagram

Bolt

Part #149535

The manufacturer no longer makes this part, and there's no substitute part

Starting Relay 4948851
#34

Replacement parts diagram

Starting relay

Part #4948851

The manufacturer no longer makes this part, and there's no substitute part

Eyeshield Pack (inc. 2 Ea. 36, 37, 38) 3161437
#35

Replacement parts diagram

Eyeshield pack (inc. 2 ea. 36, 37, 38)

Part #3161437

The manufacturer no longer makes this part, and there's no substitute part

Screw, 8-32 X 1-27/32 Fill Hd Self Tap (standard Hardware Item. May Be Purchased Locally.) 3161741
#23

Replacement parts diagram

Screw, 8-32 x 1-27/32 fill hd self tap (standard hardware item. may be purchased locally.)

Part #3161741

The manufacturer no longer makes this part, and there's no substitute part

Eye Shield 3161434
#36

Replacement parts diagram

Eye shield

Part #3161434

The manufacturer no longer makes this part, and there's no substitute part

Screw, 8-32 X 3/8 Hex Head Slotted (standard Hardware Item. May Be Purchased Locally.) 9421091
#2

Replacement parts diagram

Screw, 8-32 x 3/8 hex head slotted (standard hardware item. may be purchased locally.)

Part #9421091

The manufacturer no longer makes this part, and there's no substitute part

Grinding Wheel (60 Grit - Fine)(r.h.) (standard Hardware Item. May Be Purchased Locally.) 5201092
#15

Replacement parts diagram

Grinding wheel (60 grit - fine)(r.h.) (standard hardware item. may be purchased locally.)

Part #5201092

The manufacturer no longer makes this part, and there's no substitute part

Tool Rest Pack (includes R.h. & L.h. Set) 4998257
#26

Replacement parts diagram

Tool rest pack (includes r.h. & l.h. set)

Part #4998257

The manufacturer no longer makes this part, and there's no substitute part

Wheel Guard 3160352
#8

Replacement parts diagram

Wheel guard

Part #3160352

The manufacturer no longer makes this part, and there's no substitute part

Nut, 1/2-20 Hex (l.h. Thread) 9428172
#4

Replacement parts diagram

Nut, 1/2-20 hex (l.h. thread)

Part #9428172

The manufacturer no longer makes this part, and there's no substitute part
