Model # 153001 Official Broan range hood

Here are the diagrams and repair parts for Official Broan 153001 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 52 parts |

#37

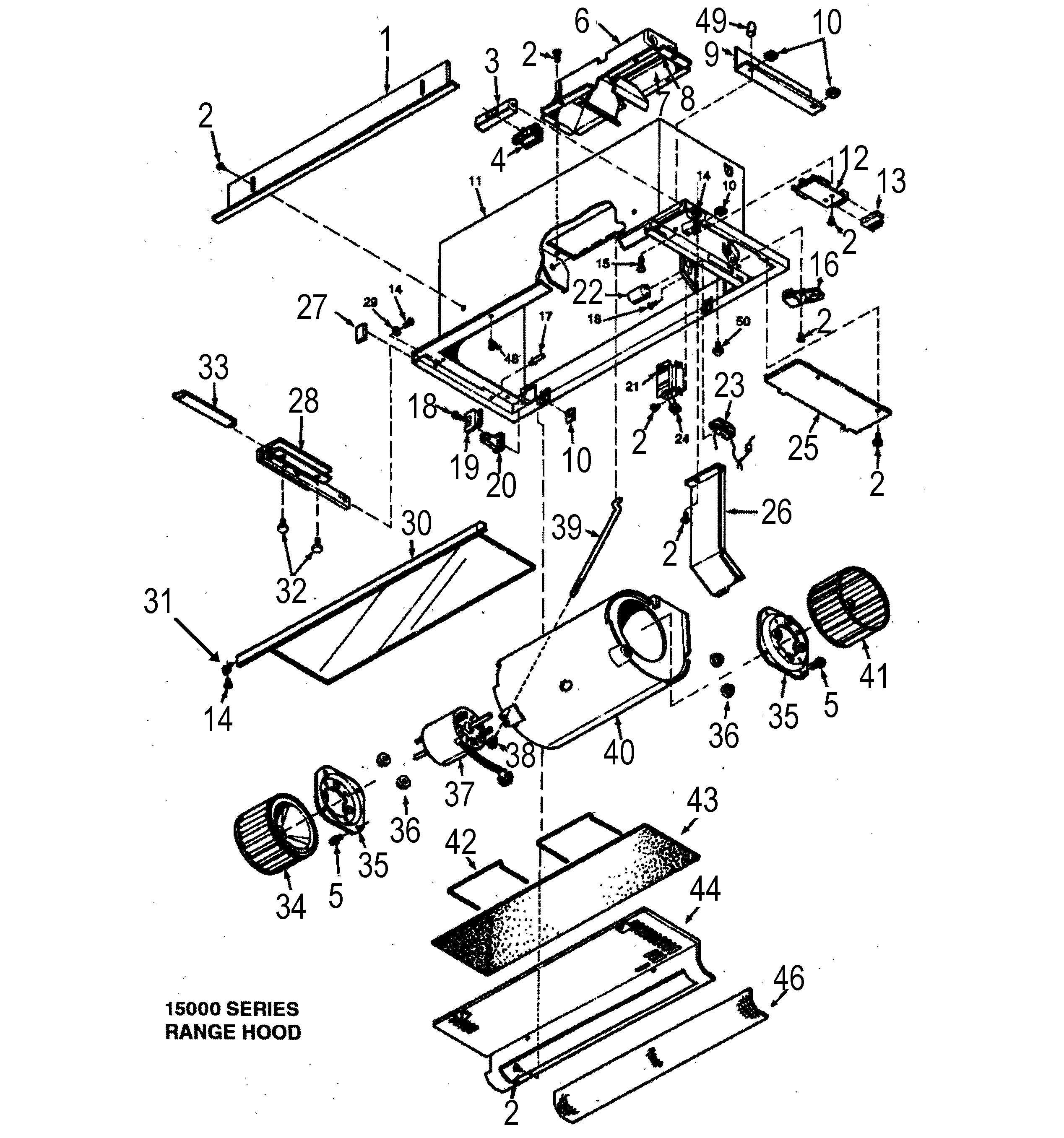

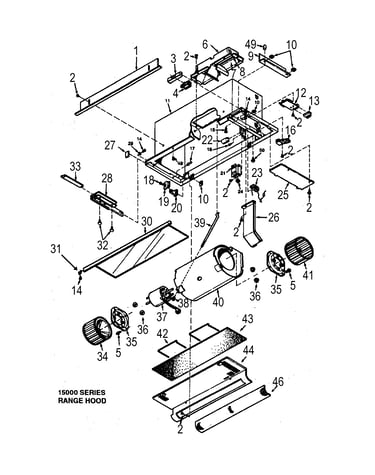

Range hood assy diagram

Motor

Part #99080359

Replaced by #S97010736

$120.10 |

9% OFF Phone Price : $132.10

In Stock

Qty

Range Hood Clockwise Blower Wheel Assembly 99020138

#41

Range hood assy diagram

Range hood clockwise blower wheel assembly

Part #99020138

The manufacturer no longer makes this part, and there's no substitute part

#22

Range hood assy diagram

Range hood light starter

Part #99270553

The manufacturer no longer makes this part, and there's no substitute part

#20

Range hood assy diagram

Lamp holder

Part #99270550

The manufacturer no longer makes this part, and there's no substitute part

#42

Range hood assy diagram

Spring

Part #99140156

Replaced by #S99140156

This item is not returnable

$4.18

In Stock

Qty

#35

Range hood assy diagram

Range hood motor retainer ring

Part #98005212

Replaced by #S98005212

This item is not returnable

$4.72

In Stock

Qty

#46

Range hood assy diagram

Light lens

Part #99050018

Replaced by #S99050018

$39.58

In Stock

Qty

#34

Range hood assy diagram

Range hood blower wheel

Part #99020139

The manufacturer no longer makes this part, and there's no substitute part

#17

Range hood assy diagram

Rivet

Part #99230342

This item is not returnable

$2.16

In Stock

Qty

Range hood assy diagram

Bracket

Part #97015950

Replaced by #S97015950

$10.13

In Stock

Qty

Most common symptoms to help you fix your range hoods

Choose a symptom to see related range hood repairs.

View all

Why is my range hood's exhaust fan noisy?

Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…

Why doesn't my range hood's fan work?

Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…

Why isn't my range hood's fan pulling much air?

Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…

Why doesn't my range hood work?

Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…

Why don't my range hood's lights work?

Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…

Why don't my range hood's lights and fan work?

Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…

Why does my range hood's fan turn on by itself?

Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…

Most common repair guides to help fix your range hoods

These step-by-step repair guides will help you safely fix what’s broken on your range hood.

View all

How to replace a range hood fan motor

If the fan on the range hood won’t run, it’s likely that the fan motor has failed. Follow the steps in this guide to rep…

Repair difficulty

Time required

30 minutes or less

How to replace a range hood electronic control board

The electronic control board activates the fan and lights in the range hood. If the electronic control board is defectiv…

Repair difficulty

Time required

45 minutes or less

How to replace a range hood fan switch

The fan switch activates the fan motor in the range hood. If the fan switch is defective, replace it using the detailed …

Repair difficulty

Time required

15 minutes or less

Effective articles & videos to help repair your range hoods

Use the advice and tips in these articles and videos to get the most out of your range hood.

View all

How to enjoy all the online benefits we offer on our Sears PartsDirect website

Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…

Top questions about Sears and Sears PartsDirect

How to repair broken or damaged wires video

Learn how to repair broken, frayed or damaged wires in your appliances.…
