Model # 106635140 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106635140 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Drier 43465
#34

Unit parts diagram

Drier

Part #43465

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 43465. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Screw 487895
#33

Unit parts diagram

Screw

Part #487895

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487895. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Gasket 473199
#44

Unit parts diagram

Gasket

Part #473199

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 473199. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Screw 487869
#43

Unit parts diagram

Screw

Part #487869

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 487869. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
Compressor 463369
#3

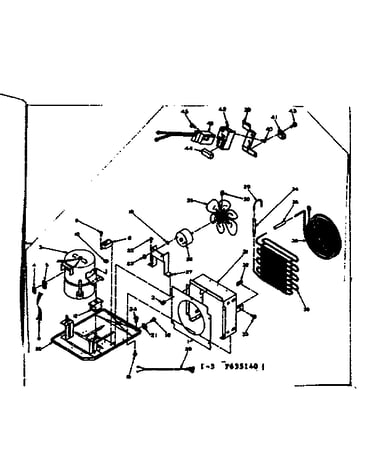

Unit parts diagram

Compressor

Part #463369

The manufacturer no longer makes this part, and there's no substitute part

Pan 465416
#10

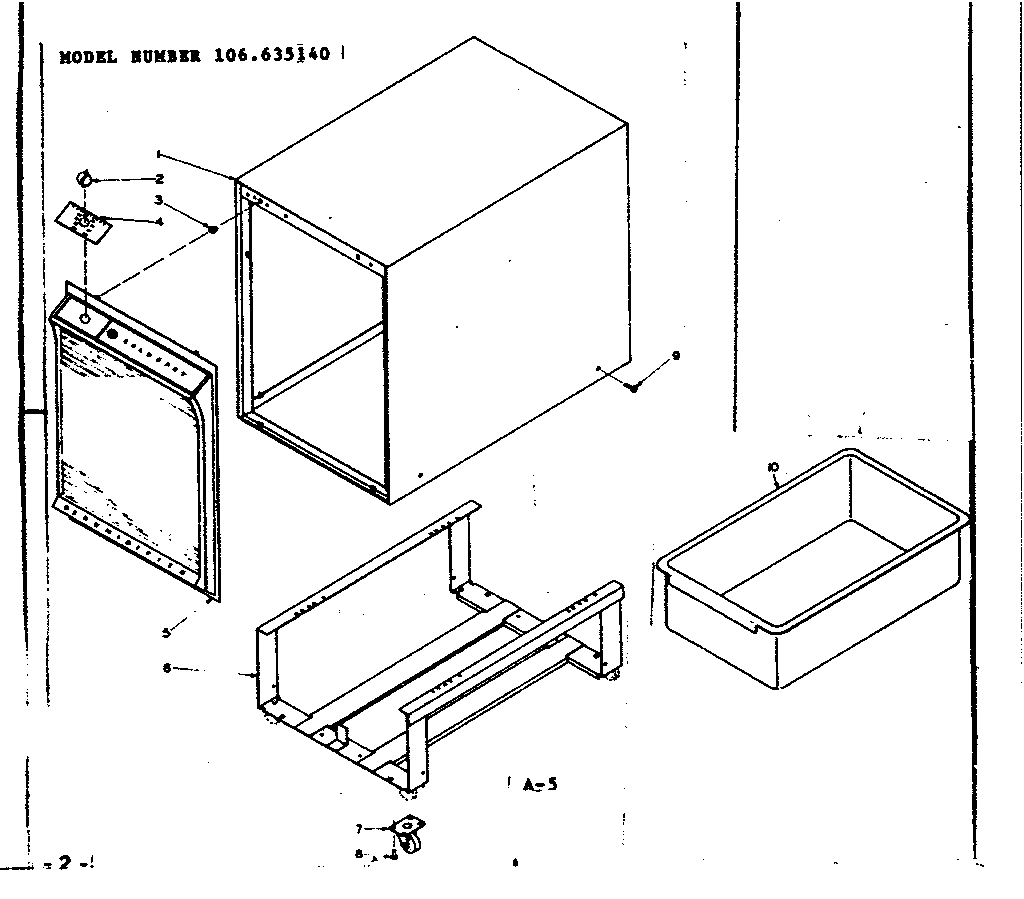

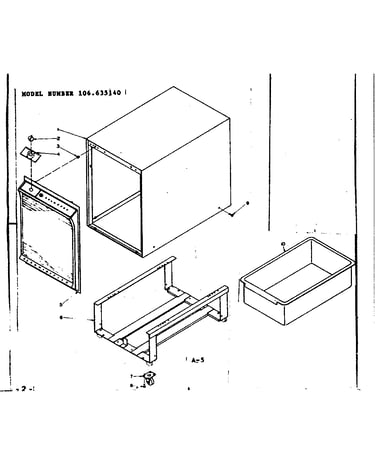

Cabinet parts diagram

Pan

Part #465416

The manufacturer no longer makes this part, and there's no substitute part

Screw 487871
#16

Unit parts diagram

Screw

Part #487871

The manufacturer no longer makes this part, and there's no substitute part

Caster-brown 474295
#7

Cabinet parts diagram

Caster-brown

Part #474295

The manufacturer no longer makes this part, and there's no substitute part

Relay 477264
#3B

Unit parts diagram

Relay

Part #477264

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 474270
#1

Cabinet parts diagram

Cabinet

Part #474270

The manufacturer no longer makes this part, and there's no substitute part
