Kenmore
Gas Water Heater

Model # 153331443 Official Kenmore water heater

Here are the diagrams and repair parts for Official Kenmore 153331443 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Water Heater Flue Baffle 9003985
#10

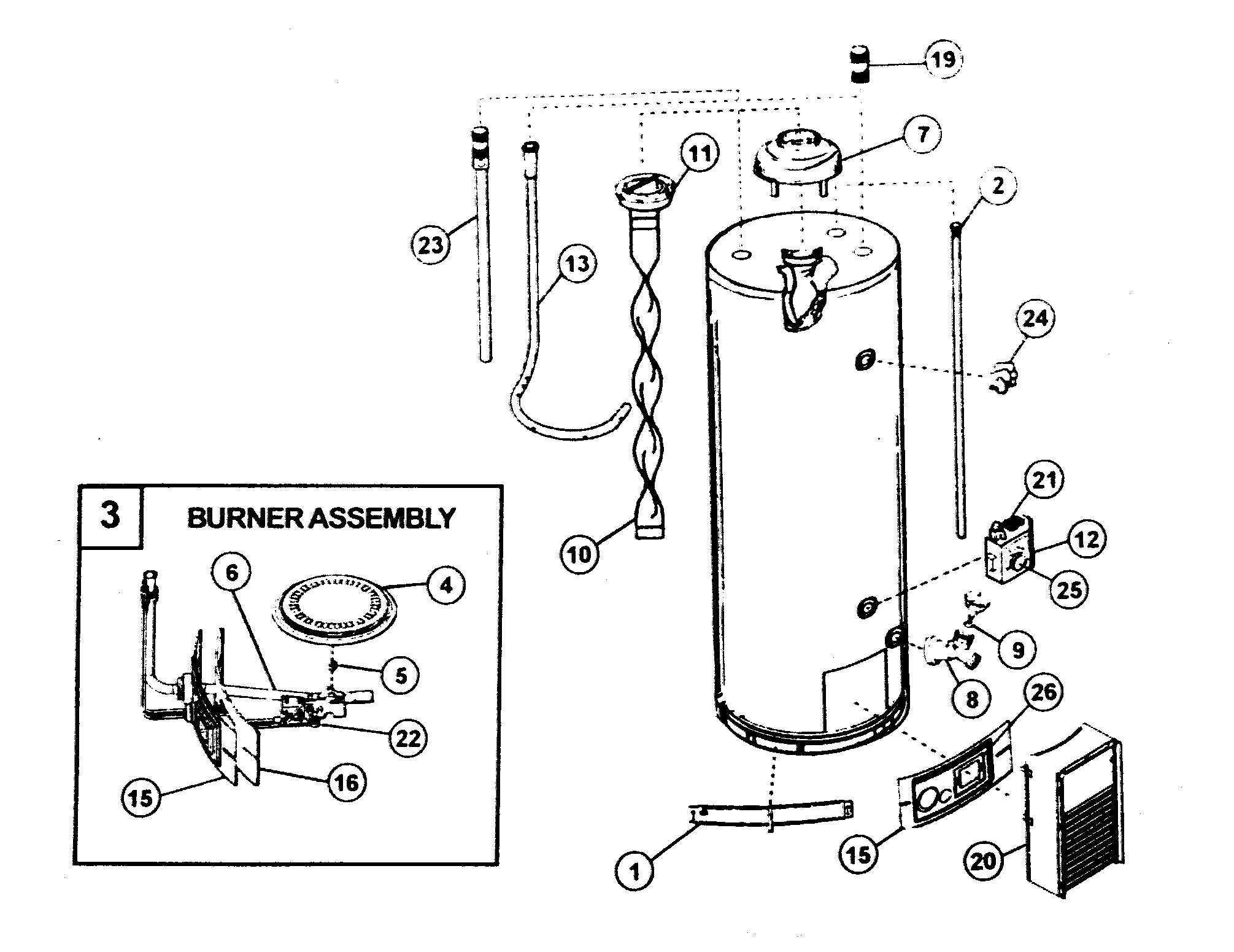

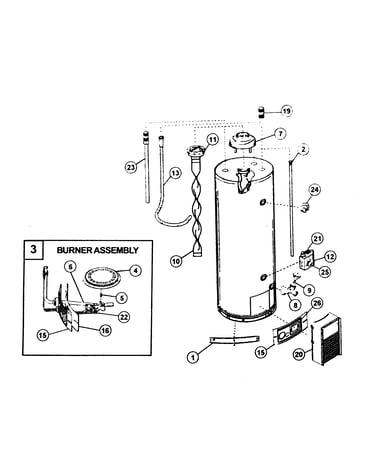

Water heater diagram

Water heater flue baffle

Part #9003985

$61.99
In Stock
Owner's Manual 184233-000
#NI

Water heater diagram

Owner's manual

Part #184233-000

$14.99
In Stock
Ao Smith Water Heater Inspection Port (replaces 183568-000, 183569-001, 183570-000, 21253, 9003414005) 9003414
#26

Water heater diagram

Ao smith water heater inspection port (replaces 183568-000, 183569-001, 183570-000, 21253, 9003414005)

Part #9003414

Replaced by #100109224

?
Manufacturer substitution
This part replaces 9003414. Substitute parts can look different from the original.
$34.44
In Stock
Draft Hood 9003526
#7

Water heater diagram

Draft hood

Part #9003526

Replaced by #100109289

?
Manufacturer substitution
This part replaces 9003526. Substitute parts can look different from the original.
$45.56
In Stock
Water Heater Gas Valve Assembly F145-1293
#12

Water heater diagram

Water heater gas valve assembly

Part #F145-1293

The manufacturer no longer makes this part, and there's no substitute part

Tube Gasket 9003981
#14

Water heater diagram

Tube gasket

Part #9003981

Replaced by #100108744

?
Manufacturer substitution
This part replaces 9003981. Substitute parts can look different from the original.
$24.44
In Stock
Screen 9003983
#1

Water heater diagram

Screen

Part #9003983

Replaced by #100109216

?
Manufacturer substitution
This part replaces 9003983. Substitute parts can look different from the original.
$22.86
In Stock
Anode Rod 9003982
#23

Water heater diagram

Anode rod

Part #9003982

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9003982. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Water Heater Burner Orifice, #33 9003493
#5

Water heater diagram

Water heater burner orifice, #33

Part #9003493

Replaced by #100109266

?
Manufacturer substitution
This part replaces 9003493. Substitute parts can look different from the original.
$28.89
In Stock
Wheelers Water Heater Temperature And Pressure Relief Valve 9000728
#24

Water heater diagram

Wheelers water heater temperature and pressure relief valve

Part #9000728

Replaced by #100108455

?
Manufacturer substitution
This part replaces 9000728. Substitute parts can look different from the original.
$35.56
In Stock
