Model # RSD307 Official Caloric gas range

Here are the diagrams and repair parts for Official Caloric RSD307 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Main Top (chrome) 51-061516-44-K
#1

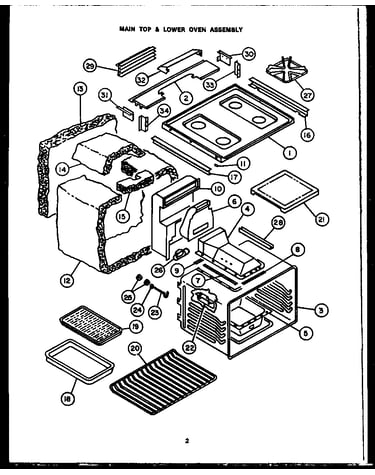

Main top/lower oven assembly diagram

Main top (chrome)

Part #51-061516-44-K

The manufacturer no longer makes this part, and there's no substitute part

Black Glass Panel 06-063501-01-0
#4

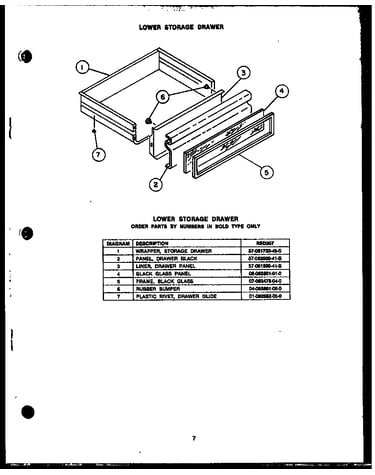

Lower storage drawern200e09@gas components diagram

Black glass panel

Part #06-063501-01-0

The manufacturer no longer makes this part, and there's no substitute part

Coffee 65-063260-48-C
#10B

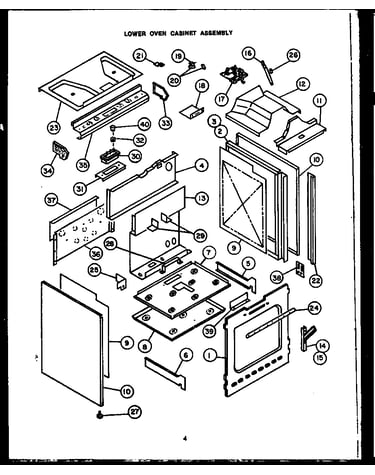

Lower oven cabinet assembly diagram

Coffee

Part #65-063260-48-C

The manufacturer no longer makes this part, and there's no substitute part

Insulation Retainer, Bottom 73-063768-00-0
#7

Lower oven cabinet assembly diagram

Insulation retainer, bottom

Part #73-063768-00-0

The manufacturer no longer makes this part, and there's no substitute part

Flue Inner 84-062770-07-0
#6

Main top/lower oven assembly diagram

Flue inner

Part #84-062770-07-0

The manufacturer no longer makes this part, and there's no substitute part

Bracket -lo Back Rail - L.h. 63-061541-00-0
#34

Main top/lower oven assembly diagram

Bracket -lo back rail - l.h.

Part #63-061541-00-0

The manufacturer no longer makes this part, and there's no substitute part

Lo Back Rail 07-061530-04-0
#2

Main top/lower oven assembly diagram

Lo back rail

Part #07-061530-04-0

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 32-065822-09-0
#8

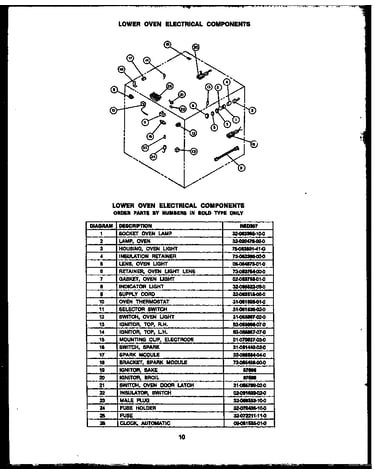

Lower oven electrical components diagram

Indicator light

Part #32-065822-09-0

The manufacturer no longer makes this part, and there's no substitute part

Door Latch 05-063733-05-0
#17

Lower oven cabinet assembly diagram

Door latch

Part #05-063733-05-0

The manufacturer no longer makes this part, and there's no substitute part

Bumper, Cork 04-042014-06-0
#10

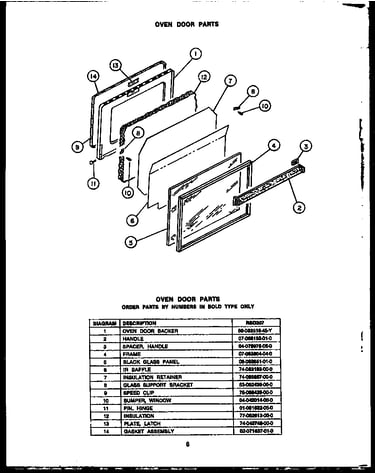

Oven door parts diagram

Bumper, cork

Part #04-042014-06-0

The manufacturer no longer makes this part, and there's no substitute part
