Model # FED365EBB Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FED365EBB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

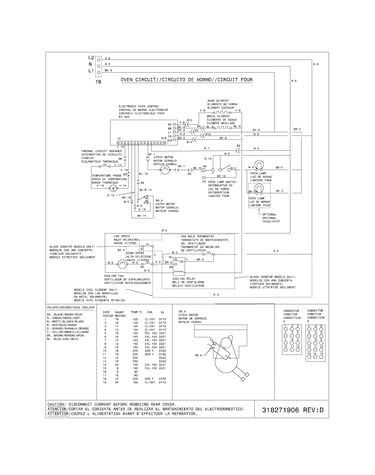

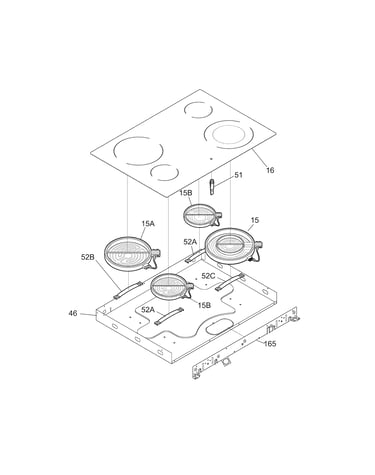

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Range Oven Light Bulb 5303013071
#15

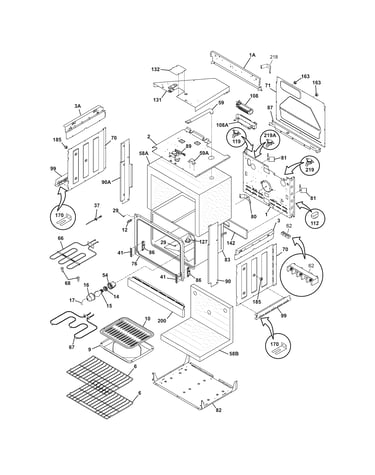

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Range Oven Door Inner Glass 316117500
#8

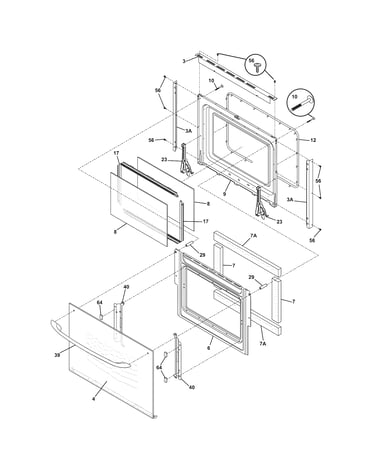

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Switch 318220080
#54

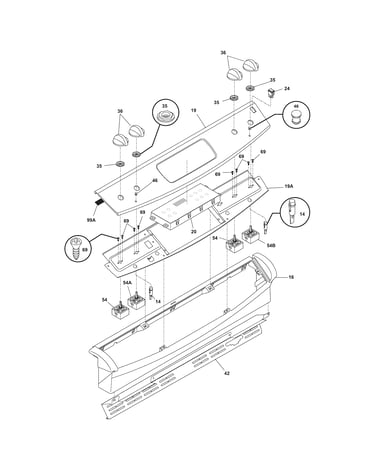

Backguard diagram

Switch

Part #318220080

Replaced by #903136-9010

?
Manufacturer substitution
This part replaces 318220080. Substitute parts can look different from the original.
BEST SELLER
$65.22 |
8% OFF Phone Price : $71.22
In Stock
Range Surface Element Infinite Switch (replaces 318191027, 903097-9010) 318191023
#54B

Backguard diagram

Range surface element infinite switch (replaces 318191027, 903097-9010)

Part #318191023

BEST SELLER
$63.89 |
9% OFF Phone Price : $69.89
In Stock
Range Broil Element 318255600
#66

Body diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$116.83 |
9% OFF Phone Price : $128.83
In Stock
Range Oven Door Handle (replaces 316108802, 316203000, 318231200) 316270200
#39

Door diagram

Range oven door handle (replaces 316108802, 316203000, 318231200)

Part #316270200

BEST SELLER
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Cover 3201911
#16

Body diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Thermostat 318003613
#219

Body diagram

Thermostat

Part #318003613

Replaced by #318003624

?
Manufacturer substitution
This part replaces 318003613. Substitute parts can look different from the original.
This item is not returnable
$24.59 |
20% OFF Phone Price : $30.59
In Stock
