Maytag
Electric Wall Oven

Model # MEW5527DDS11 Official Maytag 27" electric wall oven

Here are the diagrams and repair parts for Official Maytag MEW5527DDS11 27" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Light Bulb, A-15, 40-watt STD398091
#16

Oven parts diagram

Light bulb, a-15, 40-watt

Part #STD398091

The manufacturer no longer makes this part, and there's no substitute part

Appliance Touch-up Paint 72017
#NI

Optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Adhesive 482338
#NI

Optional parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Range Broil Element W10310260
#4

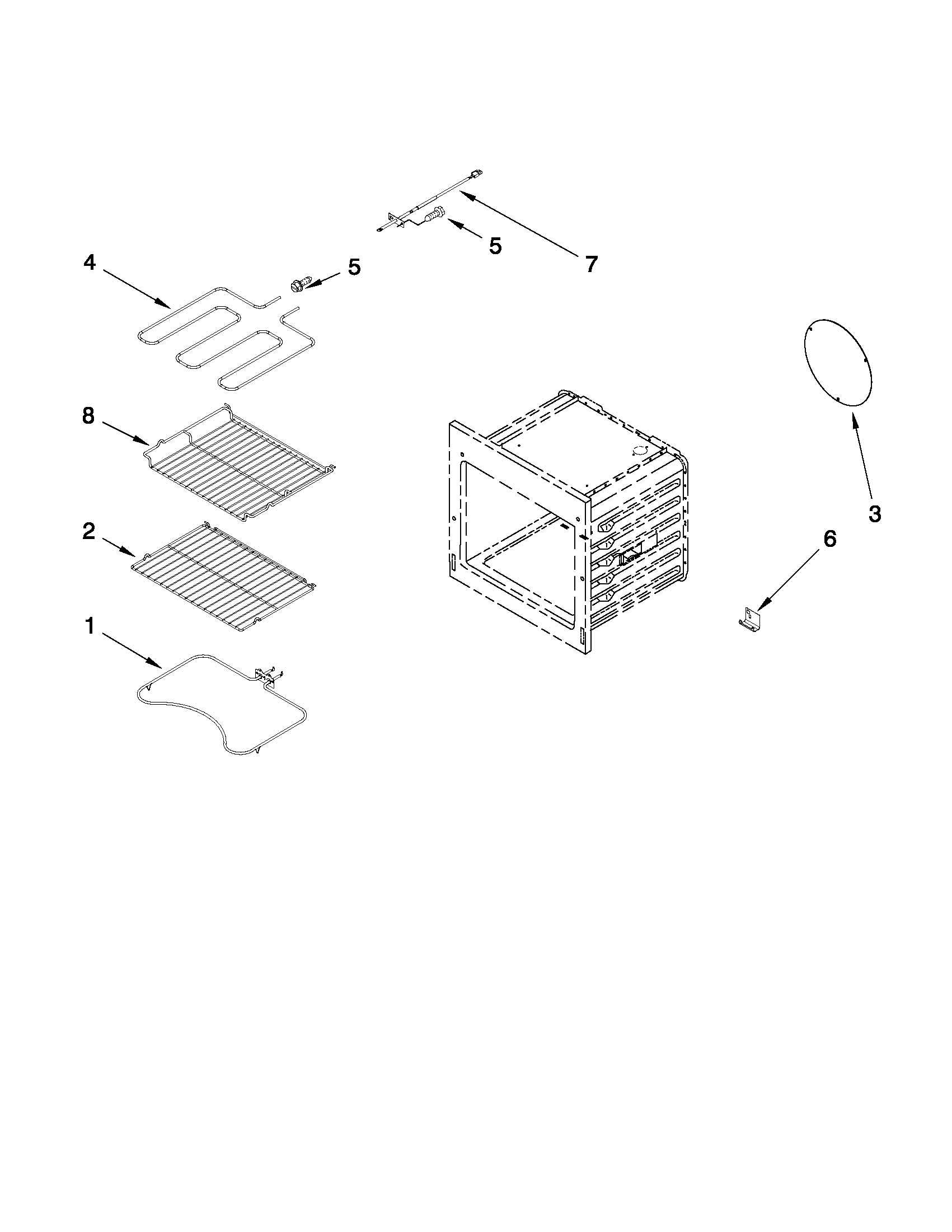

Internal oven parts diagram

Range broil element

Part #W10310260

Replaced by #WPW10310260

?
Manufacturer substitution
This part replaces W10310260. Substitute parts can look different from the original.
$95.40 |
11% OFF Phone Price : $107.40
In Stock
Screw 7101P427-60
#16

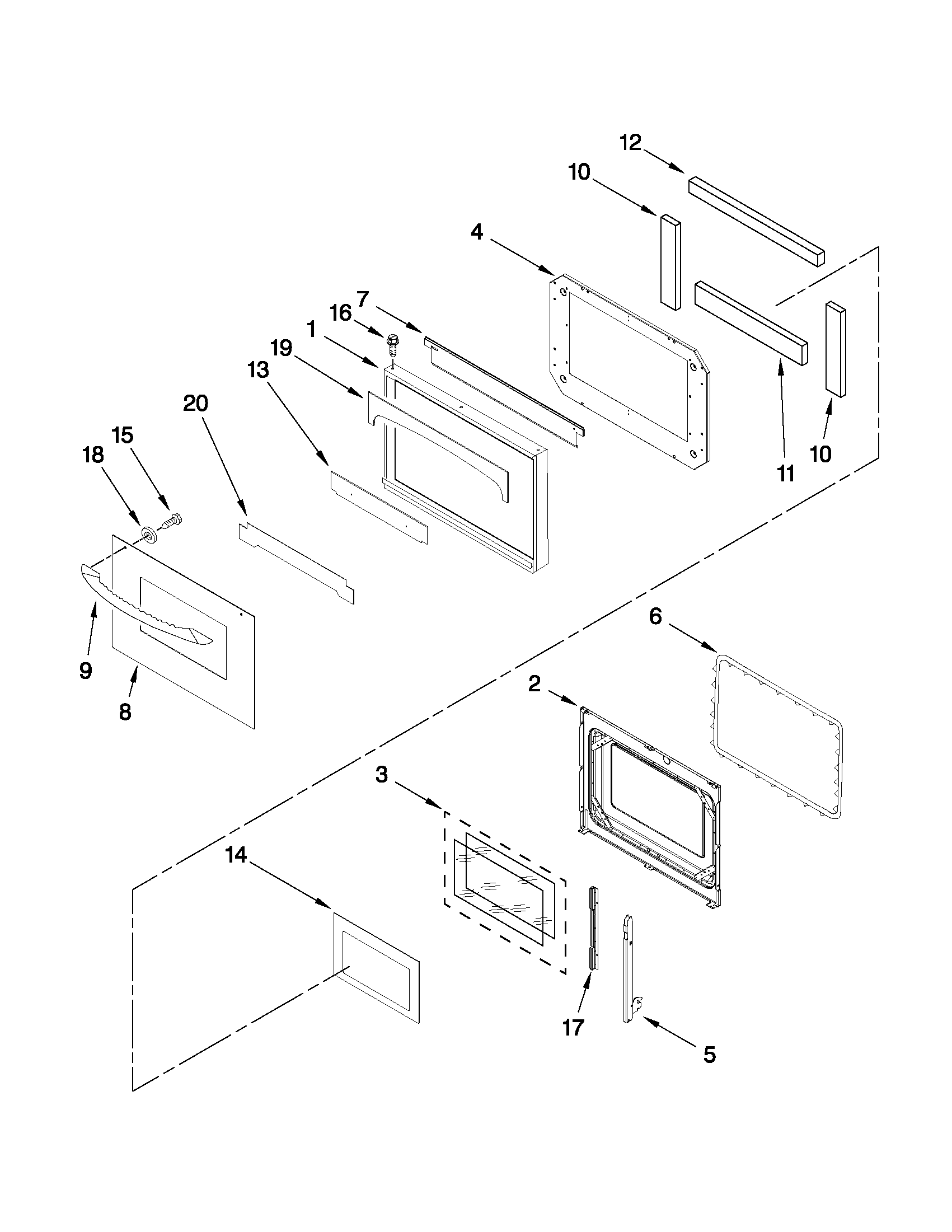

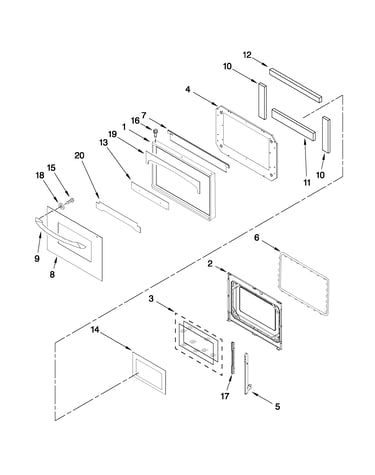

Oven door parts diagram

Screw

Part #7101P427-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P427-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Range Control Panel W10292709
#1

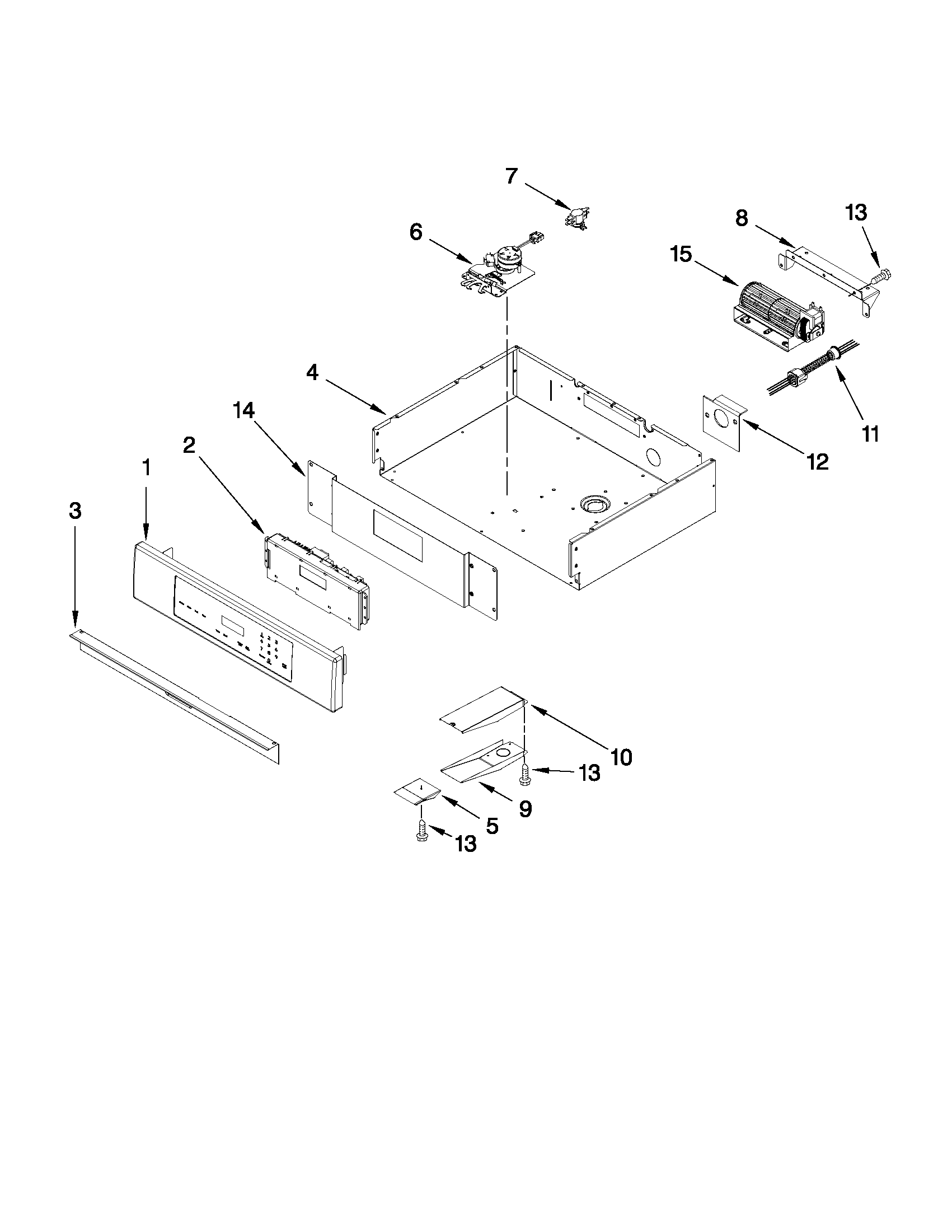

Control panel parts diagram

Range control panel

Part #W10292709

Replaced by #5765M440-60

?
Manufacturer substitution
This part replaces W10292709. Substitute parts can look different from the original.
$193.69 |
6% OFF Phone Price : $205.69
In Stock
Oven Door Latch W10186996
#6

Control panel parts diagram

Oven door latch

Part #W10186996

Replaced by #WPW10186996

?
Manufacturer substitution
This part replaces W10186996. Substitute parts can look different from the original.
$189.00 |
6% OFF Phone Price : $201.00
In Stock
Wall Oven Wire Harness W10348653
#NI

Optional parts diagram

Wall oven wire harness

Part #W10348653

$127.09
In Stock
Brace 3802F116-51
#12

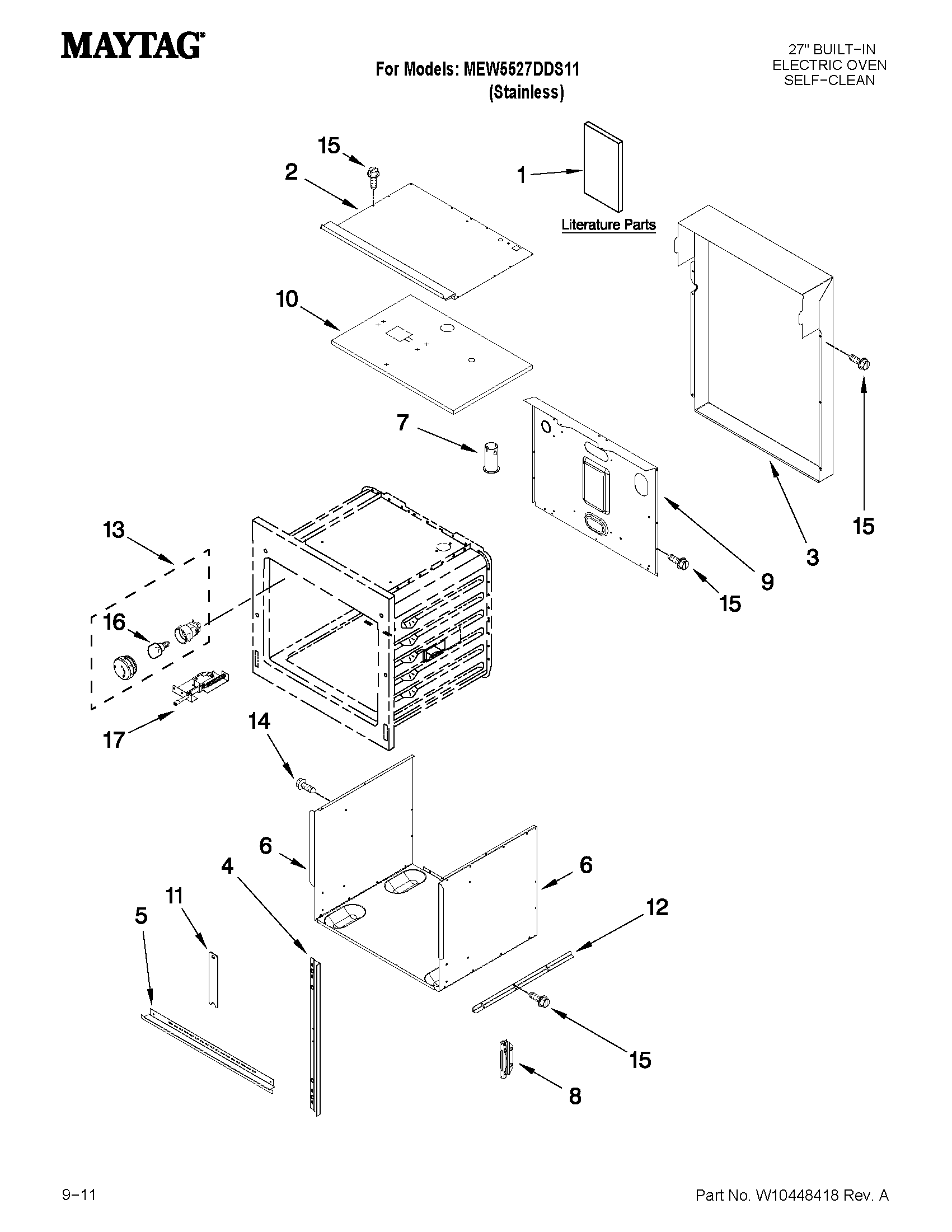

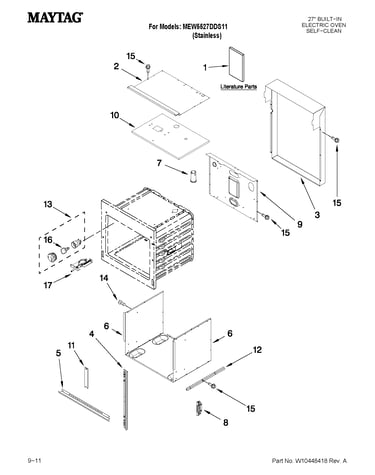

Oven parts diagram

Brace

Part #3802F116-51

$7.80
In Stock
