Kenmore
Side-By-Side Refrigerator

Model # 25353374301 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25353374301 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

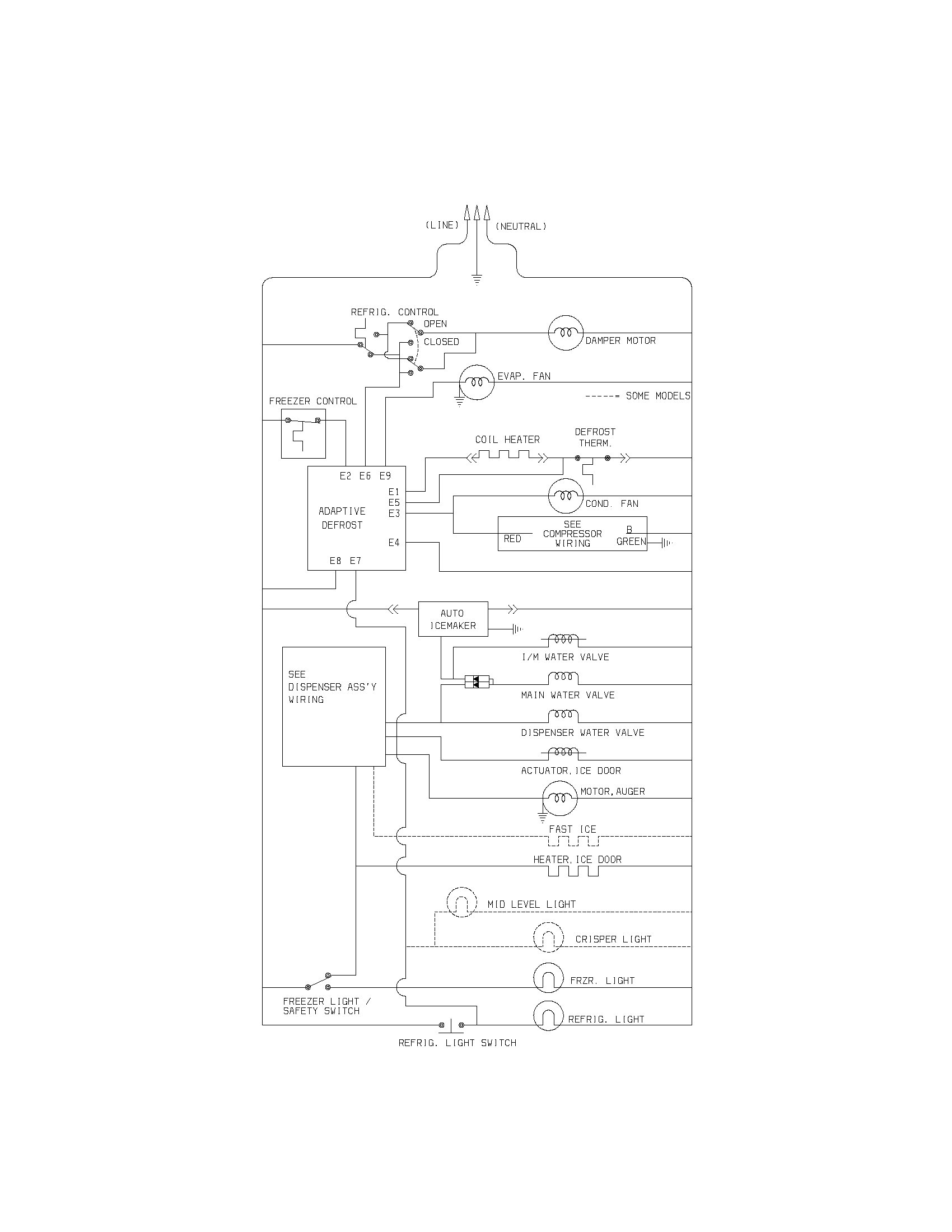

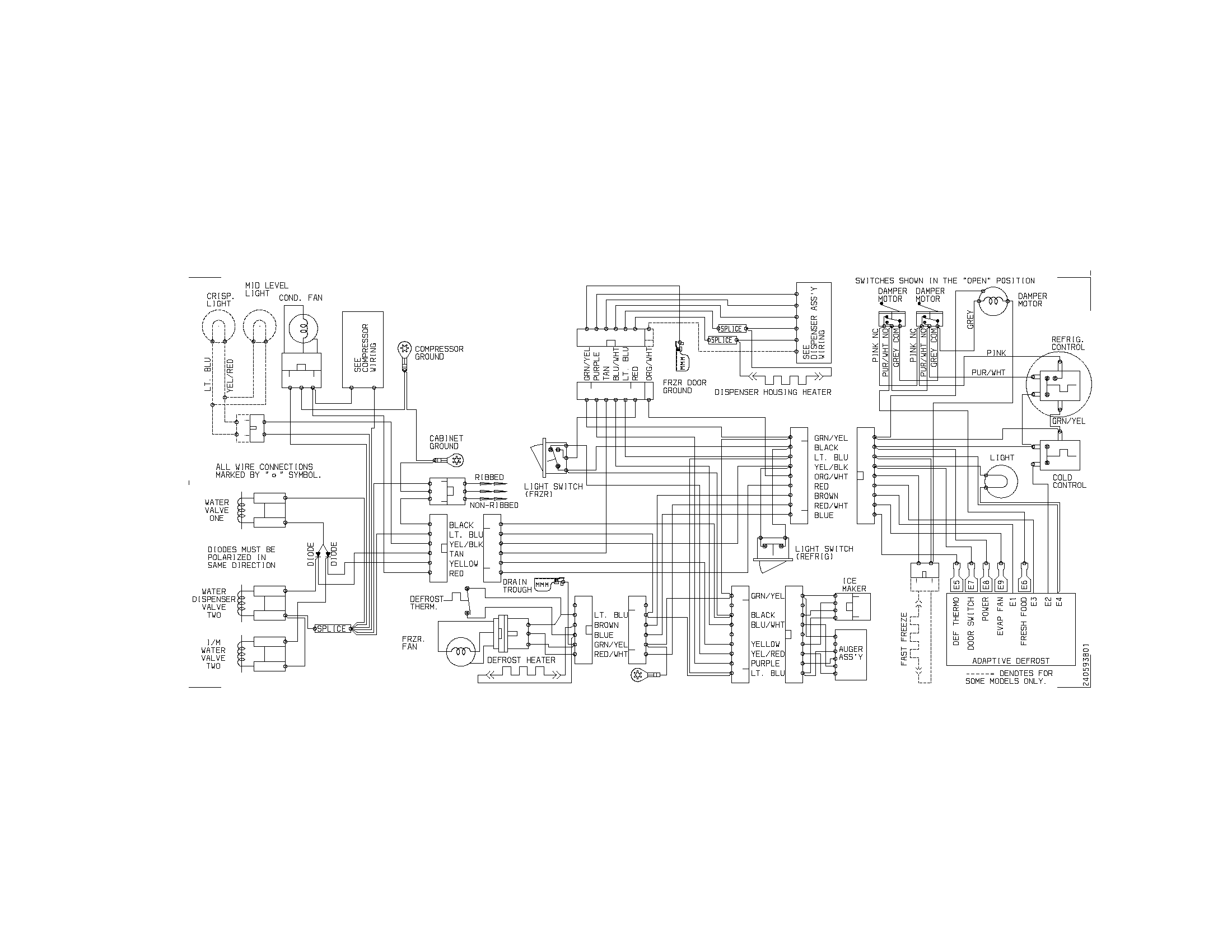

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 353 parts  |
Genuine Kenmore Refrigerator Water Filter 9911
#137

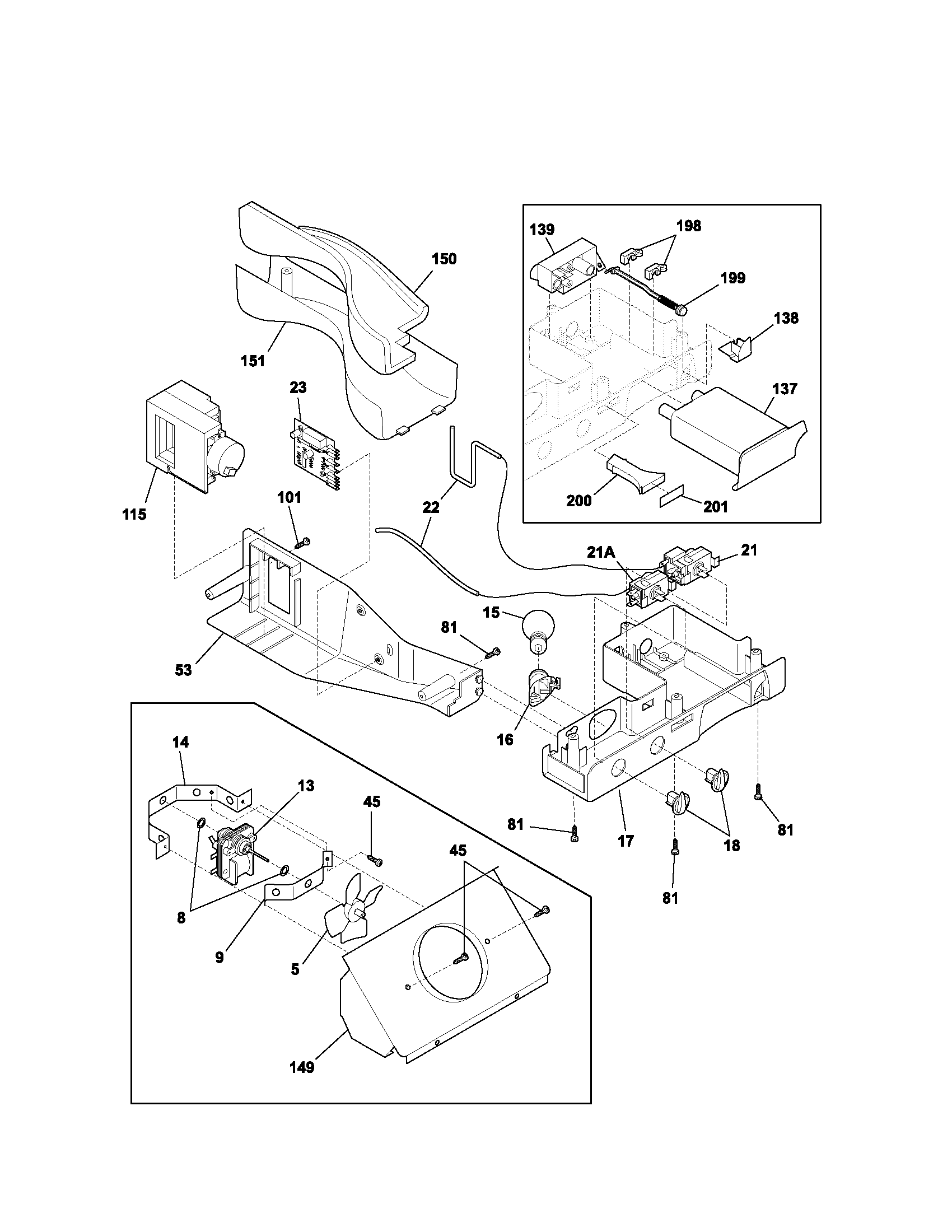

Controls diagram

Genuine kenmore refrigerator water filter

Part #9911

Replaced by #9911

?
Manufacturer substitution
This part replaces 9911. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$44.98
Back Order
Ice Maker Mold 5303320545
#17

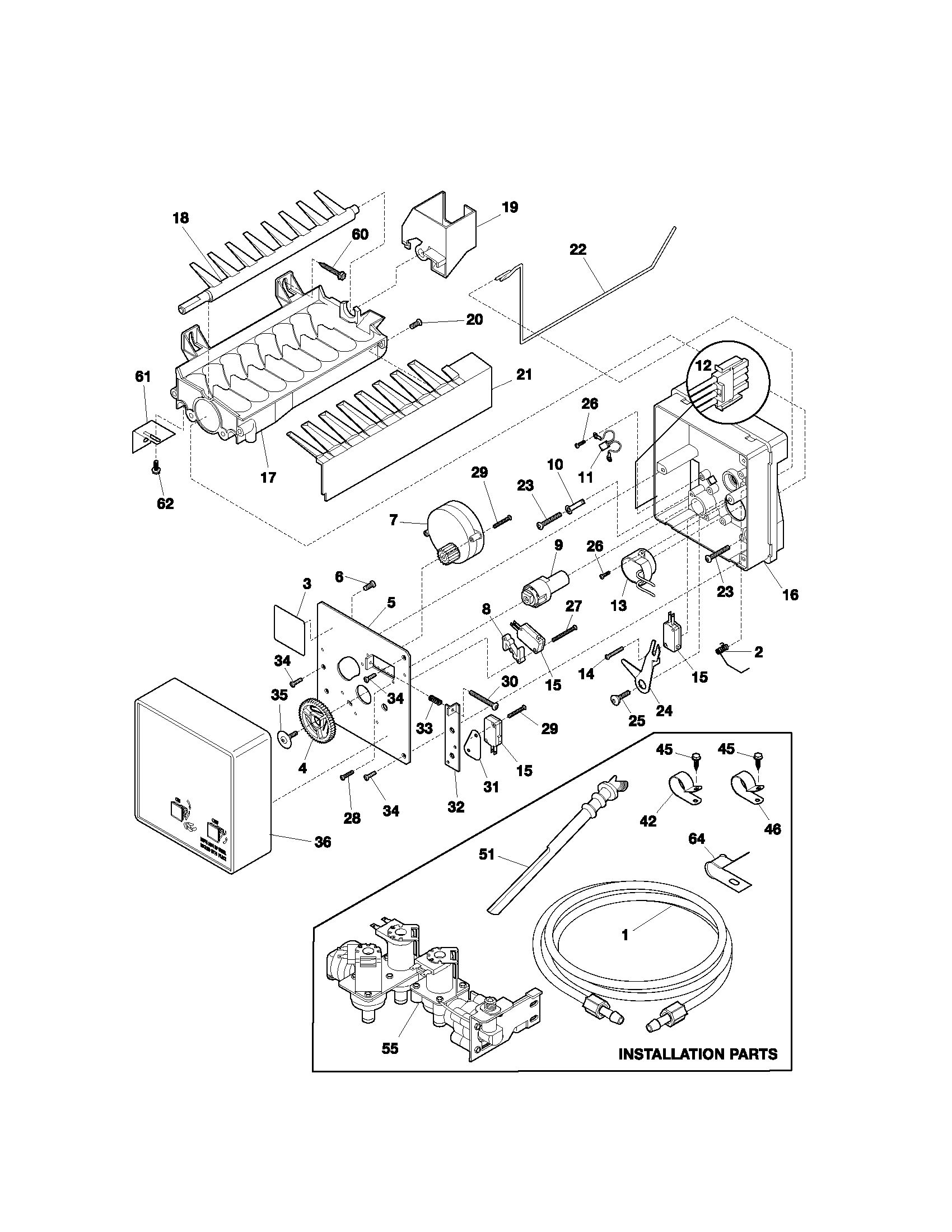

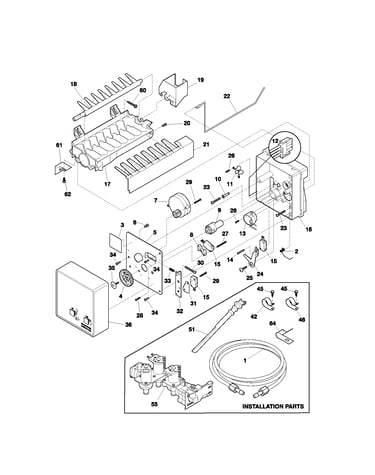

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Drier 218944001
#4

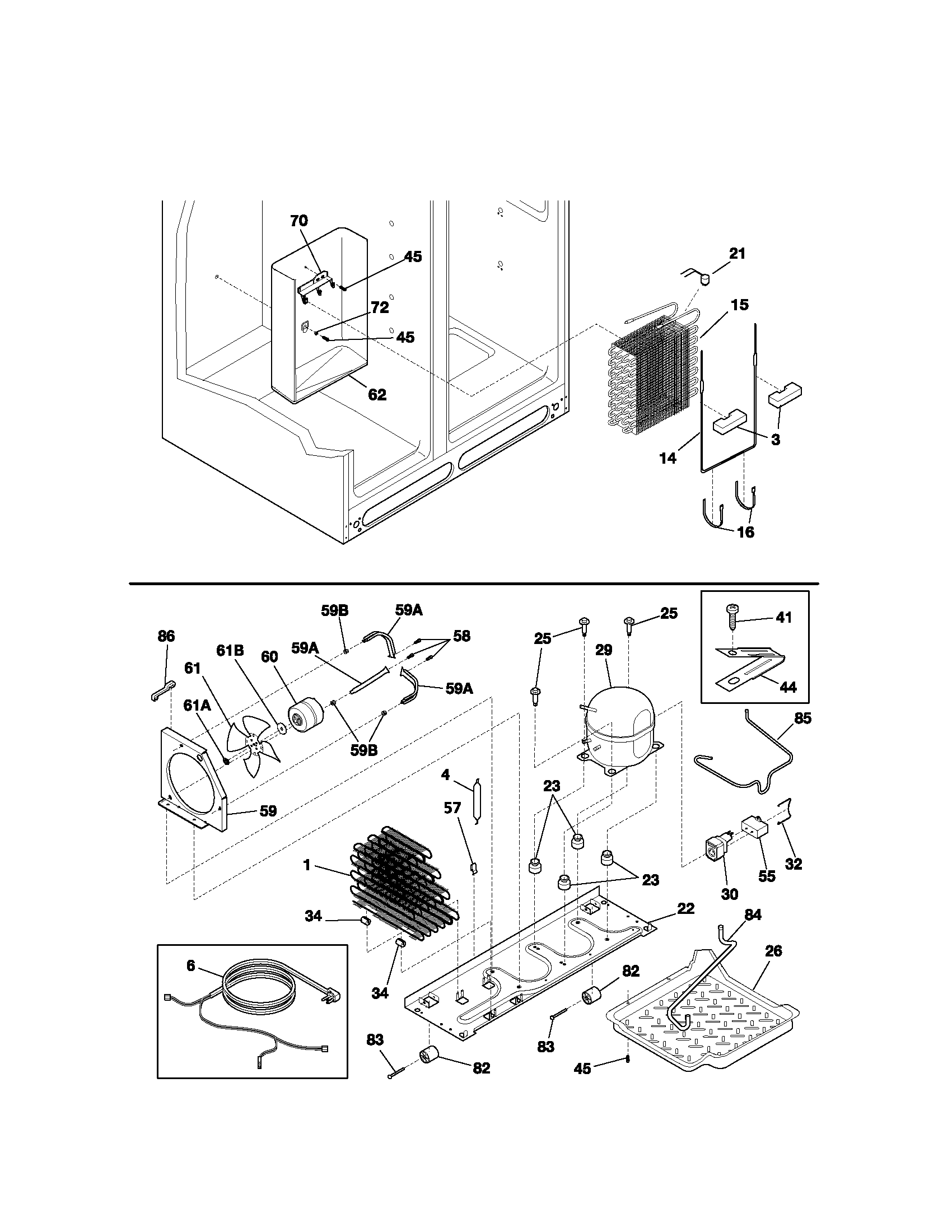

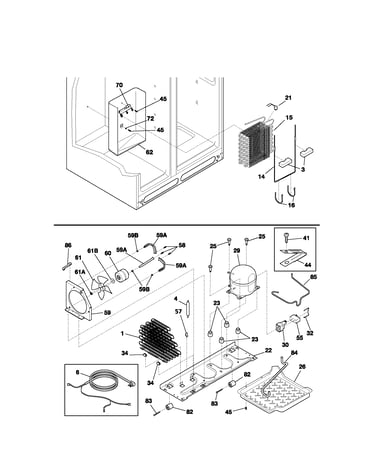

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Water Inlet Valve Assembly 240531101
#55

Ice maker diagram

Refrigerator water inlet valve assembly

Part #240531101

Replaced by #242252702

?
Manufacturer substitution
This part replaces 240531101. Substitute parts can look different from the original.
BEST SELLER
$78.80 |
7% OFF Phone Price : $84.80
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

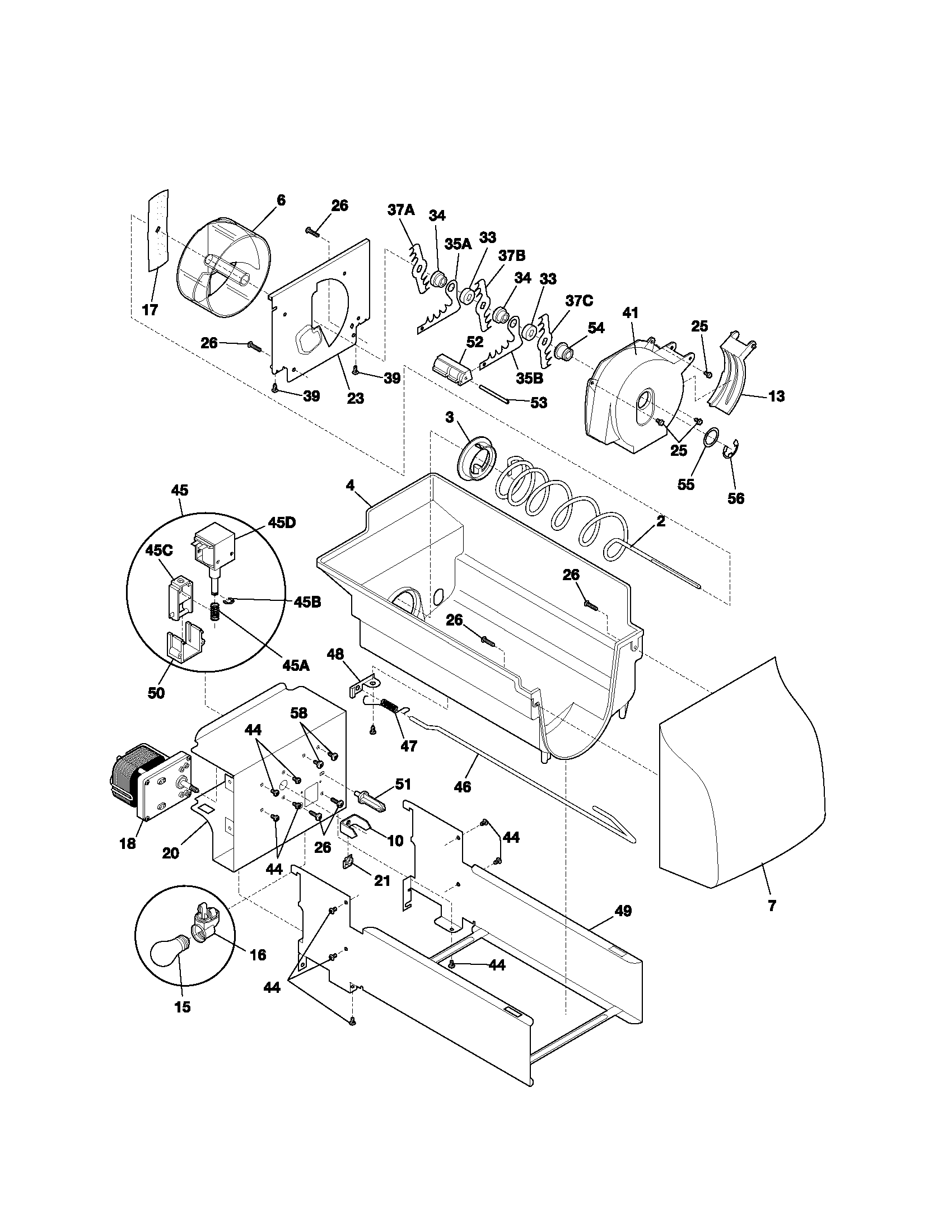

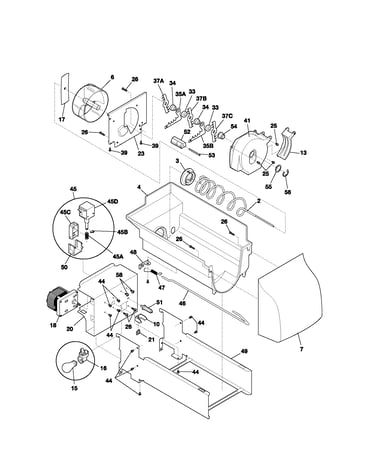

Ice container diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 75303918214) 5303918214
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 75303918214)

Part #5303918214

BEST SELLER
$22.75 |
21% OFF Phone Price : $28.75
In Stock
Evaporator Motor 240315803
#13

Controls diagram

Evaporator motor

Part #240315803

Replaced by #5303918549

?
Manufacturer substitution
This part replaces 240315803. Substitute parts can look different from the original.
BEST SELLER
$71.31 |
8% OFF Phone Price : $77.31
In Stock
Refrigerator Ice Maker 240352411
#NI

Ice maker diagram

Refrigerator ice maker

Part #240352411

Replaced by #5304458371

?
Manufacturer substitution
This part replaces 240352411. Substitute parts can look different from the original.
BEST SELLER
$118.47 |
9% OFF Phone Price : $130.47
In Stock
Support-cr 240350802
#100

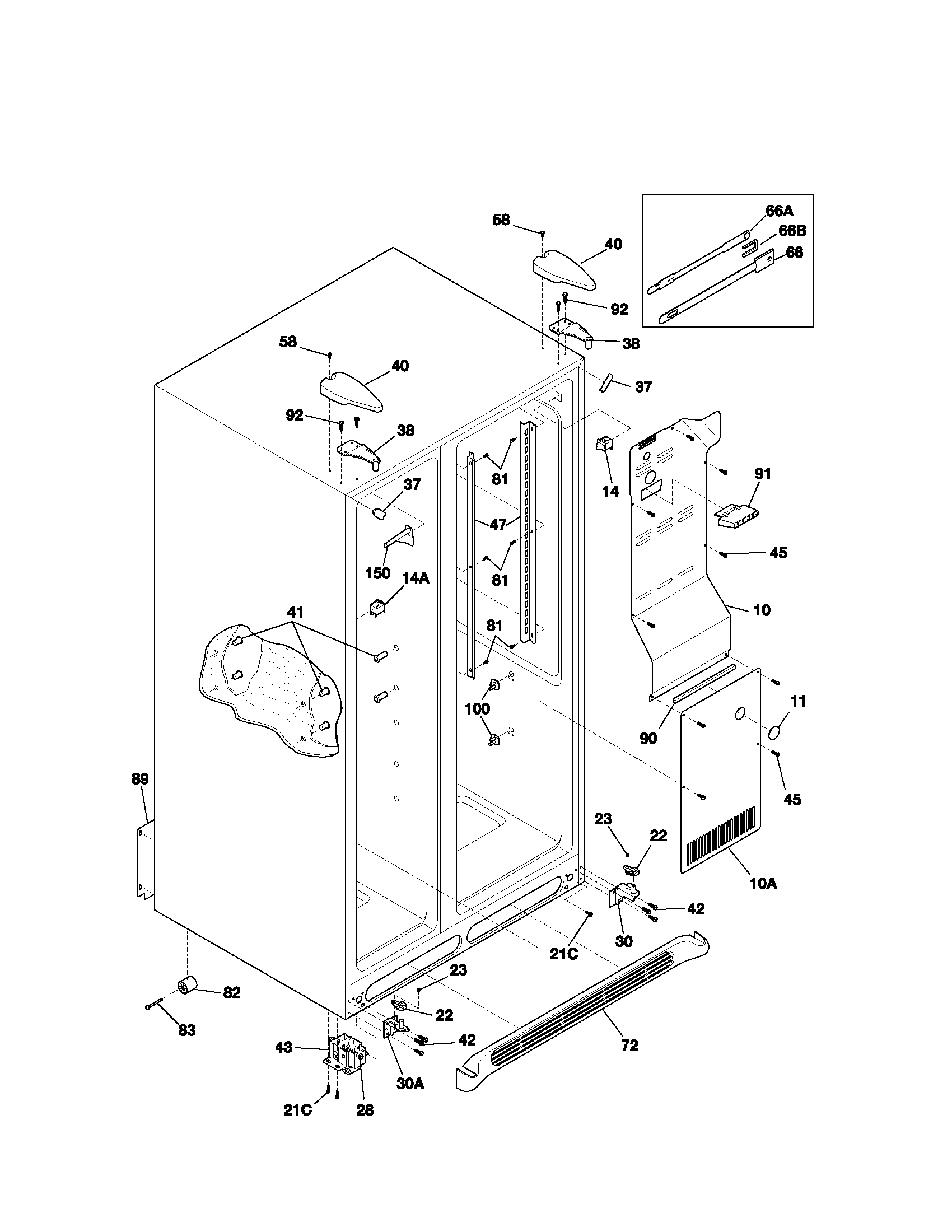

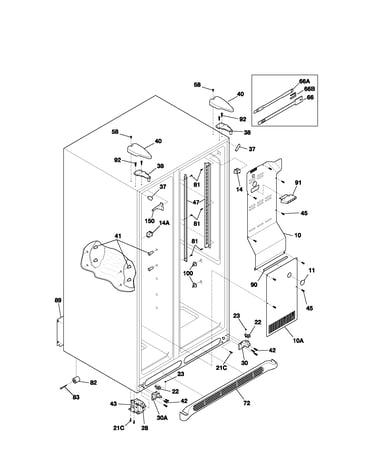

Cabinet diagram

Support-cr

Part #240350802

Replaced by #241993001

?
Manufacturer substitution
This part replaces 240350802. Substitute parts can look different from the original.
BEST SELLER
$10.21 |
16% OFF Phone Price : $12.21
In Stock
Refrigerator Door Assembly 5304421628
#30

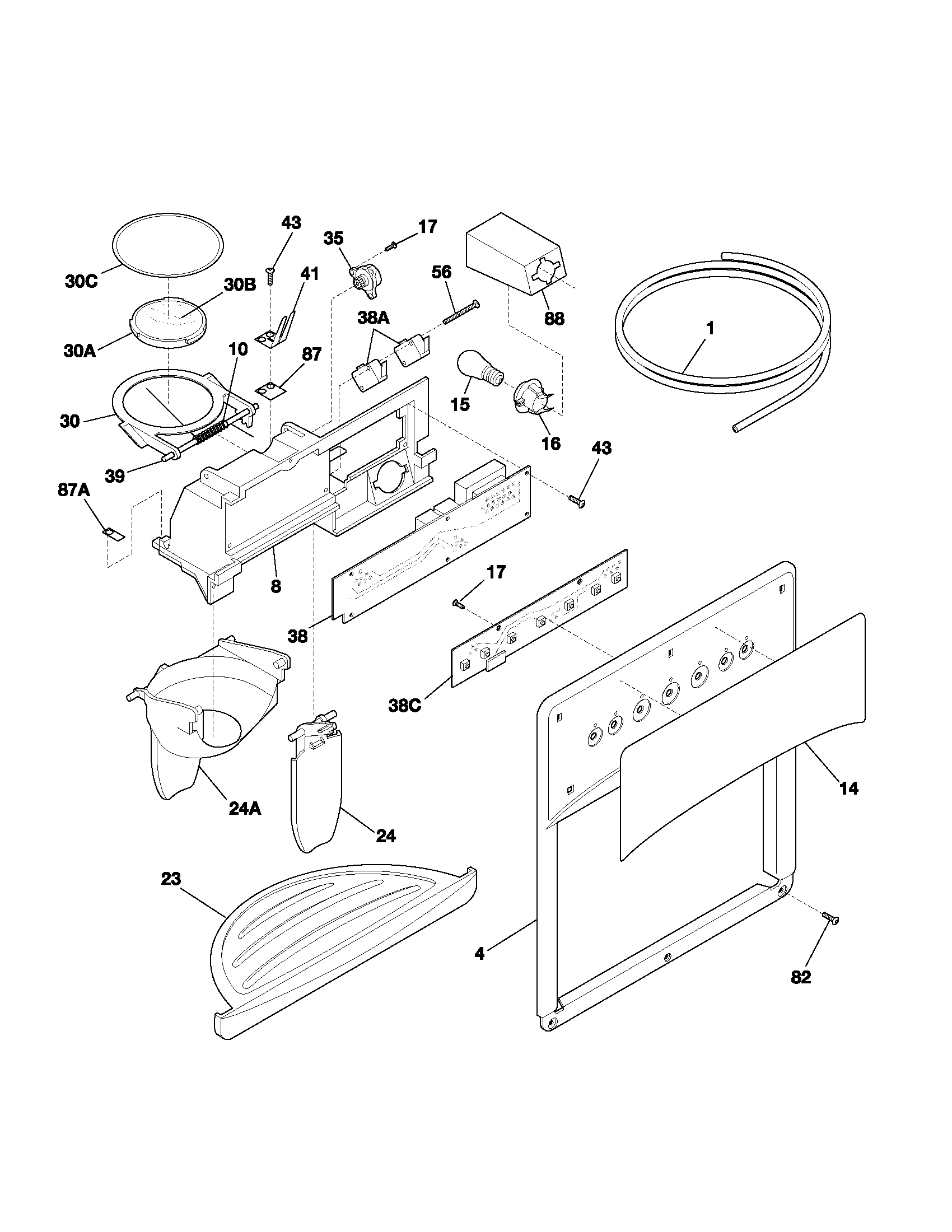

Dispenser diagram

Refrigerator door assembly

Part #5304421628

Replaced by #241688401

?
Manufacturer substitution
This part replaces 5304421628. Substitute parts can look different from the original.
BEST SELLER
$41.69 |
13% OFF Phone Price : $47.69
In Stock
