Model # 79042531314 Official Kenmore electric range
Here are the diagrams and repair parts for Official Kenmore 79042531314 electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

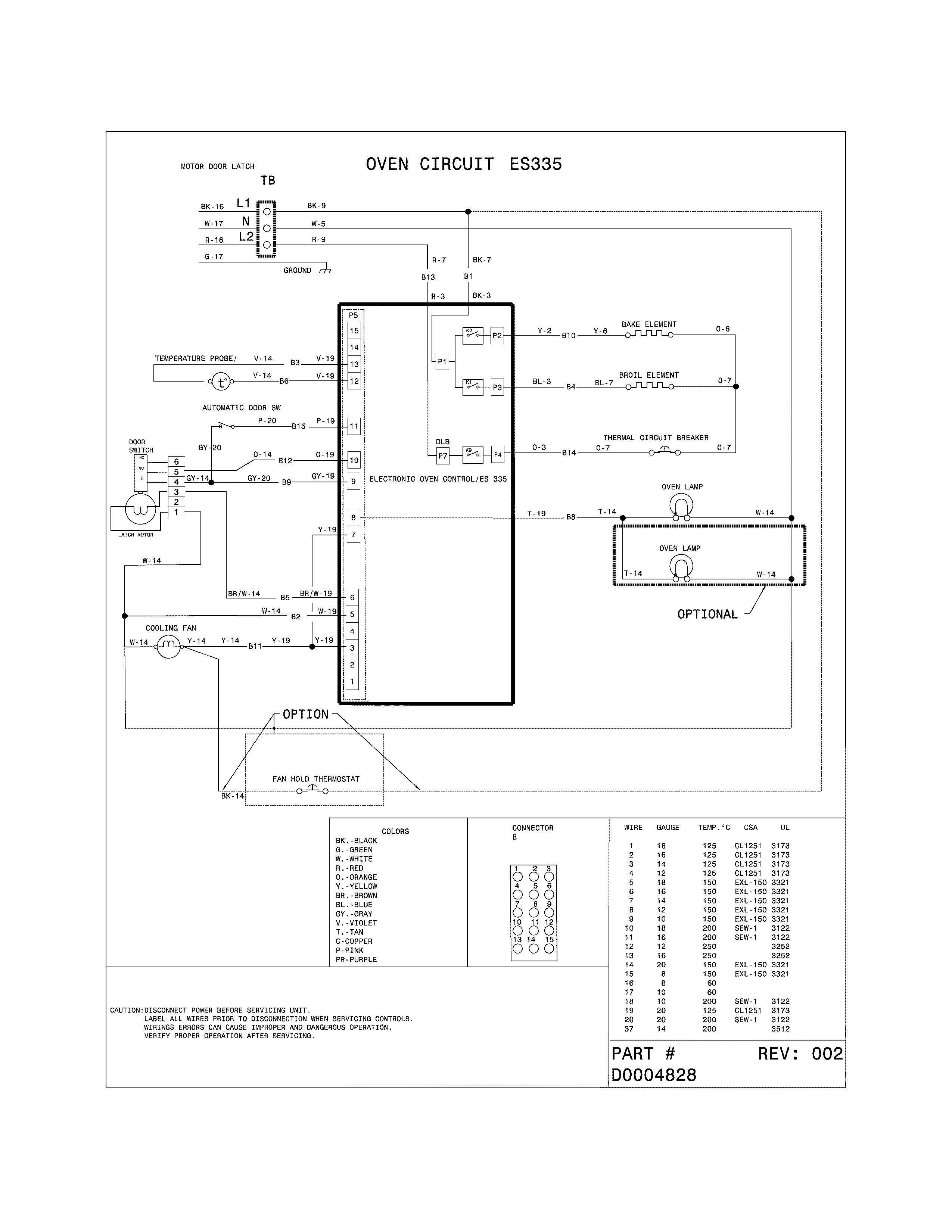

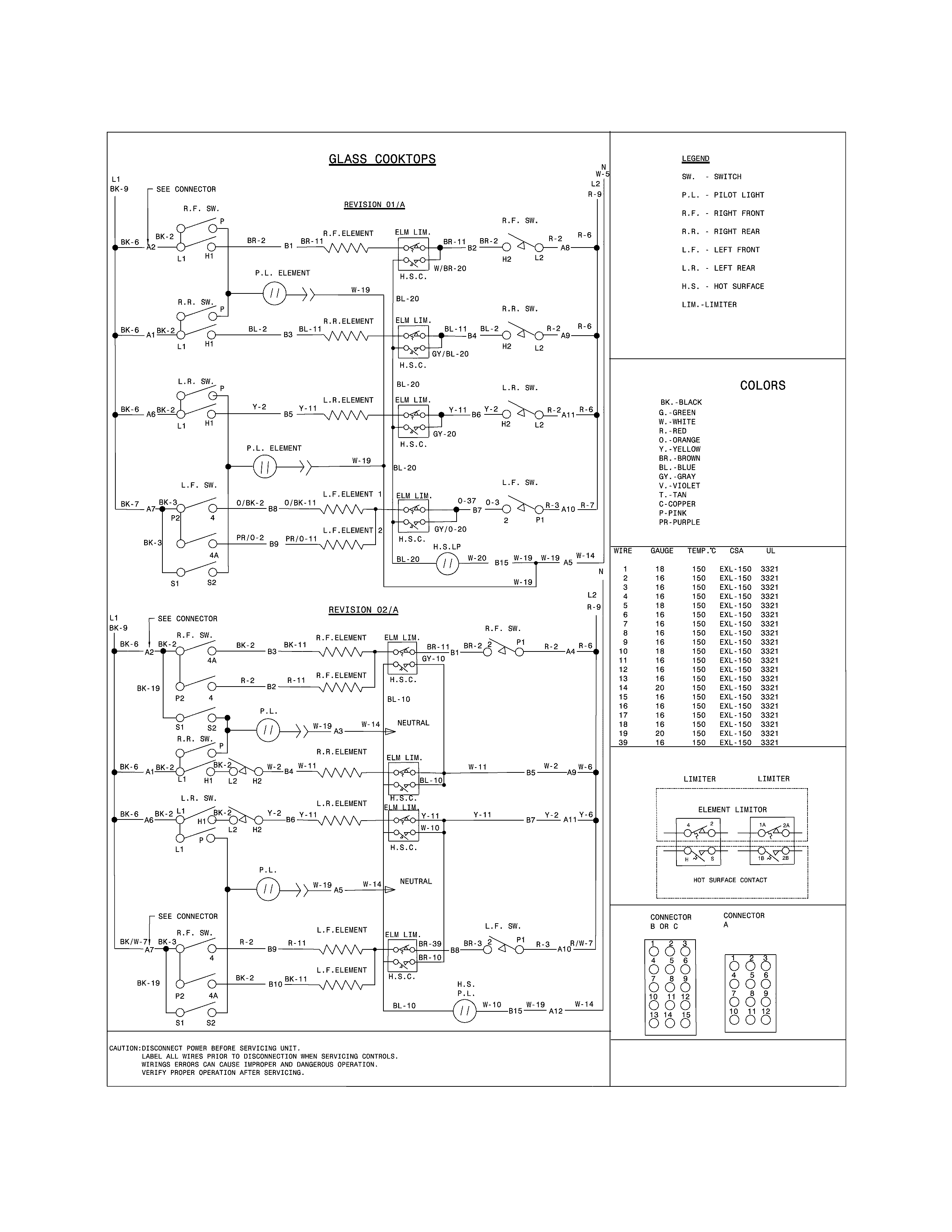

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for79042531314 Ranges
- #8

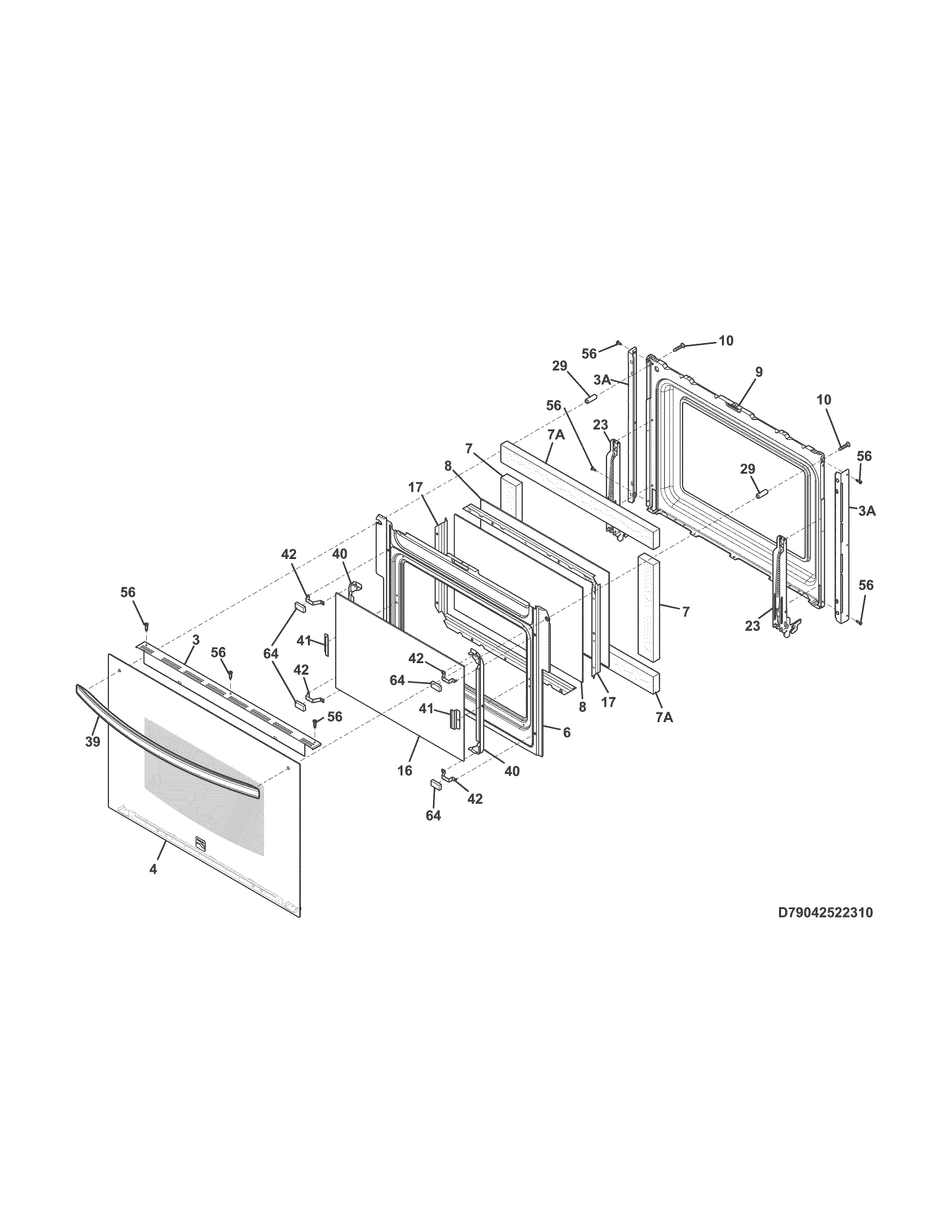

Door diagram
Range oven door inner glassPart #316117504
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117504. Substitute parts can look different from the original.$77.39 |7% OFF Phone Price : $83.39In Stock - #15B

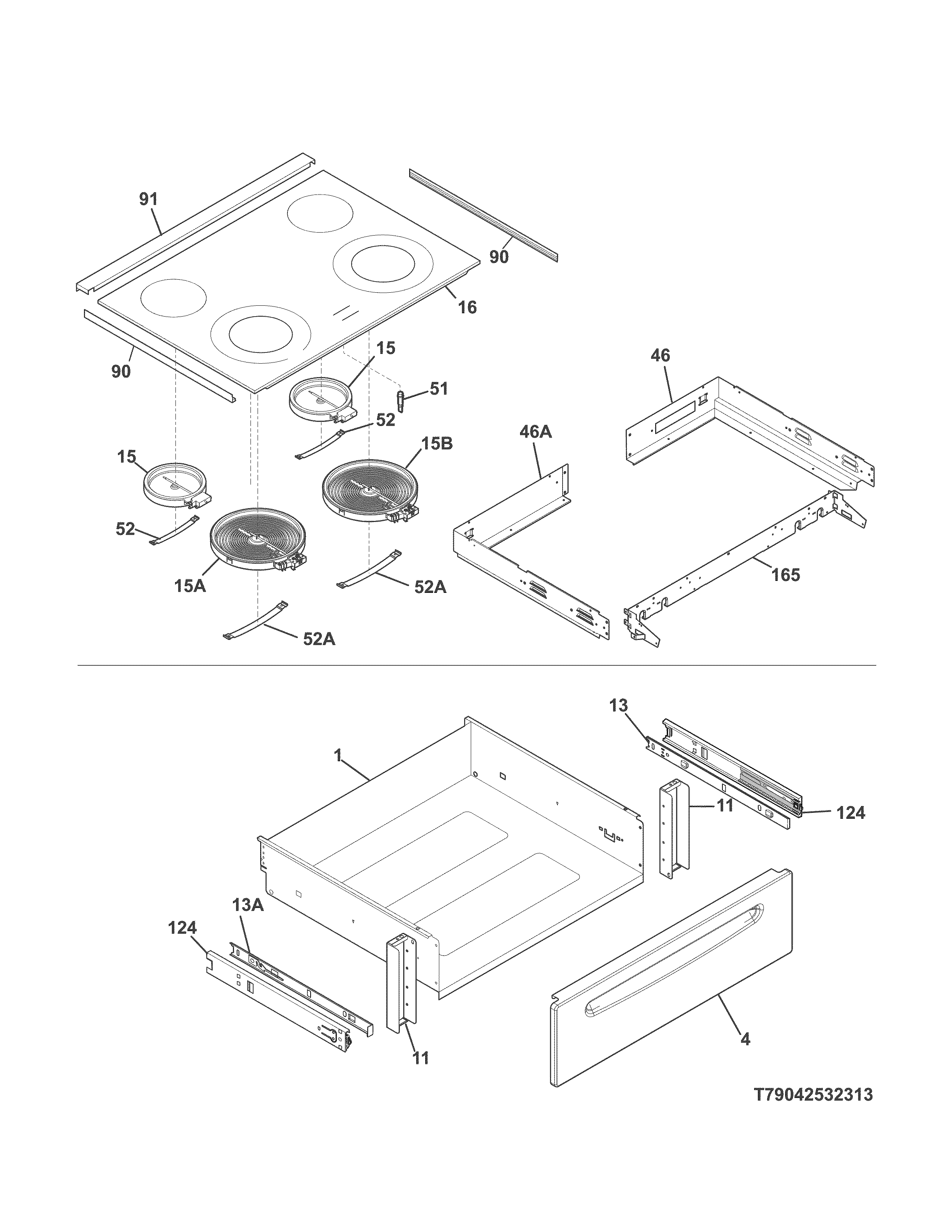

Top/drawer diagram
Frigidaire range dual radiant surface elementPart #316555800
$129.72 |8% OFF Phone Price : $141.72In Stock - #37

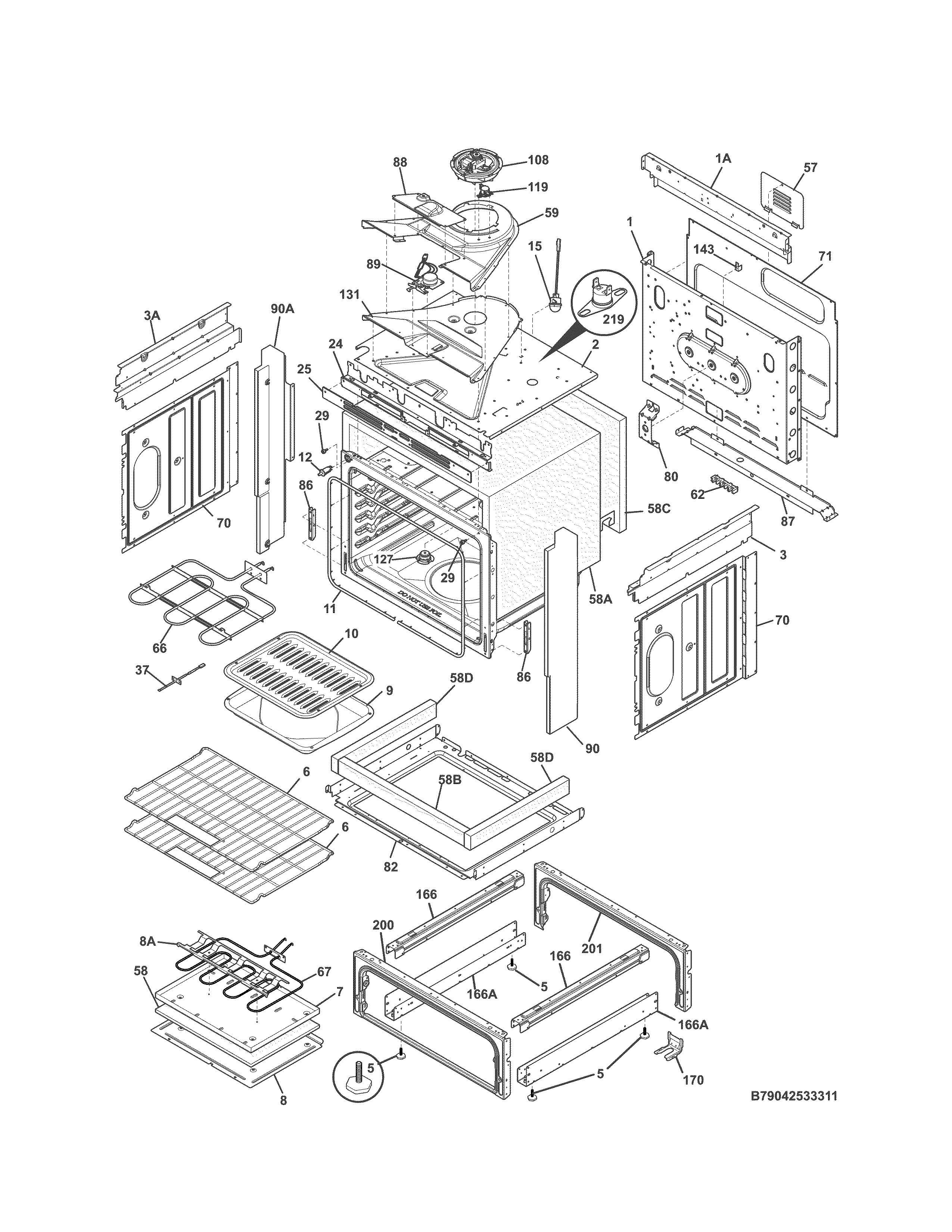

Body diagram
Range oven temperature sensorPart #318562500
Replaced by #5304504897
?Manufacturer substitutionThis part replaces 318562500. Substitute parts can look different from the original.$31.06 |16% OFF Phone Price : $37.06In Stock - #15A
Top/drawer diagram
Tappan range dual radiant surface elementPart #316282000
Replaced by #5304533520
?Manufacturer substitutionThis part replaces 316282000. Substitute parts can look different from the original.$80.61 |7% OFF Phone Price : $86.61In Stock - #54

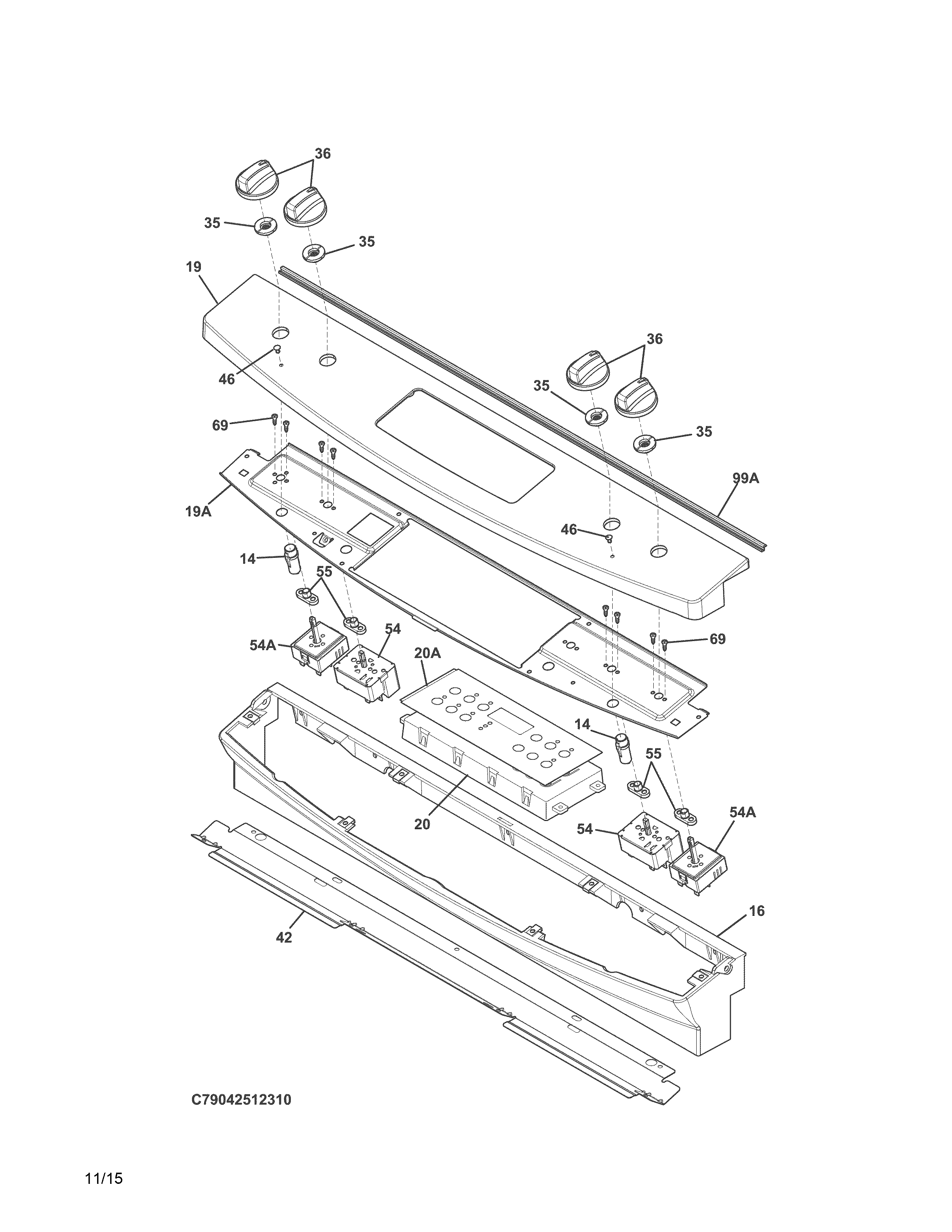

Backguard diagram
Range surface element control switchPart #318293830
$58.33 |9% OFF Phone Price : $64.33In Stock - #16
Door diagram
Range oven door outer glassPart #316446400
Replaced by #316446401
?Manufacturer substitutionThis part replaces 316446400. Substitute parts can look different from the original.$81.74 |7% OFF Phone Price : $87.74In Stock - #20A
Backguard diagram
Range control panel overlayPart #139091300
$46.46 |11% OFF Phone Price : $52.46In Stock - #20
Backguard diagram
Range oven control boardPart #316557276
Replaced by #5304515591
?Manufacturer substitutionThis part replaces 316557276. Substitute parts can look different from the original.$267.45 |$12.00 OFF Phone Price : $279.45In Stock - Range screw
Part #316001003
Replaced by #316001017
?Manufacturer substitutionThis part replaces 316001003. Substitute parts can look different from the original.$28.27In Stock - #12
Body diagram
Range door light switchPart #318394802
Replaced by #808136601
?Manufacturer substitutionThis part replaces 318394802. Substitute parts can look different from the original.$34.17 |15% OFF Phone Price : $40.17In Stock
