Model # CTX18CAZKRAA Official Hotpoint refrigerator - z series

Here are the diagrams and repair parts for Official Hotpoint CTX18CAZKRAA refrigerator - z series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

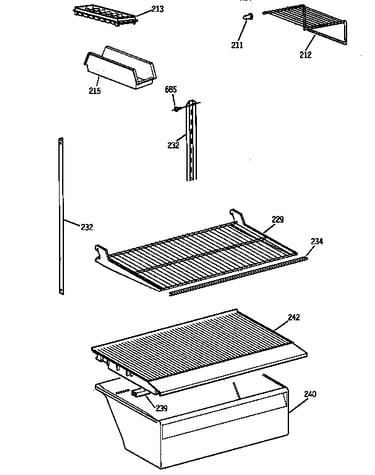

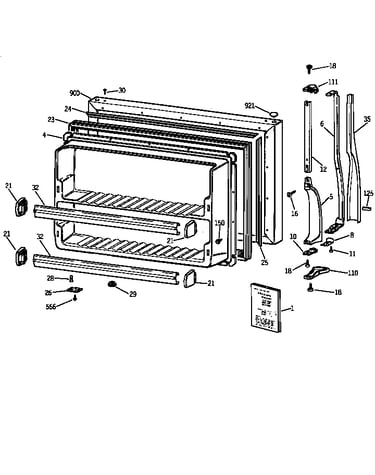

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Refrigerator Filter Dryer WR86X96
#740

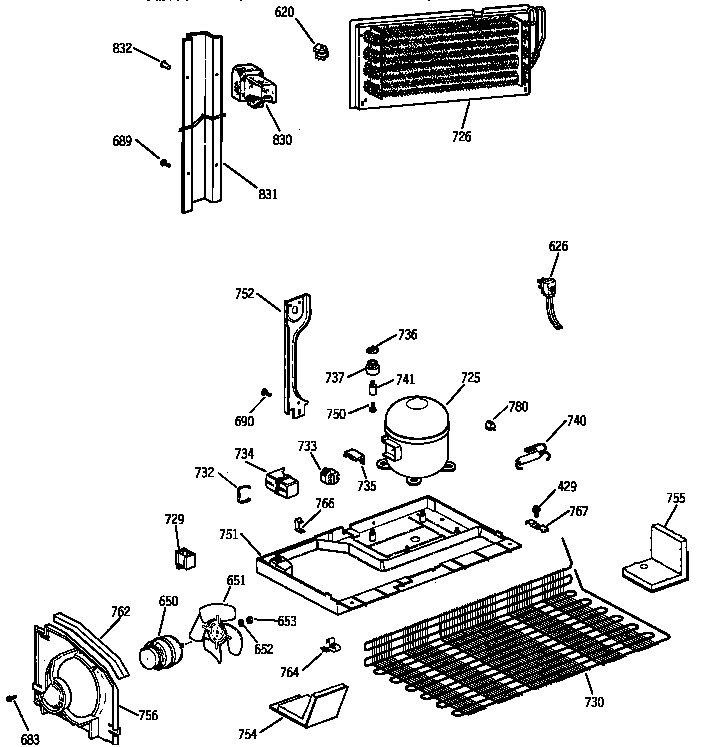

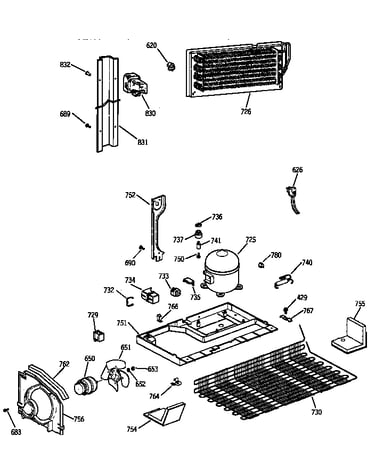

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435

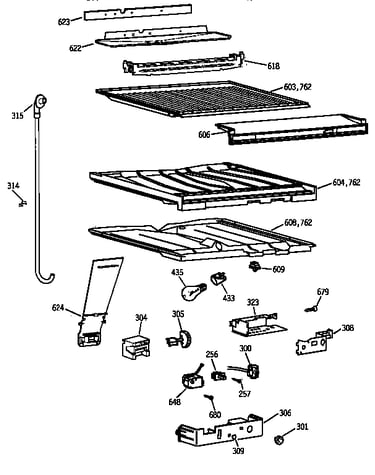

Compartment separator parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Compressor Kit WR87X475
#725

Unit parts diagram

Refrigerator compressor kit

Part #WR87X475

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X475. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Condenser Fan Motor (replaces Swr60x173, Wr60x0187, Wr60x10010, Wr60x165, Wr60x169, Wr60x170, Wr60x173, Wr60x179, Wr60x184, Wr60x233) WR60X187
#650

Unit parts diagram

Refrigerator condenser fan motor (replaces swr60x173, wr60x0187, wr60x10010, wr60x165, wr60x169, wr60x170, wr60x173, wr60x179, wr60x184, wr60x233)

Part #WR60X187

BEST SELLER
$207.94 |
5% OFF Phone Price : $219.94
In Stock
Refrigerator Door Gasket (white) (replaces Wr24x0450, Wr24x459) WR24X450
#104

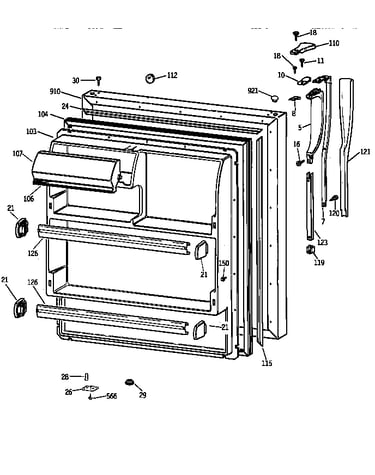

Fresh food door diagram

Refrigerator door gasket (white) (replaces wr24x0450, wr24x459)

Part #WR24X450

$96.44 |
11% OFF Phone Price : $108.44
In Stock
Refrigerator Grommet WR2X9153
#270B

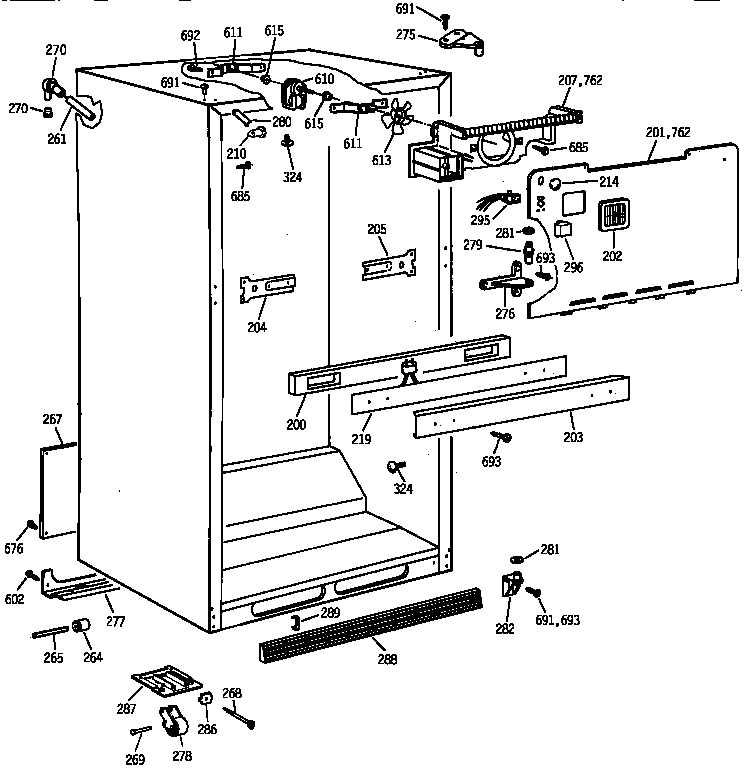

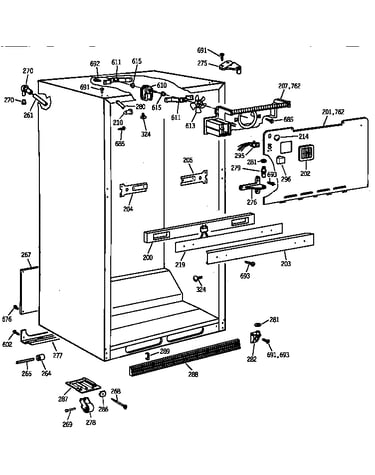

Cabinet parts diagram

Refrigerator grommet

Part #WR2X9153

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR2X9153. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Refrigerator Fan Blade WR2X3198
#613B

Cabinet parts diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Defrost Timer (replaces Wr09x0520) WR9X520
#648

Compartment separator parts diagram

Refrigerator defrost timer (replaces wr09x0520)

Part #WR9X520

$43.04 |
12% OFF Phone Price : $49.04
In Stock
Relay Ptc WR7X240
#733

Unit parts diagram

Relay ptc

Part #WR7X240

Replaced by #WR07X10055

?
Manufacturer substitution
This part replaces WR7X240. Substitute parts can look different from the original.
This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Refrigerator Defrost Heater WR51X10002
#618

Compartment separator parts diagram

Refrigerator defrost heater

Part #WR51X10002

Replaced by #WR51X464

?
Manufacturer substitution
This part replaces WR51X10002. Substitute parts can look different from the original.
$122.37 |
9% OFF Phone Price : $134.37
In Stock
