Tappan
Countertop Microwave

Model # TMS107T1B1 Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan TMS107T1B1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

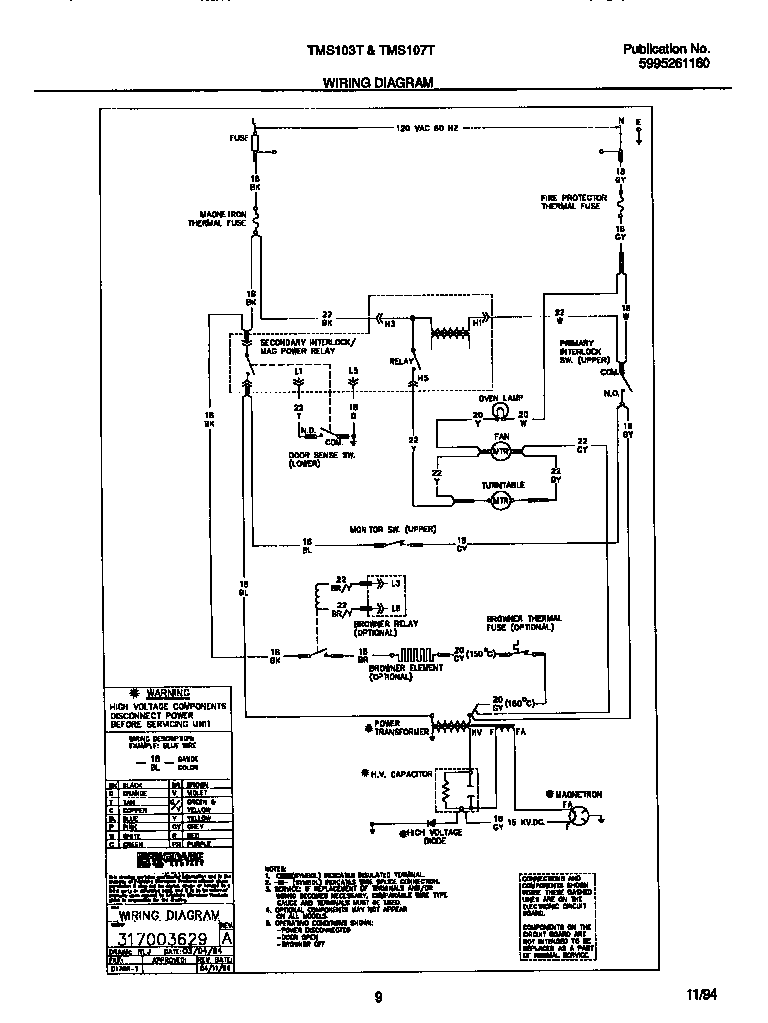

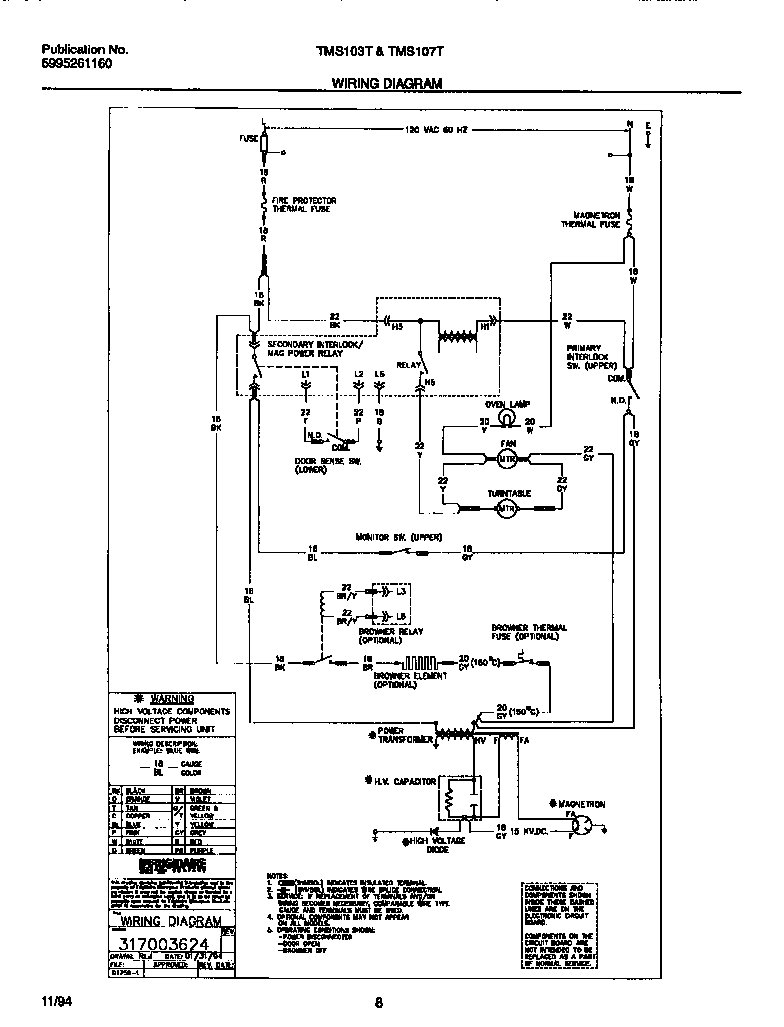

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Paint 5303203124

#NI

All parts diagram

Paint

Part #5303203124

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303203124. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Button Spring 396114300
#11

Control panel diagram

Button spring

Part #396114300

This item is not returnable
$3.62
In Stock
Microwave Wire Harness 317000336

#NI

All parts diagram

Microwave wire harness

Part #317000336

$20.99
In Stock
Foam Air Floor 317009903
#54

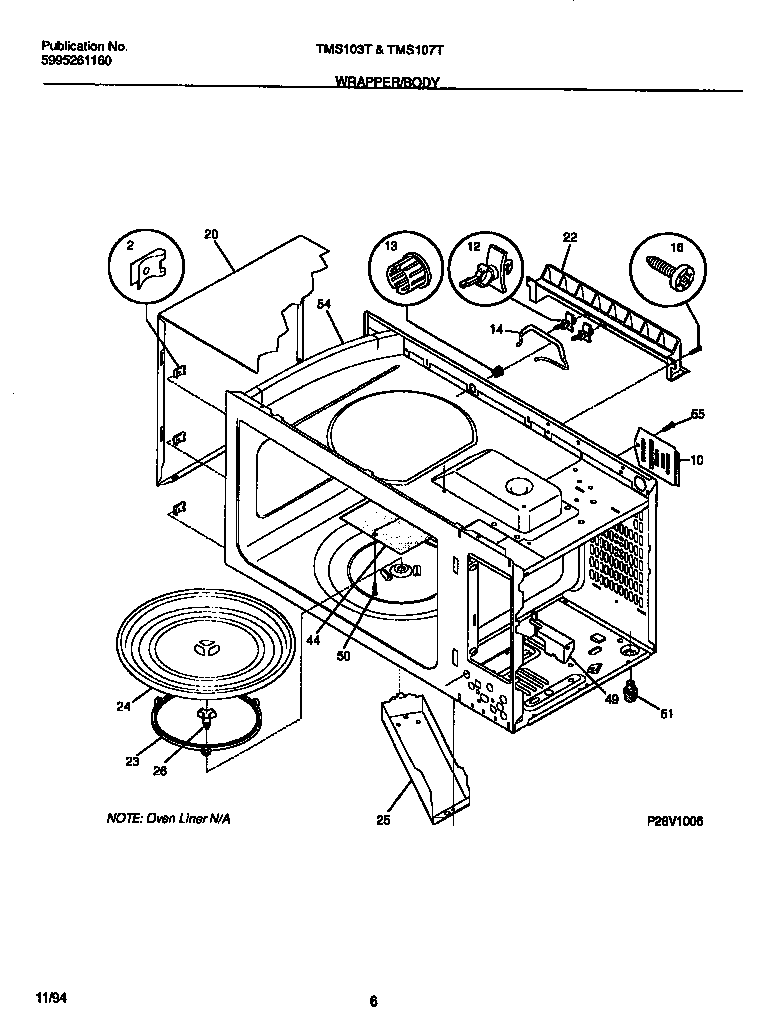

Wrapper/body diagram

Foam air floor

Part #317009903

This item is not returnable
$2.99
In Stock
Door Switch 317005121
#52

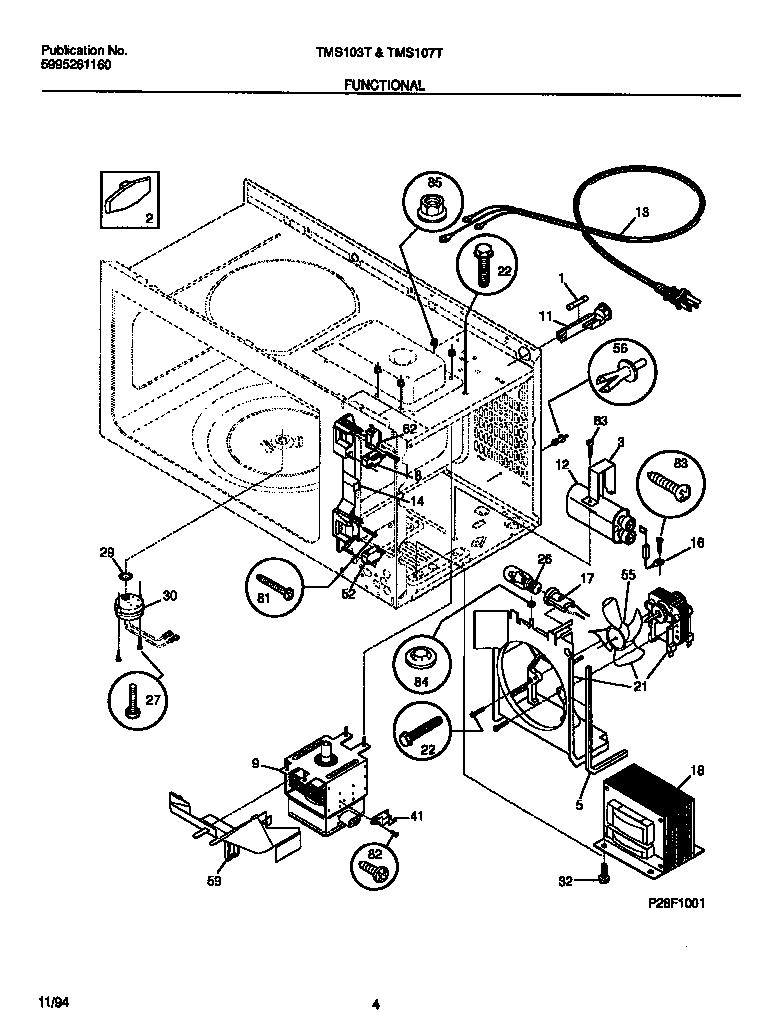

Functional diagram

Door switch

Part #317005121

$27.98
In Stock
Spring 317013501
#18

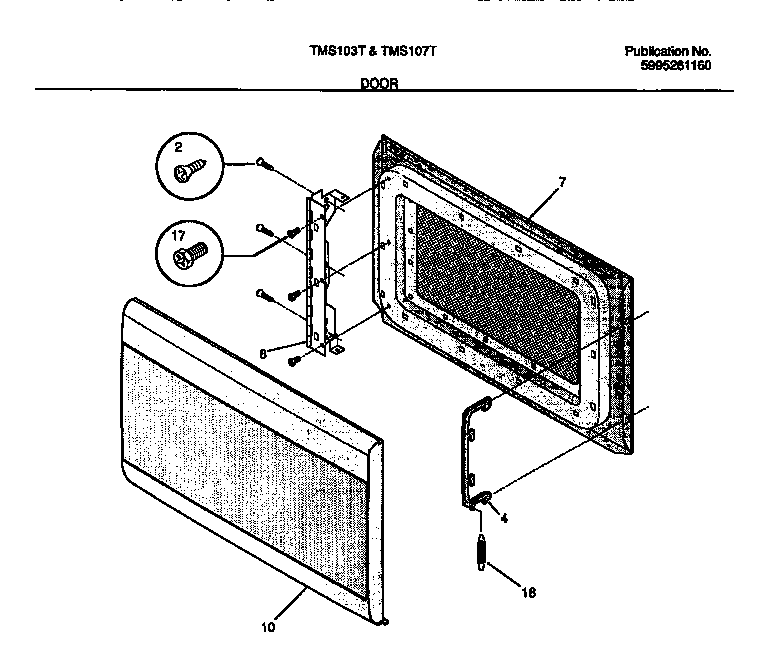

Door diagram

Spring

Part #317013501

This item is not returnable
$2.34
In Stock
Screw 5303013944
#32

Functional diagram

Screw

Part #5303013944

This item is not returnable
$2.16
In Stock
Duct Magnetron 317018801
#59

Functional diagram

Duct magnetron

Part #317018801

This item is not returnable
$3.99
In Stock
Wrapper 317019003
#20

Wrapper/body diagram

Wrapper

Part #317019003

$73.32
In Stock
Control Board 317019504
#1

Control panel diagram

Control board

Part #317019504

$214.48
In Stock
