Frigidaire
Wall Oven/Microwave Combo

Model # FGMC3066UBA Official Frigidaire electric oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC3066UBA electric oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

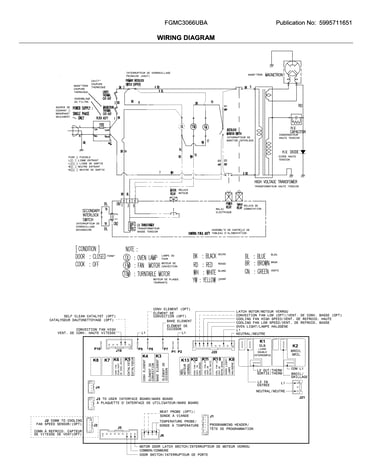

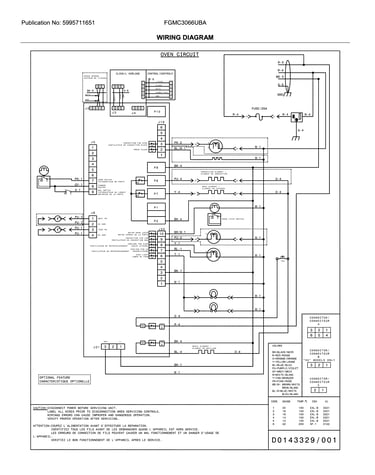

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Kenmore Elite Microwave Fuse (replaces 5304488359) 5304509451
#34

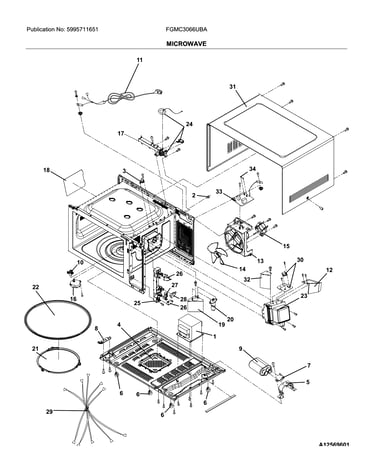

Microwave diagram

Kenmore elite microwave fuse (replaces 5304488359)

Part #5304509451

BEST SELLER
$11.96 |
14% OFF Phone Price : $13.96
In Stock
Switch 5304520020
#26

Microwave diagram

Switch

Part #5304520020

Replaced by #5304509460

?
Manufacturer substitution
This part replaces 5304520020. Substitute parts can look different from the original.
BEST SELLER
$35.77 |
14% OFF Phone Price : $41.77
In Stock
Terminal Block 316056000
#62

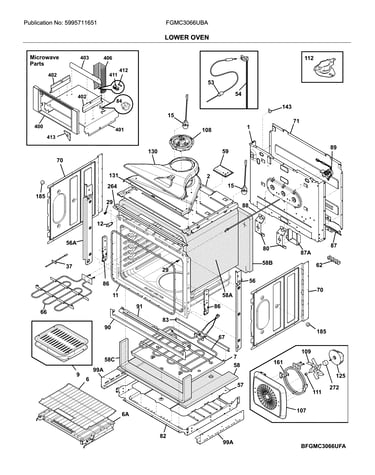

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Lower oven diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$33.62 |
15% OFF Phone Price : $39.62
In Stock
Electrolux Range Oven Control Board (replaces 316472802) 316472807
#97

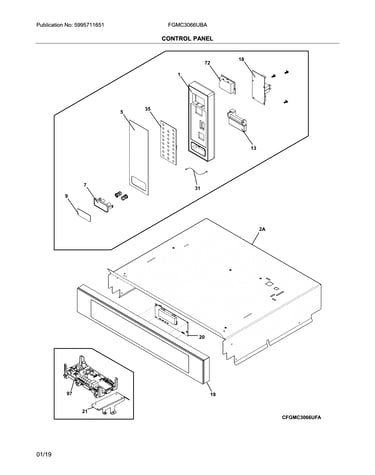

Control panel diagram

Electrolux range oven control board (replaces 316472802)

Part #316472807

BEST SELLER
$268.61 |
$12.00 OFF Phone Price : $280.61
In Stock
Blade 139009100
#109

Lower oven diagram

Blade

Part #139009100

Replaced by #318398302

?
Manufacturer substitution
This part replaces 139009100. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Wall Oven Cooling Fan Assembly 807123001
#108

Lower oven diagram

Wall oven cooling fan assembly

Part #807123001

Replaced by #5304528825

?
Manufacturer substitution
This part replaces 807123001. Substitute parts can look different from the original.
BEST SELLER
$117.27 |
9% OFF Phone Price : $129.27
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Kenmore Microwave High-voltage Transformer 5304513457
#1

Microwave diagram

Kenmore microwave high-voltage transformer

Part #5304513457

BEST SELLER
$252.79 |
5% OFF Phone Price : $264.79
In Stock
Range Screw, #10-24 X 1.94-in (replaces 316439501, 316513301, 5304502177) 5304507924
#10

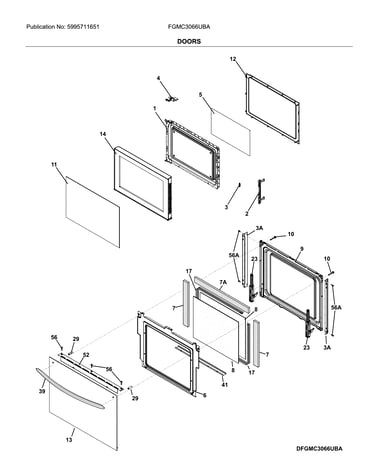

Doors diagram

Range screw, #10-24 x 1.94-in (replaces 316439501, 316513301, 5304502177)

Part #5304507924

BEST SELLER
This item is not returnable
$7.39 |
12% OFF Phone Price : $8.39
In Stock
