Model # LFX25974ST/04 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFX25974ST-04 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

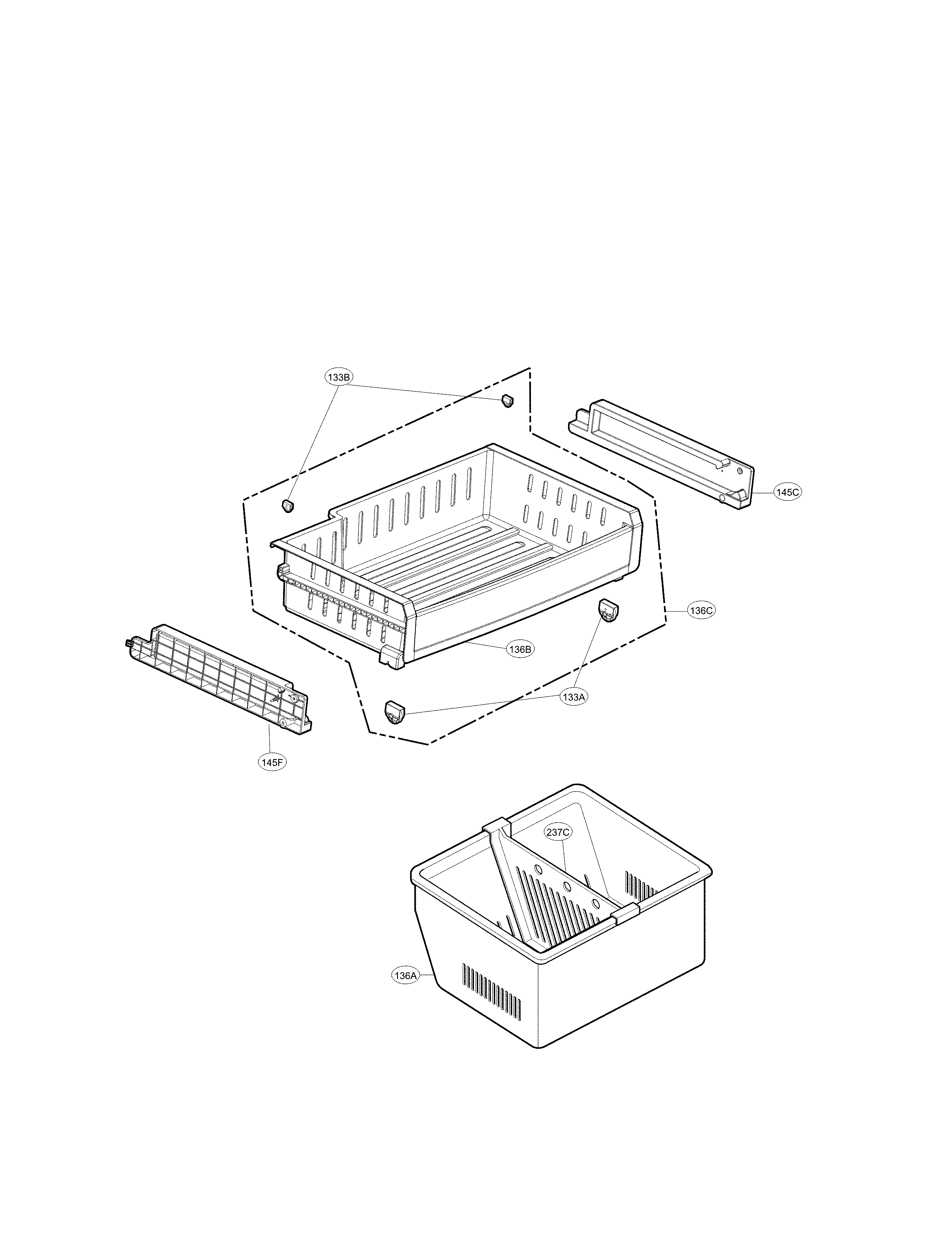

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Refrigerator Filter Dryer ADH69749103
#317A

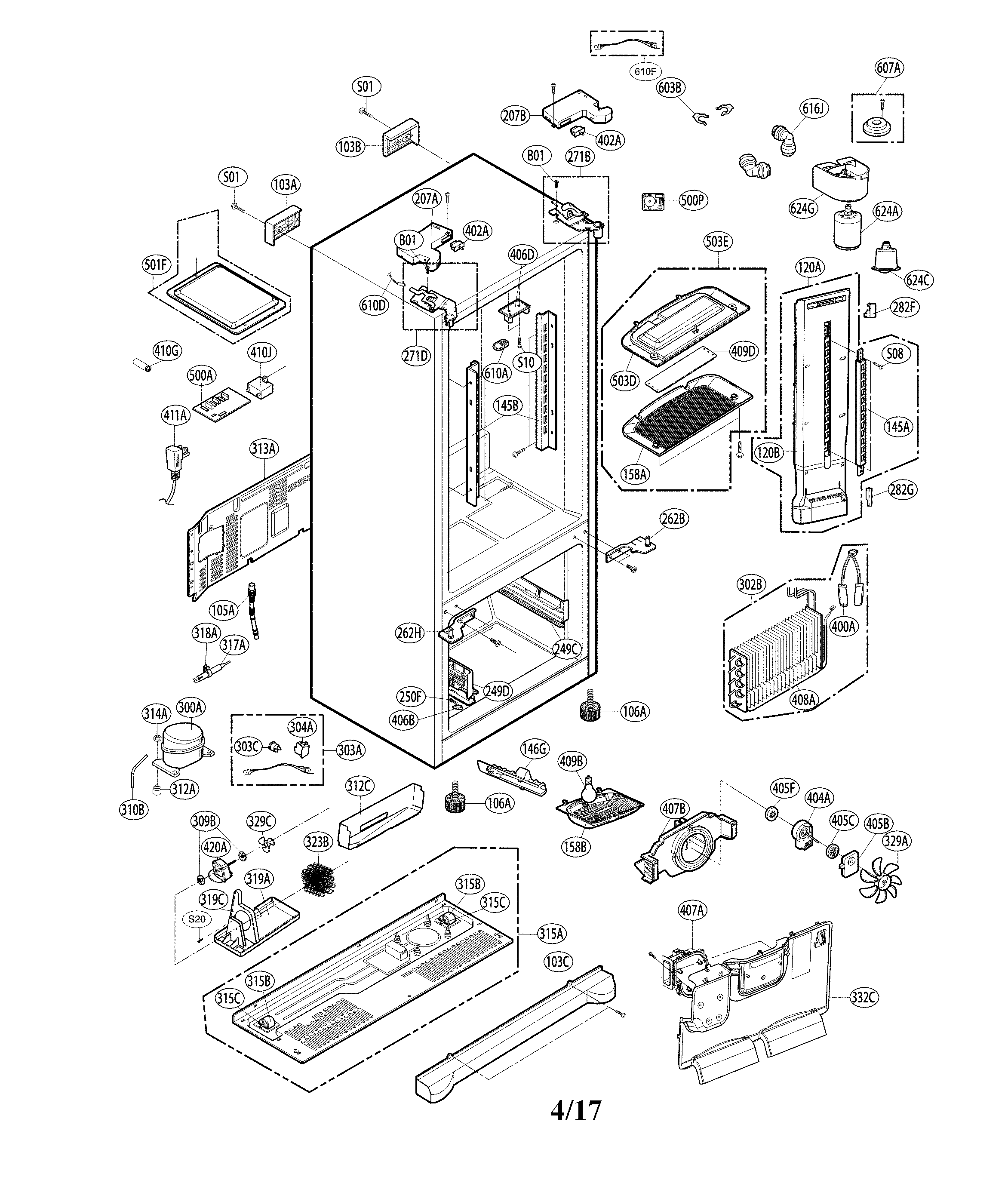

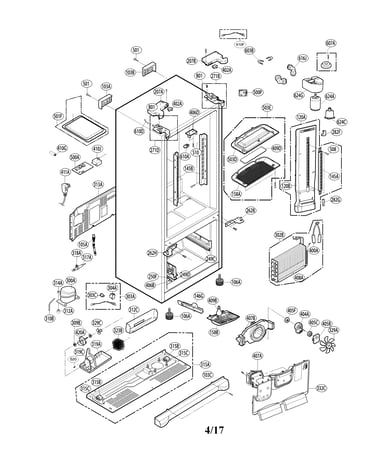

Case parts diagram

Refrigerator filter dryer

Part #ADH69749103

BEST SELLER
$65.82 |
8% OFF Phone Price : $71.82
In Stock
Refrigerator Door Gasket, Right ADX72930424
#233A

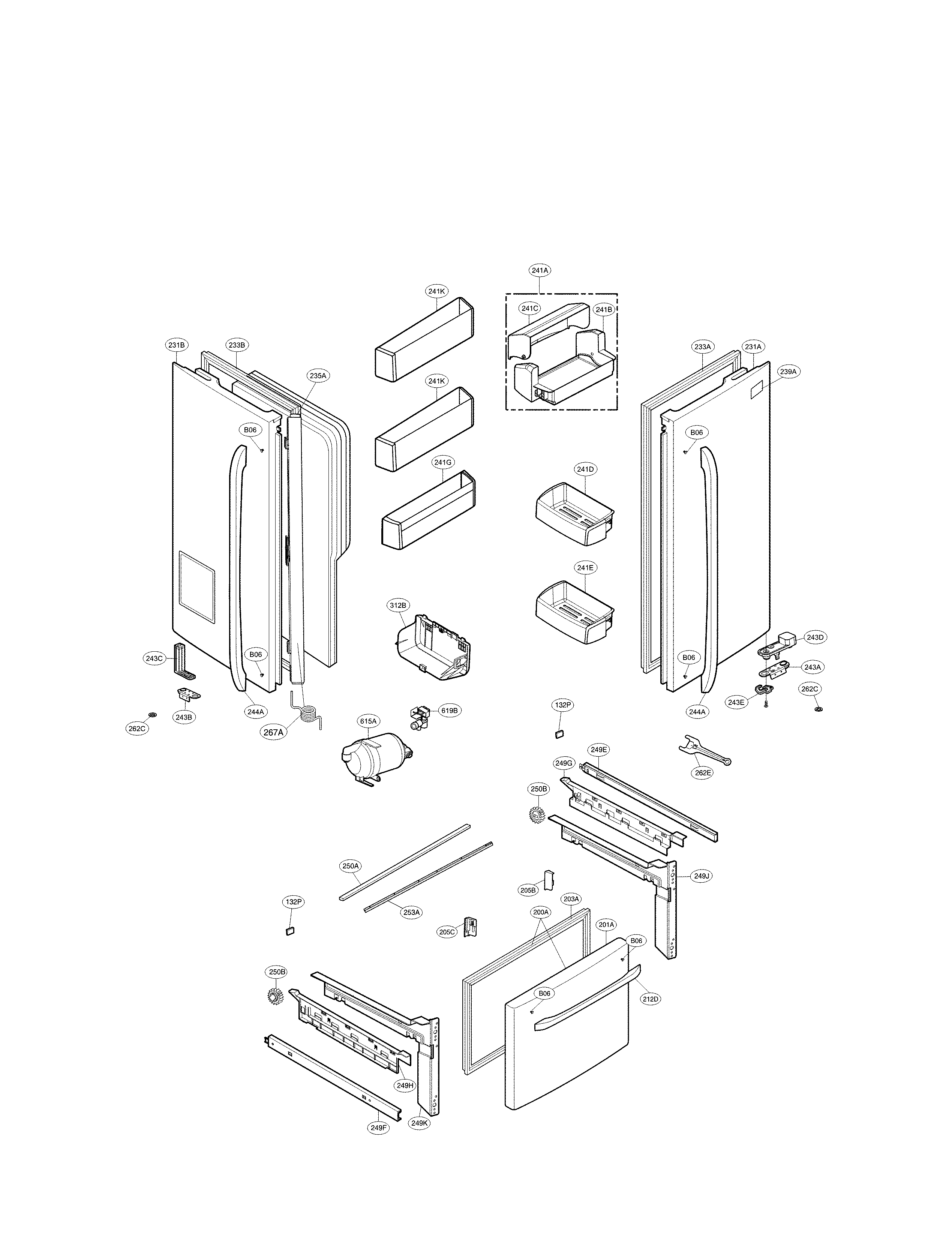

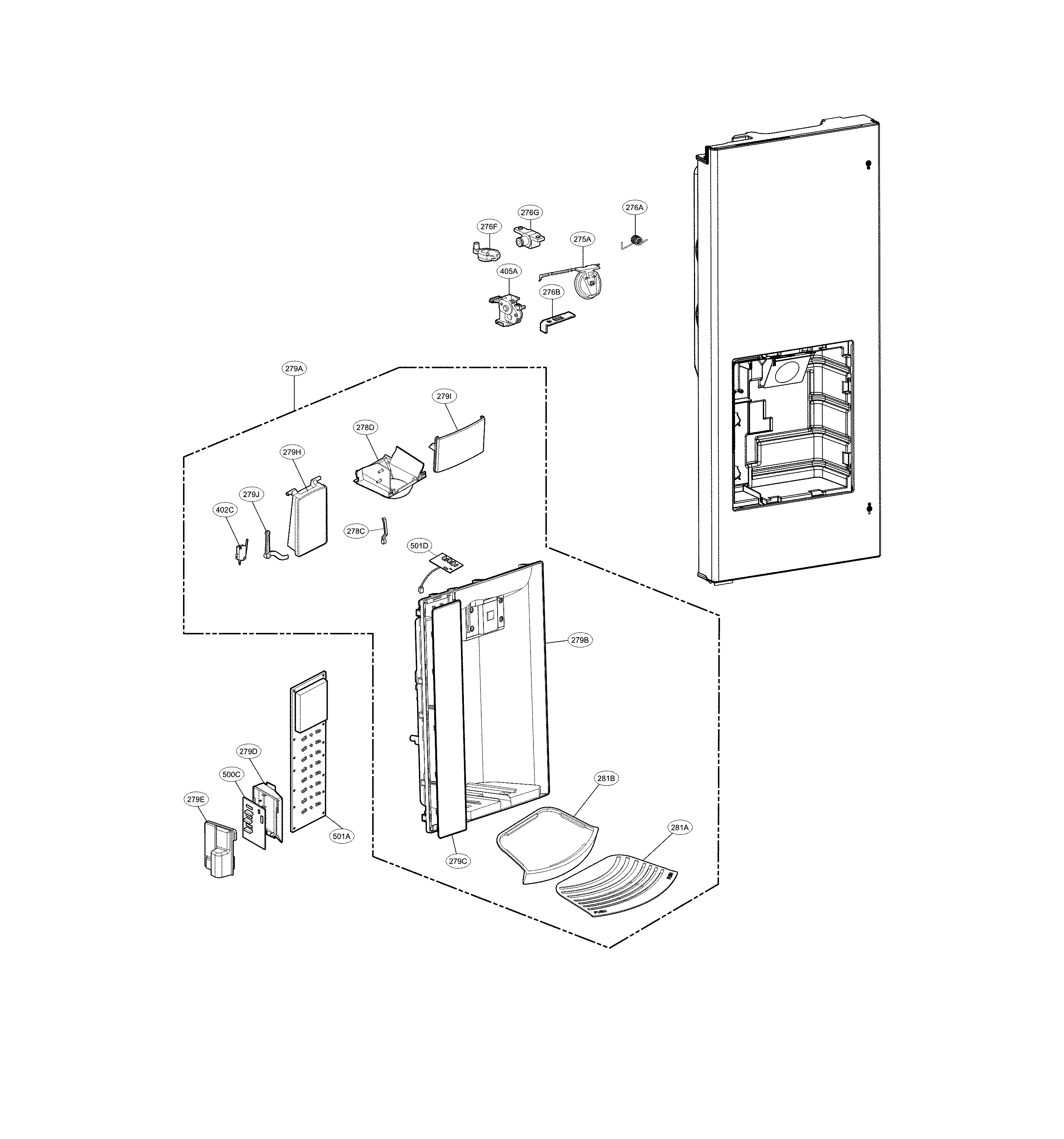

Door parts diagram

Refrigerator door gasket, right

Part #ADX72930424

Replaced by #ADX73550624

?
Manufacturer substitution
This part replaces ADX72930424. Substitute parts can look different from the original.
BEST SELLER
$39.52 |
13% OFF Phone Price : $45.52
In Stock
Lg Refrigerator Ice Maker (replaces Aeq73110208) AEQ73110210
#600A

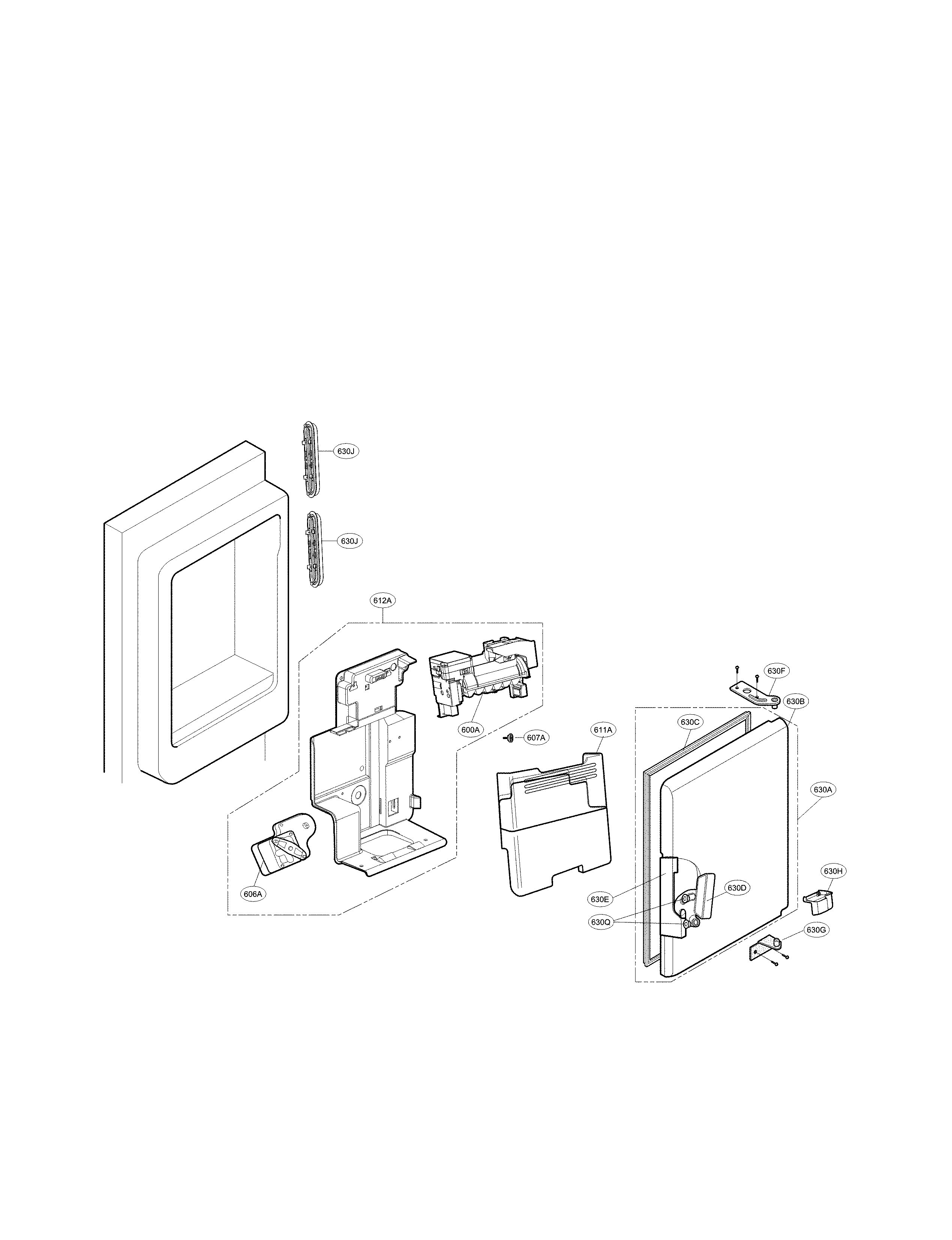

Ice maker parts diagram

Lg refrigerator ice maker (replaces aeq73110208)

Part #AEQ73110210

BEST SELLER
$171.24 |
7% OFF Phone Price : $183.24
In Stock
Refrigerator Auger Motor EAU61843006
#612A

Ice maker parts diagram

Refrigerator auger motor

Part #EAU61843006

Replaced by #EAU61843018

?
Manufacturer substitution
This part replaces EAU61843006. Substitute parts can look different from the original.
BEST SELLER
$162.20 |
7% OFF Phone Price : $174.20
In Stock
Lg Refrigerator Water Inlet Valve (replaces 5221ja2011p, Aju72992606, Ebd60664501) AJU72992601
#619A

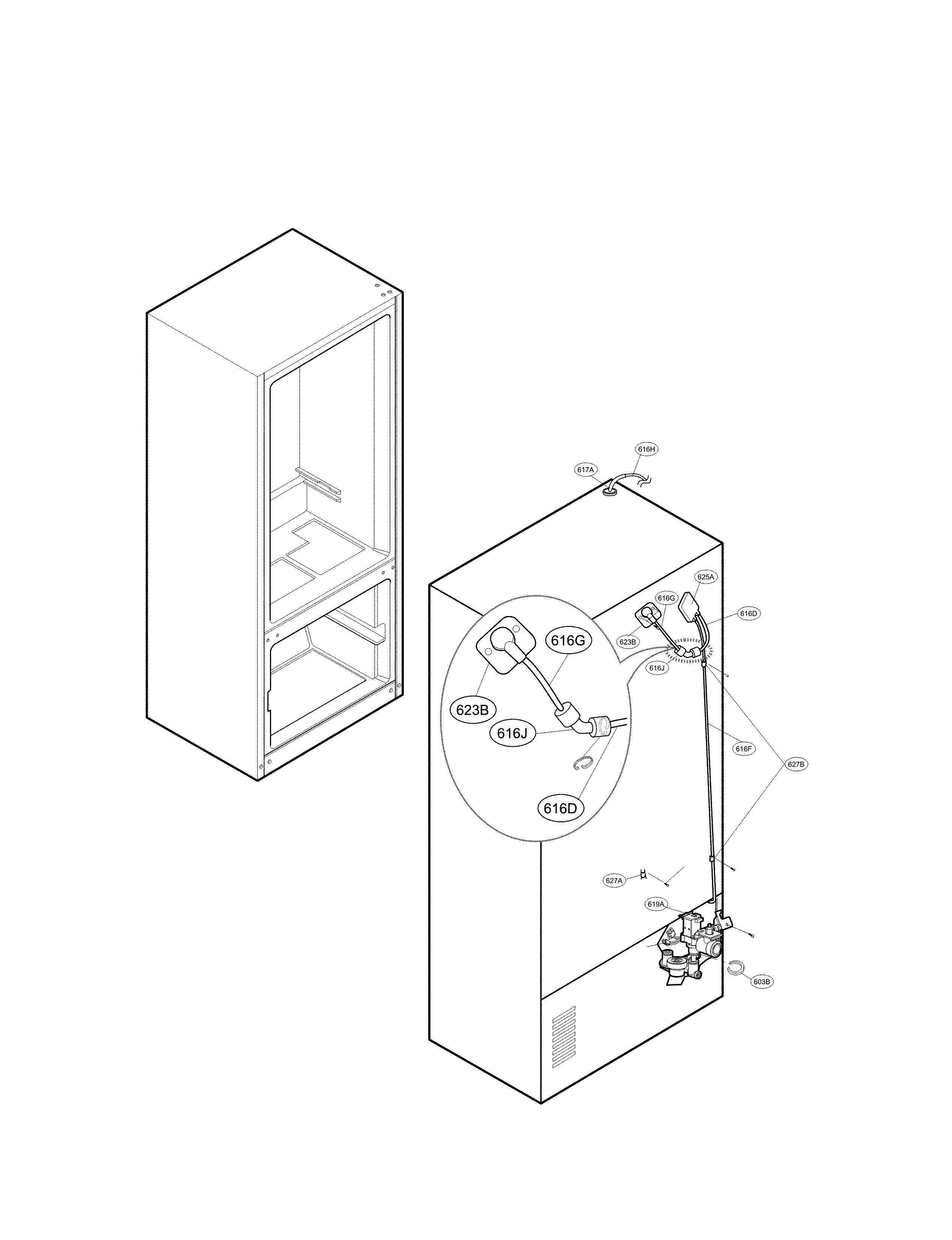

Water and valve parts diagram

Lg refrigerator water inlet valve (replaces 5221ja2011p, aju72992606, ebd60664501)

Part #AJU72992601

BEST SELLER
$106.37 |
10% OFF Phone Price : $118.37
In Stock
Water Sensor EBD60664501
#610D

Case parts diagram

Water sensor

Part #EBD60664501

Replaced by #AJU72992601

?
Manufacturer substitution
This part replaces EBD60664501. Substitute parts can look different from the original.
BEST SELLER
$106.37 |
10% OFF Phone Price : $118.37
In Stock
Refrigerator Ice Container Assembly AKC73249302
#611A

Ice maker parts diagram

Refrigerator ice container assembly

Part #AKC73249302

Replaced by #AKC73249304

?
Manufacturer substitution
This part replaces AKC73249302. Substitute parts can look different from the original.
BEST SELLER
$49.78 |
11% OFF Phone Price : $55.78
In Stock

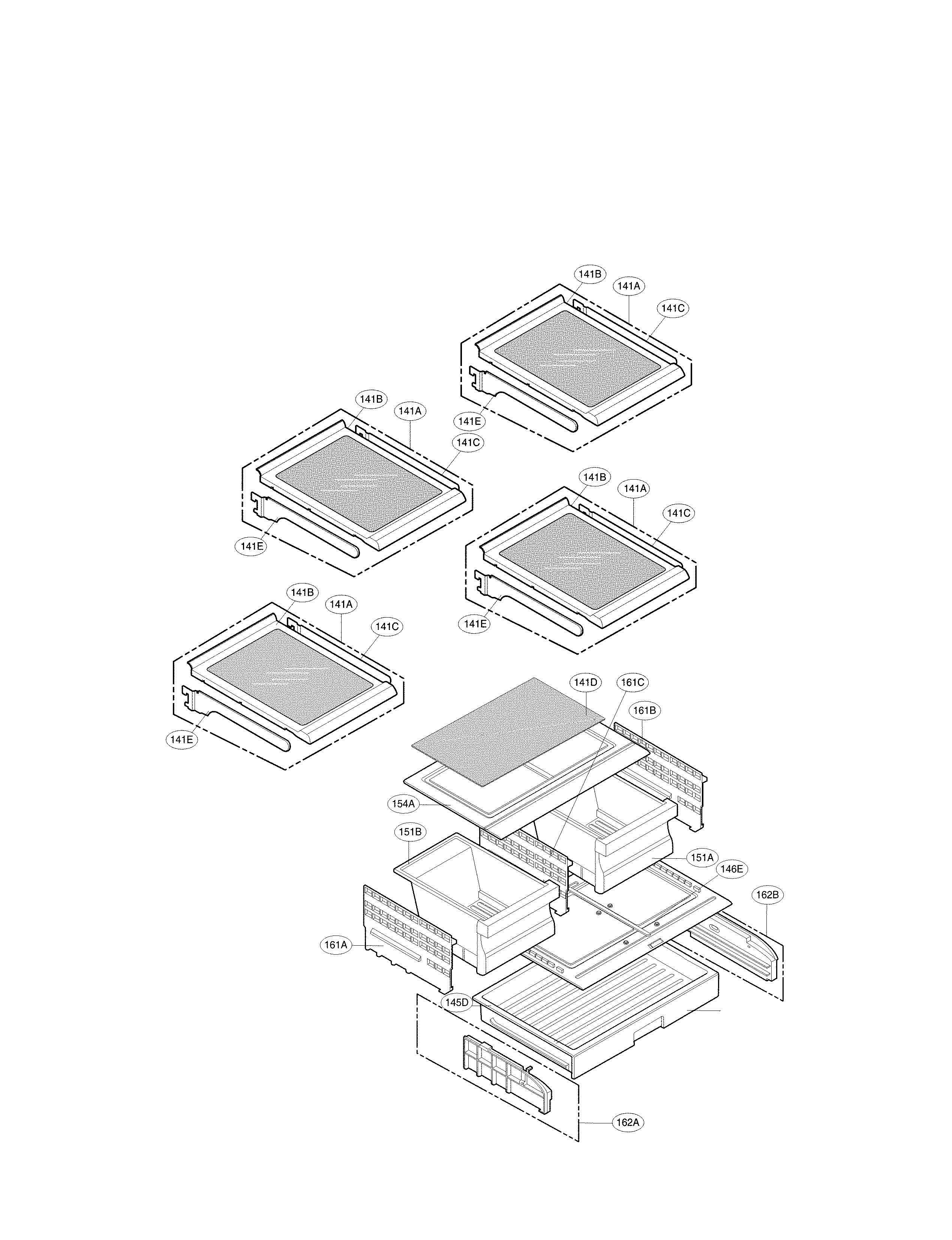

Lg Refrigerator Deli Drawer (replaces Mjs42244701) AJP73874601
#145D

Refrigerator parts diagram

Lg refrigerator deli drawer (replaces mjs42244701)

Part #AJP73874601

BEST SELLER
$77.34 |
7% OFF Phone Price : $83.34
In Stock
Refrigerator Compressor Overload Protector 6750CL0001D
#303C

Case parts diagram

Refrigerator compressor overload protector

Part #6750CL0001D

BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Water Tube Fitting MCD62426801
#616J

Water and valve parts diagram

Refrigerator water tube fitting

Part #MCD62426801

Replaced by #4932JA3009A

?
Manufacturer substitution
This part replaces MCD62426801. Substitute parts can look different from the original.
BEST SELLER
$17.14 |
10% OFF Phone Price : $19.14
In Stock
