Model # VTR1030D-01 Official Thermador remote blower

Here are the diagrams and repair parts for Official Thermador VTR1030D-01 remote blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Capacitor 418450
#108

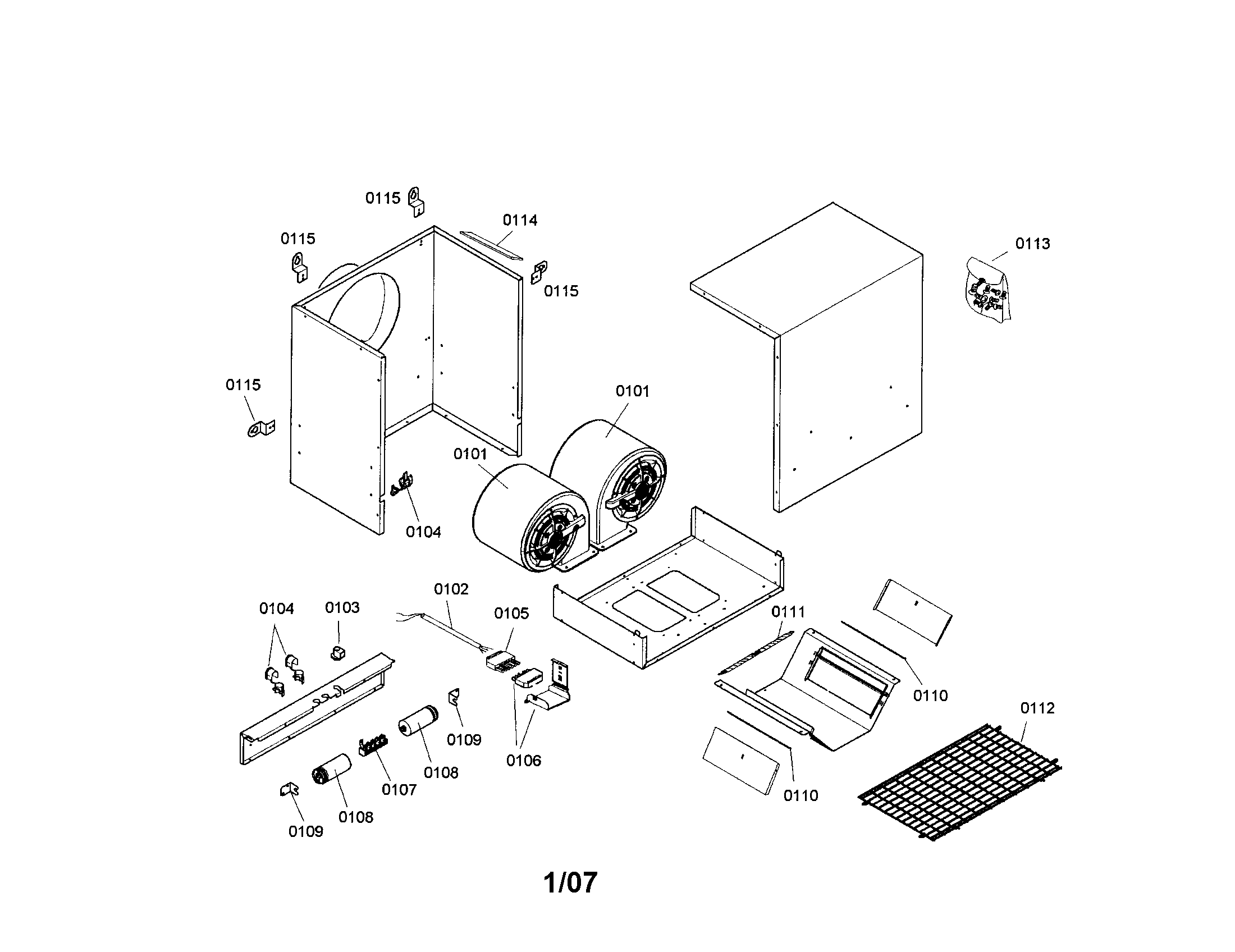

Vent system diagram

Capacitor

Part #418450

Replaced by #00418450

?
Manufacturer substitution
This part replaces 418450. Substitute parts can look different from the original.
$87.79 |
6% OFF Phone Price : $93.79
In Stock
Adhesive Tape 310364
#114

Vent system diagram

Adhesive tape

Part #310364

Replaced by #00310364

?
Manufacturer substitution
This part replaces 310364. Substitute parts can look different from the original.
$28.76
In Stock
Hardware Bag 641734
#113

Vent system diagram

Hardware bag

Part #641734

Replaced by #00641734

?
Manufacturer substitution
This part replaces 641734. Substitute parts can look different from the original.
$23.77
In Stock
Strss-relf 603588
#104

Vent system diagram

Strss-relf

Part #603588

Replaced by #00603588

?
Manufacturer substitution
This part replaces 603588. Substitute parts can look different from the original.
This item is not returnable
$25.51
In Stock
Spring 606553
#111

Vent system diagram

Spring

Part #606553

Replaced by #00606553

?
Manufacturer substitution
This part replaces 606553. Substitute parts can look different from the original.
$23.84
In Stock
Terminal 606535
#107

Vent system diagram

Terminal

Part #606535

The manufacturer no longer makes this part, and there's no substitute part

Bracket 606536
#109

Vent system diagram

Bracket

Part #606536

The manufacturer no longer makes this part, and there's no substitute part

Axis 662248
#110

Vent system diagram

Axis

Part #662248

The manufacturer no longer makes this part, and there's no substitute part

Bracket 606554
#115

Vent system diagram

Bracket

Part #606554

The manufacturer no longer makes this part, and there's no substitute part

Harness 641733
#102

Vent system diagram

Harness

Part #641733

The manufacturer no longer makes this part, and there's no substitute part
