Model # JTP95BA5BB Official GE electric range

Here are the diagrams and repair parts for Official GE JTP95BA5BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

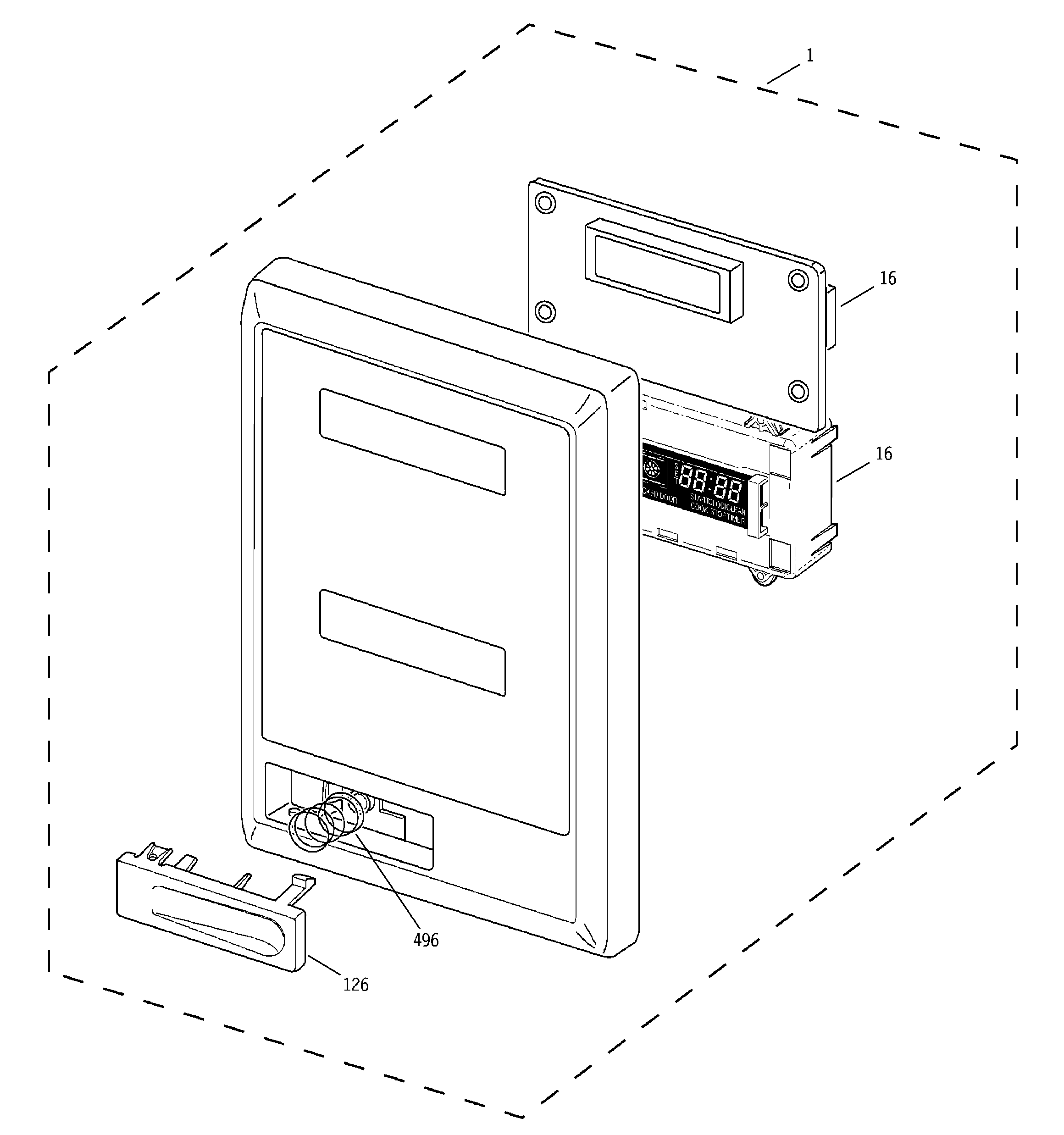

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Switch-micro WB24X0829
#576

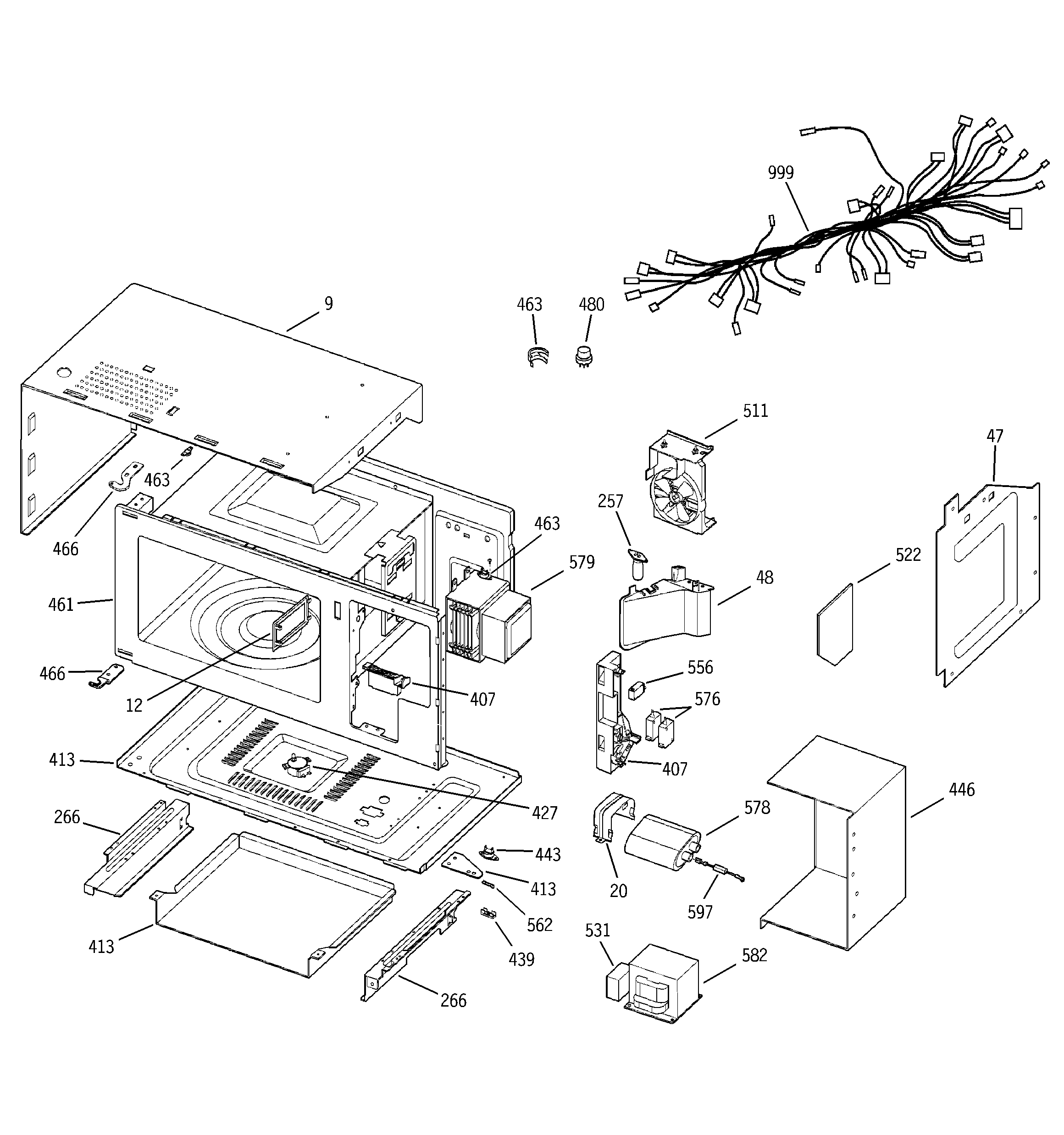

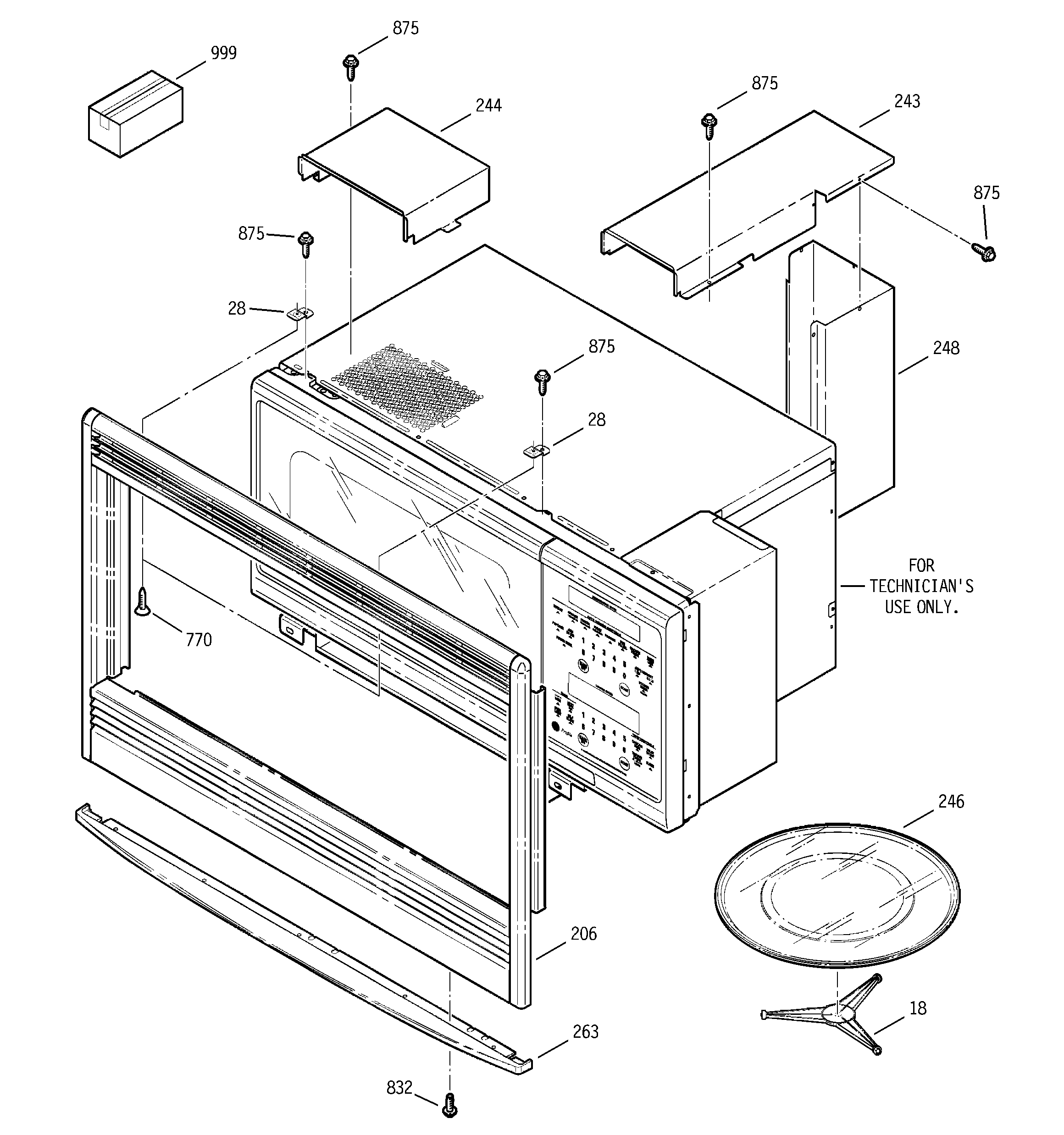

Microwave body parts diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse Bussman WB27X10247
#562

Microwave body parts diagram

Fuse bussman

Part #WB27X10247

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10247. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Monitor Switch WB24X0830
#556

Microwave body parts diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Microwave High-voltage Diode (replaces Wb27x608) WB27X1160
#597

Microwave body parts diagram

Microwave high-voltage diode (replaces wb27x608)

Part #WB27X1160

BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Wall Oven Temperature Sensor WB23T10015
#253

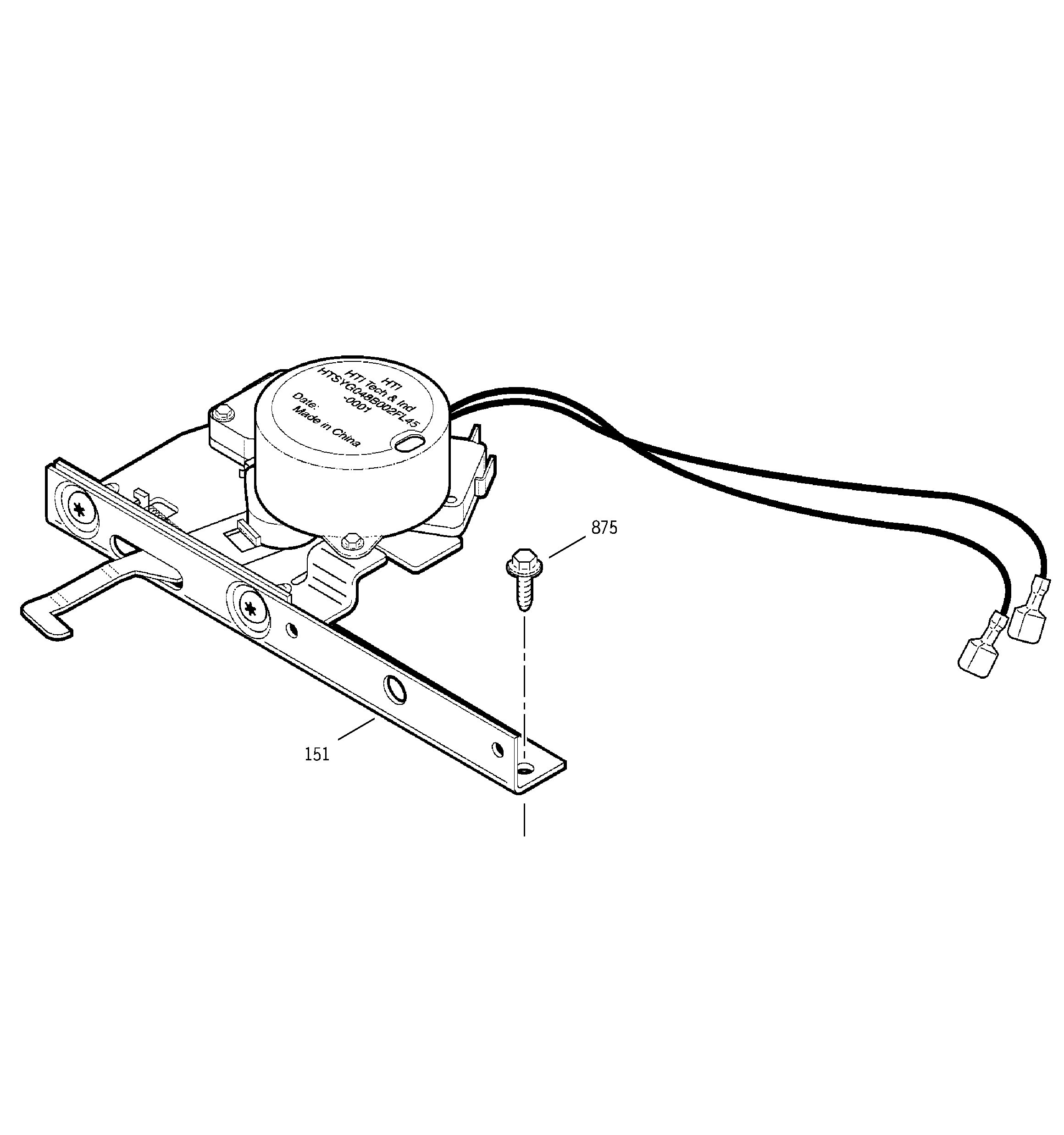

Oven body with microwave support diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Magnetron WB27X1156
#579

Microwave body parts diagram

Magnetron

Part #WB27X1156

The manufacturer no longer makes this part, and there's no substitute part

Range Bake Element (replaces Wb44t10055) WB44T10021
#251

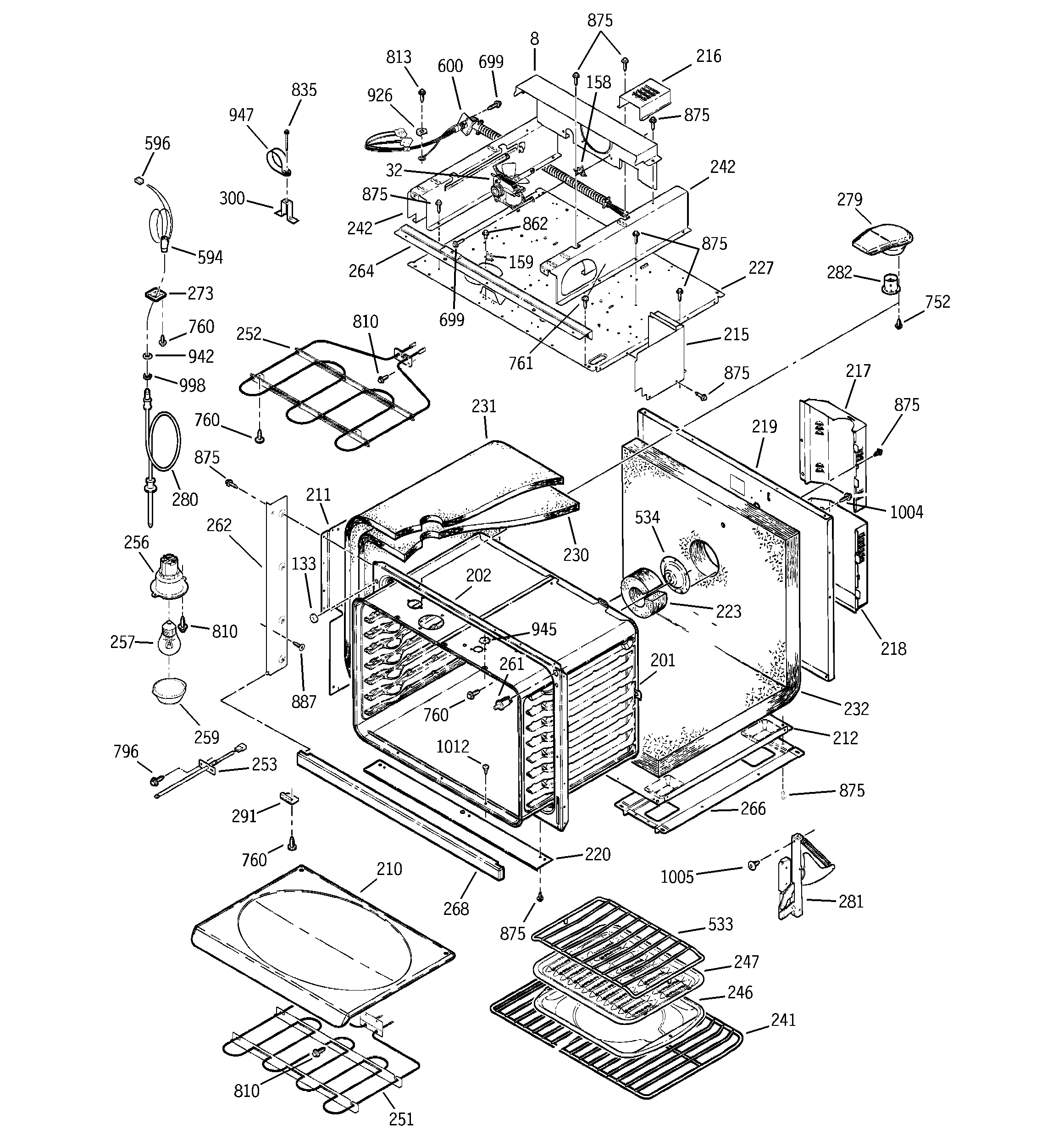

Oven body with microwave support diagram

Range bake element (replaces wb44t10055)

Part #WB44T10021

BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#158

Oven body with microwave support diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Conversion Element WB44T10020
#298

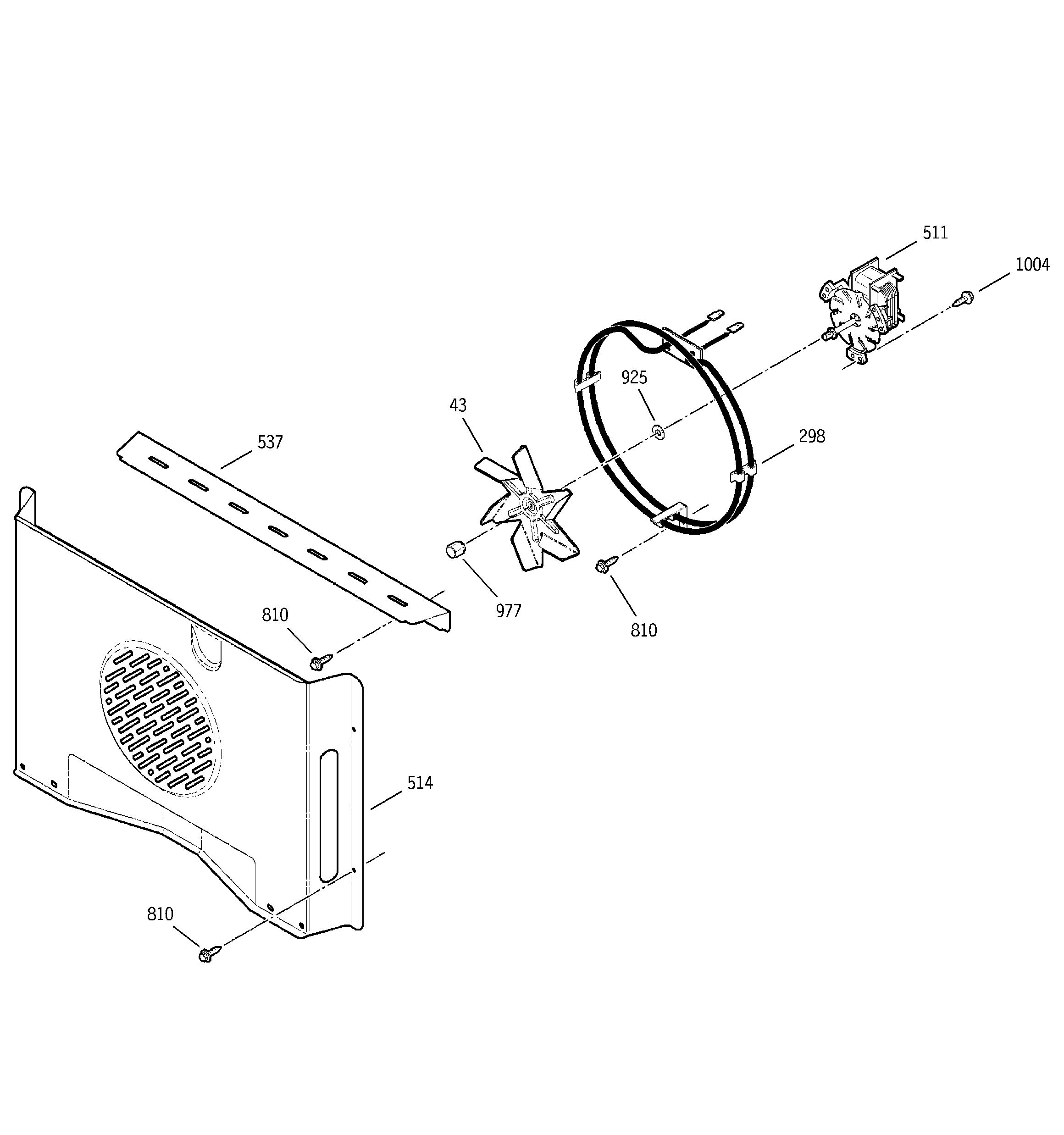

Convection fan diagram

Conversion element

Part #WB44T10020

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44T10020. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Screw WB01X1293
#856

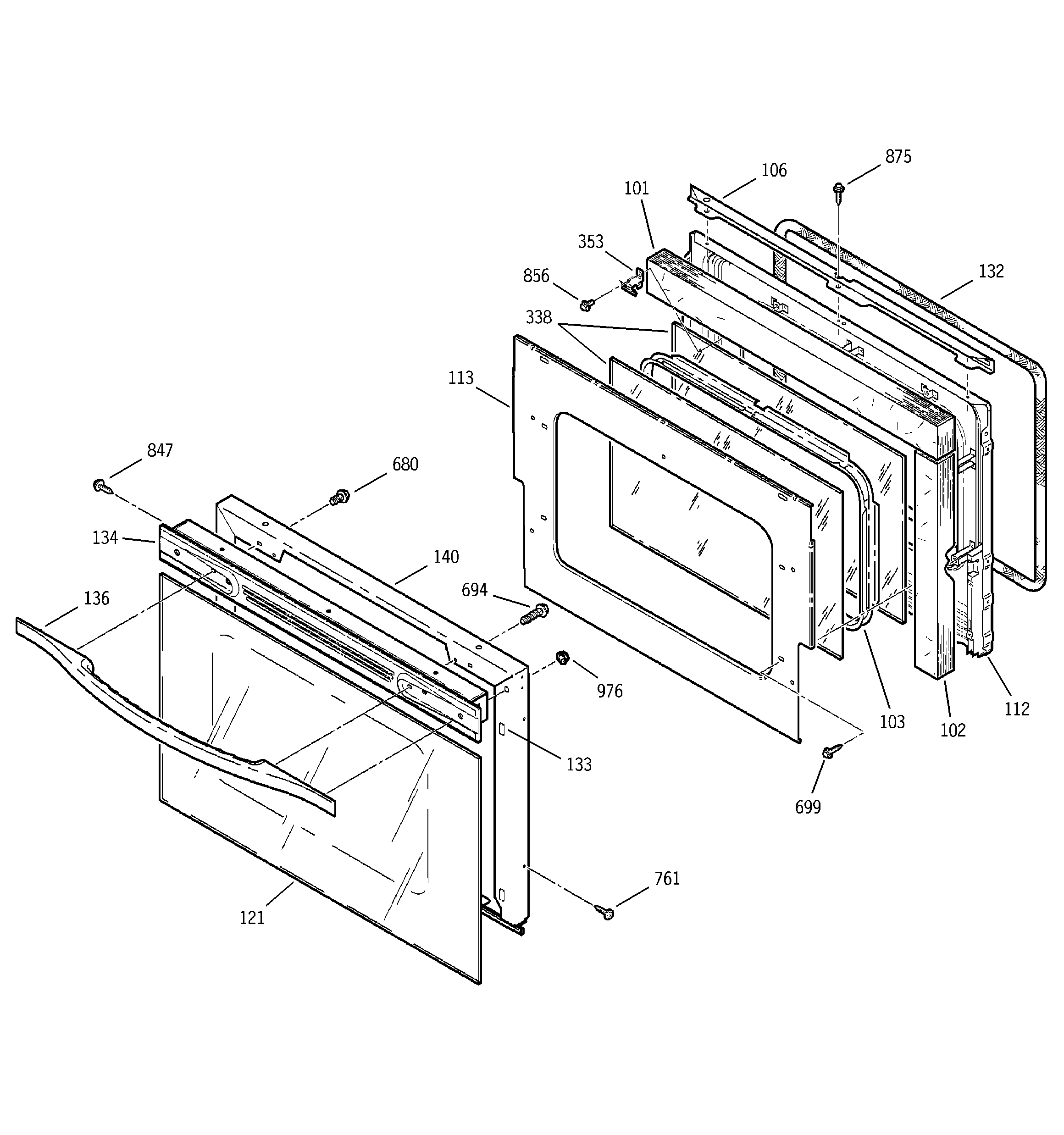

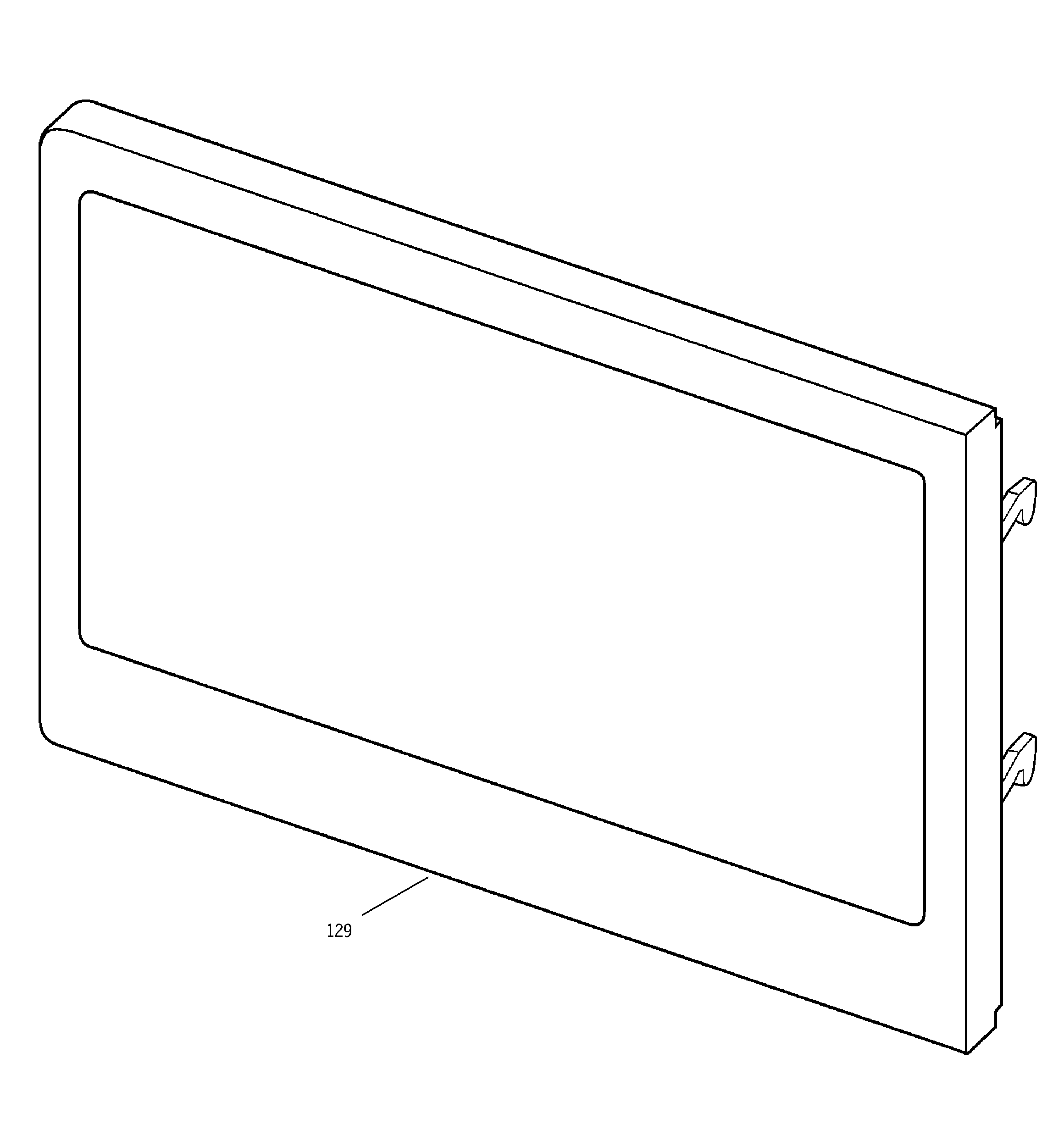

Door diagram

Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
