Model # BX20R-P1161506W Official Amana bottom-mount free-o-frost refrigerator/freezer

Here are the diagrams and repair parts for Official Amana BX20R-P1161506W bottom-mount free-o-frost refrigerator/freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

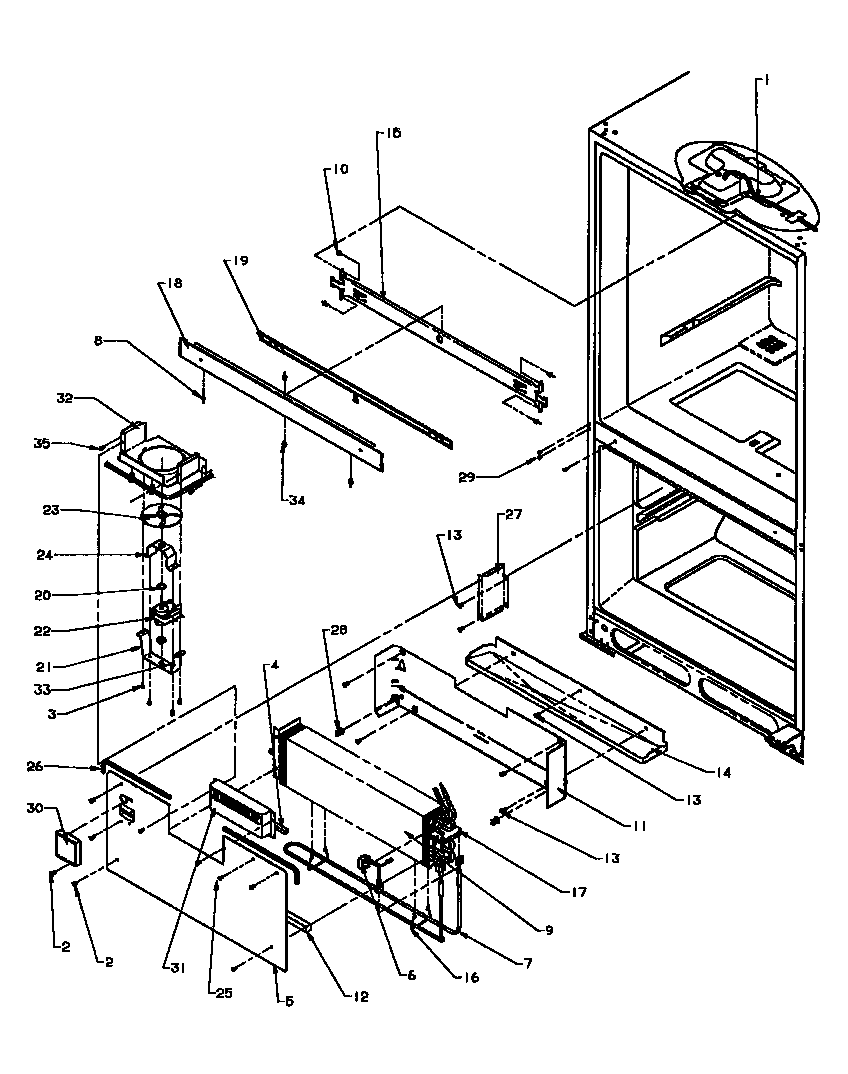

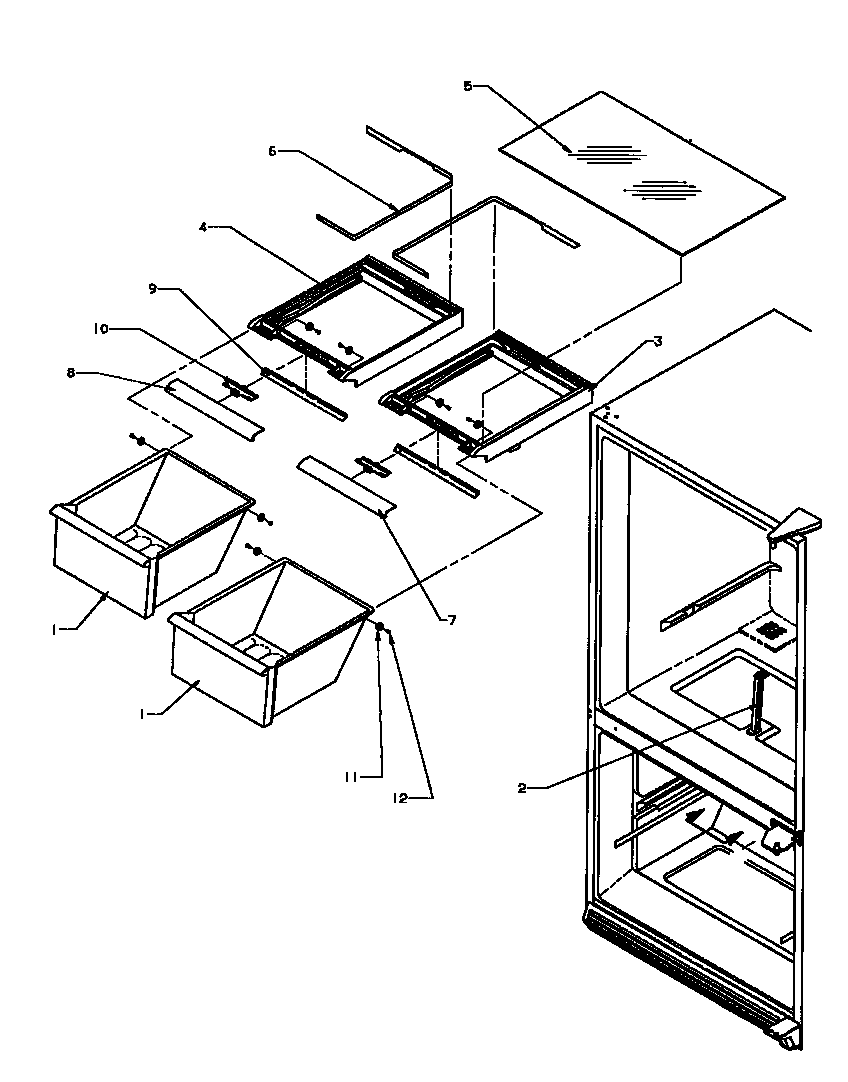

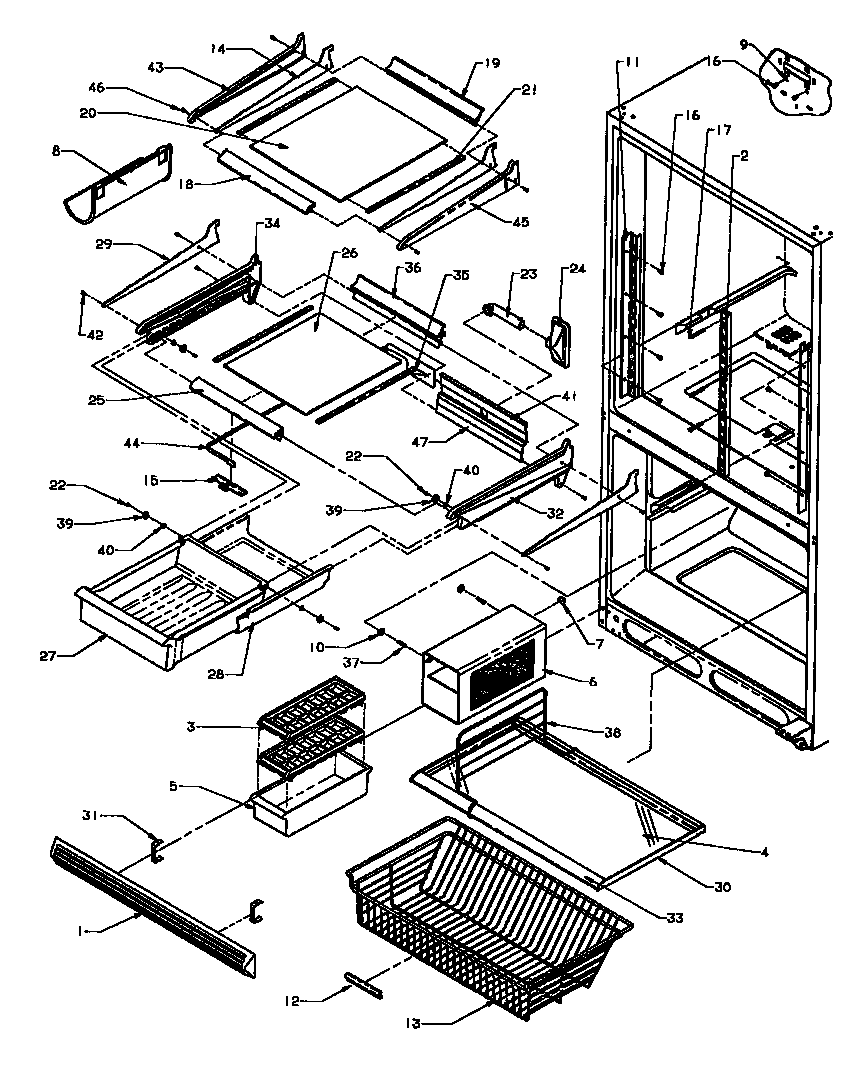

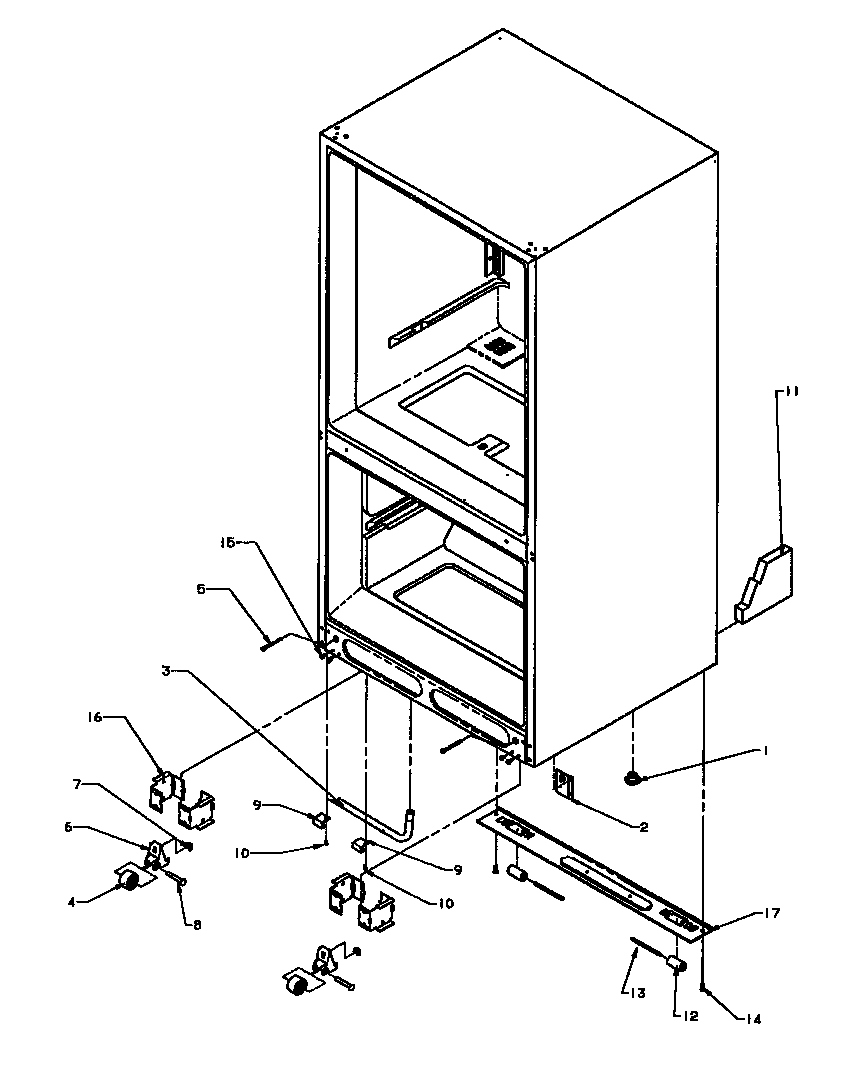

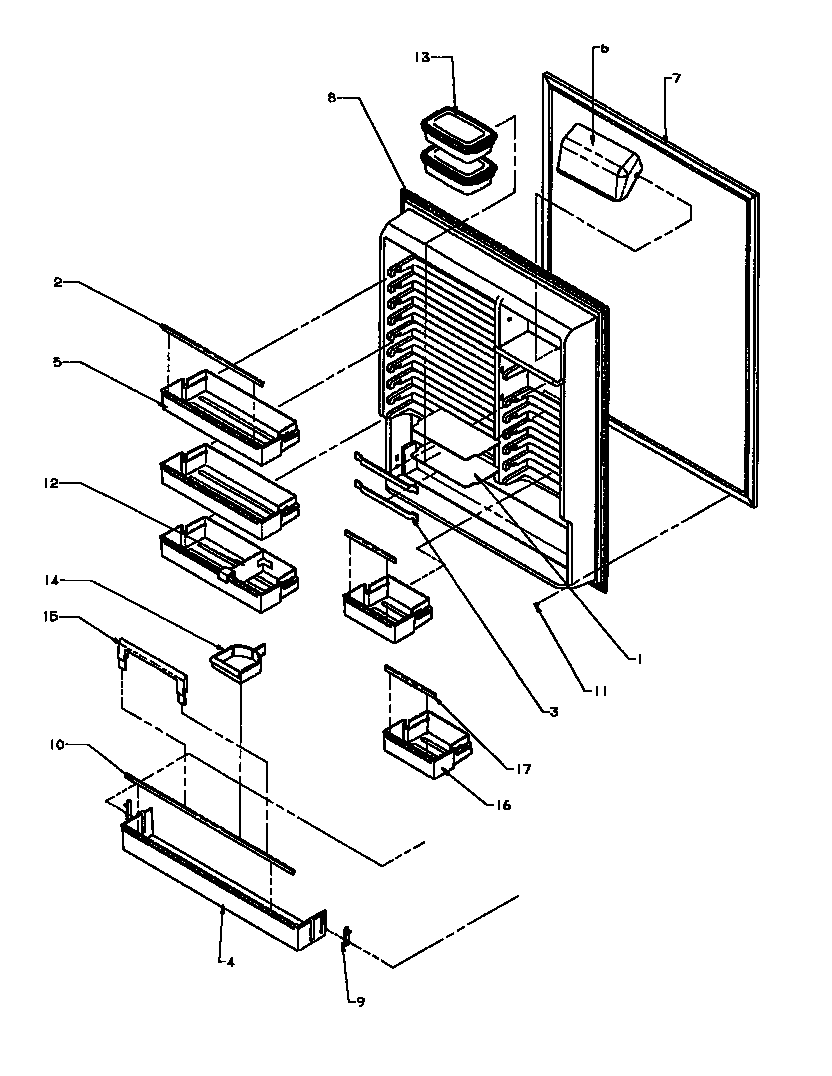

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 388 parts  |
Mold & Heatr R0156669
#3

8 cube compact ice maker diagram

Mold & heatr

Part #R0156669

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces R0156669. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Motor Module R0167203
#7

8 cube compact ice maker diagram

Motor module

Part #R0167203

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces R0167203. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Ice Maker (red) D7824702
#2

Add-on ice maker assembly diagram

Refrigerator ice maker (red)

Part #D7824702

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824702. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Ice Maker R0161060
#5

8 cube compact ice maker diagram

Refrigerator ice maker

Part #R0161060

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

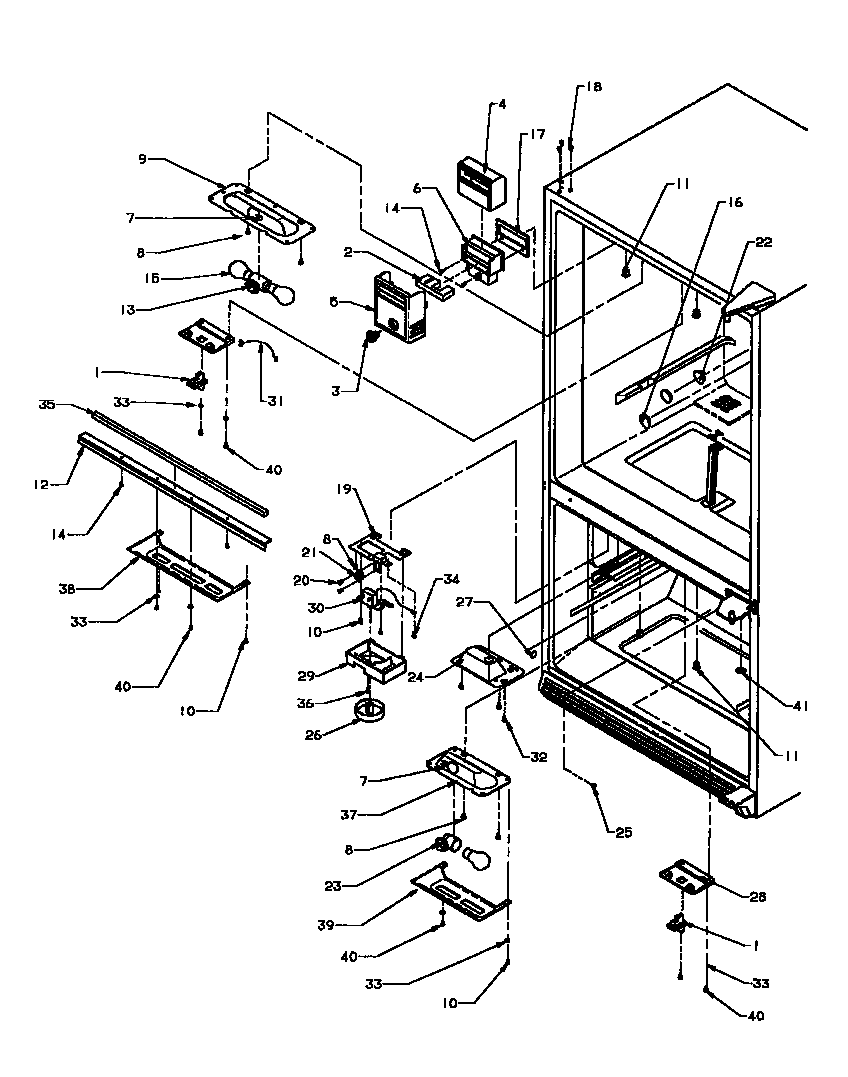

Refrigerator/freezer controls & light switches diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch C3680307
#1

Refrigerator/freezer controls & light switches diagram

Refrigerator light switch

Part #C3680307

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Drier B2150503
#13

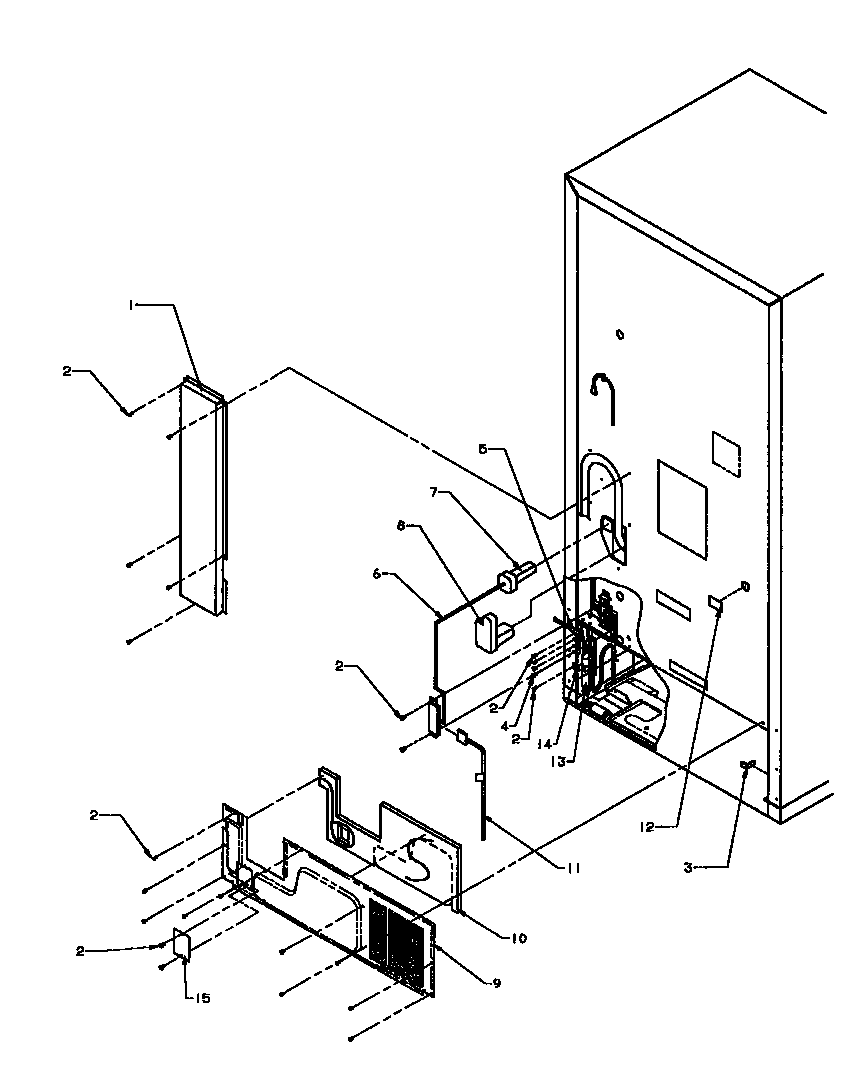

Cabinet back diagram

Refrigerator drier

Part #B2150503

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150503. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Condenser Motor 10448603
#12

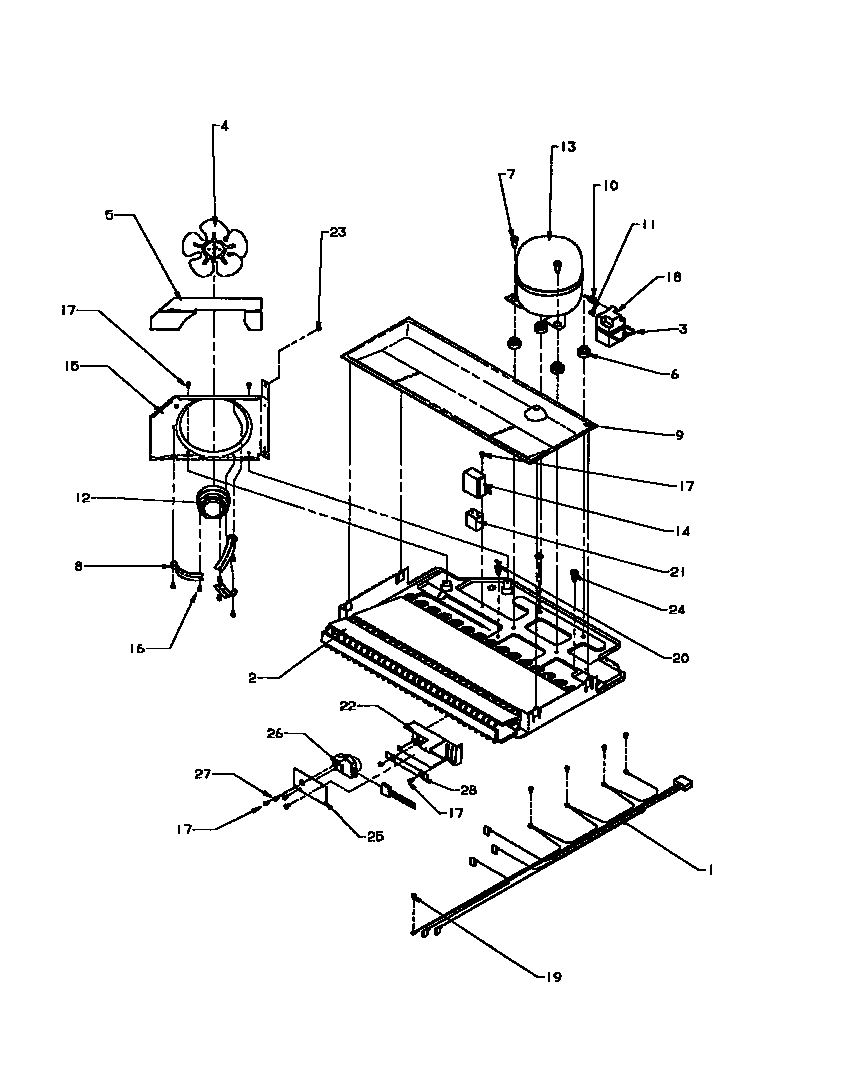

Compressor compartment diagram

Refrigerator condenser motor

Part #10448603

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Gasket 10456810
#4

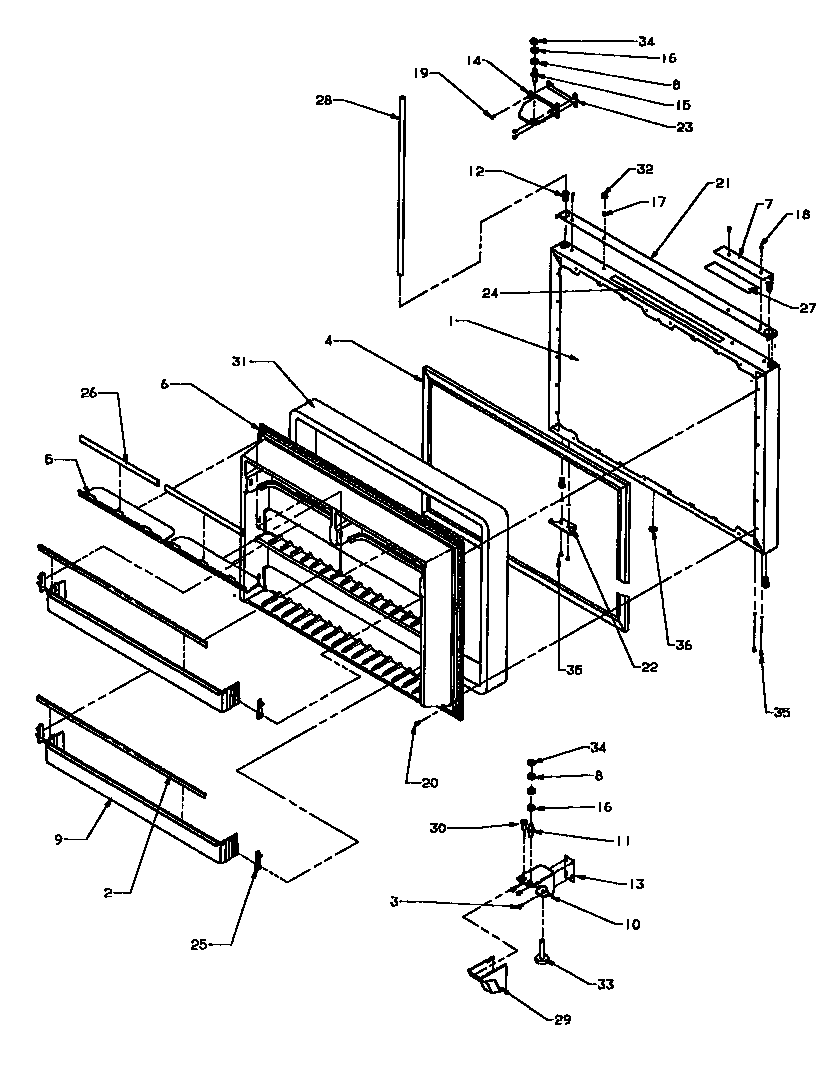

Freezer door diagram

Refrigerator gasket

Part #10456810

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw M0222429
#18

Freezer door diagram

Refrigerator screw

Part #M0222429

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0222429. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
