Model # JGCP548WP00 Official Jenn-Air 48" professional cooktop & griddle (stainless)

Here are the diagrams and repair parts for Official Jenn-Air JGCP548WP00 48" professional cooktop & griddle (stainless), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Wall Oven Temperature Sensor W10131825
#10

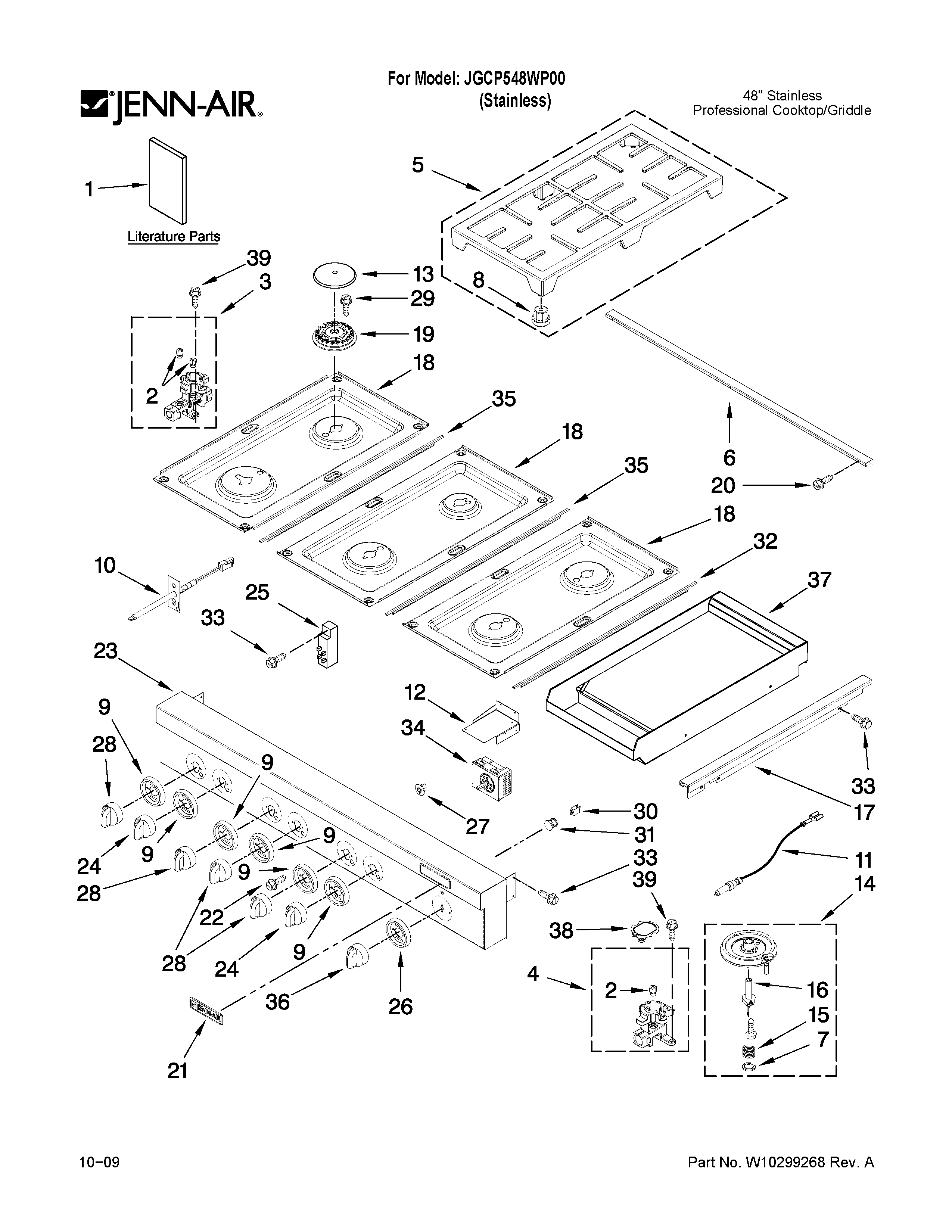

Cooktop, burner and grate parts diagram

Wall oven temperature sensor

Part #W10131825

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces W10131825. Substitute parts can look different from the original.
BEST SELLER
$63.52 |
9% OFF Phone Price : $69.52
In Stock
Burner Grate W10145532
#5

Cooktop, burner and grate parts diagram

Burner grate

Part #W10145532

Replaced by #W11344501

?
Manufacturer substitution
This part replaces W10145532. Substitute parts can look different from the original.
$86.57 |
6% OFF Phone Price : $92.57
In Stock
Screw 7101P338-60
#20

Cooktop, burner and grate parts diagram

Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Burner Valve W10284547
#12

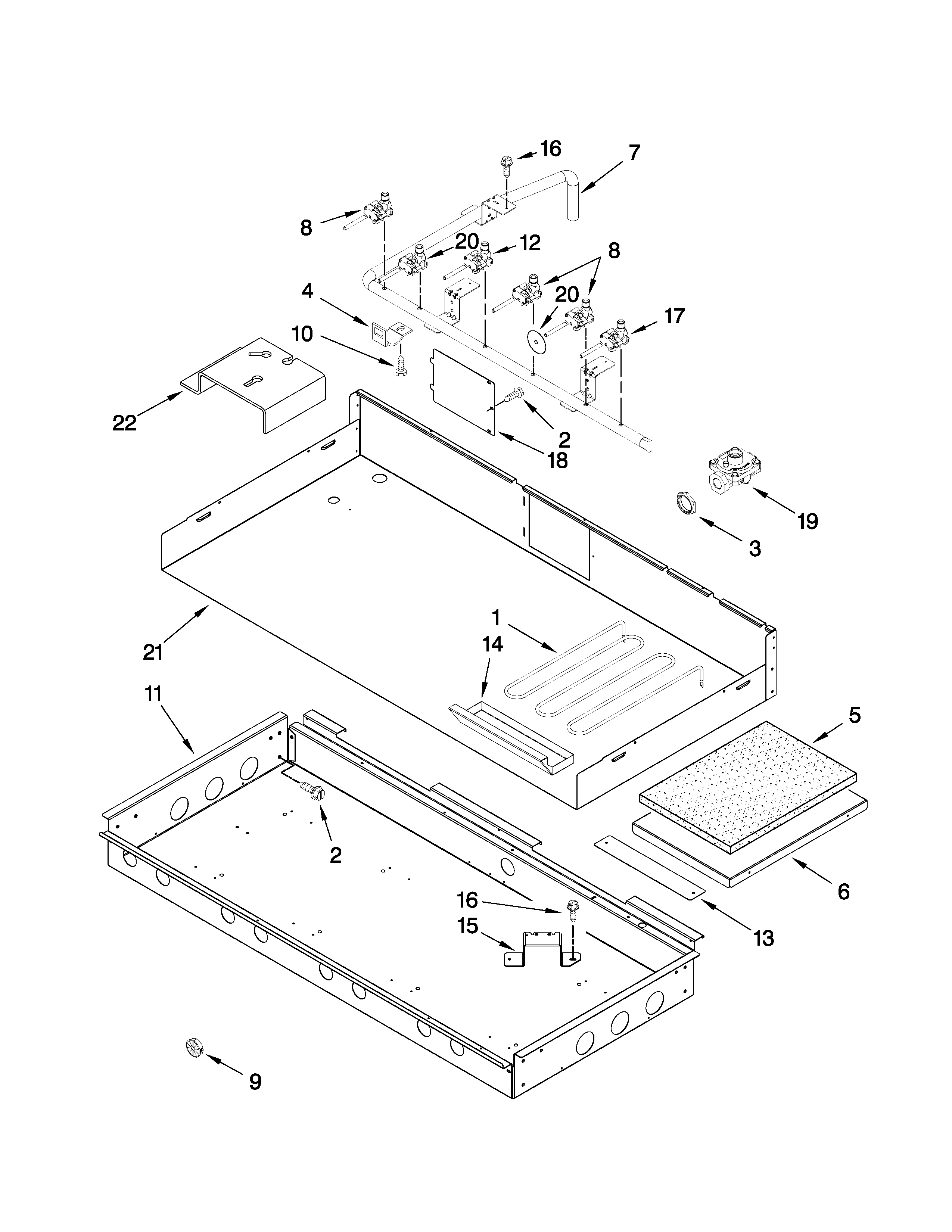

Burner box, gas valves, and switches diagram

Burner valve

Part #W10284547

Replaced by #WPW10385583

?
Manufacturer substitution
This part replaces W10284547. Substitute parts can look different from the original.
$156.24 |
7% OFF Phone Price : $168.24
In Stock
Grate Pad 8286695
#8

Cooktop, burner and grate parts diagram

Grate pad

Part #8286695

Replaced by #W10185266

?
Manufacturer substitution
This part replaces 8286695. Substitute parts can look different from the original.
This item is not returnable
$8.63 |
10% OFF Phone Price : $9.63
In Stock
Module 7431P039-60
#25

Cooktop, burner and grate parts diagram

Module

Part #7431P039-60

Replaced by #WP71002749

?
Manufacturer substitution
This part replaces 7431P039-60. Substitute parts can look different from the original.
$176.69 |
6% OFF Phone Price : $188.69
In Stock
Surface Igniter W10250406
#16

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10250406

Replaced by #WPW10250406

?
Manufacturer substitution
This part replaces W10250406. Substitute parts can look different from the original.
$26.20 |
19% OFF Phone Price : $32.20
In Stock
Range Griddle Control Switch W10116113
#34

Cooktop, burner and grate parts diagram

Range griddle control switch

Part #W10116113

Replaced by #WPW10116113

?
Manufacturer substitution
This part replaces W10116113. Substitute parts can look different from the original.
$207.09
In Stock
Burner W10250405
#14

Cooktop, burner and grate parts diagram

Burner

Part #W10250405

Replaced by #WPW10320937

?
Manufacturer substitution
This part replaces W10250405. Substitute parts can look different from the original.
$72.49 |
8% OFF Phone Price : $78.49
In Stock
Screw- Sho 7101P500-60
#22

Cooktop, burner and grate parts diagram

Screw- sho

Part #7101P500-60

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 7101P500-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
