Model # ZEM200GV01 Official GE microwave

Here are the diagrams and repair parts for Official GE ZEM200GV01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Monitor Switch WB24X0796
#1445

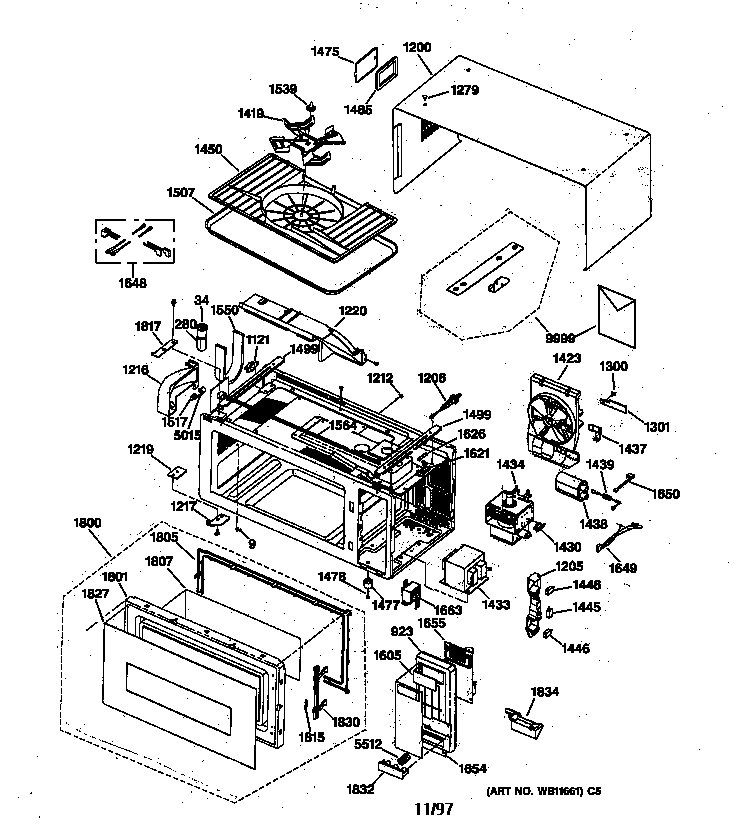

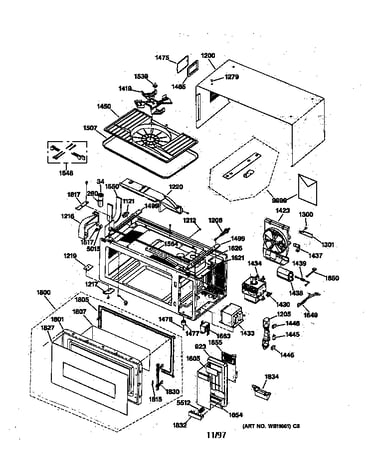

Microwave parts diagram

Monitor switch

Part #WB24X0796

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0796. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Primary Switch WB24X0439
#1446

Microwave parts diagram

Primary switch

Part #WB24X0439

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0439. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
High-voltage Diode WB27X0944
#1439

Microwave parts diagram

High-voltage diode

Part #WB27X0944

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X0944. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Magnetron WB27X0764
#1434

Microwave parts diagram

Magnetron

Part #WB27X0764

The manufacturer no longer makes this part, and there's no substitute part

Hldr Sensor WB06X0193
#5015

Microwave parts diagram

Hldr sensor

Part #WB06X0193

Replaced by #WB6X549

?
Manufacturer substitution
This part replaces WB06X0193. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Gas Sensor WB06X0248
#1517

Microwave parts diagram

Gas sensor

Part #WB06X0248

Replaced by #WB27X1170

?
Manufacturer substitution
This part replaces WB06X0248. Substitute parts can look different from the original.
$98.78 |
11% OFF Phone Price : $110.78
In Stock
Fuse WB27X0696
#1626

Microwave parts diagram

Fuse

Part #WB27X0696

Replaced by #WB27X7

?
Manufacturer substitution
This part replaces WB27X0696. Substitute parts can look different from the original.
$7.83 |
11% OFF Phone Price : $8.83
In Stock
Use And Care Guide 49-8478
#9999C

Microwave parts diagram

Use and care guide

Part #49-8478

$17.99
In Stock
Door Film WB06X0249
#1807

Microwave parts diagram

Door film

Part #WB06X0249

The manufacturer no longer makes this part, and there's no substitute part

Hi Volt Tran WB27X0921
#1433

Microwave parts diagram

Hi volt tran

Part #WB27X0921

The manufacturer no longer makes this part, and there's no substitute part
