Model # 545451661 Official Sears 20" bmx bicycle

Here are the diagrams and repair parts for Official Sears 545451661 20" bmx bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 48 parts |

#41

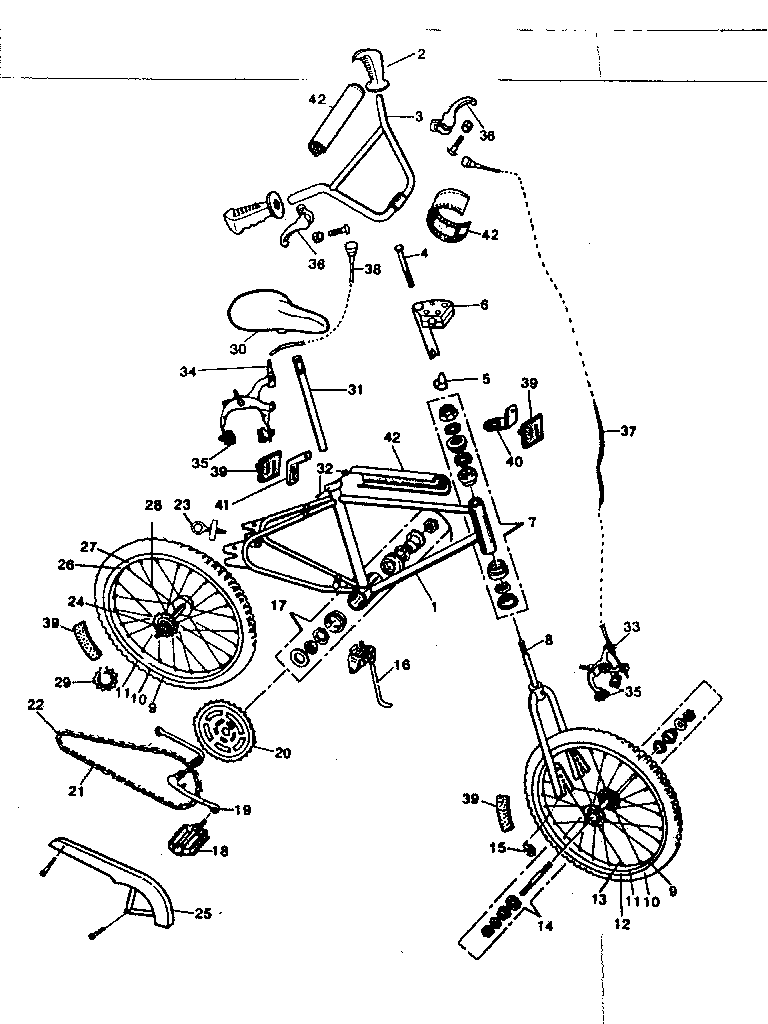

Unit parts diagram

Western auto rr refl brkt

Part #082010

The manufacturer no longer makes this part, and there's no substitute part

#21

Unit parts diagram

Kent chain w/link

Part #072007

The manufacturer no longer makes this part, and there's no substitute part

#24

Unit parts diagram

Pr sprocket

Part #106002

The manufacturer no longer makes this part, and there's no substitute part

#20

Unit parts diagram

Lifestyler ft sprkt 44t

Part #068002

The manufacturer no longer makes this part, and there's no substitute part

#35

Unit parts diagram

Ming ta bicycle brake shoe set

Part #104002

The manufacturer no longer makes this part, and there's no substitute part

#16

Unit parts diagram

Kickstand

Part #076007

The manufacturer no longer makes this part, and there's no substitute part

#14

Unit parts diagram

Axle brg set

Part #053004

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Owner's manual

Part #102046

The manufacturer no longer makes this part, and there's no substitute part

#18

Unit parts diagram

Pedal

Part #070003

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Fork assy

Part #005020

The manufacturer no longer makes this part, and there's no substitute part
