Model # VLD4209L20BB Official GE dishwasher

Name: Official GE VLD4209L20BB dishwasher Parts
Brand: GE
SKU: VLD4209L20BB
Availability: InStock

Here are the diagrams and repair parts for Official GE VLD4209L20BB dishwasher, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts forVLD4209L20BB Dishwasher

#801
Escutcheon & door asssembly diagram
Recess sprng
Part #WR02X10585
Replaced by #WR02X10585
?
Manufacturer substitution
This part replaces WR02X10585. Substitute parts can look different from the original.
$8.97 |
10% OFF Phone Price : $9.97
In Stock
Qty
#744

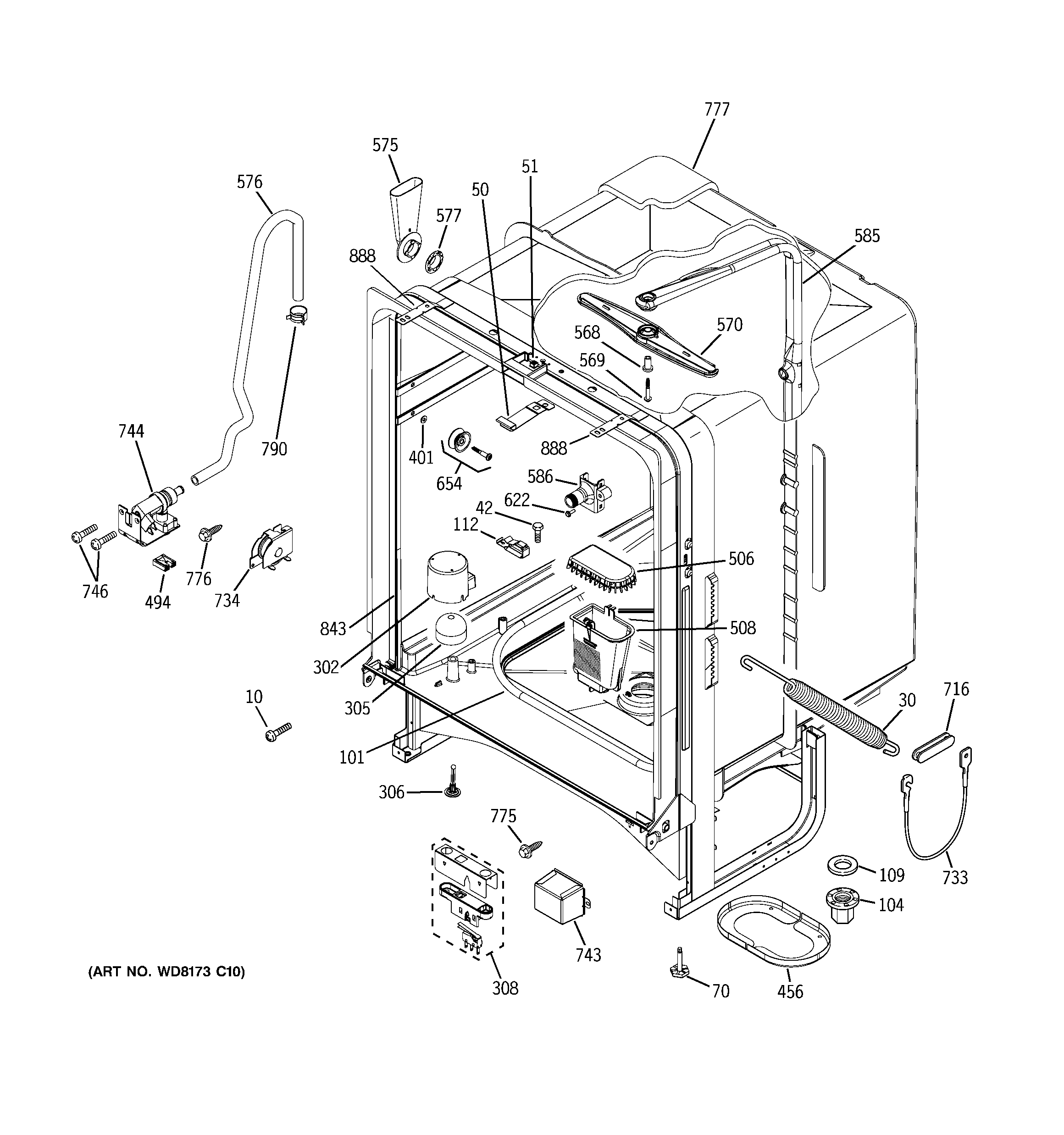

Body parts diagram
Dishwasher water inlet valve
Part #WD15X10003
3.9 (9)
$46.65 |
11% OFF Phone Price : $52.65
In Stock
Qty
#843
Body parts diagram
Dishwasher tub gasket
Part #WD08X10018
4.5 (2)
$50.76 |
11% OFF Phone Price : $56.76
In Stock
Qty
#905
Escutcheon & door asssembly diagram
Dishwasher user interface
Part #WD21X10247
$94.92 |
6% OFF Phone Price : $100.92
In Stock
Qty
#803
Escutcheon & door asssembly diagram
Dishwasher door switch
Part #WD21X10224
5 (1)
$21.85 |
22% OFF Phone Price : $27.85
In Stock
Qty
#716
Body parts diagram
Dishwasher door hinge arm link
Part #WD14X10009
4.8 (6)
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Qty
#462

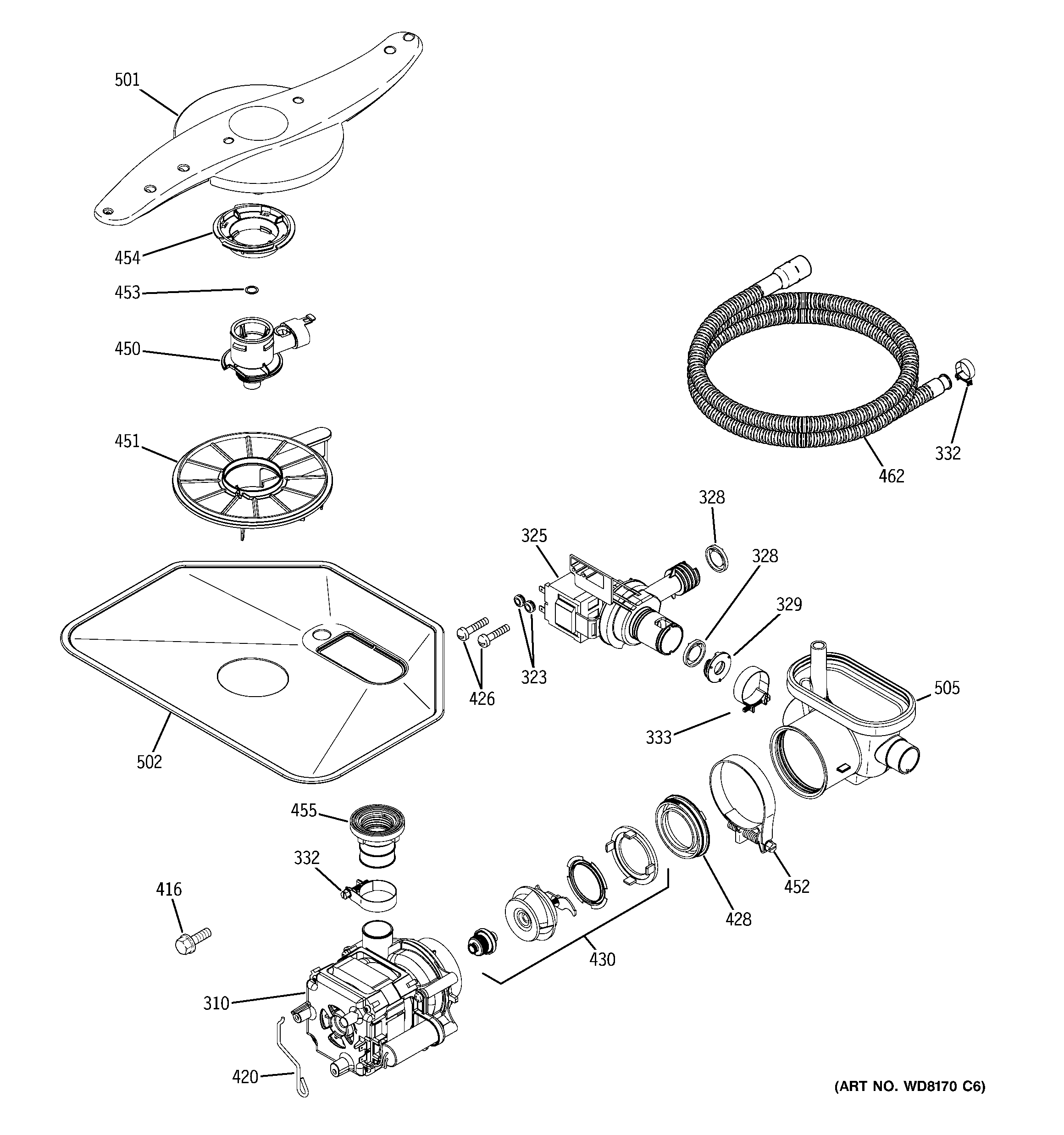

Motor-pump mechanism diagram
Drain tube
Part #WD24X10035
Replaced by #WD24X10045
?
Manufacturer substitution
This part replaces WD24X10035. Substitute parts can look different from the original.
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Qty
#705

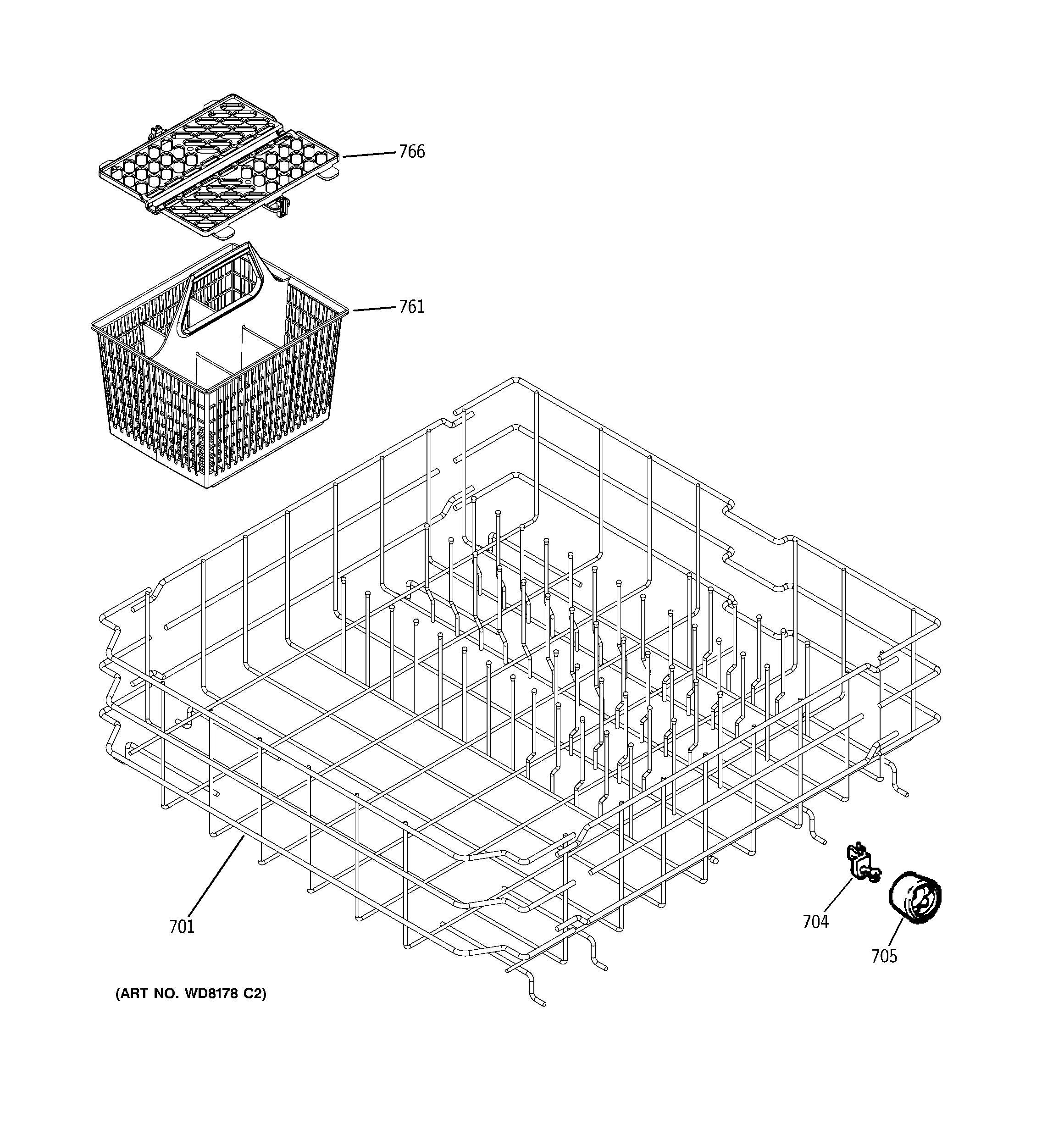

Lower rack assembly diagram
Dishwasher dishrack roller and stud
Part #WD12X10074
Replaced by #WD35X21038
?
Manufacturer substitution
This part replaces WD12X10074. Substitute parts can look different from the original.
4.4 (5)
$32.85 |
15% OFF Phone Price : $38.85
In Stock
Qty
#455
Motor-pump mechanism diagram
Dishwasher circulation pump adapter
Part #WD18X10010
5 (1)
$35.94 |
14% OFF Phone Price : $41.94
In Stock
Qty
Dishwasher screw
Part #WD02X10067
This item is not returnable
$7.40 |
12% OFF Phone Price : $8.40
In Stock
Qty
