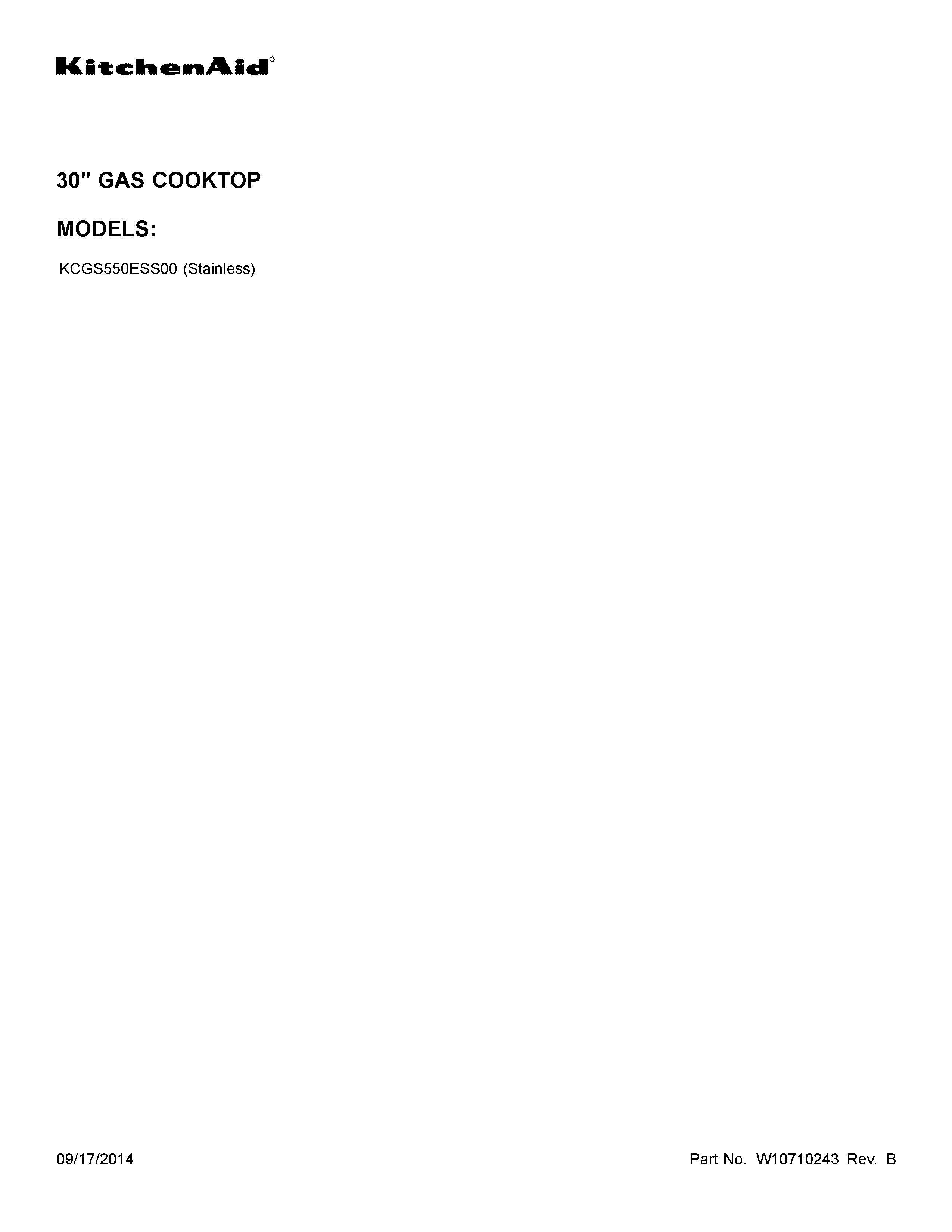

Model # KCGS550ESS00 Official KitchenAid gas cooktop
Here are the diagrams and repair parts for Official KitchenAid KCGS550ESS00 gas cooktop, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forKCGS550ESS00 Cooktops
- #7

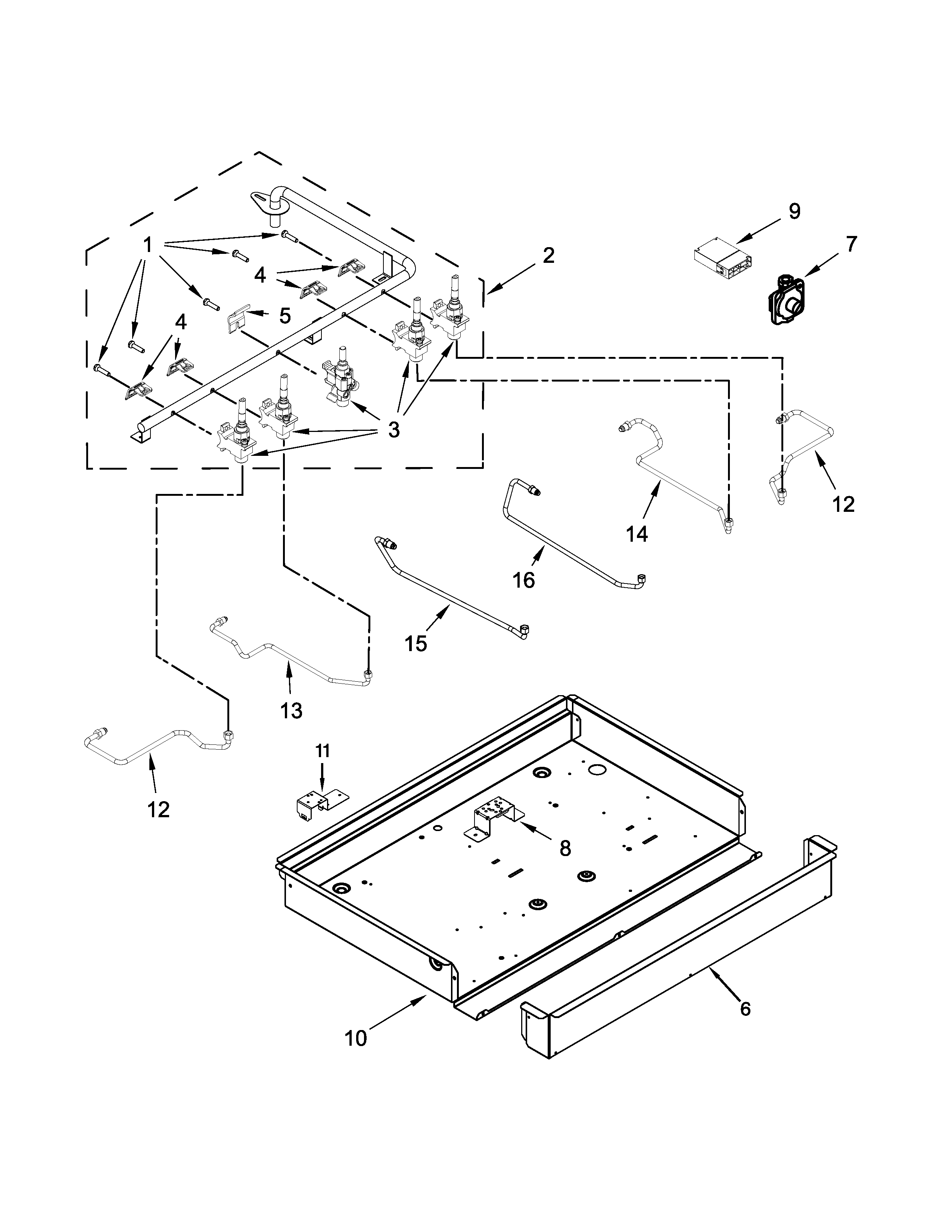

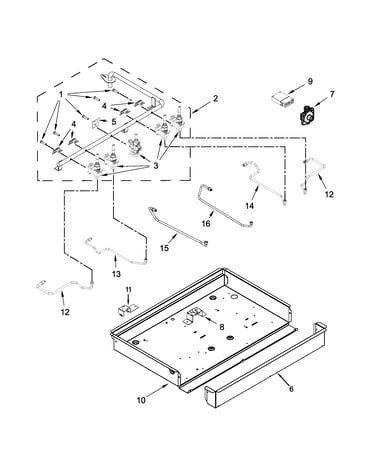

Burner box, gas valves and switch parts diagram
Cooktop gas pressure regulatorPart #W10132345
Replaced by #W11087445
?Manufacturer substitutionThis part replaces W10132345. Substitute parts can look different from the original.$118.39 |9% OFF Phone Price : $130.39In Stock - #12A

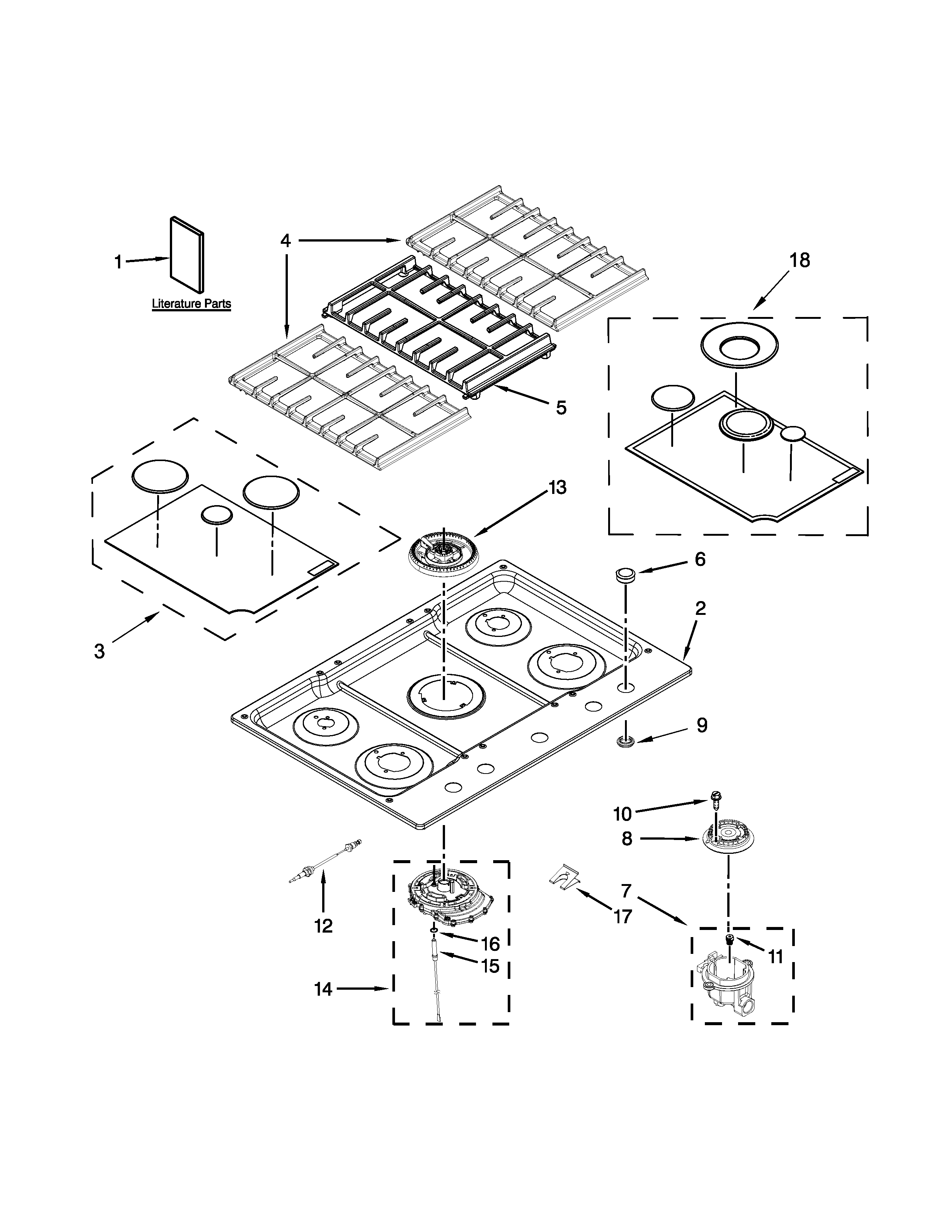

Cooktop, burner and grate parts diagram
ElectrodePart #W10541843
Replaced by #W11507532
?Manufacturer substitutionThis part replaces W10541843. Substitute parts can look different from the original.$58.25In Stock - #6
Cooktop, burner and grate parts diagram
Cooktop burner control knobPart #W10545849
Replaced by #WPW10545849
?Manufacturer substitutionThis part replaces W10545849. Substitute parts can look different from the original.$61.18 |9% OFF Phone Price : $67.18In Stock - #2
Burner box, gas valves and switch parts diagram
Manifold assemblyPart #W10682072
$268.67In Stock - #1
Burner box, gas valves and switch parts diagram
Cooktop screw, #4-7 x 19-mmPart #8287057
$26.07In Stock - #7A
Cooktop, burner and grate parts diagram
Holder orificePart #W10674918
$34.80In Stock - #5
Cooktop, burner and grate parts diagram
Cooktop burner gratePart #W10583862
$176.97 |6% OFF Phone Price : $188.97In Stock - #NI
Burner box, gas valves and switch parts diagram
Switch harnessPart #W10577586
Replaced by #W10868536
?Manufacturer substitutionThis part replaces W10577586. Substitute parts can look different from the original.$138.70In Stock - #3
Burner box, gas valves and switch parts diagram
ValvePart #W10717630
Replaced by #W11209791
?Manufacturer substitutionThis part replaces W10717630. Substitute parts can look different from the original.$112.72 |10% OFF Phone Price : $124.72In Stock - #18
Cooktop, burner and grate parts diagram
Cooktop burner capPart #W10635600
Replaced by #W10811958
?Manufacturer substitutionThis part replaces W10635600. Substitute parts can look different from the original.$109.54 |10% OFF Phone Price : $121.54In Stock
