Gas Range

Model # IGS426AS1 Official Ikea gas range

Here are the diagrams and repair parts for Official Ikea IGS426AS1 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

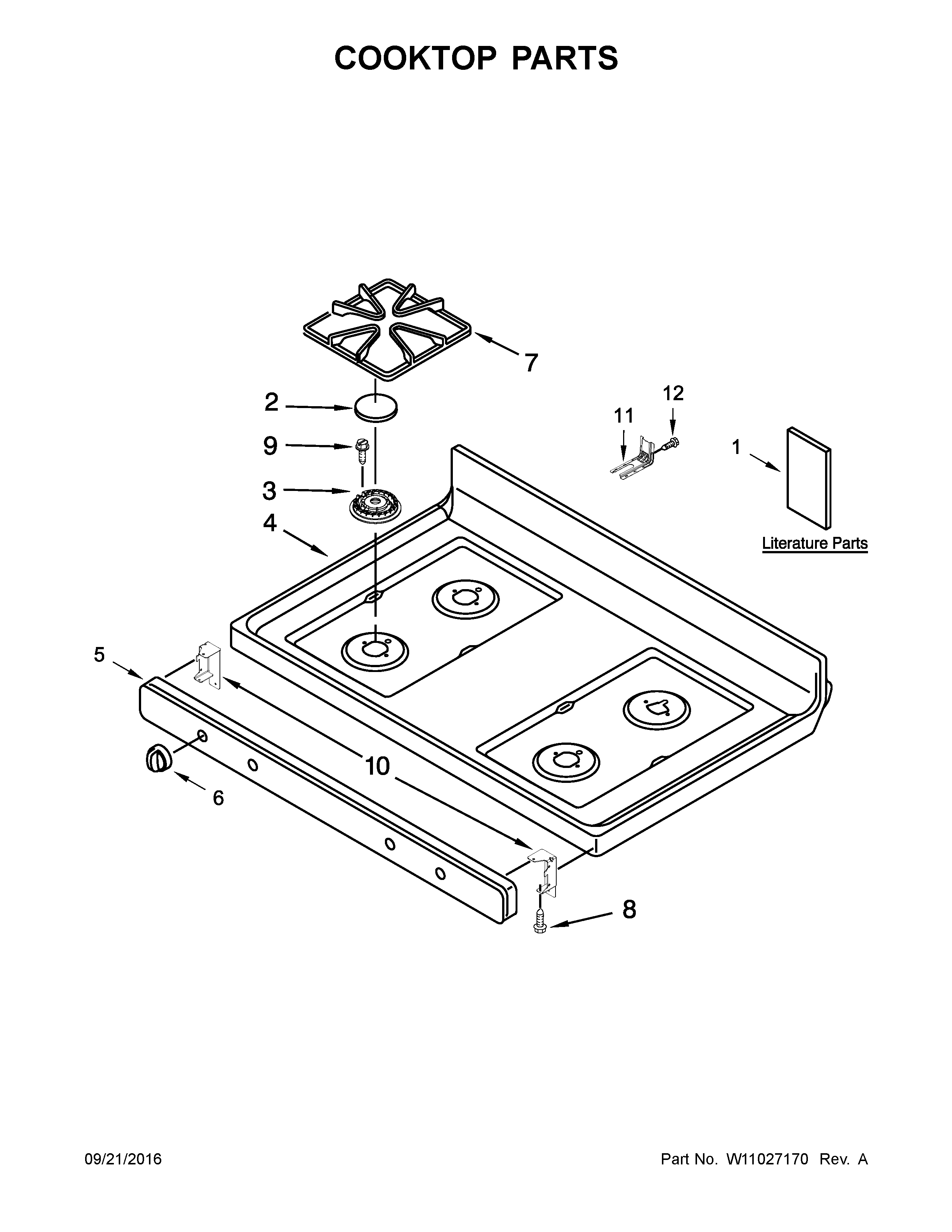

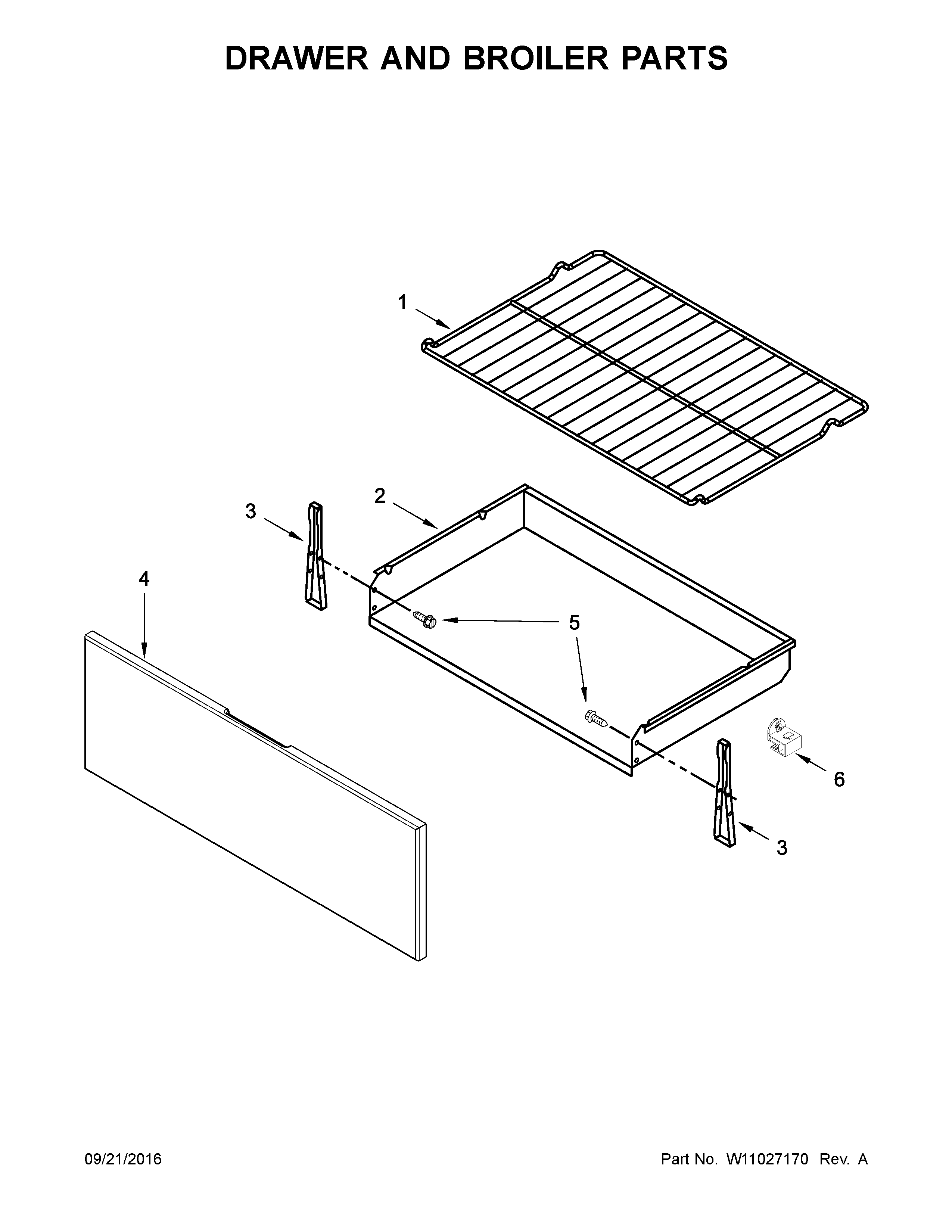

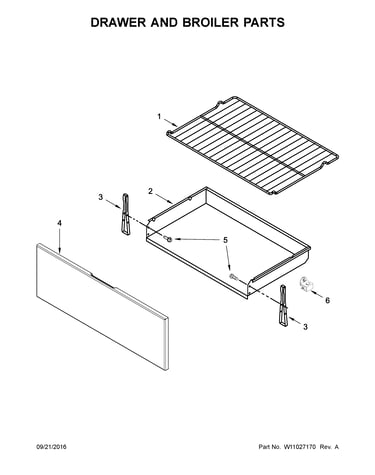

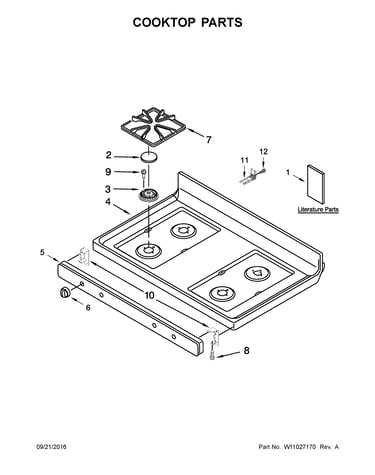

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Light Bulb 311255
#26

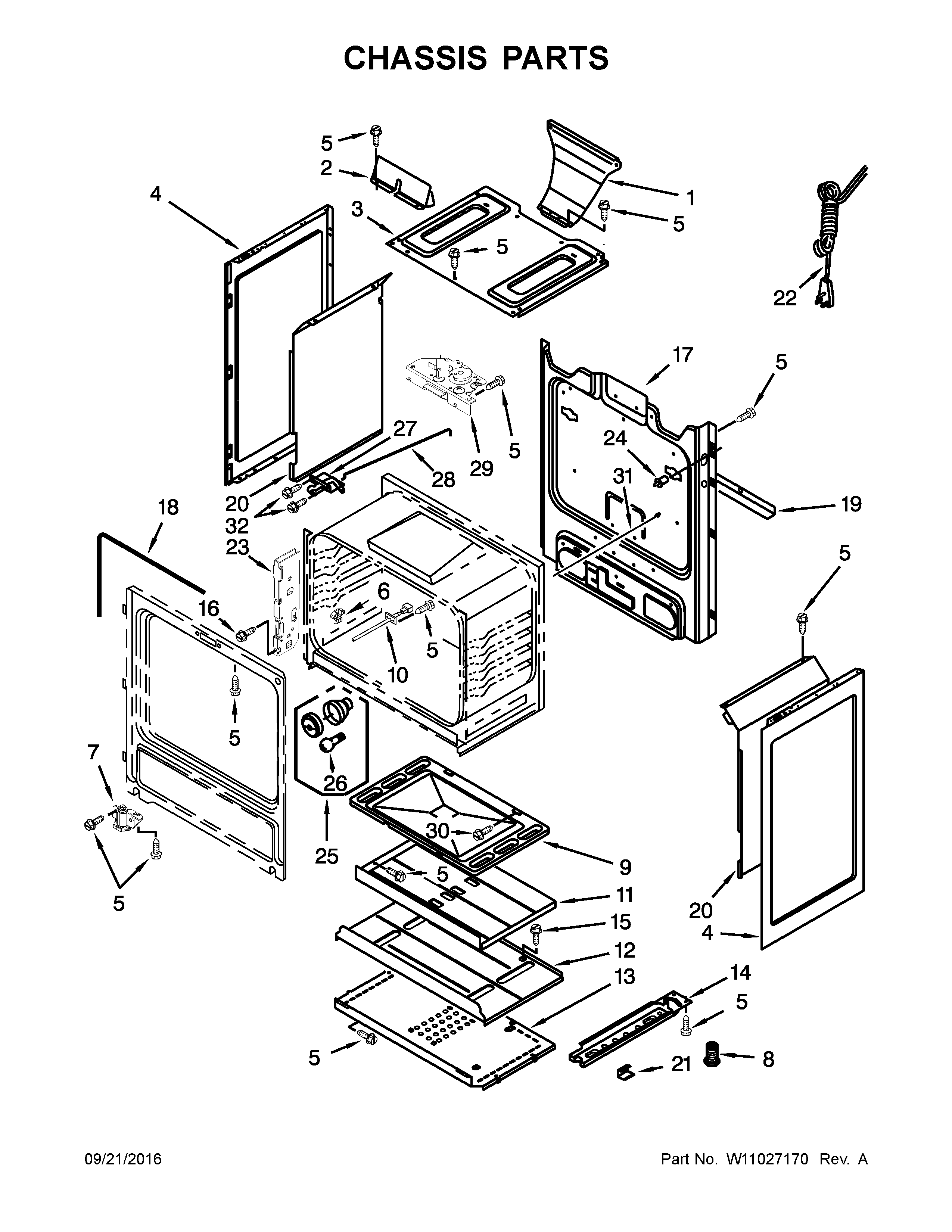

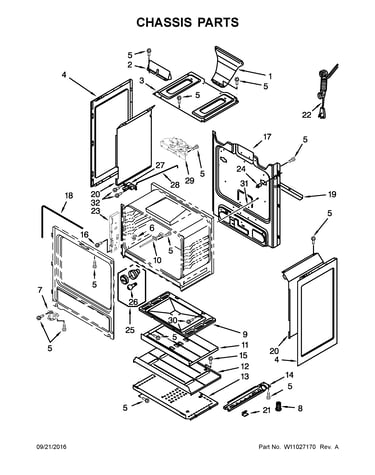

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Oven Sensor W10586204
#10

Chassis parts diagram

Oven sensor

Part #W10586204

Replaced by #W10833885

?
Manufacturer substitution
This part replaces W10586204. Substitute parts can look different from the original.
BEST SELLER
$87.79 |
6% OFF Phone Price : $93.79
In Stock
Range Oven Igniter 9758079
#16A

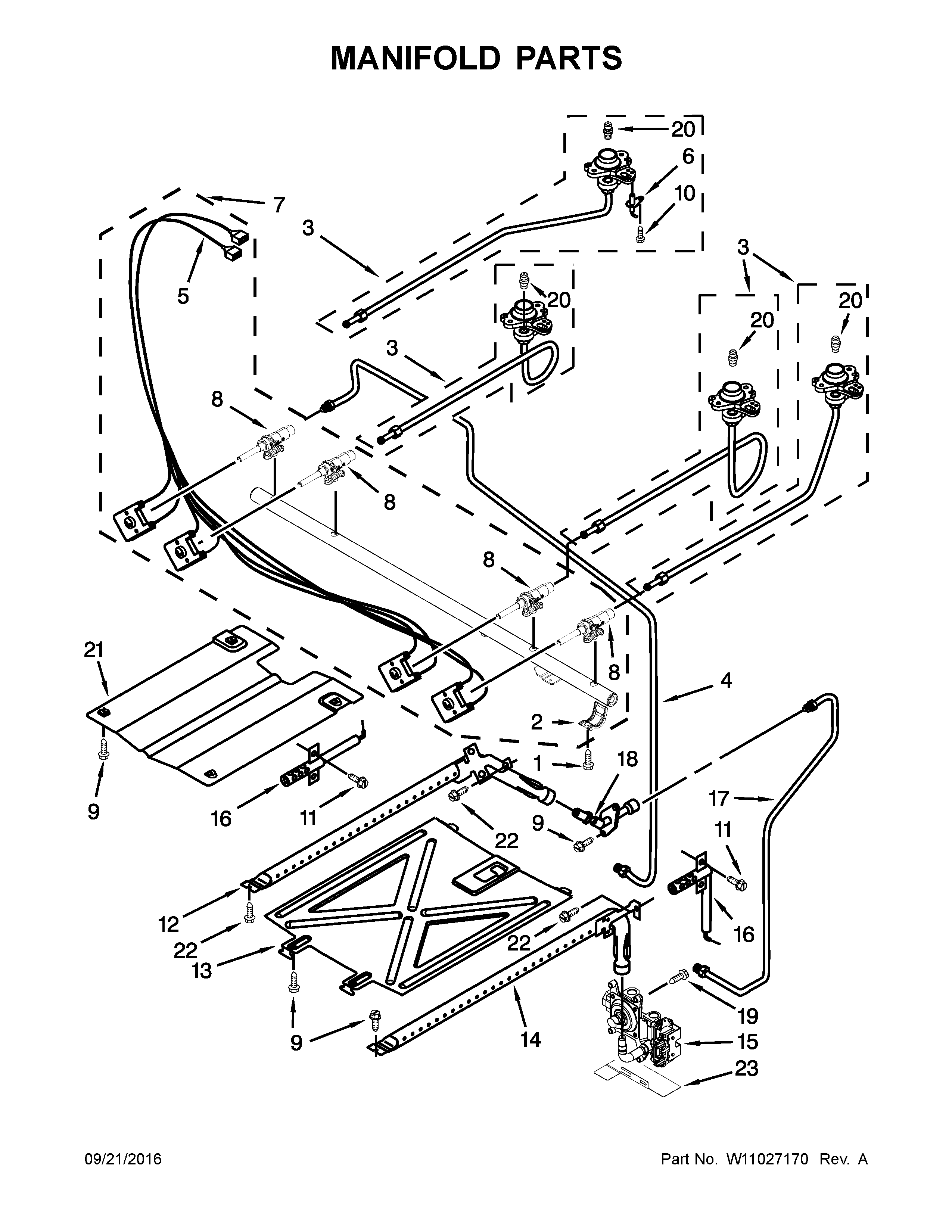

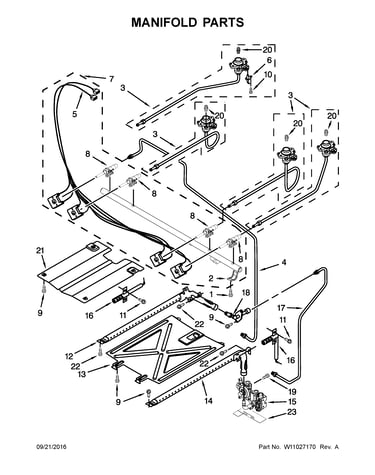

Manifold parts diagram

Range oven igniter

Part #9758079

Replaced by #WP9758079

?
Manufacturer substitution
This part replaces 9758079. Substitute parts can look different from the original.
BEST SELLER
$38.17 |
14% OFF Phone Price : $44.17
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range Screw 8273062
#10

Manifold parts diagram

Range screw

Part #8273062

Replaced by #WP8273062

?
Manufacturer substitution
This part replaces 8273062. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Door Trim W10746436
#12

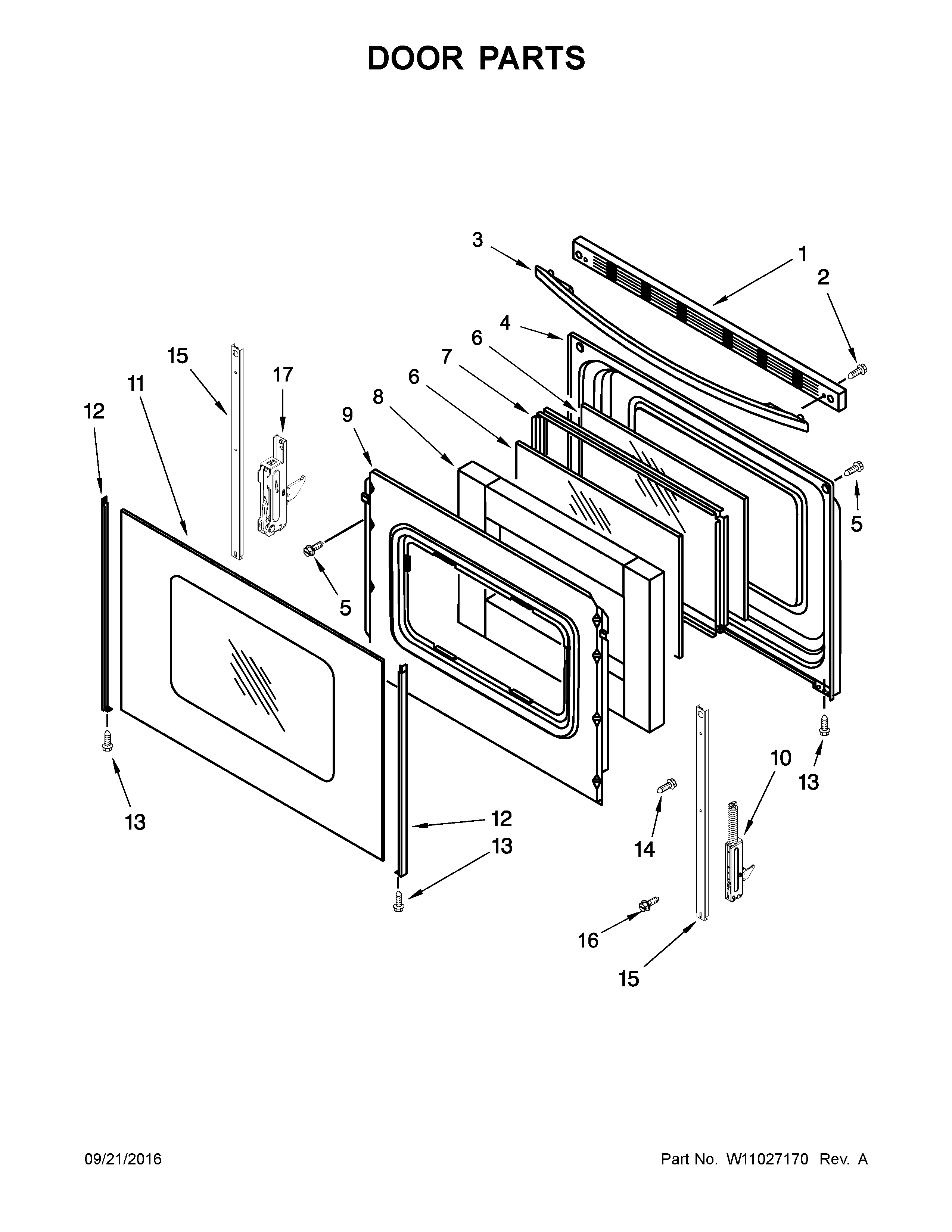

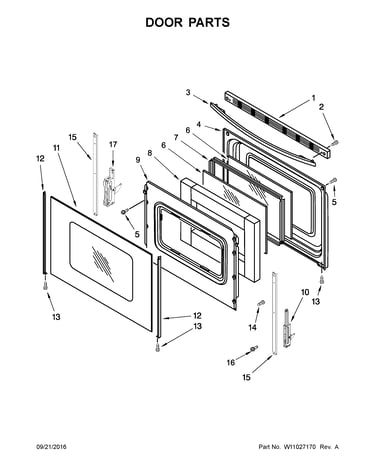

Door parts diagram

Door trim

Part #W10746436

Replaced by #W10761018

?
Manufacturer substitution
This part replaces W10746436. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Oven Door Trim W10746435
#12A

Door parts diagram

Oven door trim

Part #W10746435

Replaced by #W10761014

?
Manufacturer substitution
This part replaces W10746435. Substitute parts can look different from the original.
BEST SELLER
$42.16 |
12% OFF Phone Price : $48.16
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Range Spark Module W10511278
#4

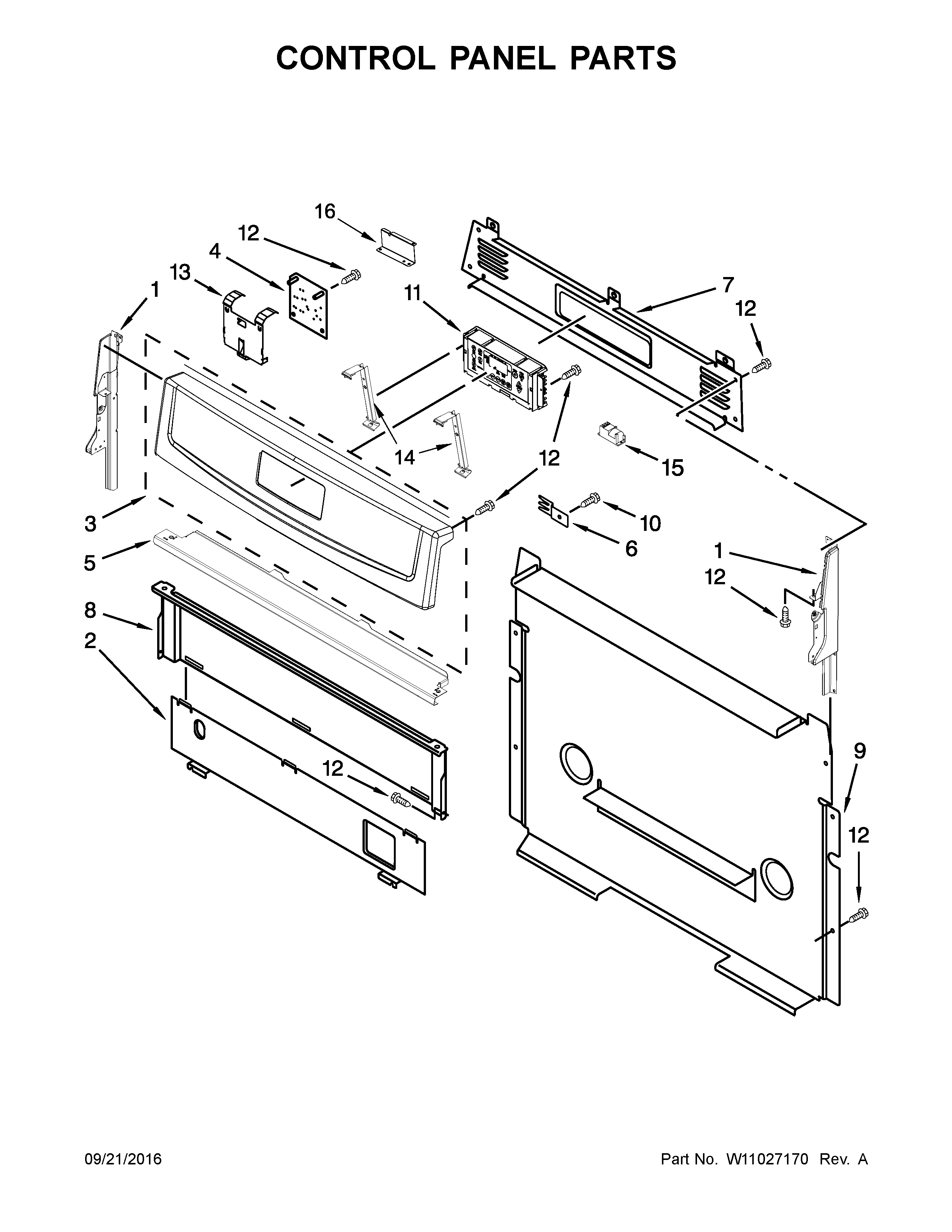

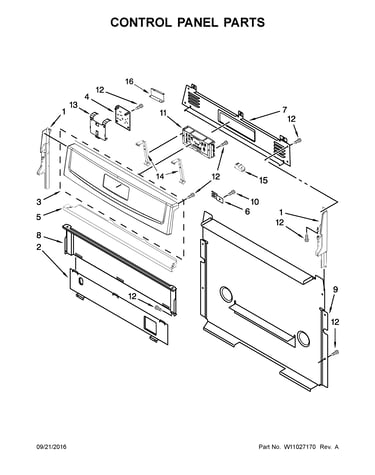

Control panel parts diagram

Range spark module

Part #W10511278

Replaced by #WPW10511278

?
Manufacturer substitution
This part replaces W10511278. Substitute parts can look different from the original.
$120.09 |
9% OFF Phone Price : $132.09
In Stock
Range Light Socket W10454648
#25

Chassis parts diagram

Range light socket

Part #W10454648

Replaced by #W11594027

?
Manufacturer substitution
This part replaces W10454648. Substitute parts can look different from the original.
$56.53 |
10% OFF Phone Price : $62.53
In Stock
