Model # KGCT305GBT1 Official KitchenAid gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCT305GBT1 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Cooktop Burner Knob 3191922
#12A

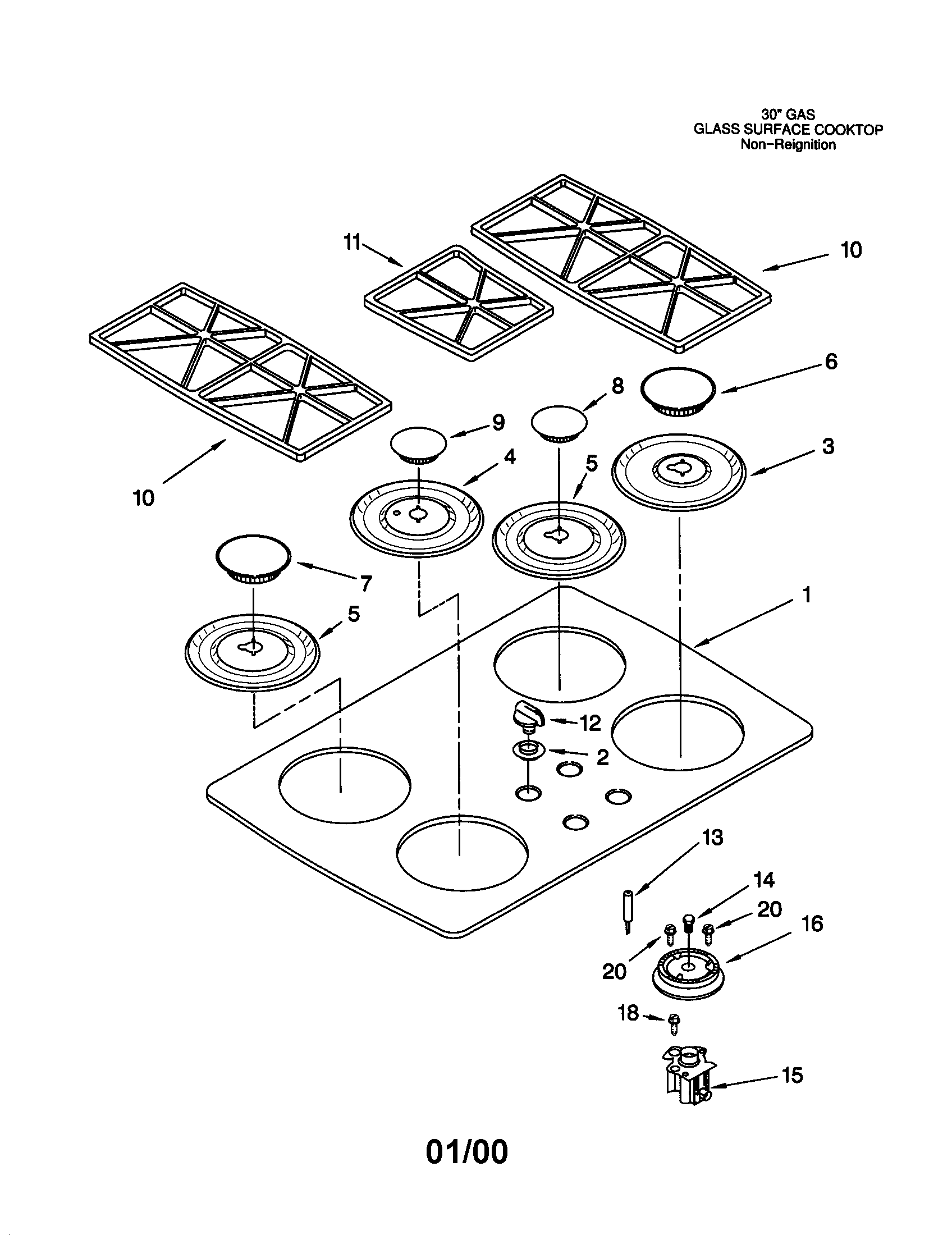

Cooktop,burner and grate diagram

Cooktop burner knob

Part #3191922

Replaced by #WP3191922

?
Manufacturer substitution
This part replaces 3191922. Substitute parts can look different from the original.
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Range Screw 4449809
#18

Cooktop,burner and grate diagram

Range screw

Part #4449809

Replaced by #WP4449809

?
Manufacturer substitution
This part replaces 4449809. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Grommet-wh 3180081
#2

Cooktop,burner and grate diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.70 |
13% OFF Phone Price : $7.70
In Stock
Cooktop Burner Head 8273215
#16A

Cooktop,burner and grate diagram

Cooktop burner head

Part #8273215

Replaced by #WP4455980

?
Manufacturer substitution
This part replaces 8273215. Substitute parts can look different from the original.
$42.69 |
12% OFF Phone Price : $48.69
In Stock
Gasket Switch 3191387
#4

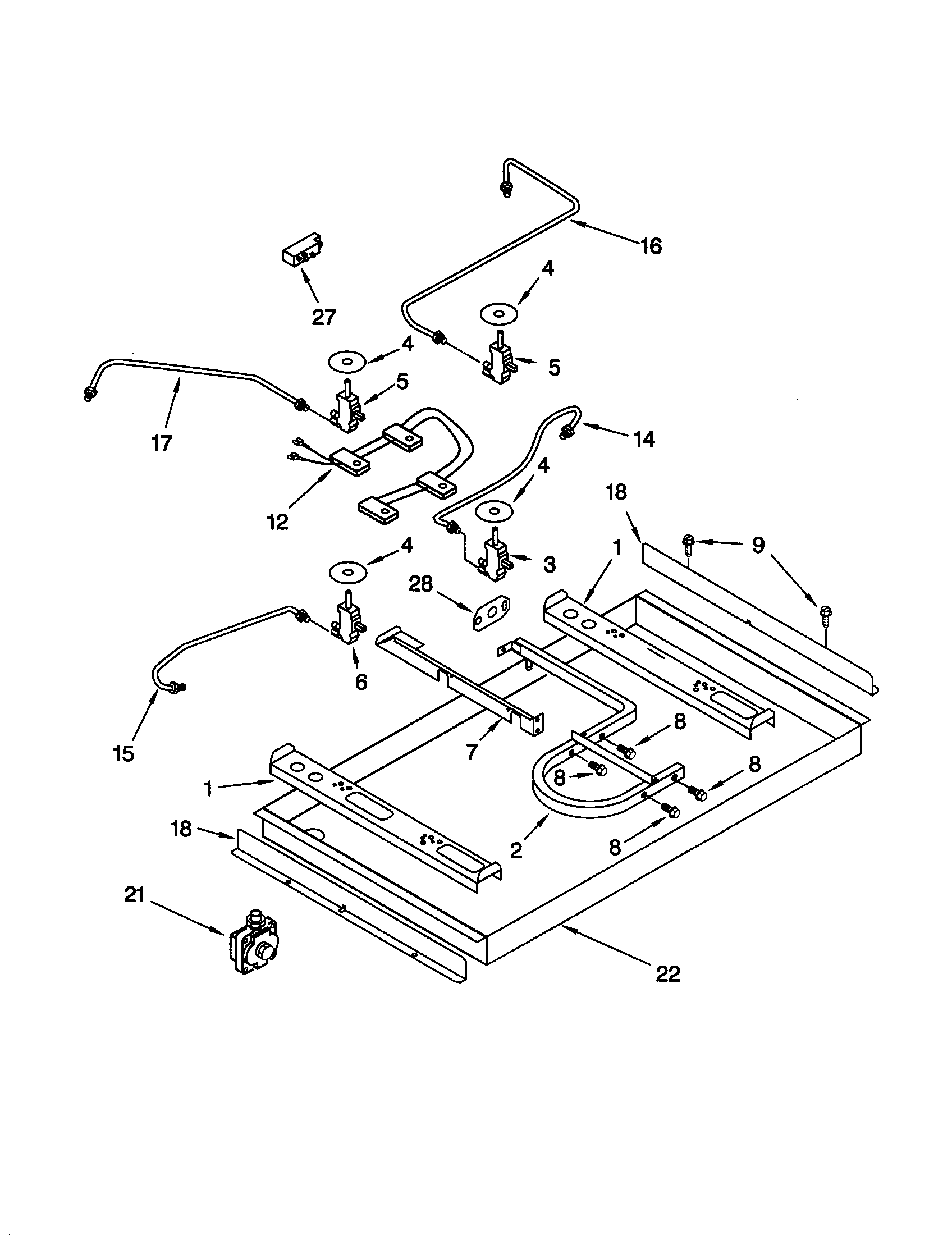

Burner box/gas valves/switches diagram

Gasket switch

Part #3191387

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3191387. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Cooktop Igniter Switch And Harness Assembly 3191334
#12

Burner box/gas valves/switches diagram

Cooktop igniter switch and harness assembly

Part #3191334

Replaced by #WP3191334

?
Manufacturer substitution
This part replaces 3191334. Substitute parts can look different from the original.
$164.89
In Stock
Range Screw 3177991
Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Range Lp Conversion Kit 3192261

#NI

All parts diagram

Range lp conversion kit

Part #3192261

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Bezel (black) 3191302
#5A

Cooktop,burner and grate diagram

Bezel (black)

Part #3191302

Replaced by #WP3424F031-09

?
Manufacturer substitution
This part replaces 3191302. Substitute parts can look different from the original.
$230.59 |
5% OFF Phone Price : $242.59
In Stock
Gas Tubing 3191324
#14

Burner box/gas valves/switches diagram

Gas tubing

Part #3191324

$49.79 |
11% OFF Phone Price : $55.79
In Stock
