Model # 23353245590 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 23353245590 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

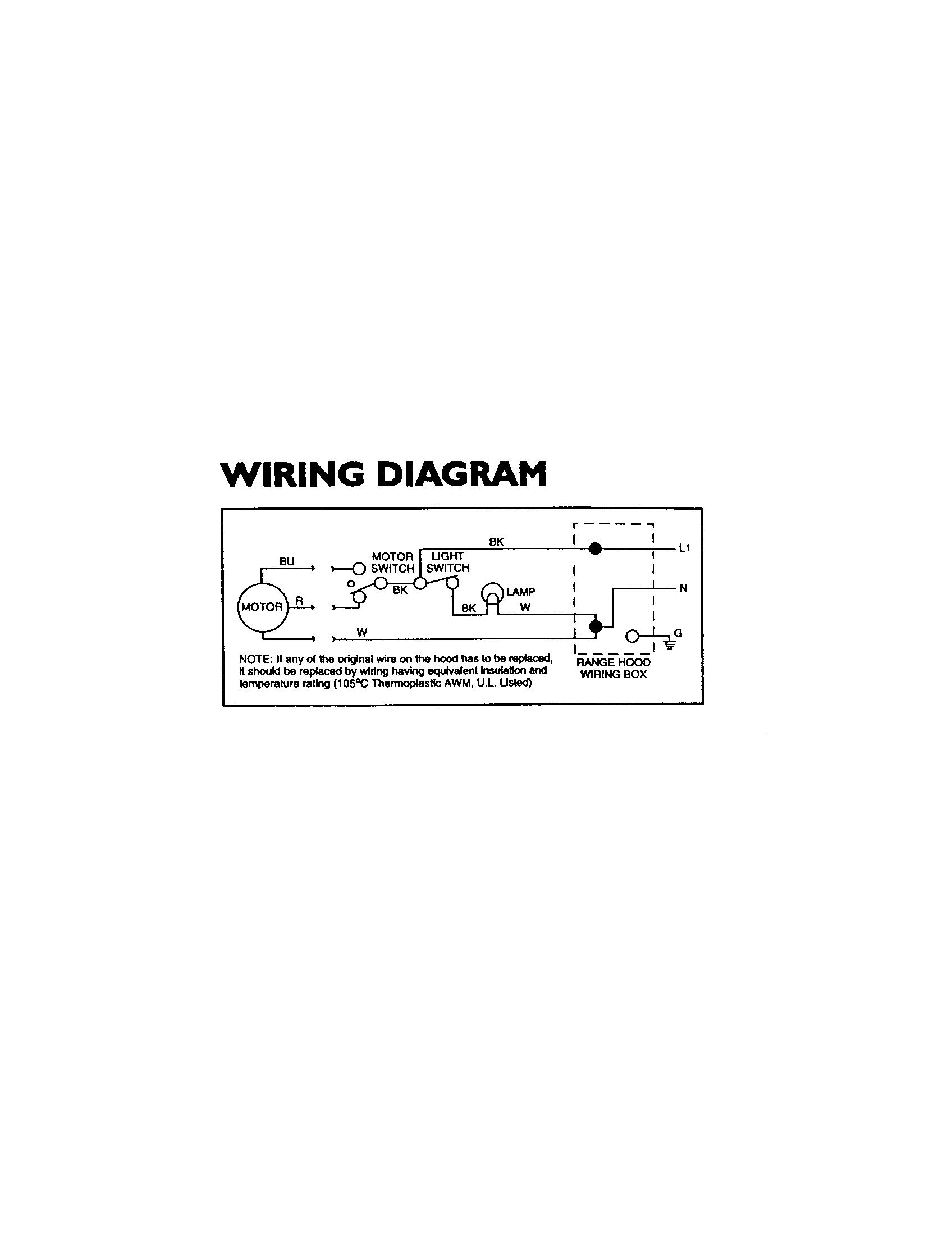

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Range Hood Blower Assembly 97012248
#10

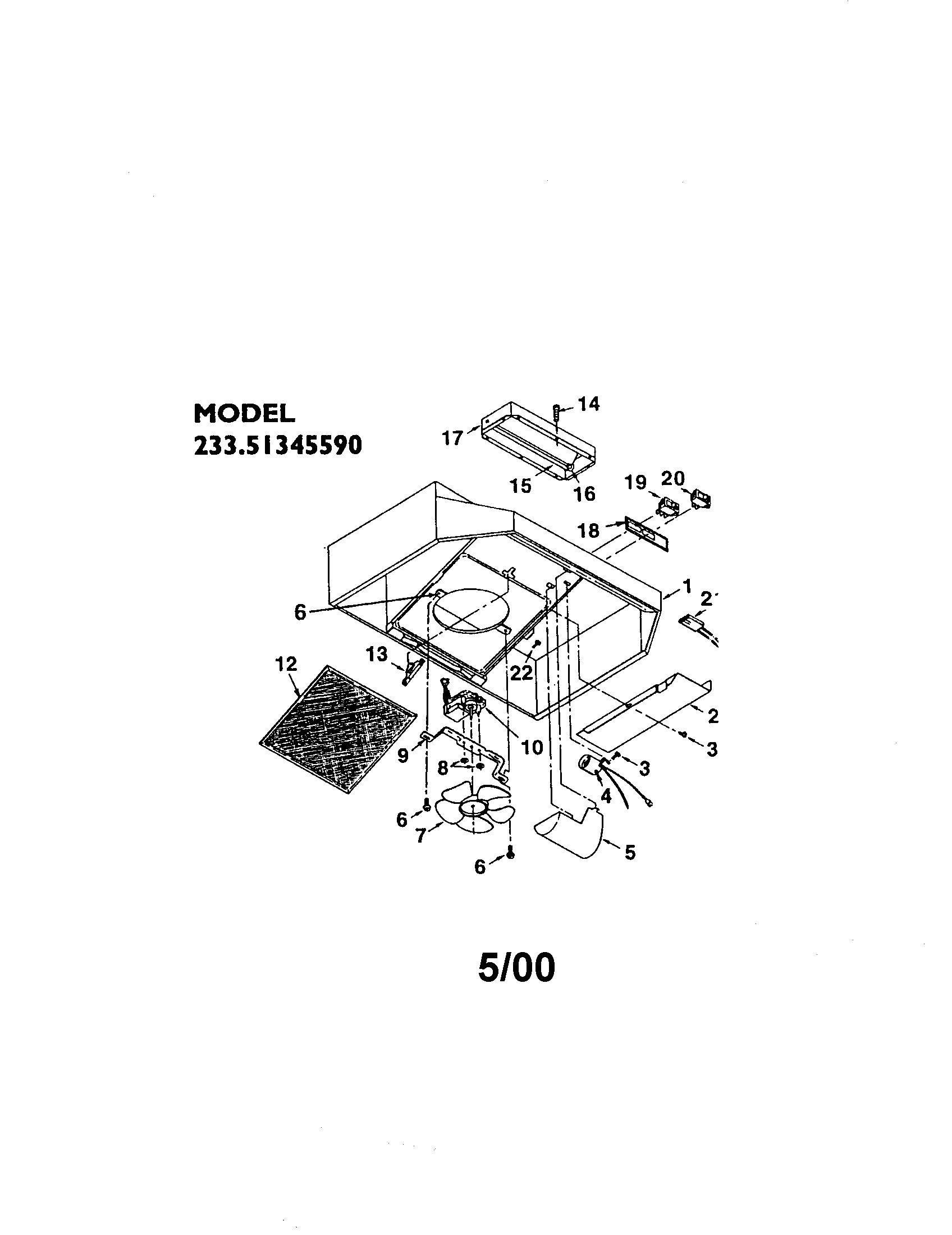

Range hood (233.51345590) diagram

Range hood blower assembly

Part #97012248

Replaced by #S97012248

?
Manufacturer substitution
This part replaces 97012248. Substitute parts can look different from the original.
$74.03 |
7% OFF Phone Price : $80.03
In Stock
Range Hood Wiring Cover 98006621
Range hood wiring cover

Part #98006621

Replaced by #S98006621

?
Manufacturer substitution
This part replaces 98006621. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
Back Order
Range Hood Filter Latch 99420472
Range hood filter latch

Part #99420472

Replaced by #S99420472

?
Manufacturer substitution
This part replaces 99420472. Substitute parts can look different from the original.
This item is not returnable
$19.92 |
9% OFF Phone Price : $21.92
In Stock
Screw Kit (gray) 97011217
Screw kit (gray)

Part #97011217

Replaced by #S97011217

?
Manufacturer substitution
This part replaces 97011217. Substitute parts can look different from the original.
$36.90
In Stock
Range Hood Fan Motor Bracket 98005568
#9

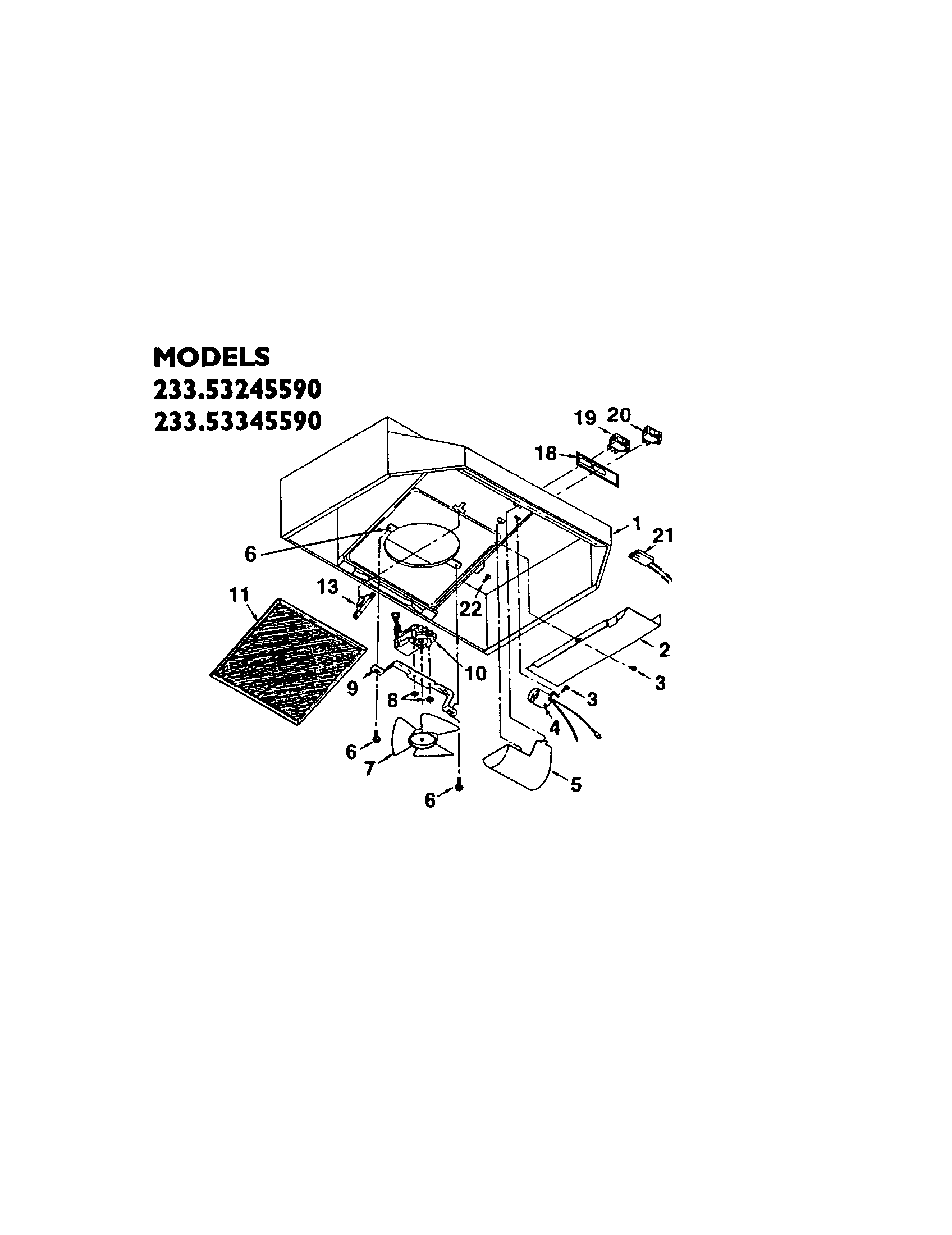

Hood (233.53245590/233.53345590) diagram

Range hood fan motor bracket

Part #98005568

Replaced by #S98005568

?
Manufacturer substitution
This part replaces 98005568. Substitute parts can look different from the original.
This item is not returnable
$3.39
In Stock
Range Hood Fan Motor 97011220
#10

Hood (233.53245590/233.53345590) diagram

Range hood fan motor

Part #97011220

Replaced by #S97011220

?
Manufacturer substitution
This part replaces 97011220. Substitute parts can look different from the original.
$45.67 |
12% OFF Phone Price : $51.67
In Stock
Switch Wht 99030248
Switch wht

Part #99030248

Replaced by #97016971

?
Manufacturer substitution
This part replaces 99030248. Substitute parts can look different from the original.
This item is not returnable
$25.71
In Stock
Switch 99030172
Switch

Part #99030172

Replaced by #97016970

?
Manufacturer substitution
This part replaces 99030172. Substitute parts can look different from the original.
$37.50 |
14% OFF Phone Price : $43.50
In Stock
Fan Blade 99020248
#7

Range hood (233.51345590) diagram

Fan blade

Part #99020248

Replaced by #S99020272

?
Manufacturer substitution
This part replaces 99020248. Substitute parts can look different from the original.
This item is not returnable
$28.80
In Stock
Blade 99020249
#7

Hood (233.53245590/233.53345590) diagram

Blade

Part #99020249

Replaced by #99020287

?
Manufacturer substitution
This part replaces 99020249. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
