Model # 103659911 Official Kenmore gas kitchen heater range

Here are the diagrams and repair parts for Official Kenmore 103659911 gas kitchen heater range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Lamp Bulb 65973

#NI

All parts diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Loxit Nut 78567
#109

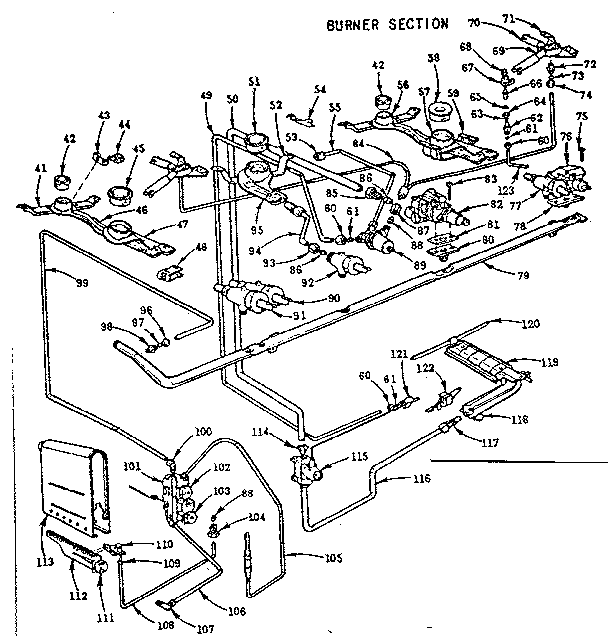

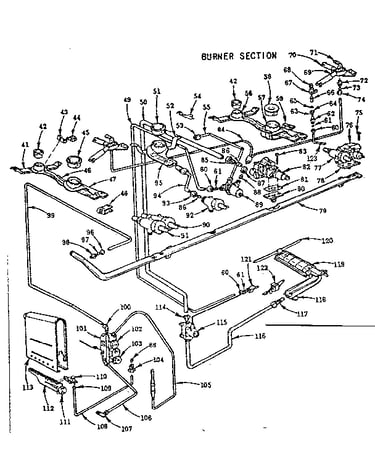

Burner section diagram

Loxit nut

Part #78567

Replaced by #100108370

?
Manufacturer substitution
This part replaces 78567. Substitute parts can look different from the original.
$36.67
In Stock
Extension Valve 79722
#94B

Burner section diagram

Extension valve

Part #79722

The manufacturer no longer makes this part, and there's no substitute part

Burner Bowl 73255
#20

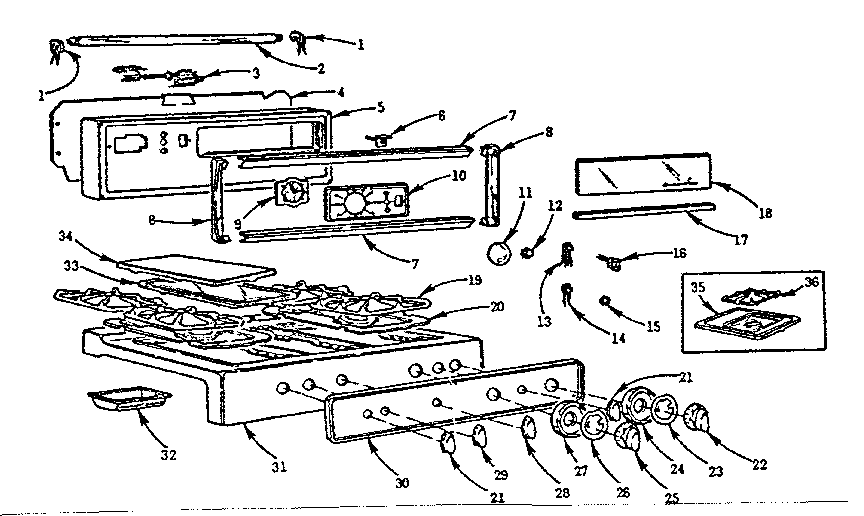

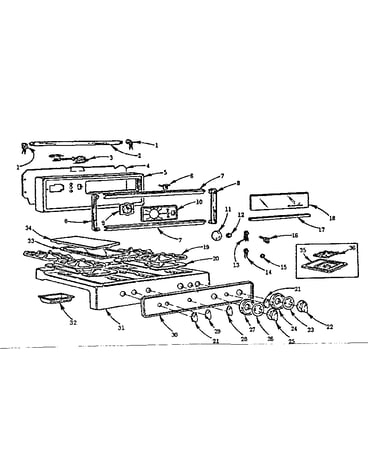

Backguard and main top diagram

Burner bowl

Part #73255

The manufacturer no longer makes this part, and there's no substitute part

Insulation 68992
#140

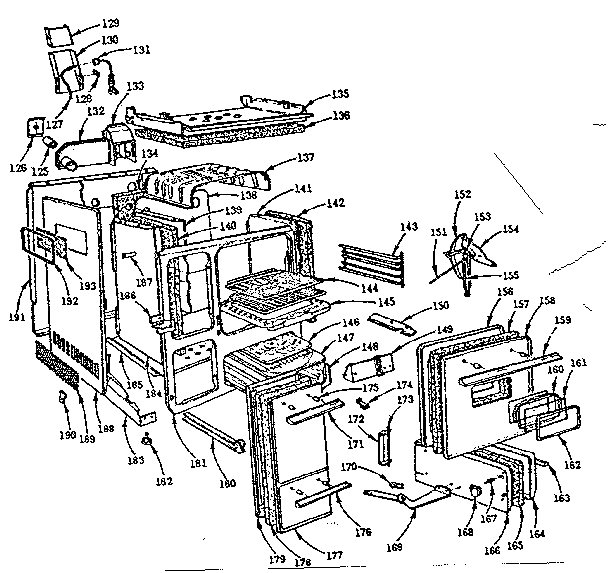

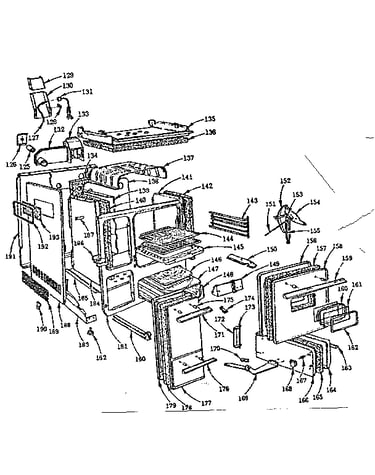

Body section diagram

Insulation

Part #68992

The manufacturer no longer makes this part, and there's no substitute part

Spud 87795
#63C

Burner section diagram

Spud

Part #87795

The manufacturer no longer makes this part, and there's no substitute part

Tubing 96470
#106

Burner section diagram

Tubing

Part #96470

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 76996
#97

Burner section diagram

Sleeve

Part #76996

The manufacturer no longer makes this part, and there's no substitute part

Valve Knob 95385
#28

Backguard and main top diagram

Valve knob

Part #95385

The manufacturer no longer makes this part, and there's no substitute part

Safety Valve 96325
#101

Burner section diagram

Safety valve

Part #96325

The manufacturer no longer makes this part, and there's no substitute part
