Model # GTL12HBXARBS Official GE refrigerator - x series
Here are the diagrams and repair parts for Official GE GTL12HBXARBS refrigerator - x series, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
GTL12HBXARBS Refrigerators
#94

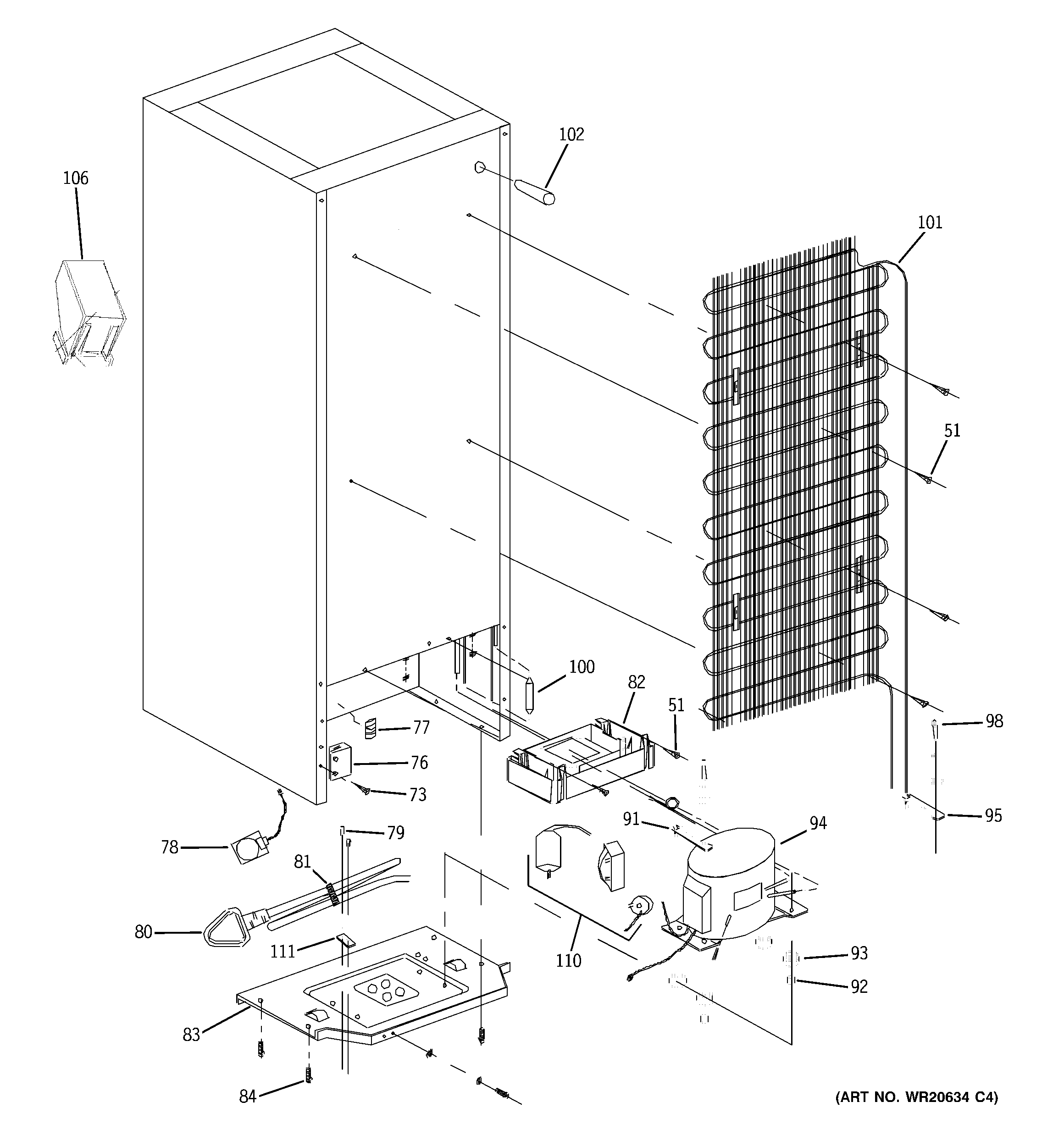

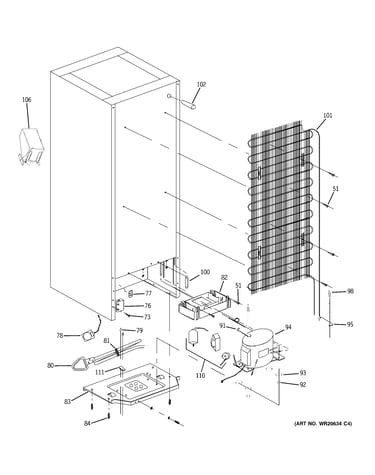

Unit parts diagram
Compressor
Part #WR87X10207
Replaced by #WR87X25693
?
Manufacturer substitution
This part replaces WR87X10207. Substitute parts can look different from the original.
$499.62
In Stock
#45

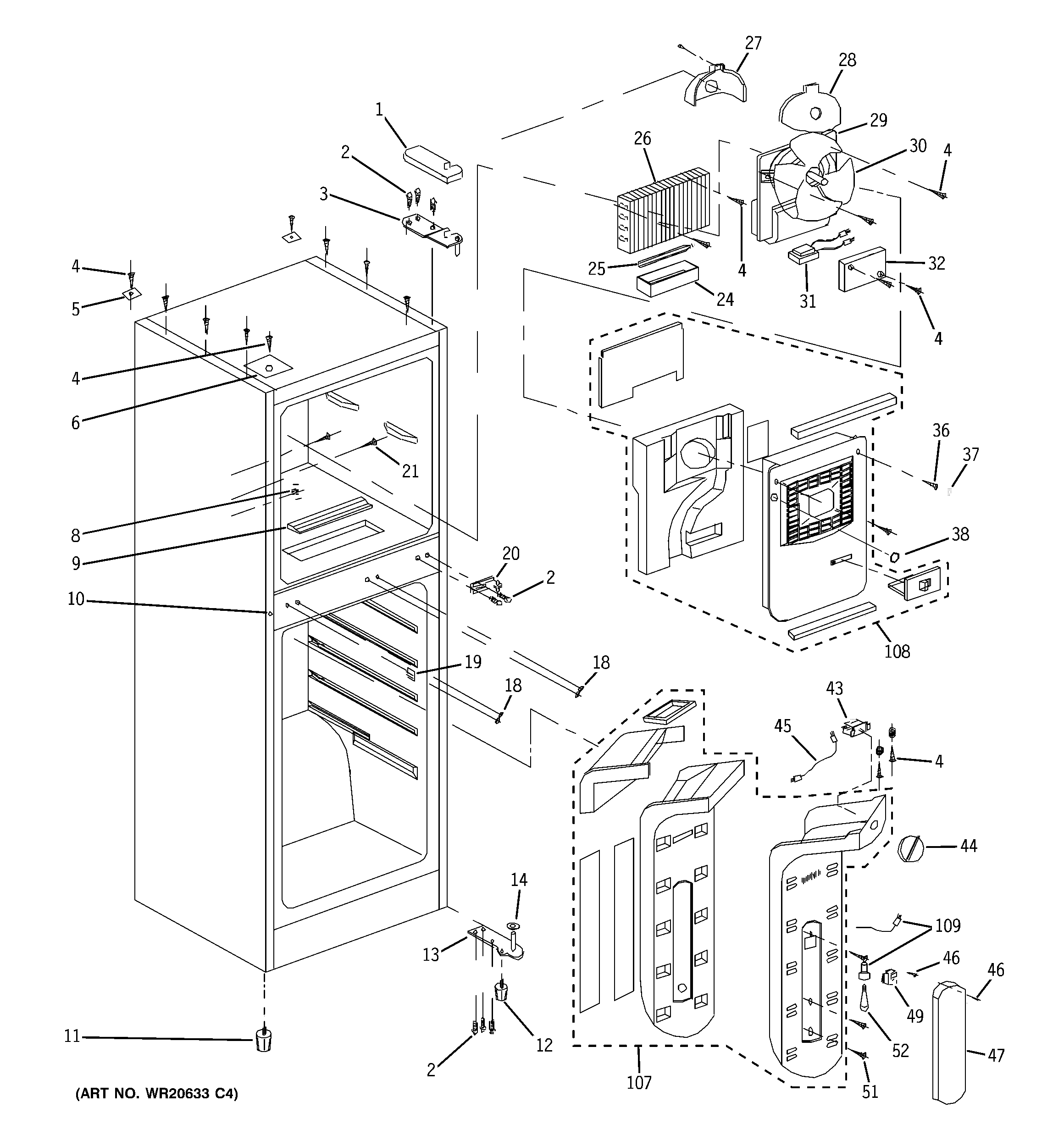

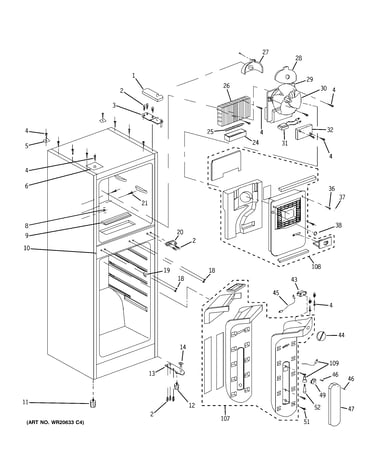

Cabinet diagram
Tc jumper
Part #WR23X10649
The manufacturer no longer makes this part, and there's no substitute part
#14
Cabinet diagram
Refrigerator door shim
Part #WR02X13101
The manufacturer no longer makes this part, and there's no substitute part
#70

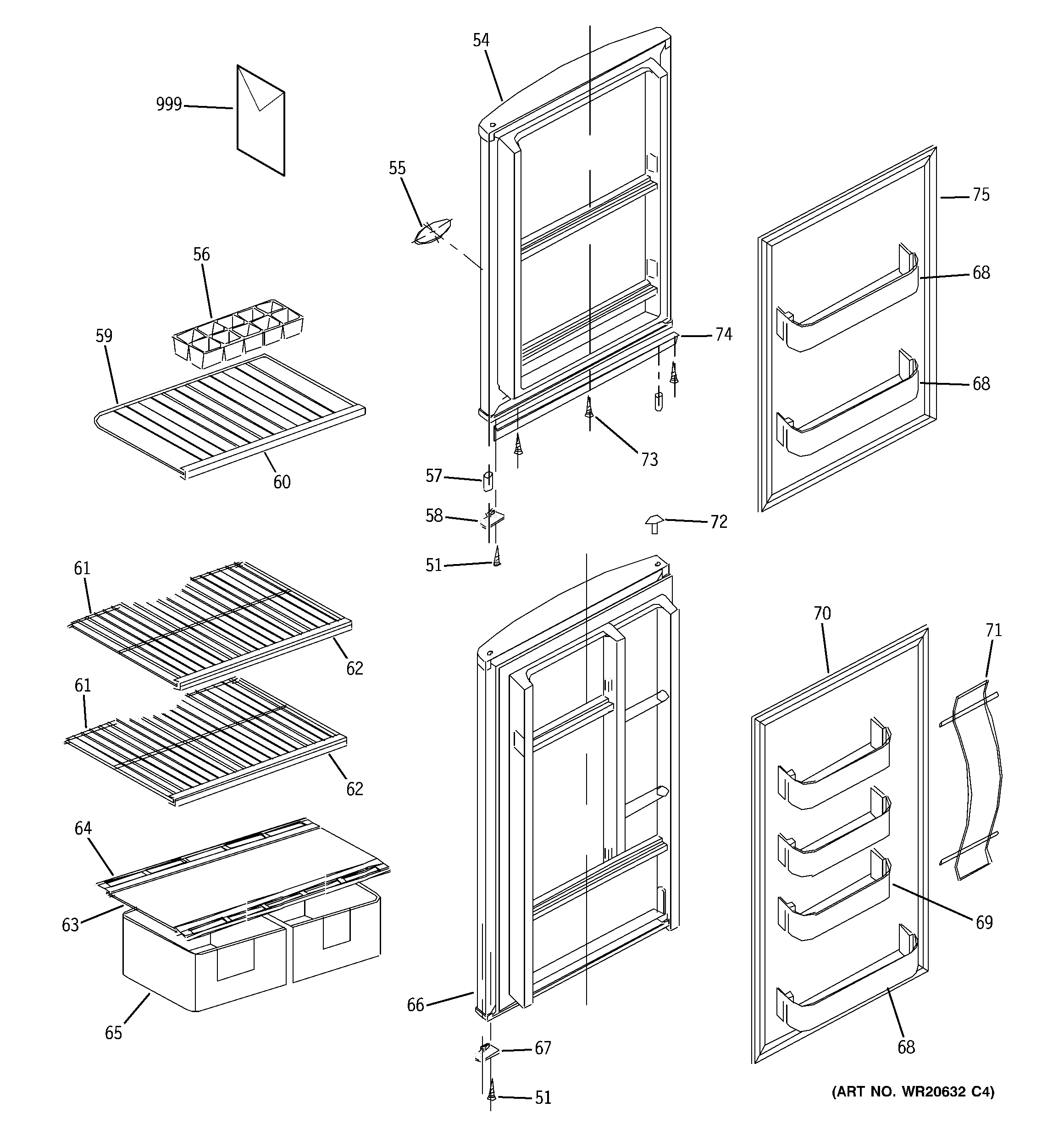

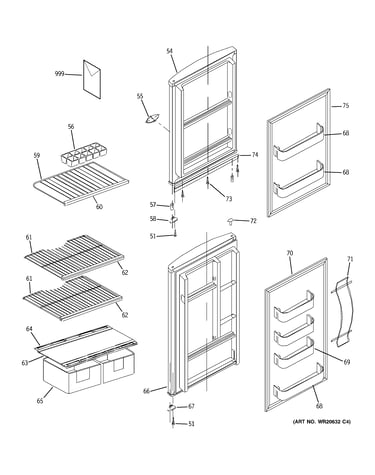

Doors diagram
Door gasket
Part #WR24X10247
The manufacturer no longer makes this part, and there's no substitute part
#101
Unit parts diagram
Refrigerator condenser
Part #WR84X10096
The manufacturer no longer makes this part, and there's no substitute part
#68
Doors diagram
Refrigerator large shelf, front
Part #WR71X10877
The manufacturer no longer makes this part, and there's no substitute part
#36
Cabinet diagram
Refrigerator screw
Part #WR01X10890
The manufacturer no longer makes this part, and there's no substitute part
#2
Cabinet diagram
Refrigerator door hinge screw
Part #WR02X13093
The manufacturer no longer makes this part, and there's no substitute part
#106
Unit parts diagram
Refrigerator water valve
Part #WR02X13244
The manufacturer no longer makes this part, and there's no substitute part
#74
Doors diagram
Airproof sti
Part #WR02X13121
The manufacturer no longer makes this part, and there's no substitute part
