Model # 5846AH Official Eureka litespeed bagless vacuum

Here are the diagrams and repair parts for Official Eureka 5846AH litespeed bagless vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Sckt,light 70701-2
#13

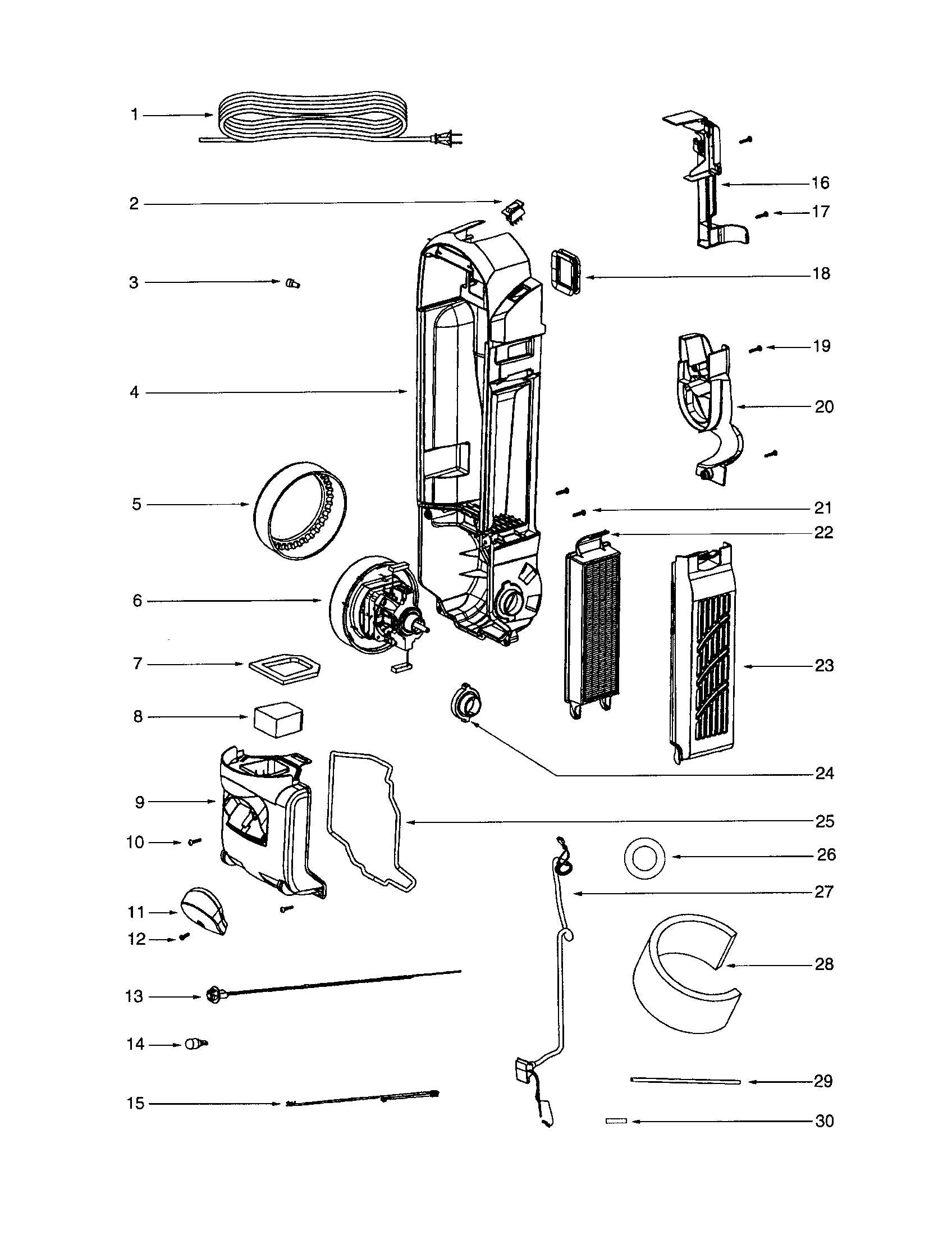

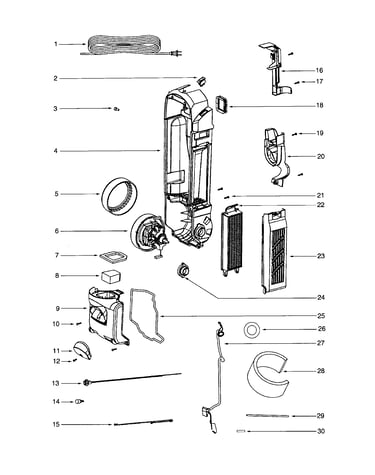

Motor/cover diagram

Sckt,light

Part #70701-2

The manufacturer no longer makes this part, and there's no substitute part

Gasket 71482
#18

Motor/cover diagram

Gasket

Part #71482

The manufacturer no longer makes this part, and there's no substitute part

Spring 61866
#9

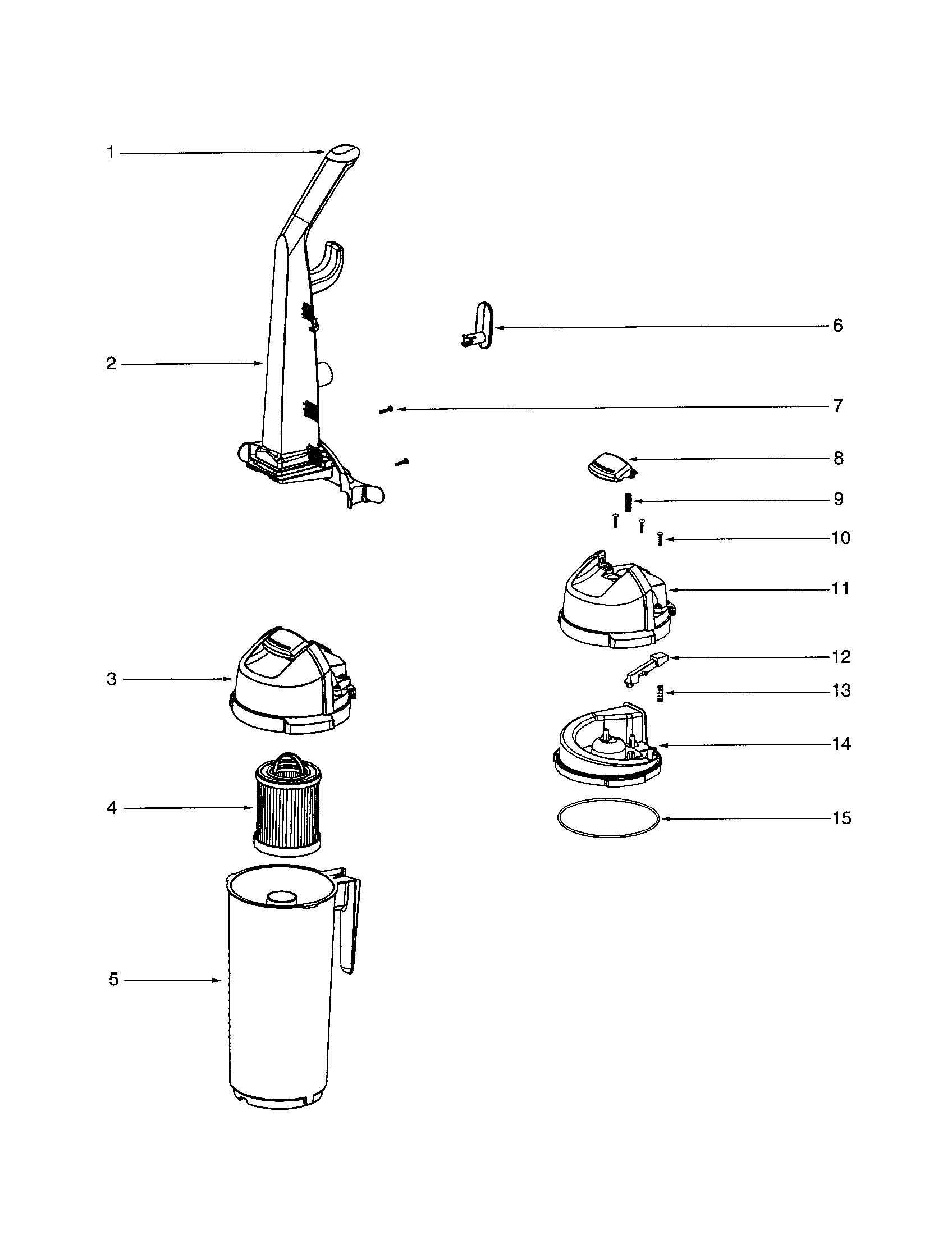

Handle/cyclone diagram

Spring

Part #61866

The manufacturer no longer makes this part, and there's no substitute part

Clamp 71487
#18

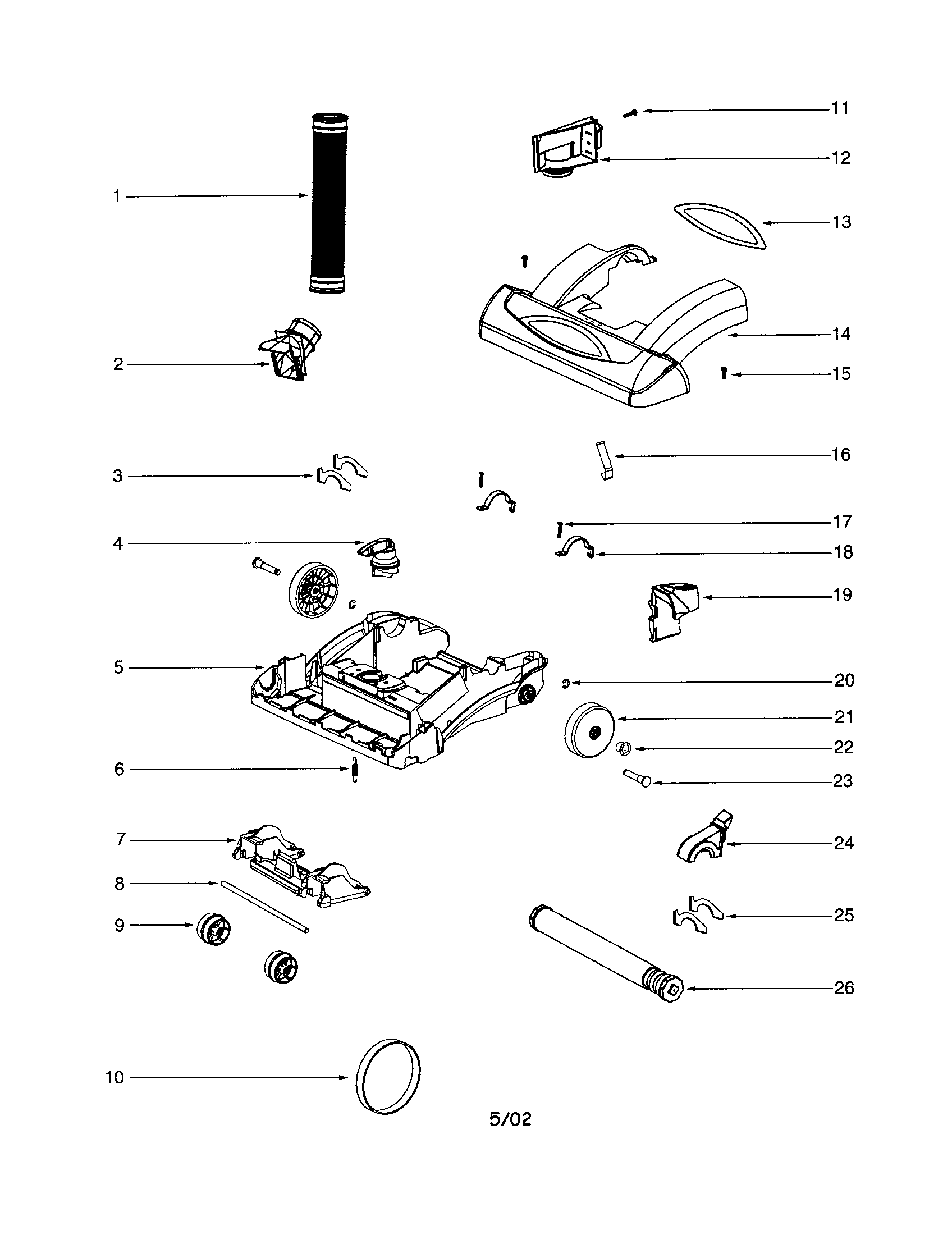

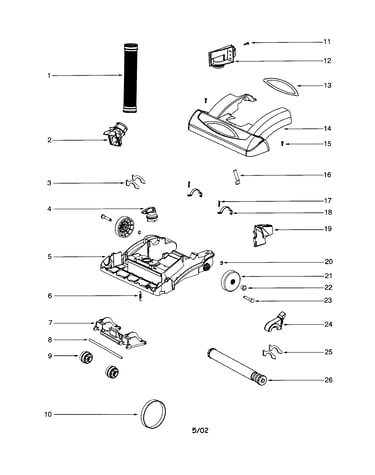

Base/hood diagram

Clamp

Part #71487

The manufacturer no longer makes this part, and there's no substitute part

Handle 71574
#16

Base/hood diagram

Handle

Part #71574

The manufacturer no longer makes this part, and there's no substitute part

Foam Sound 72224-1
#28

Motor/cover diagram

Foam sound

Part #72224-1

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 38680-29
#1

Motor/cover diagram

Ac cord

Part #38680-29

The manufacturer no longer makes this part, and there's no substitute part

Plug 72167
#30

Motor/cover diagram

Plug

Part #72167

The manufacturer no longer makes this part, and there's no substitute part

Lens 71460-313N
#11

Motor/cover diagram

Lens

Part #71460-313N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Adapter 71725-313N
#2

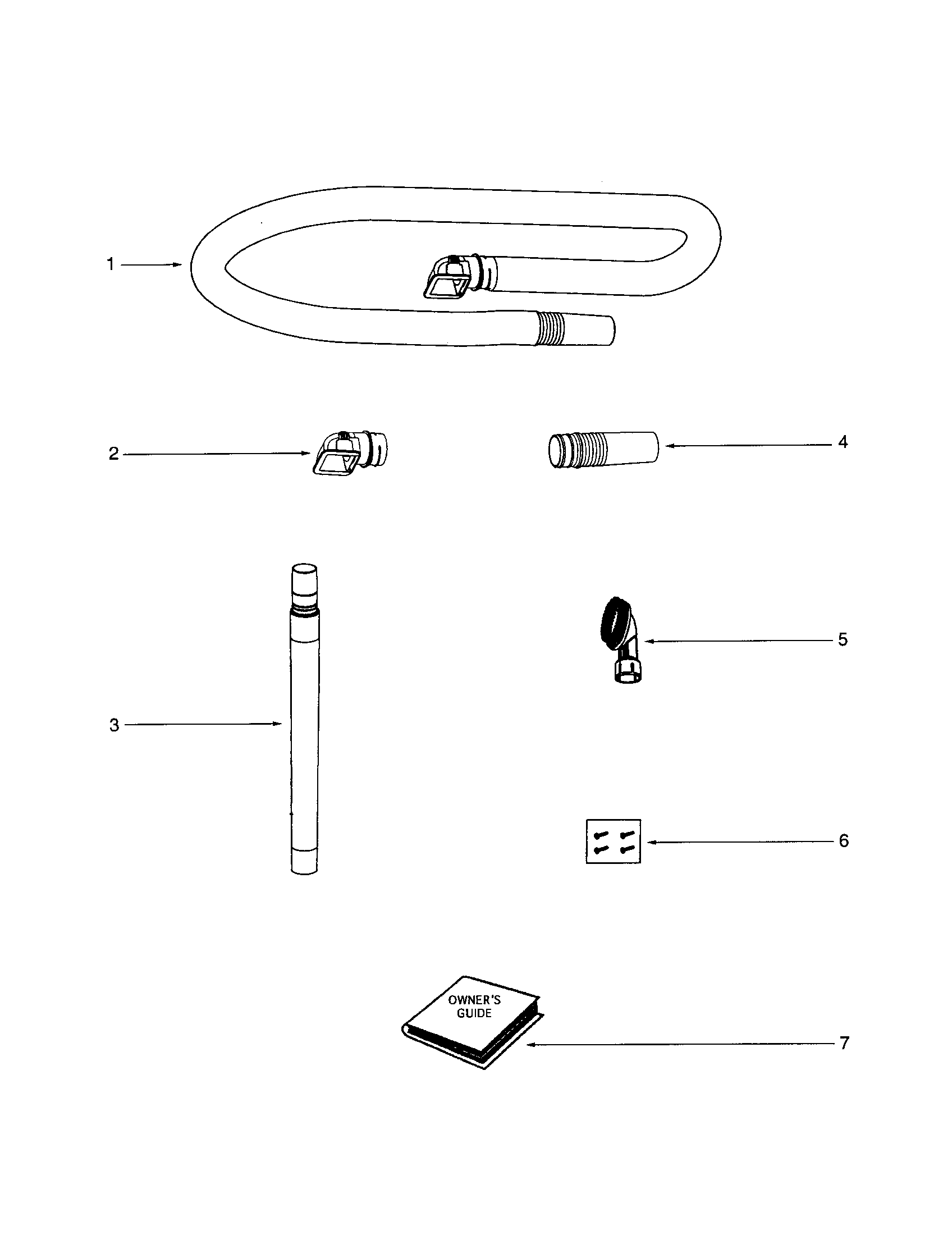

Hose diagram

Vacuum adapter

Part #71725-313N

The manufacturer no longer makes this part, and there's no substitute part
