Model # SU24S8KVLB Official Gibson dishwasher

Here are the diagrams and repair parts for Official Gibson SU24S8KVLB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

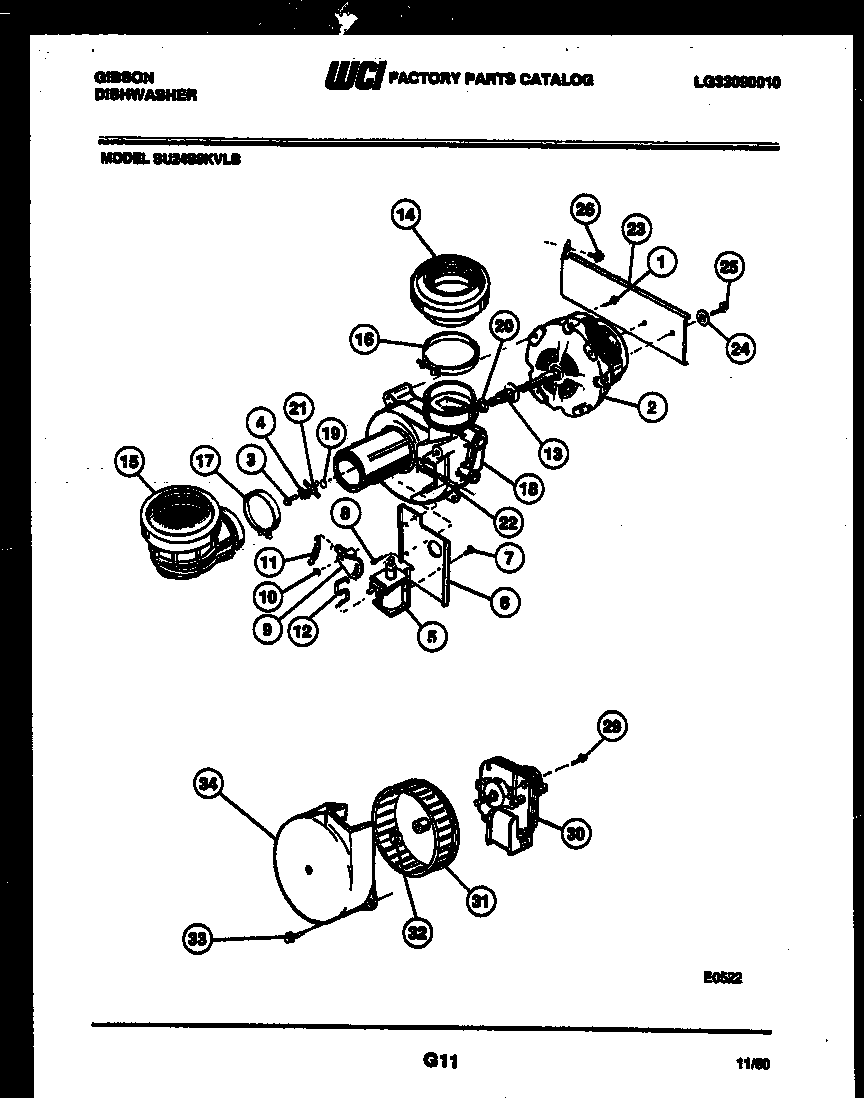

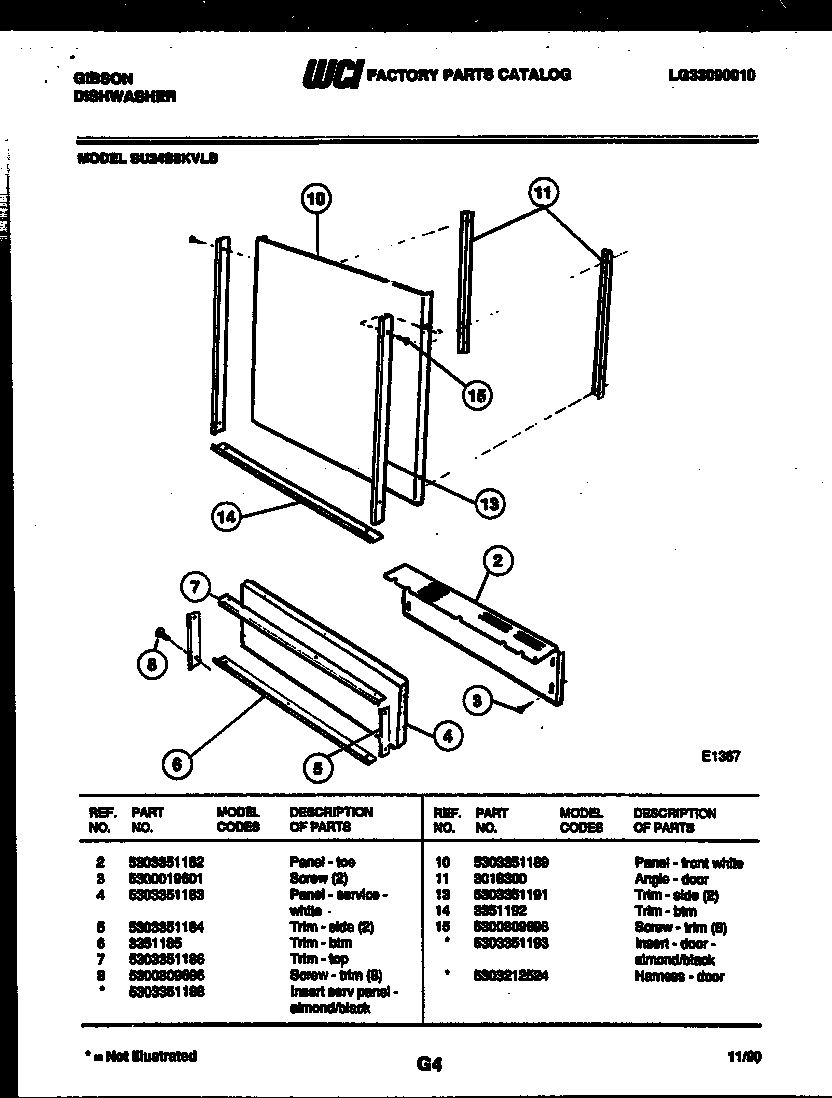

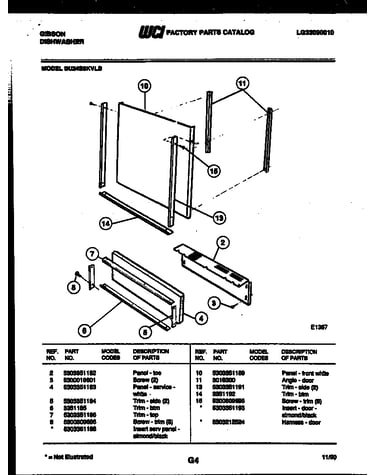

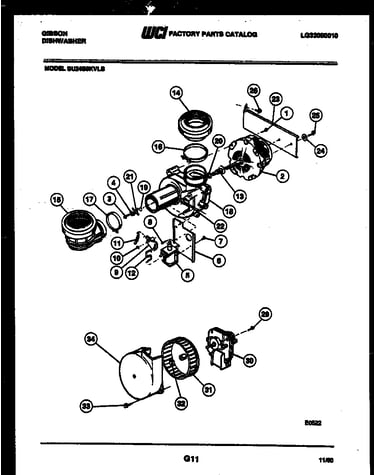

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Nut 5300806834
#8

Inner tub parts diagram

Nut

Part #5300806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 5300806834. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Basket 5300403504
#14

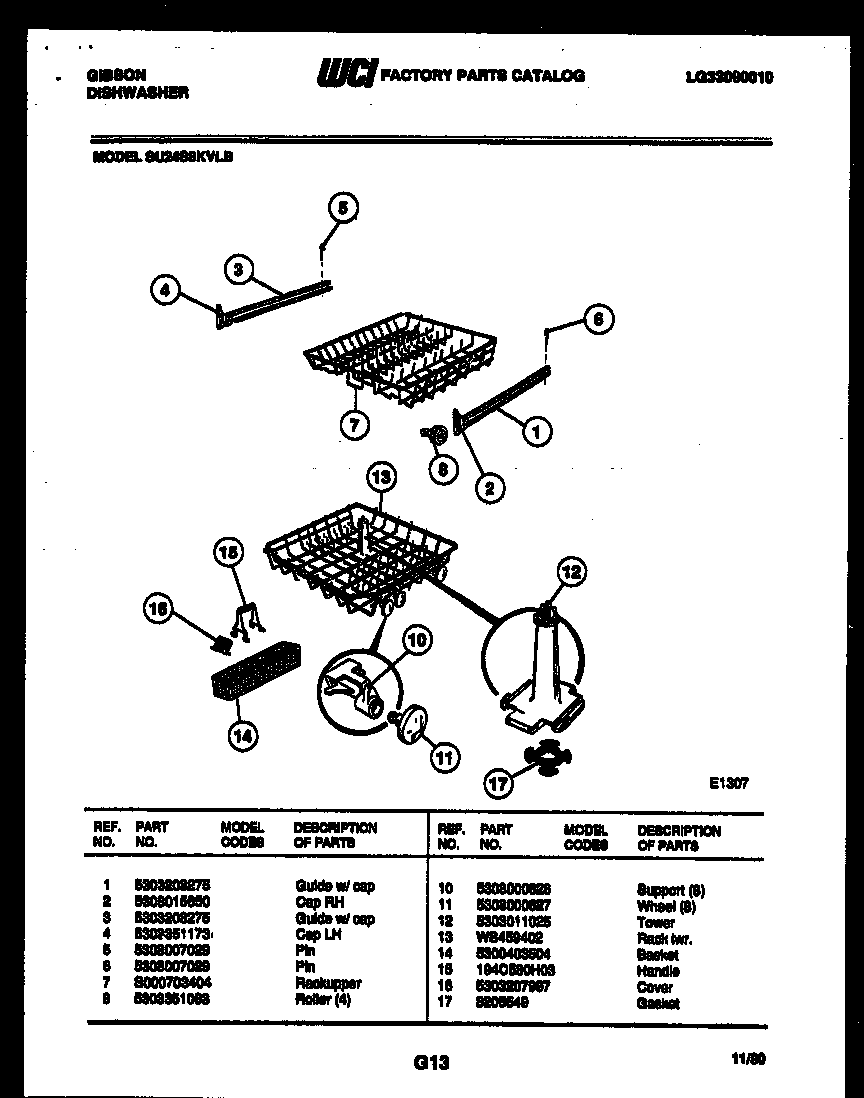

Racks and trays diagram

Basket

Part #5300403504

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 5300403504. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Gibson Bearing 5303351072
#24

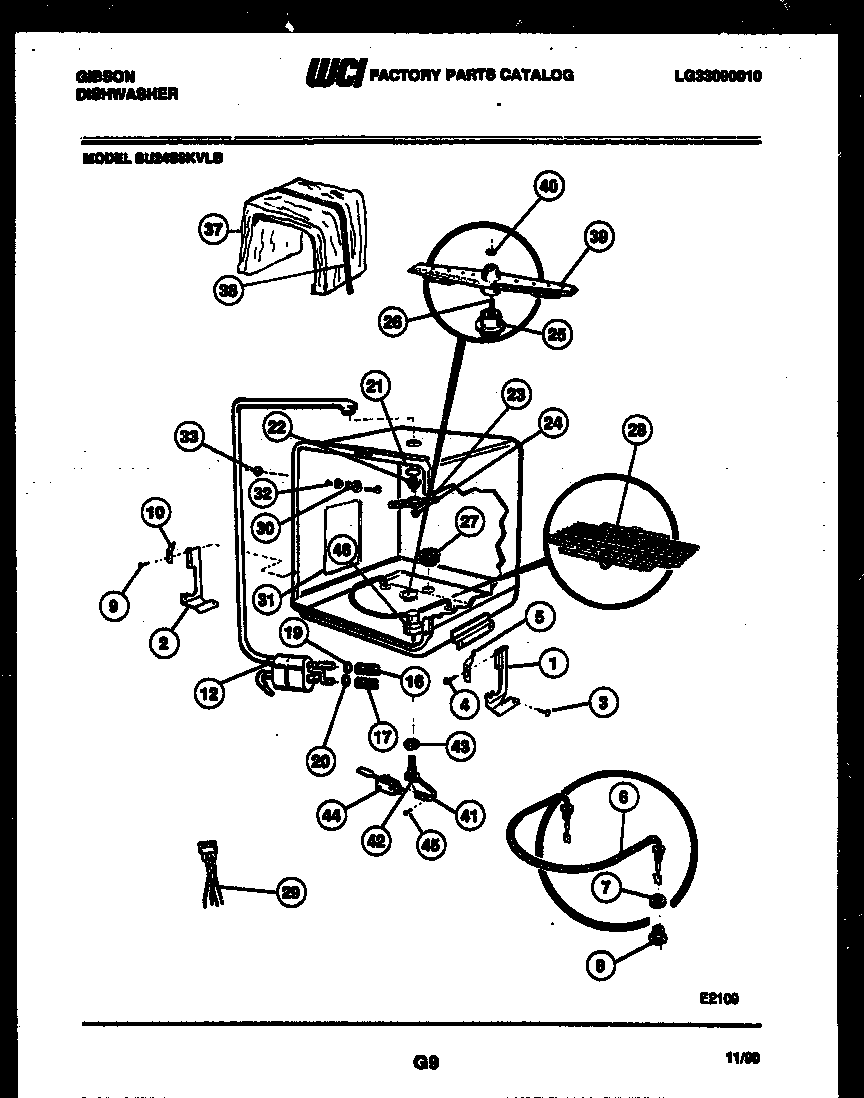

Inner tub parts diagram

Gibson bearing

Part #5303351072

This item is not returnable
$2.19
In Stock
Frigidaire Screw 3010906
#4

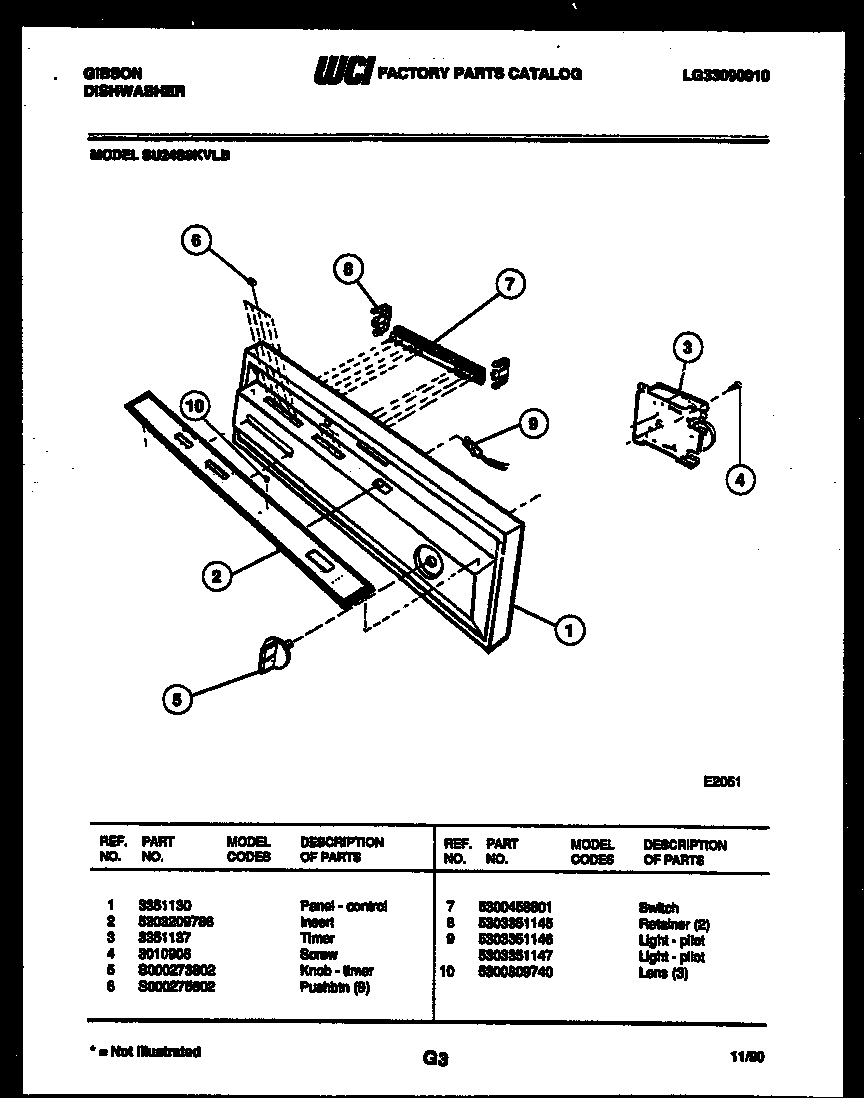

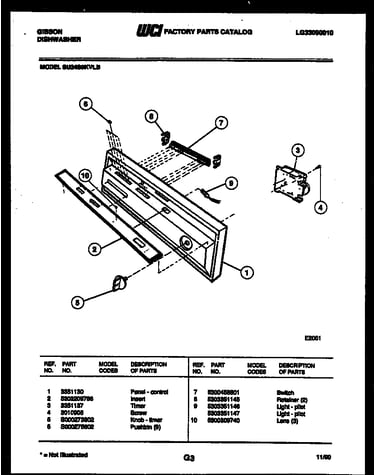

Control panel diagram

Frigidaire screw

Part #3010906

This item is not returnable
$2.16
In Stock
Gibson Screw 08014826
#42

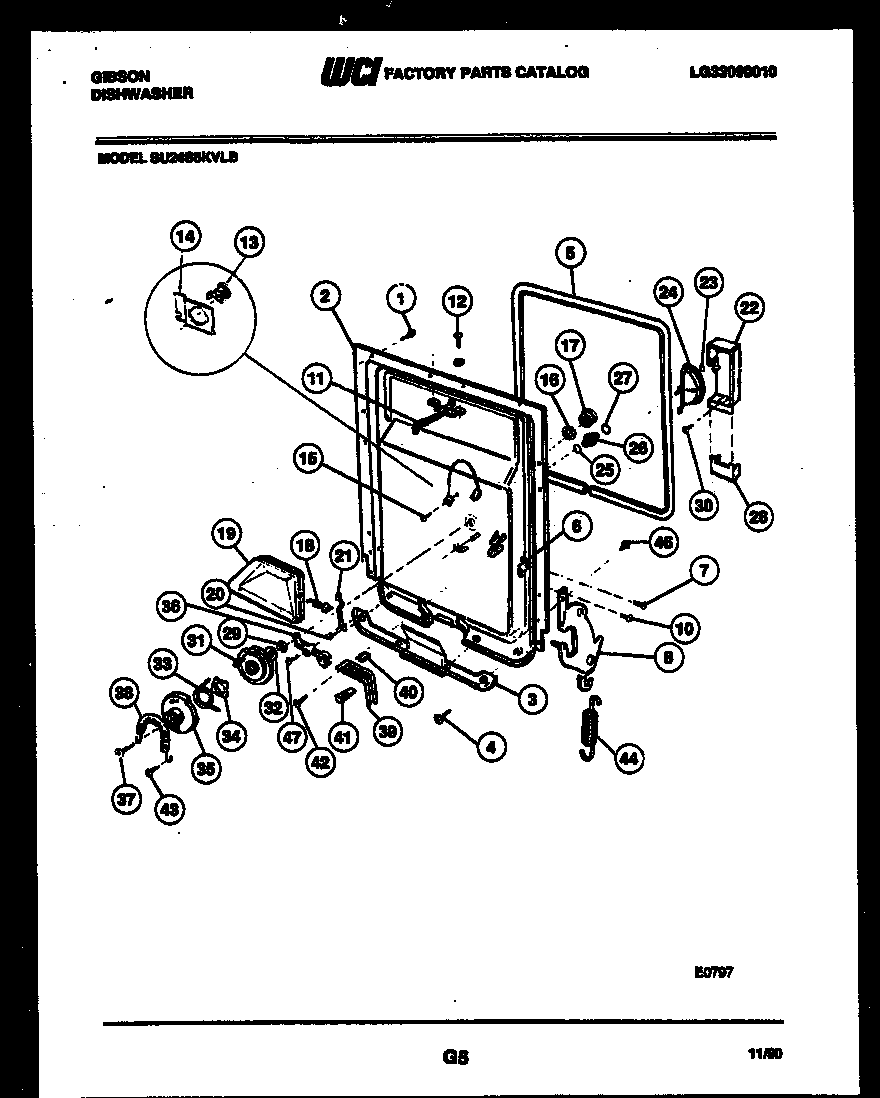

Inner door parts diagram

Gibson screw

Part #08014826

This item is not returnable
$2.16
In Stock
Gibson Screw 08014825
#4

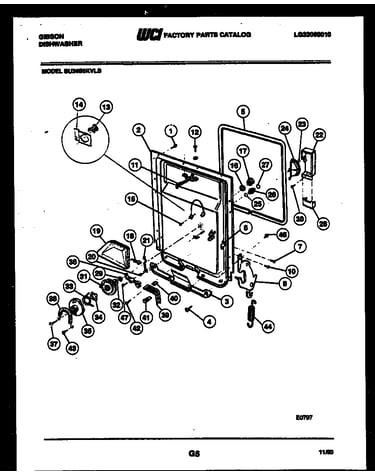

Inner door parts diagram

Gibson screw

Part #08014825

This item is not returnable
$2.16
In Stock
Gibson Screw 5300006902
#20

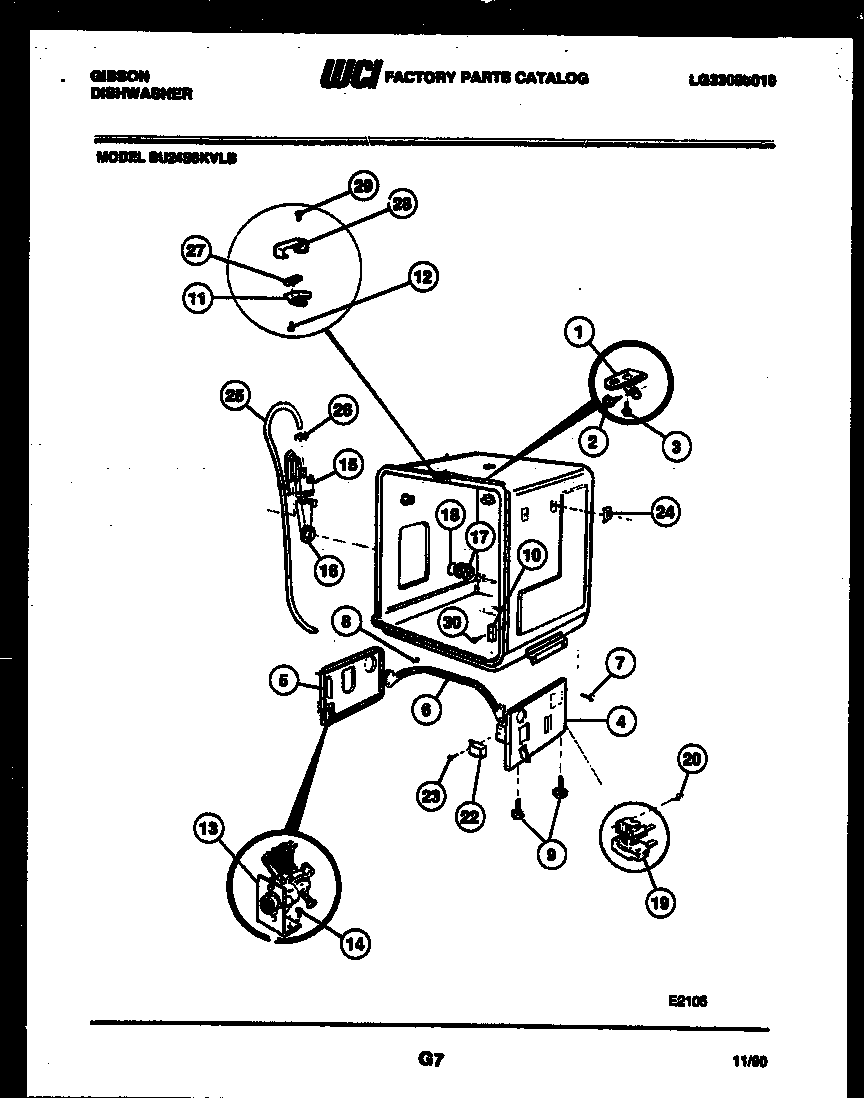

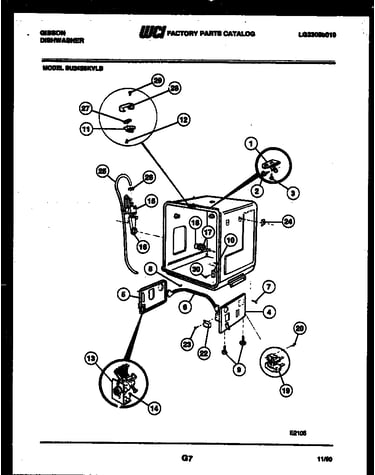

Tub and frame parts diagram

Gibson screw

Part #5300006902

This item is not returnable
$2.16
In Stock
Screw 3351094
Screw

Part #3351094

This item is not returnable
$2.16
In Stock
Gibson Hinge 5303351095
#8

Inner door parts diagram

Gibson hinge

Part #5303351095

$24.73
In Stock
Gibson Support 08057445
#5

Tub and frame parts diagram

Gibson support

Part #08057445

This item is not returnable
$6.49
In Stock
