Speaker

Model # SB-HW270P Official Panasonic audio speaker

Here are the diagrams and repair parts for Official Panasonic SB-HW270P audio speaker, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
SB-HW270P Audio Equipment
Connector RHQX1002V
#611

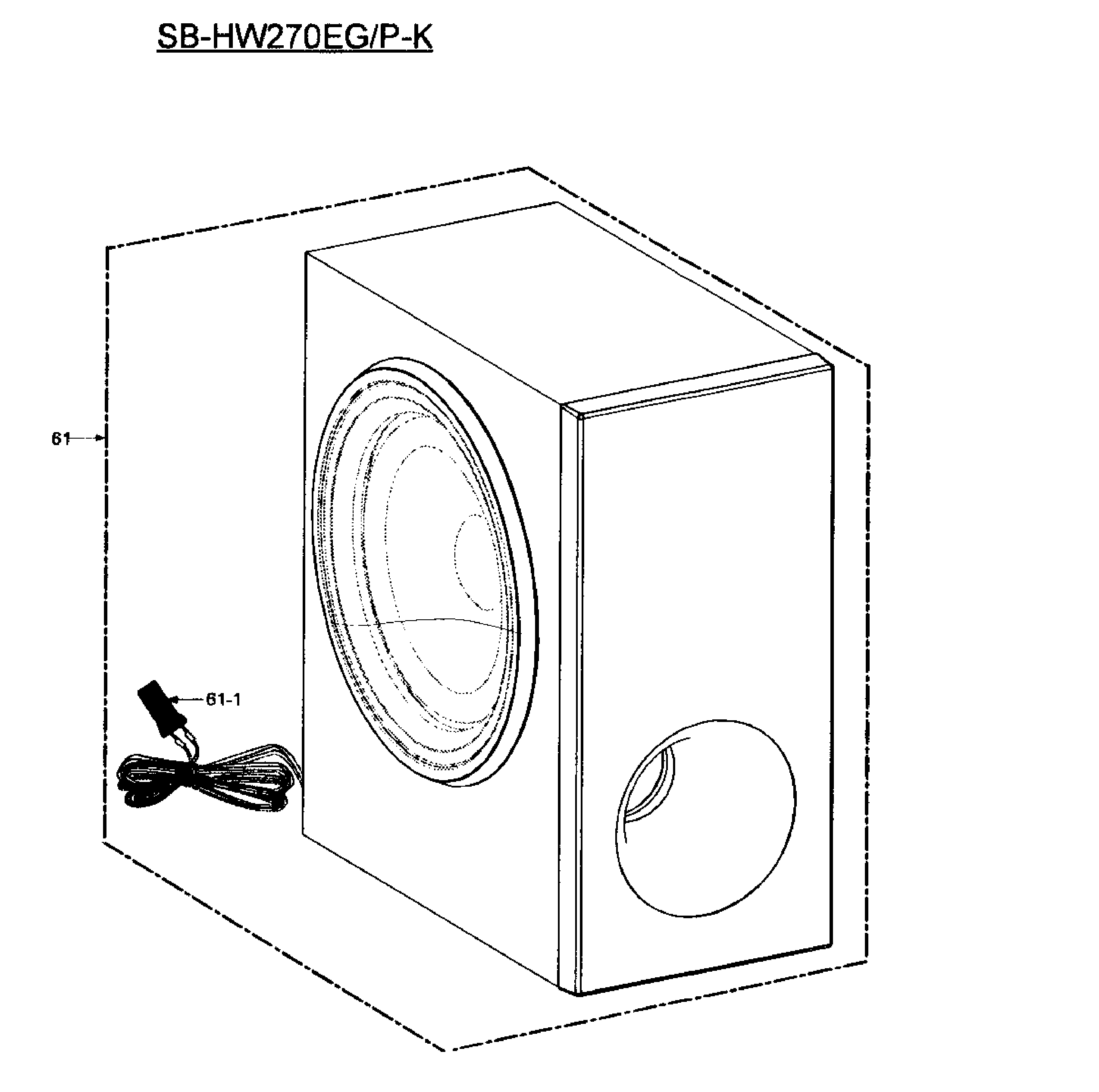

Woofer diagram

Connector

Part #RHQX1002V

The manufacturer no longer makes this part, and there's no substitute part

Woofer RFKZHW270P-K
#61

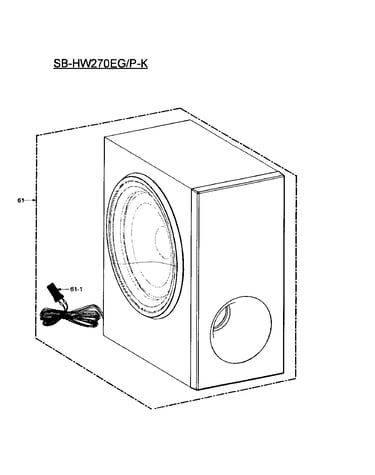

Woofer diagram

Woofer

Part #RFKZHW270P-K

The manufacturer no longer makes this part, and there's no substitute part
