Black & Decker
Bread Machine

Model # B1550 TYPE 1 Official Black & Decker bread maker

Here are the diagrams and repair parts for Official Black & Decker B1550-TYPE-1 bread maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

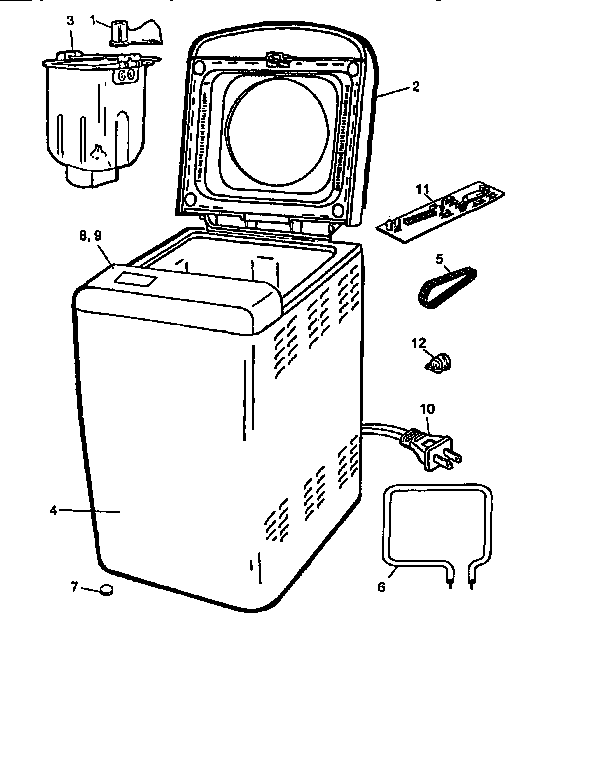

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Housing 285068-00
#4

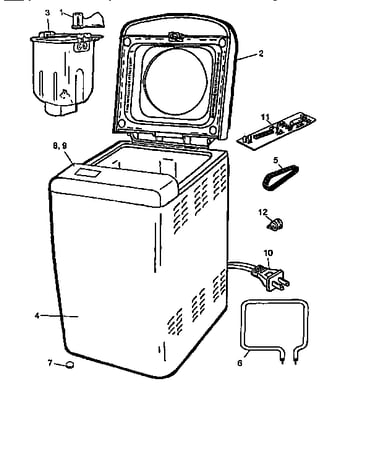

Replacement parts diagram

Housing

Part #285068-00

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 285077-01
#11A

Replacement parts diagram

Pcb assembly

Part #285077-01

The manufacturer no longer makes this part, and there's no substitute part

Panel 285072-01
#8A

Replacement parts diagram

Panel

Part #285072-01

The manufacturer no longer makes this part, and there's no substitute part

Bushing 285078-00
#12

Replacement parts diagram

Bushing

Part #285078-00

The manufacturer no longer makes this part, and there's no substitute part

Label 285073-00
#9

Replacement parts diagram

Label

Part #285073-00

The manufacturer no longer makes this part, and there's no substitute part

Label 285073-01
#9A

Replacement parts diagram

Label

Part #285073-01

The manufacturer no longer makes this part, and there's no substitute part

Housing 285068-01
#4A

Replacement parts diagram

Housing

Part #285068-01

The manufacturer no longer makes this part, and there's no substitute part

Bread Pan 285067-01
#3A

Replacement parts diagram

Bread pan

Part #285067-01

The manufacturer no longer makes this part, and there's no substitute part

Bread Pan 285067-00
#3

Replacement parts diagram

Bread pan

Part #285067-00

The manufacturer no longer makes this part, and there's no substitute part

Lid Assembly 285066-00
#2

Replacement parts diagram

Lid assembly

Part #285066-00

The manufacturer no longer makes this part, and there's no substitute part
