Model # T230ALA Official Proctor Silex two-slice toaster

Here are the diagrams and repair parts for Official Proctor Silex T230ALA two-slice toaster, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Screw 001300
#11

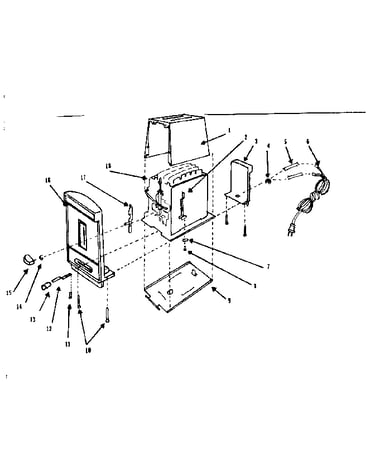

Replacement parts diagram

Screw

Part #001300

The manufacturer no longer makes this part, and there's no substitute part

Extension 628298
#17

Replacement parts diagram

Extension

Part #628298

The manufacturer no longer makes this part, and there's no substitute part

Screw 002134
#10

Replacement parts diagram

Screw

Part #002134

The manufacturer no longer makes this part, and there's no substitute part

Front Panel 909909
#16

Replacement parts diagram

Front panel

Part #909909

The manufacturer no longer makes this part, and there's no substitute part

Lifter Knob 156692
#15

Replacement parts diagram

Lifter knob

Part #156692

The manufacturer no longer makes this part, and there's no substitute part

Arm 110364
#12

Replacement parts diagram

Arm

Part #110364

The manufacturer no longer makes this part, and there's no substitute part

Spring 105005
#14

Replacement parts diagram

Spring

Part #105005

The manufacturer no longer makes this part, and there's no substitute part

Rear Panel 909819
#3

Replacement parts diagram

Rear panel

Part #909819

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 609813
#6

Replacement parts diagram

Power cord

Part #609813

The manufacturer no longer makes this part, and there's no substitute part

Relief 121006
#4

Replacement parts diagram

Relief

Part #121006

The manufacturer no longer makes this part, and there's no substitute part
