Gas Pressure Washer

Model # 580752201 Official Craftsman pressure washer

Here are the diagrams and repair parts for Official Craftsman 580752201 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Hose 205290GS
#4

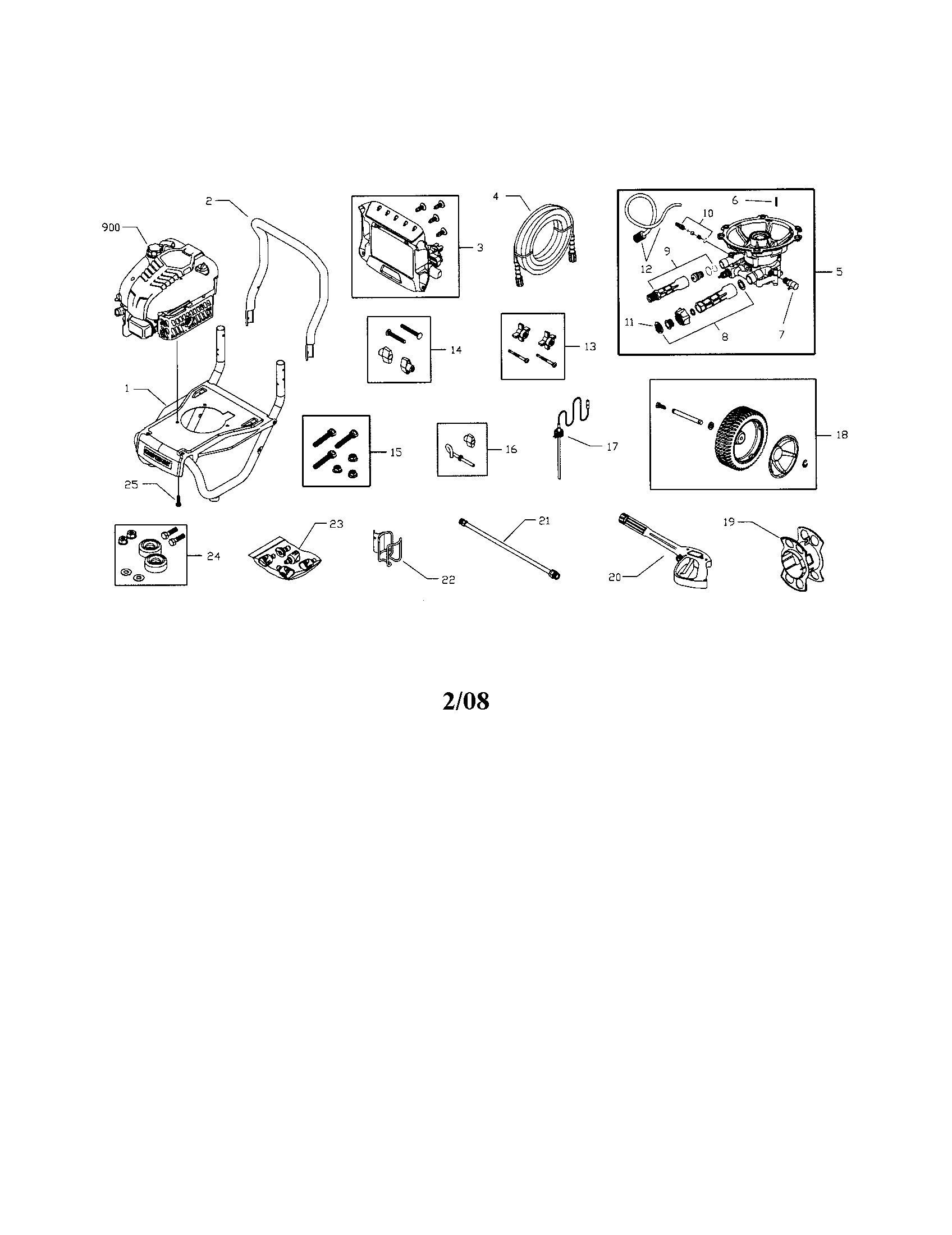

Pressure washer diagram

Hose

Part #205290GS

Replaced by #84006753

?
Manufacturer substitution
This part replaces 205290GS. Substitute parts can look different from the original.
BEST SELLER
$83.66 |
7% OFF Phone Price : $89.66
In Stock
Relief Valve 194298GS
#7

Pressure washer diagram

Relief valve

Part #194298GS

Replaced by #208673GS

?
Manufacturer substitution
This part replaces 194298GS. Substitute parts can look different from the original.
BEST SELLER
$20.84 |
22% OFF Phone Price : $26.84
In Stock
Pressure Washer Water Inlet Screen (replaces 1266330gs, B2384) B2384GS
#11

Pressure washer diagram

Pressure washer water inlet screen (replaces 1266330gs, b2384)

Part #B2384GS

BEST SELLER
This item is not returnable
$6.04 |
14% OFF Phone Price : $7.04
In Stock
Extension Wand 200595GS
#21

Pressure washer diagram

Extension wand

Part #200595GS

Replaced by #706595

?
Manufacturer substitution
This part replaces 200595GS. Substitute parts can look different from the original.
$50.80 |
11% OFF Phone Price : $56.80
In Stock
Gun Assembly 204627GS
#20

Pressure washer diagram

Gun assembly

Part #204627GS

Replaced by #84003228

?
Manufacturer substitution
This part replaces 204627GS. Substitute parts can look different from the original.
BEST SELLER
$104.22 |
10% OFF Phone Price : $116.22
In Stock
Pressure Washer Garden Hose Quick-connect 7175187GS

#NI10

All parts diagram

Pressure washer garden hose quick-connect

Part #7175187GS

Replaced by #6190

?
Manufacturer substitution
This part replaces 7175187GS. Substitute parts can look different from the original.
$24.09 |
20% OFF Phone Price : $30.09
In Stock
Generac Pressure Washer Vibration Kit 192310GS
#24

Pressure washer diagram

Generac pressure washer vibration kit

Part #192310GS

This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Connector 7175197GS

#NI11

All parts diagram

Connector

Part #7175197GS

Replaced by #312981GS

?
Manufacturer substitution
This part replaces 7175197GS. Substitute parts can look different from the original.
$43.27 |
12% OFF Phone Price : $49.27
In Stock
Pressure Washer Detergent Spray Nozzle 198841GS
#23A

Pressure washer diagram

Pressure washer detergent spray nozzle

Part #198841GS

This item is not returnable
$18.09 |
10% OFF Phone Price : $20.09
In Stock
Pressure Washer Spray Nozzle 201580XGS
#23D

Pressure washer diagram

Pressure washer spray nozzle

Part #201580XGS

Replaced by #195983XGS

?
Manufacturer substitution
This part replaces 201580XGS. Substitute parts can look different from the original.
This item is not returnable
$18.09 |
10% OFF Phone Price : $20.09
In Stock
