Model # 1106118231 Official Kenmore electric dryer

Here are the diagrams and repair parts for Official Kenmore 1106118231 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Catch 236877
#77

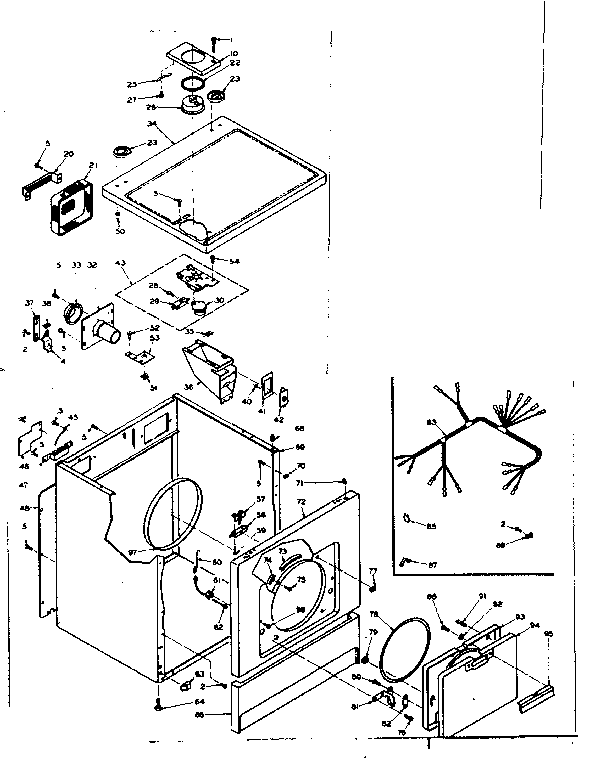

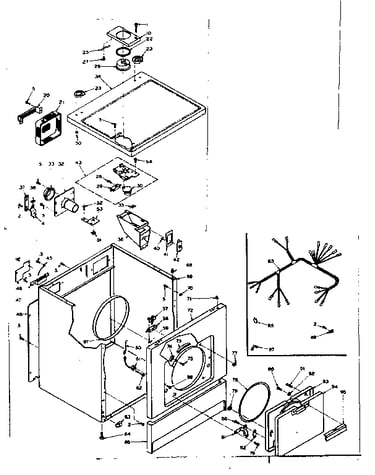

Machine sub-assembly diagram

Catch

Part #236877

Replaced by #279570

?
Manufacturer substitution
This part replaces 236877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.91 |
20% OFF Phone Price : $4.91
In Stock
Door Strike 236876
#91

Machine sub-assembly diagram

Door strike

Part #236876

Replaced by #279570

?
Manufacturer substitution
This part replaces 236876. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.91 |
20% OFF Phone Price : $4.91
In Stock
Terminal Block 230148
#47

Machine sub-assembly diagram

Terminal block

Part #230148

Replaced by #279320

?
Manufacturer substitution
This part replaces 230148. Substitute parts can look different from the original.
$34.89 |
15% OFF Phone Price : $40.89
In Stock
Dryer Top Panel Clip 18776
#71

Machine sub-assembly diagram

Dryer top panel clip

Part #18776

Replaced by #WP18776

?
Manufacturer substitution
This part replaces 18776. Substitute parts can look different from the original.
This item is not returnable
$7.68 |
12% OFF Phone Price : $8.68
In Stock
Support Kit 237636
#74

Machine sub-assembly diagram

Support kit

Part #237636

Replaced by #279264

?
Manufacturer substitution
This part replaces 237636. Substitute parts can look different from the original.
$54.63 |
10% OFF Phone Price : $60.63
In Stock
Seal 296644
#97

Machine sub-assembly diagram

Seal

Part #296644

Replaced by #279264

?
Manufacturer substitution
This part replaces 296644. Substitute parts can look different from the original.
$54.63 |
10% OFF Phone Price : $60.63
In Stock
Hinge 238460
#81

Machine sub-assembly diagram

Hinge

Part #238460

Replaced by #WP238460

?
Manufacturer substitution
This part replaces 238460. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Door Seal 234800
#78

Machine sub-assembly diagram

Door seal

Part #234800

Replaced by #W11613302

?
Manufacturer substitution
This part replaces 234800. Substitute parts can look different from the original.
$18.76
In Stock
Clip 237818
#63

Machine sub-assembly diagram

Clip

Part #237818

Replaced by #279638

?
Manufacturer substitution
This part replaces 237818. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Bearing Ring 296780
#54

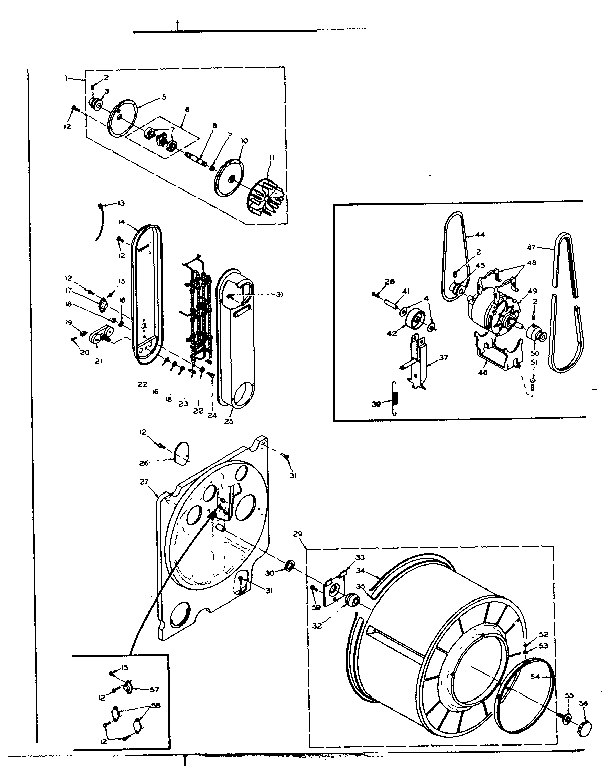

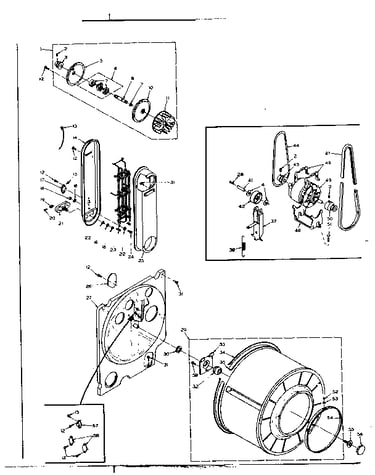

Bulkhead assembly diagram

Bearing ring

Part #296780

Replaced by #WP3394508

?
Manufacturer substitution
This part replaces 296780. Substitute parts can look different from the original.
$47.85 |
11% OFF Phone Price : $53.85
In Stock
